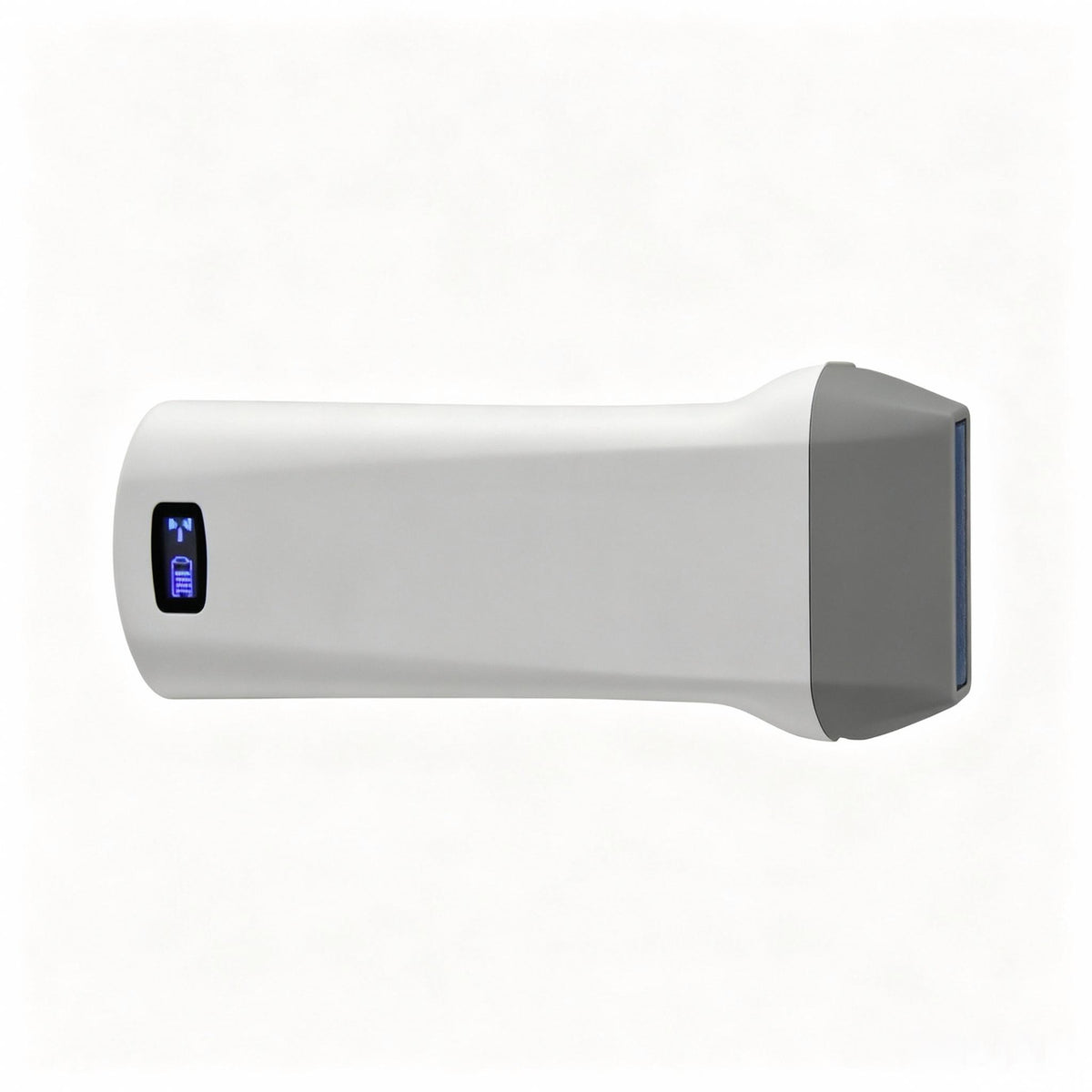

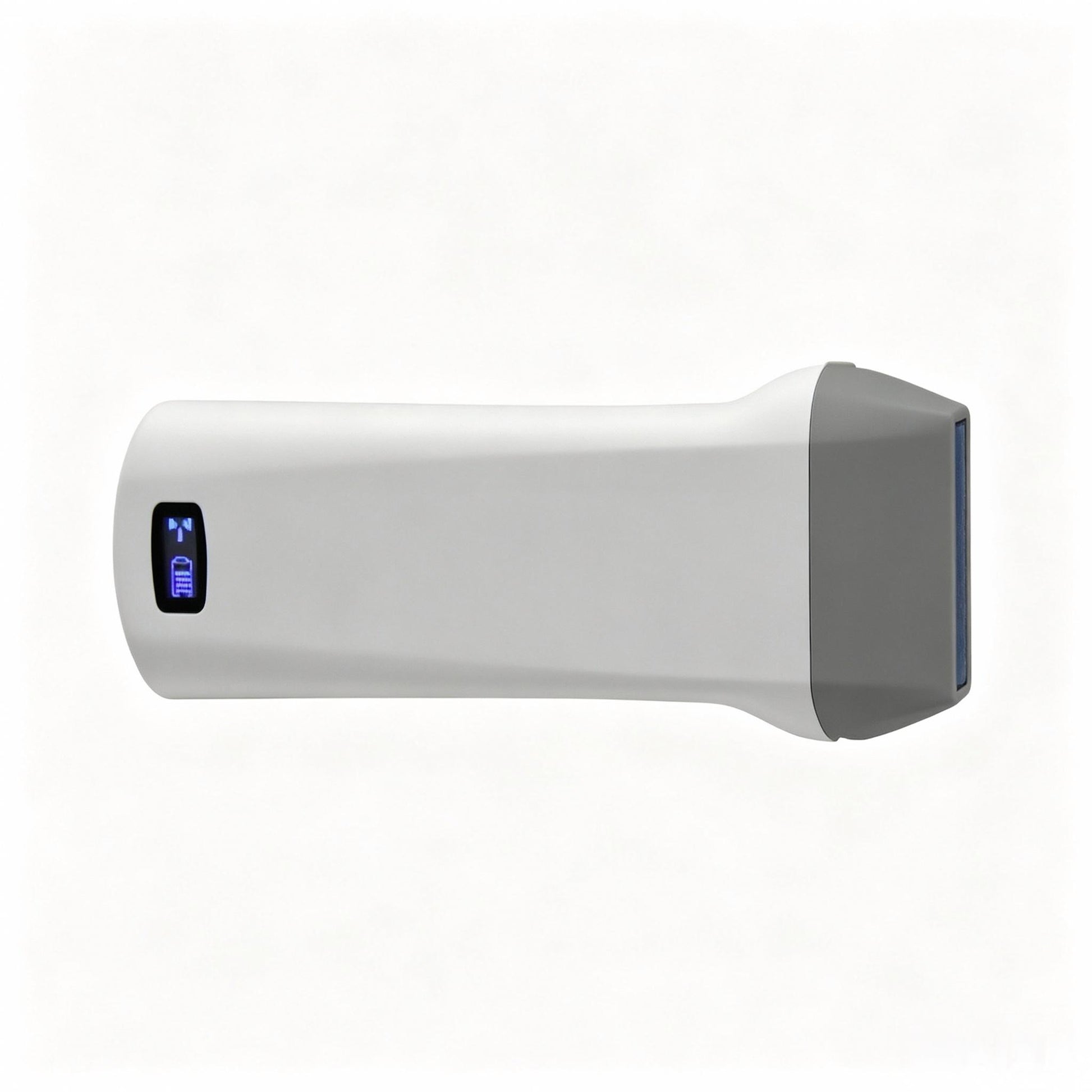

Global Healthcare Medical High-Frequency Linear Wireless Handheld Ultrasound System

Model: GHM CProbe-L6X HK

The Global Healthcare Medical High-Frequency Linear Wireless Handheld Ultrasound System is a compact, pocket-sized diagnostic imaging solution engineered to deliver exceptional near-field resolution for superficial structures. Designed for healthcare professionals who need reliable, high-quality imaging wherever patients are—from sports medicine clinics and operating rooms to remote clinics and ambulatory services—this wireless probe-type system delivers outstanding performance in a lightweight, portable form factor.

Weighing just 200g and measuring 156mm × 55mm × 20mm, this device fits comfortably in your hand or pocket. The system operates wirelessly via WiFi, transmitting real-time images directly to a smartphone, tablet, or PC—eliminating the need for bulky consoles or tangled cables.

FDA-cleared (K211321) for clinical use, this system is indicated for diagnostic ultrasound echo imaging, measurement, and analysis of the human body for general clinical applications including obstetrics (OB), gynecology (GY), and general (abdominal) imaging.

Key Features & Benefits

High-Frequency Linear Array for Superior Superficial Imaging

This system features a dedicated high-frequency linear array probe with 192 piezoelectric elements and 32 transmit channels, optimized for imaging superficial structures with exceptional detail. The linear probe delivers:

• Outstanding near-field resolution – ideal for visualizing tendons, ligaments, nerves, thyroid, breast tissue, and small parts

• High sensitivity – detects subtle structural changes with confidence

• Broad frequency range – 7.5 MHz / 10 MHz frequencies adaptable for various tissue depths and applications

• Adjustable scan depth – 20 – 100 mm for precise imaging of superficial structures

Exceptional Imaging Performance

The system delivers high-quality imaging across a broad range of clinical applications:

Imaging modes supported:

• B-Mode – fundamental 2D imaging with exceptional clarity

• B/M Mode – combined anatomical and motion imaging

• Color Doppler – real-time blood flow visualization

• Power Doppler Imaging (PDI) – sensitive low-flow detection

• Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

Image adjustments include gain, focus, reverse pulse harmonics, and noise reduction. Frame rate is 18 frames/second for smooth, real-time visualization.

Smartphone-Powered Convenience

The system connects wirelessly to a mobile device or PC running the companion software application. This smartphone-powered approach offers:

• Intuitive touchscreen interface – familiar and easy to learn

• No separate display or console – reduces equipment costs and footprint

• Wireless operation – eliminates cable tangles and improves workflow

• Image storage and sharing – easily save, review, and share images in jpg, mp4, and DCM formats

• Broad compatibility – works with Apple iOS, Android, and Windows devices

• WiFi 802.11n / 2.4G / 5G dual-band (450Mbps) – fast, stable wireless connectivity

Puncture Assistance for Guided Procedures

The system includes in-plane puncture guide lines, out-of-plane puncture guidance with automatic blood vessel measurement, and needle tip enhancement, making it an ideal tool for ultrasound-guided interventions such as:

• Nerve blocks – precise guidance for regional anesthesia

• Vascular access – safe and accurate line placement

• Joint injections – targeted delivery of therapeutic agents

• Biopsy guidance – accurate sampling of superficial lesions

Comprehensive Measurement and Review Tools

• Measurements – distance, area, circumference, heart rate, and obstetric calculations

• Cineplay – manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000 frames)

• Image/video saving – supports jpg, mp4, and DCM formats

Portable, Durable, and Ready When You Are

• Lightweight design – 200g for effortless handling

• Pocket-sized form factor – 156mm × 55mm × 20mm

• Extended battery life – 3 hours of continuous scanning, with wireless charging for unlimited working time

• Wireless charging or USB charging – eliminates cable clutter

• No subscription fees – one-time purchase, full access

Comprehensive Clinical Applications

Regulatory Compliance and Quality Assurance

• FDA-cleared (K211321) – meets U.S. regulatory standards for medical devices

• NMPA registered – approved for clinical use in China

• CE marked – compliant with EU Medical Device Regulation

Why Choose Global Healthcare Medical?

About Global Healthcare Medical

Global Healthcare Medical is dedicated to improving patient care around the world by delivering value-driven, innovative, and high-quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals everywhere.
