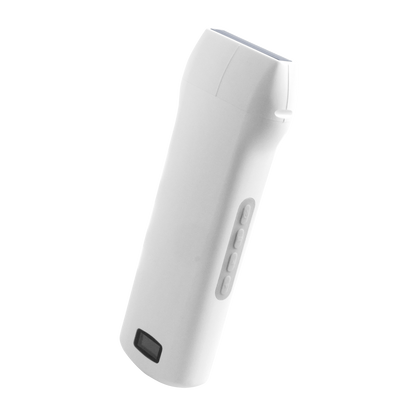

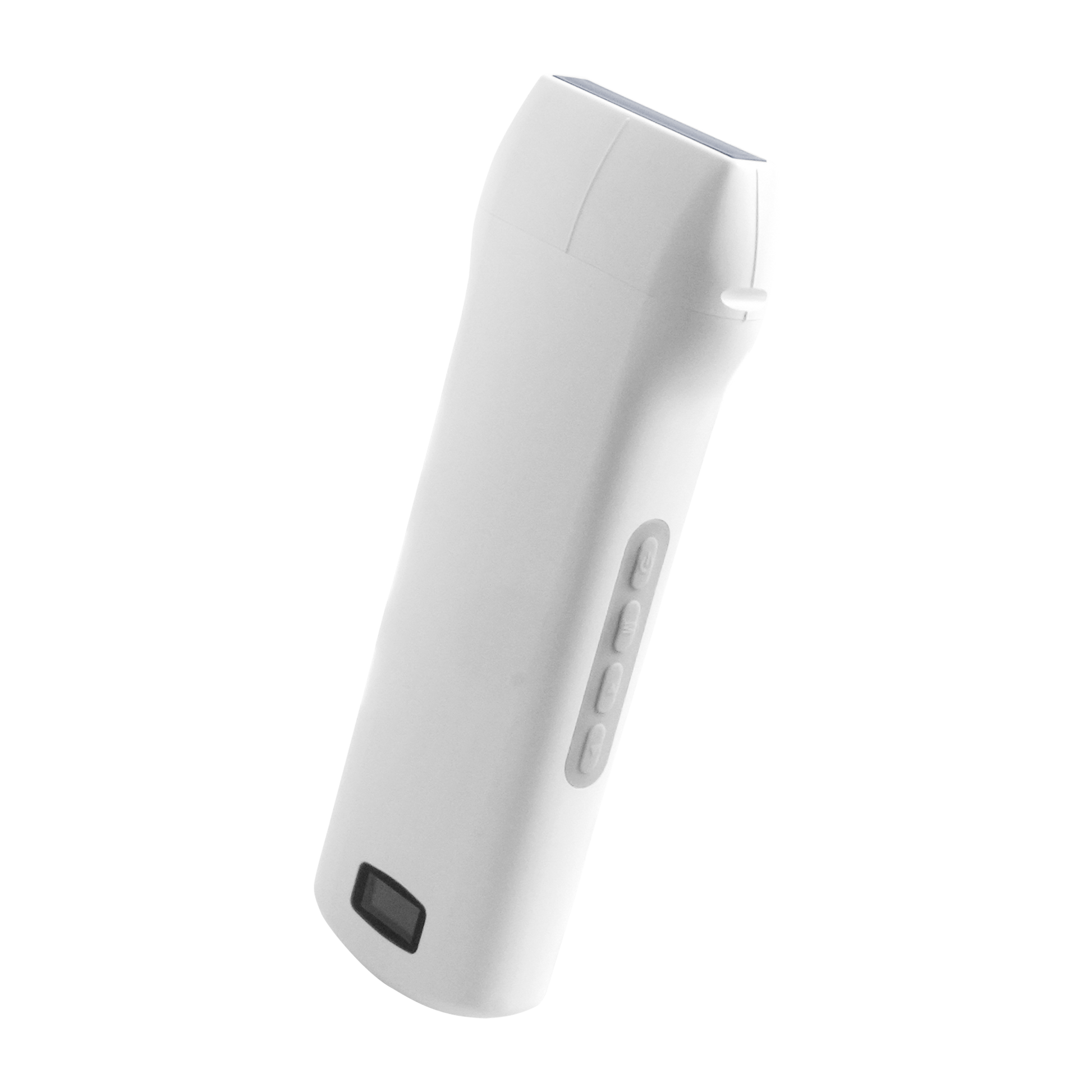

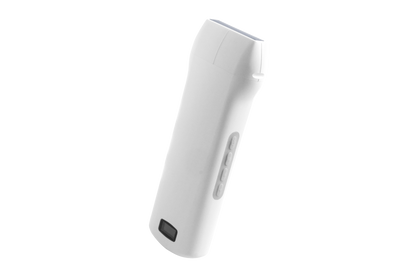

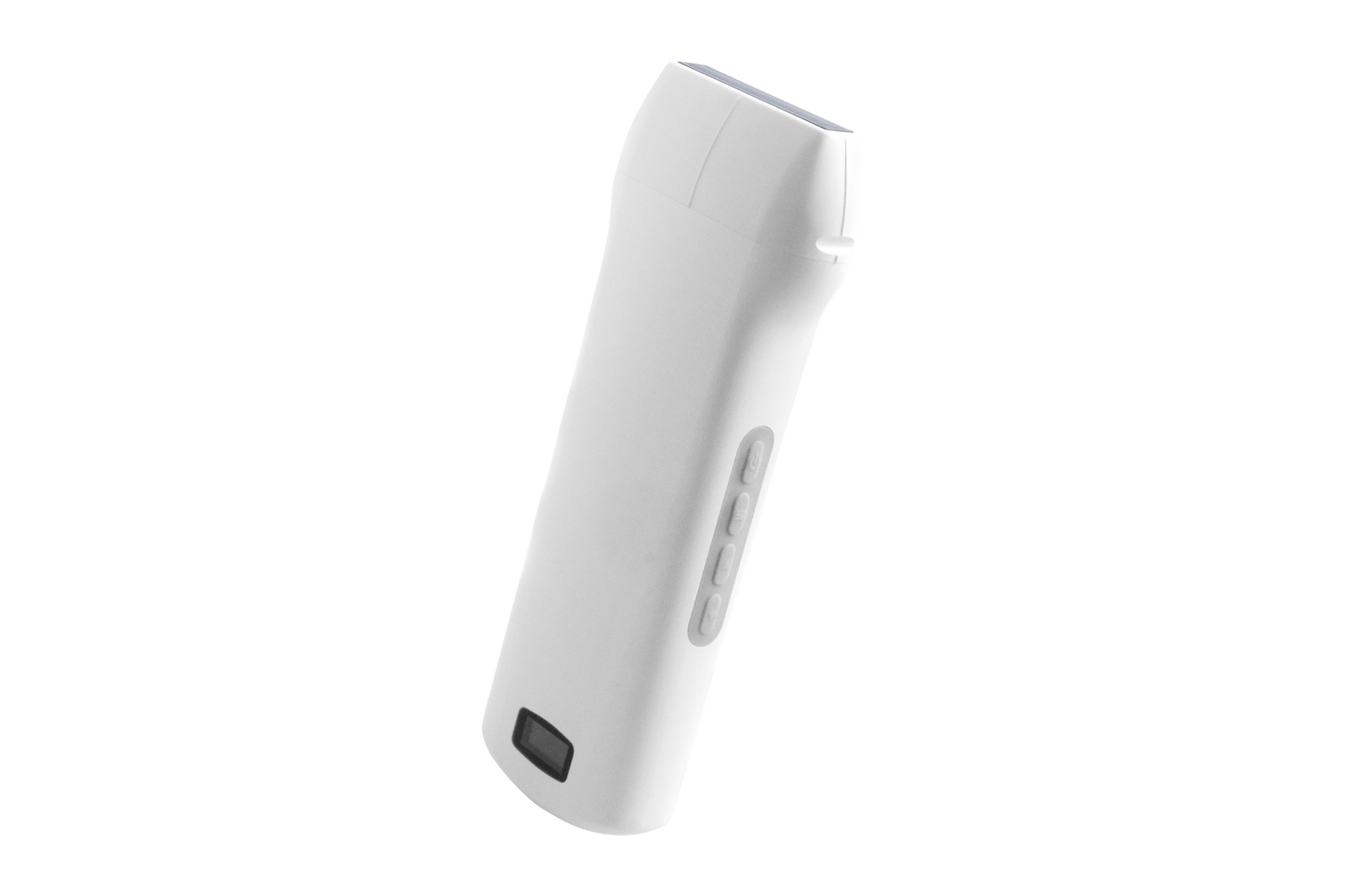

Global Healthcare Medical High‑Frequency Wireless Linear Ultrasound System

Model: GHM CProbe-L6P HK

The Global Healthcare Medical High‑Frequency Wireless Linear Ultrasound System is a compact, smartphone‑sized diagnostic imaging solution engineered to deliver exceptional near‑field resolution for musculoskeletal, vascular, and small parts imaging. Designed for healthcare professionals who need reliable, high‑quality imaging wherever patients are—from emergency departments and sports medicine clinics to operating rooms, remote clinics, and ambulatory services—this wireless probe‑type system delivers outstanding performance in a lightweight, portable form factor.

Weighing just 200g (0.44 lbs) and measuring 156mm × 60mm × 20mm (6.1″ × 2.4″ × 0.8″), this device fits comfortably in your hand or pocket, making it the ideal companion for daily POCUS (Point‑of‑Care Ultrasound) and ultrasound‑guided procedures. The system operates wirelessly via WiFi, transmitting real‑time images directly to a smartphone or tablet—eliminating the need for bulky consoles or tangled cables.

Key Features & Benefits

High‑Frequency Linear Array for Superior Superficial Imaging

This system features a dedicated high‑frequency linear array probe optimized for imaging superficial structures with exceptional detail. The linear probe delivers:

• Outstanding near‑field resolution – ideal for visualizing tendons, ligaments, nerves, and small parts

• High sensitivity – detects subtle structural changes with confidence

• Wide frequency range – 7.5 MHz and 10 MHz frequencies adaptable for various tissue depths and applications

Exceptional Imaging Performance

The system delivers high‑quality imaging with advanced features:

Imaging modes supported:

• B‑Mode – fundamental 2D imaging with exceptional clarity

• B/M Mode – combined anatomical and motion imaging

• Color Doppler – real‑time blood flow visualization

• Power Doppler Imaging (PDI) – sensitive low‑flow detection

• Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

Smartphone‑Powered Convenience

The system connects wirelessly to a mobile device running the companion software application. This smartphone‑powered approach offers:

• Intuitive touchscreen interface – familiar and easy to learn

• No separate display or console – reduces equipment costs and footprint

• Wireless operation – eliminates cable tangles and improves workflow

• Image storage and sharing – easily save, review, and share images

• Measurements – distance, area, obstetrics, and other calculations

Broad Device Compatibility

The system is compatible with multiple platforms:

• Apple iOS – iPhone and iPad

• Android – smartphones and tablets

• Windows – PC's

WiFi connectivity provides stable wireless transmission.

Long Battery Life for Extended Use

The built‑in 5600mAh rechargeable lithium‑ion battery provides up to 5 hours of continuous scanning on a single charge, ensuring the device is ready throughout your clinical day.

Comprehensive Clinical Applications

Portable, Durable, and Ready When You Are

• Lightweight design – 200g (0.44 lbs) for effortless handling

• Pocket‑sized form factor – 156mm × 60mm × 20mm fits in your pocket or bag

• Long battery life – 5 hours of continuous scanning on a single charge

• Durable construction – built for daily clinical use

• Compact and ergonomic design – ideal for use in clinics and in the field
