Global Healthcare Medical Interchangeable-Probe Handheld Wireless Doppler Ultrasound Scanner
Global Healthcare Medical Interchangeable-Probe Handheld Wireless Doppler Ultrasound Scanner
Model: GHM 4CPLT HK

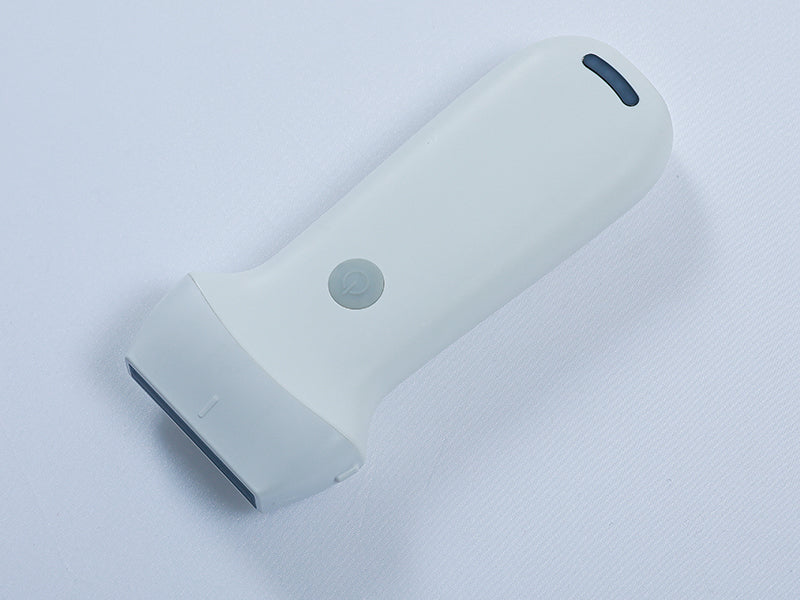

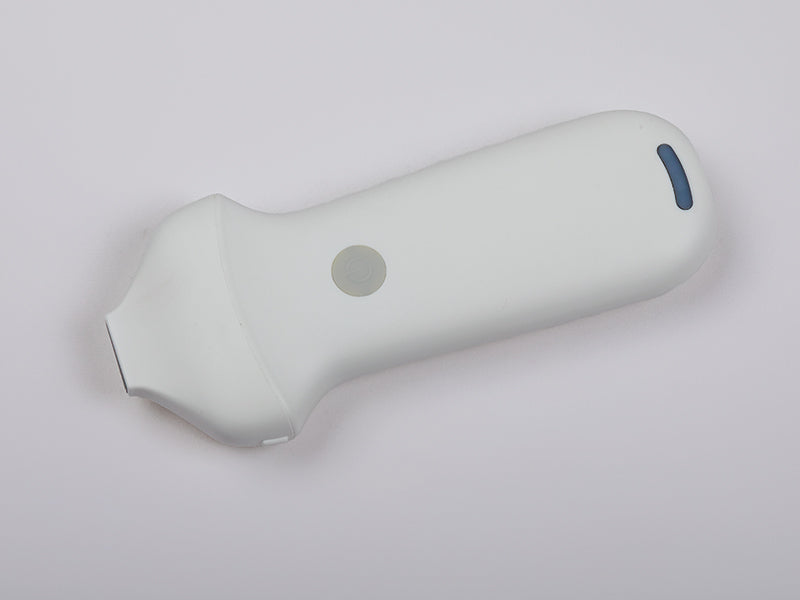

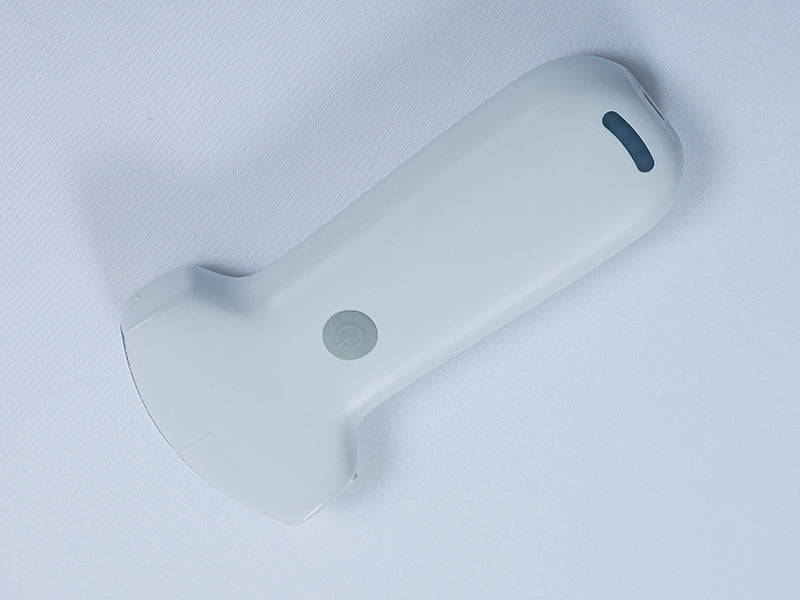

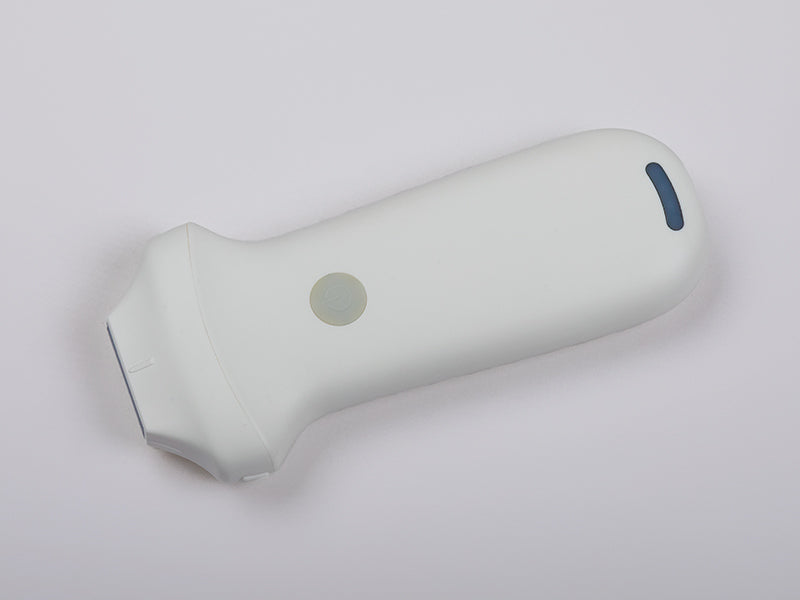

The Global Healthcare Medical Interchangeable-Probe Handheld Wireless Doppler Ultrasound Scanner is a compact, modular diagnostic imaging system engineered to bring versatile ultrasound capabilities directly to the point of care. Weighing just 180g and measuring 140mm × 55mm × 20mm, this palm-sized device features an innovative magnetic interchangeable probe design—the transducer and handle are precisely connected by a magnetic coupling system, allowing clinicians to swap between multiple probe types in seconds without tools or complex setup.
The system operates wirelessly via WiFi (802.11n / 2.4G / 5G dual-band, 450Mbps) , transmitting real-time images directly to your iOS, Android, or Windows smartphone, tablet, or PC. The main wireless transmitter handle communicates directly with your device, eliminating bulky consoles, tangled cables, and dedicated display units.
This system is intended for use by trained healthcare professionals. It supports a wide range of diagnostic applications across abdominal, cardiac, vascular, musculoskeletal, small parts, obstetric, gynecological, and urological imaging—all from a single handheld platform with interchangeable probes.
Key Features & Benefits

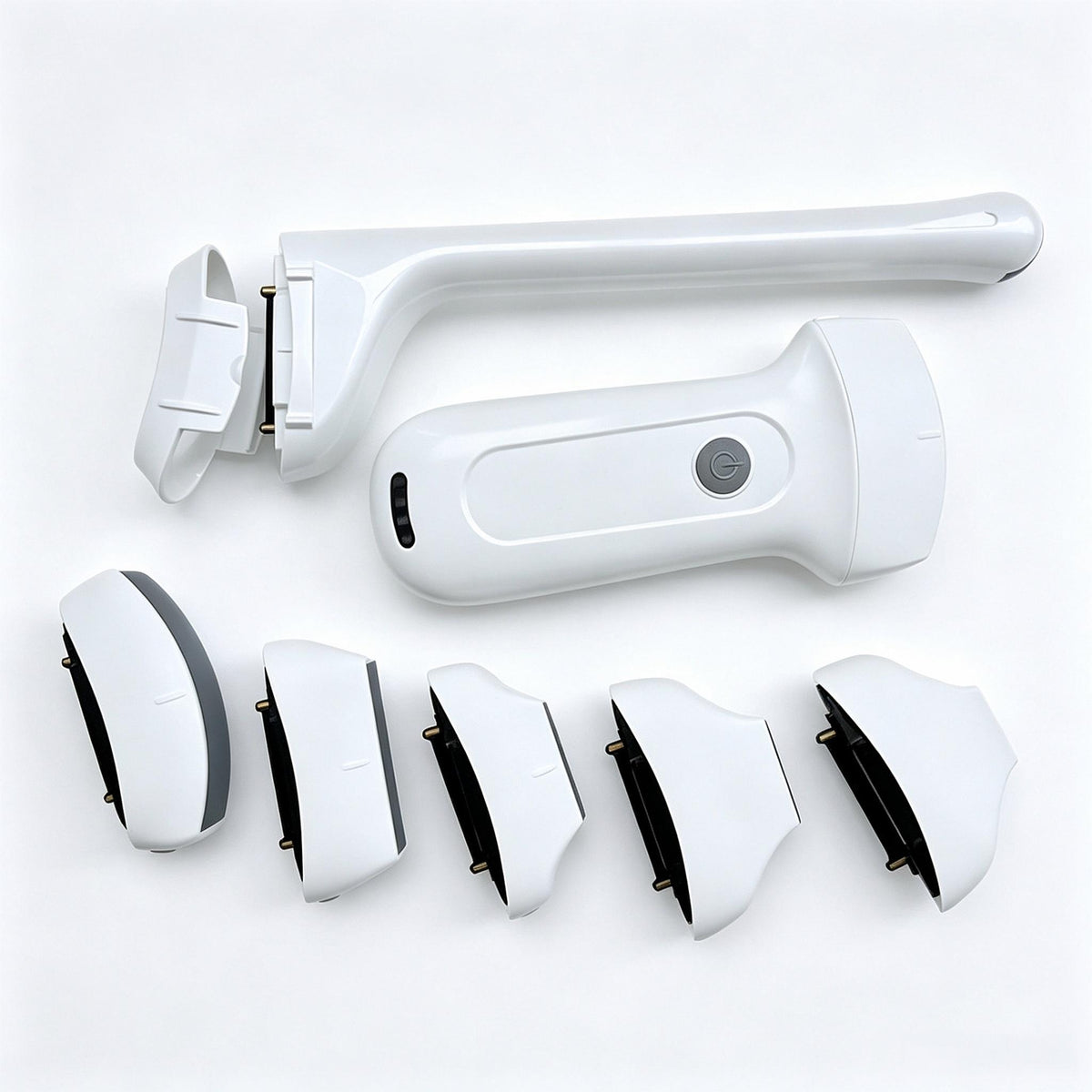

Innovative Magnetic Interchangeable Probe System

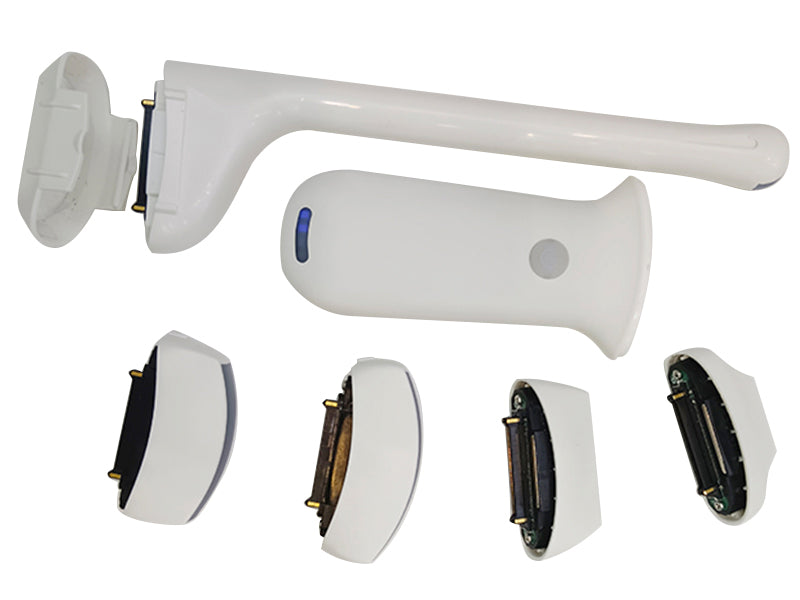

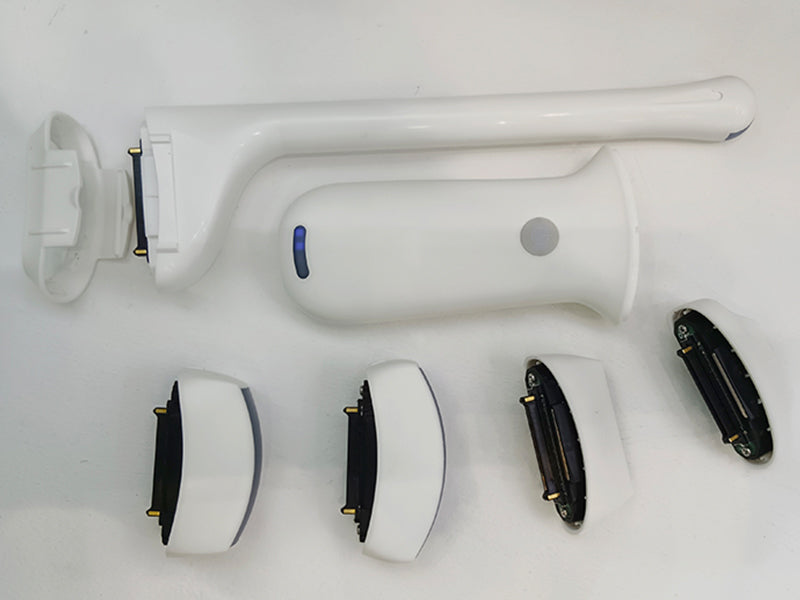

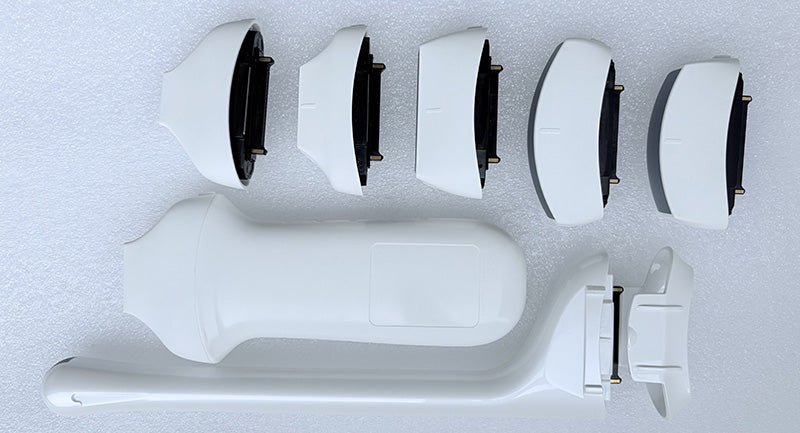

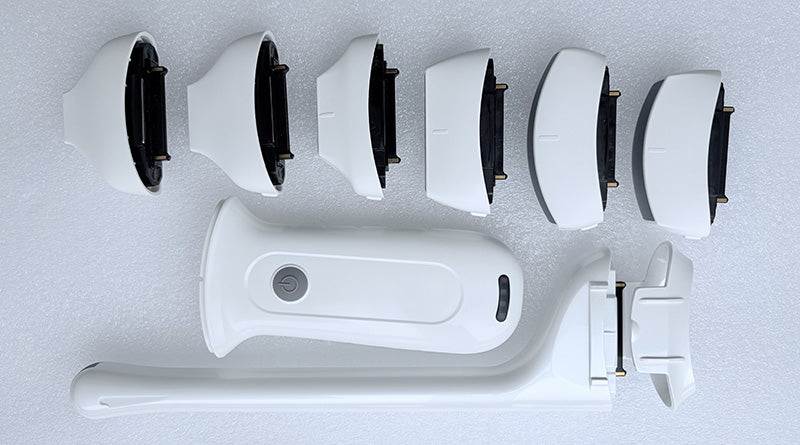

The scanner‘s defining feature is its magnetic interchangeable probe system. The transducer and handle are precisely connected by a magnetic coupling mechanism, enabling clinicians to swap probes in seconds without tools or downtime.
Available probe configurations include:
| Probe Type | Frequency Range | Primary Applications |
|---|---|---|
| Convex Array | 3.2 / 5.0 MHz | Abdominal, obstetric, gynecological, deep tissue imaging |
| Linear Array | 7.5 / 10 MHz or 10 / 13.2 MHz | Musculoskeletal, vascular, small parts, superficial structures |
| Phased Array | 3.2 / 5.0 MHz or 2.2 / 3.6 MHz | Cardiac and deep abdominal imaging |

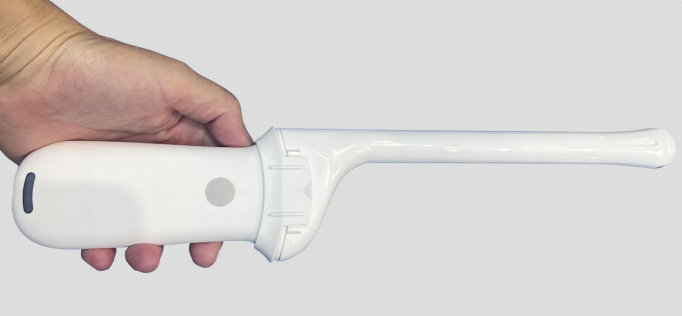

| Transvaginal | 6.0 / 8.0 MHz | Gynecological, obstetric, and pelvic imaging |
| Micro-Convex | 5 / 6 MHz or 8 / 10 MHz | Small animal and pediatric applications |
This modular design means one handle can serve multiple clinical specialties—reducing equipment costs, saving storage space, and ensuring you always have the right probe for the examination at hand.
Exceptional Imaging Performance
The system delivers high-quality imaging across a broad range of clinical applications:
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array, Electronic Convex & Linear array scanning |
| Frequency | Convex: 3.2 / 5.0 MHz; Linear: 7.5 / 10 MHz or 10 / 13.2 MHz; Phased Array: 3.2 / 5.0 MHz; Transvaginal: 6.0 / 8.0 MHz |
| Scanning Depth | Convex: 90 / 160 / 220 / 305 mm; Linear: 20 / 40 / 60 / 100 mm; Transvaginal: 30 / 60 / 90 / 120 mm (adjustable) |
| Field of View | Convex R60, Phased Array R80, Linear L40 |
| Elements | 96 piezoelectric elements |
| Channels | 32 channels |
| Image Frame Rate | 18 frames/second |
| Image Gray Scale | 256 levels |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Gain | 30 dB – 105 dB |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 levels |
Imaging modes supported:
-
B‑Mode – fundamental 2D imaging
-
B/M Mode – combined anatomical and motion imaging
-
Color Doppler – real-time blood flow visualization
-
Power Doppler Imaging (PDI) – sensitive low-flow detection
-
Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment
Doppler specifications:
-
Linear array PW mode: Sampling volume 1, 2, 5 mm; Baseline 0–500 cm/s; Correction angle -85° to 85°
-
Convex array PW mode: Baseline 0–800 cm/s
-
Cardiac PW mode: Baseline 0–600 cm/s
Puncture Assistance for Guided Procedures
The system includes a comprehensive suite of puncture assistance tools, making it a practical tool for ultrasound-guided interventions:
-
In-plane puncture guide line – for precise needle alignment within the scan plane
-
Out-of-plane puncture guide – with automatic vascular measurement function
-
Automatic vascular measurement – supports pre-procedure vessel assessment
Wireless Freedom for Point-of-Care Imaging
The scanner connects wirelessly to your mobile device or PC, offering:
-
Real-time image display – instant visualization on your existing screen
-
Image/video storage – save in jpg, png, mp4, and DCM formats directly to your mobile phone or tablet
-
Cineplay – manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000)
-
Broad compatibility – works with iOS, Android, and Windows devices
-
WiFi type – 802.11n / 2.4G / 5G dual-band 450Mbps for fast, stable transmission
Extended Battery Life with Wireless Charging
The system features a built-in 2800mAh lithium battery providing approximately 1.5 hours of continuous working time. With wireless charging, working time can be extended indefinitely—simply place the device on a compatible charger between scans.
Comprehensive Measurement Capabilities
The system supports a full suite of clinical measurements across multiple specialties:
| Measurement Category | Parameters |
|---|---|
| General | Distance, area, angle |
| Vascular | Carotid, blood vessels, blood flow |
| Musculoskeletal | Thyroid, small organs, breast, MSK, nerves |
| Abdominal | Abdomen, urinary system, kidneys, lungs |
| Cardiac | Heart |
| Obstetrics/Gynecology | Gynecology, obstetrics |
Comprehensive Clinical Applications
This modular handheld ultrasound scanner supports a wide range of diagnostic applications across multiple specialties:
| Specialty | Applications |
|---|---|
| Emergency Medicine | FAST exams, bedside diagnostics, trauma assessment |
| Critical Care | ICU patient evaluation, fluid status assessment |
| Abdominal | Liver, gallbladder, pancreas, spleen, kidney evaluation |
| Cardiology | Basic cardiac assessment |
| Obstetrics | Fetal biometry, gestational age assessment, pregnancy confirmation |
| Gynecology | Uterine and ovarian evaluation, transvaginal imaging |
| Vascular | Peripheral vascular assessment, blood flow detection, vein mapping |
| Musculoskeletal | Tendon, ligament, joint, and muscle assessment |
| Small Parts | Thyroid, breast, and superficial structure imaging |
| Anesthesiology | Nerve block guidance, vascular access |
| Pain Management | Injection guidance |
| Primary Care | Routine screening and point-of-care diagnostics |
Technical Specifications
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array, Electronic Convex & Linear array scanning |
| Frequency | Convex: 3.2 / 5.0 MHz; Linear: 7.5 / 10 MHz or 10 / 13.2 MHz; Phased Array: 3.2 / 5.0 MHz; Transvaginal: 6.0 / 8.0 MHz |
| Scanning Depth | Convex: 90 / 160 / 220 / 305 mm; Linear: 20 / 40 / 60 / 100 mm; Transvaginal: 30 / 60 / 90 / 120 mm (adjustable) |
| Field of View | Convex R60, Phased Array R80, Linear L40 |
| Elements | 96 piezoelectric elements |
| Channels | 32 channels |
| Screen | iOS / Android / Windows screen |
| Supporting System | iOS, Android, Windows |
| Display Mode | B, B/M, Color, PDI, PW |
| Image Adjustment | Gain, focus, reverse pulse harmonics, noise reduction |
| Puncture Assist Function | In-plane puncture guide, out-of-plane puncture guide, automatic vascular measurement |
| Image Gray Scale | 256 levels |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 |
| Gain | 30 dB – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Image Frame Rate | 18 frames/second |
| Image/Video Storage | jpg, png, mp4, DCM; store on mobile phones or tablet PCs |
| Measurements | Thyroid, small organs, pediatrics, blood vessels, carotid artery, breast, musculoskeletal, blood flow, nerves, abdomen, gynecology, obstetrics, heart, urinary system, kidneys, lungs |
| Battery | Built-in lithium battery, 2800mAh |
| Battery Working Time | 1.5 hours; wireless charging extends working time indefinitely |
| Charging | Wireless charging |
| Cineplay | Manual and automatic; playback frames 100 / 200 / 500 / 1000 |
| WiFi Type | 802.11n / 2.4G / 5G dual-band 450Mbps |
| Size | 140mm × 55mm × 20mm |
| Net Weight | 180g |
Why Choose Global Healthcare Medical?
| Consideration | Our Interchangeable-Probe Wireless Ultrasound |
|---|---|
| Need for multiple probe types in one platform | Magnetic interchangeable probes let you swap between convex, linear, phased array, transvaginal, and micro-convex in seconds |
| Portable, point-of-care imaging | Palm-sized, 180g design goes wherever you go |
| No bulky equipment | Wireless—no console, no cables; use your existing iOS, Android, or Windows device |
| Extended scanning sessions | 2800mAh battery with wireless charging for continuous operation |
| Procedure guidance | In-plane/out-of-plane puncture guides and automatic vascular measurement |
| Quick, confident diagnosis | 5 imaging modes with adjustable depth and gain settings |
| Cost-effective solution | One handle serves multiple specialties—professional imaging at a fraction of traditional system costs |
| Clinical versatility | Suitable for emergency, abdominal, cardiac, OB/GYN, vascular, MSK, and small parts applications |
