Global Healthcare Medical Palm-Sized Biplane Rectal Ultrasound Scanner
Global Healthcare Medical Palm-Sized Biplane Rectal Ultrasound Scanner
Model: GHM 9CR HK

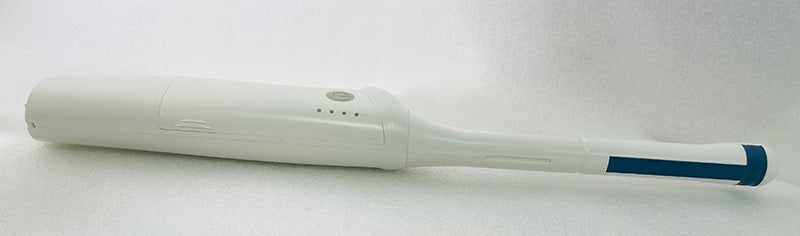

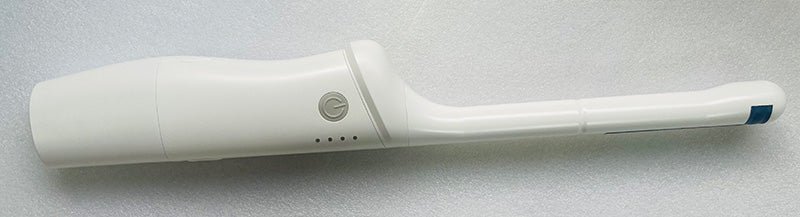

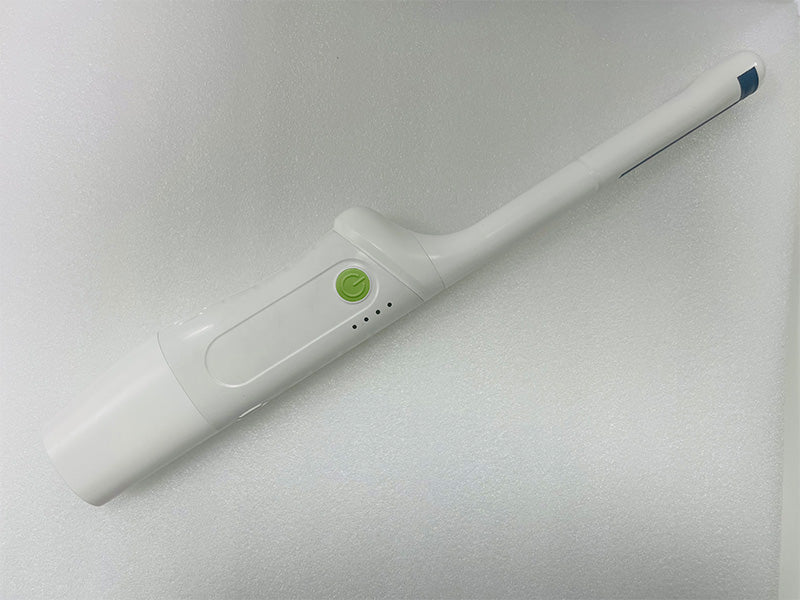

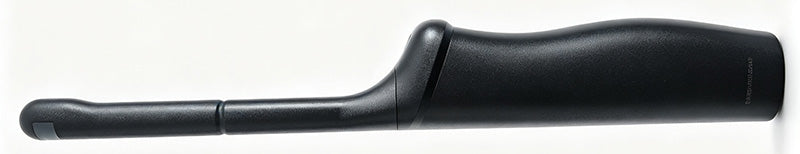

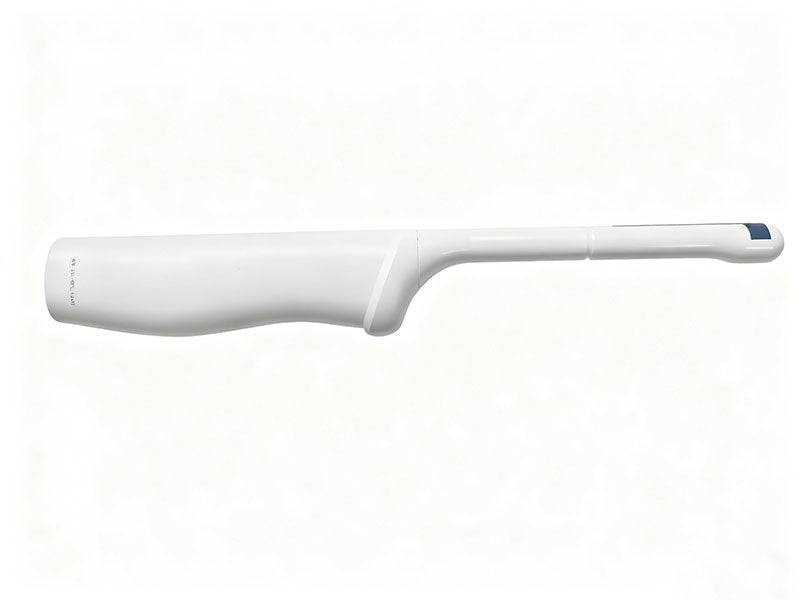

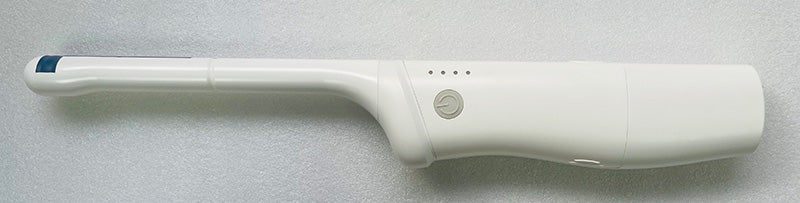

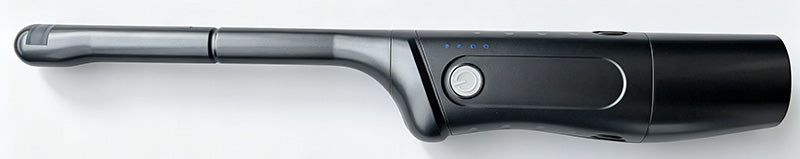

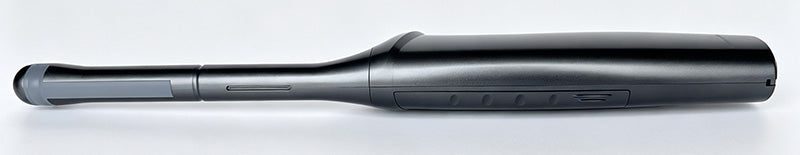

The Global Healthcare Medical Palm-Sized Biplane Rectal Ultrasound Scanner is a compact, wireless probe-type diagnostic imaging system engineered specifically for transrectal examinations in urology, colorectal, and veterinary reproductive applications. Weighing just 200g and measuring 336mm × 40mm × 28mm, this handheld scanner integrates a specialized T-type biplane probe that combines both convex and linear array capabilities in a single device—enabling comprehensive visualization of prostate, rectal, and pelvic structures without the need for multiple probes or bulky cart-based equipment.
The scanner operates wirelessly via WiFi (802.11g / 20MHz / 5G / 450Mbps) , transmitting real-time images directly to an Android or iOS smartphone or tablet. This screen-free design eliminates the need for a separate console, reducing equipment costs and giving clinicians complete freedom of movement during examinations.
Key Features & Benefits

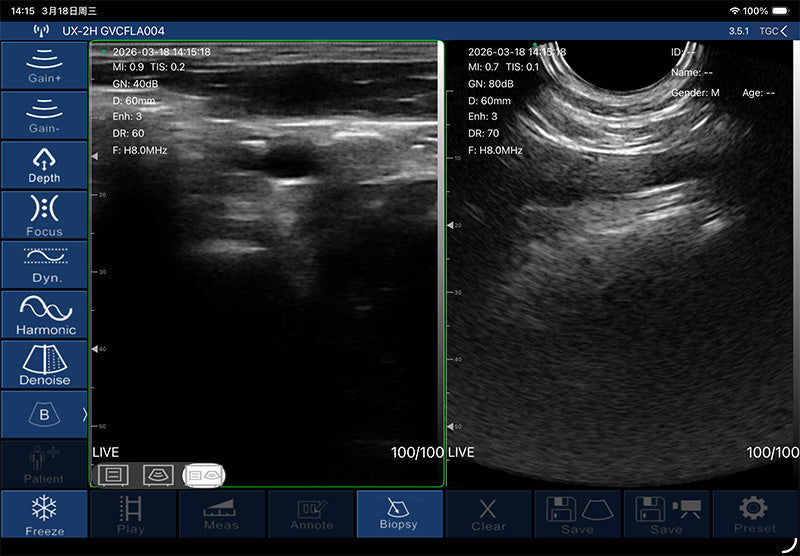

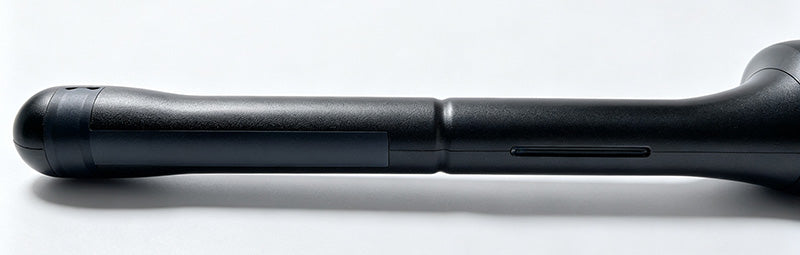

T-Type Biplane Probe for Dual-Plane Visualization

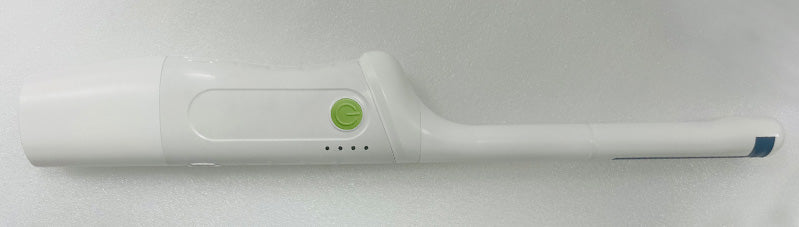

This scanner features a specialized T-type biplane probe that integrates both convex and linear array scanning modes in a single unit. Long-press the power button to switch between modes, allowing seamless transition between:
-

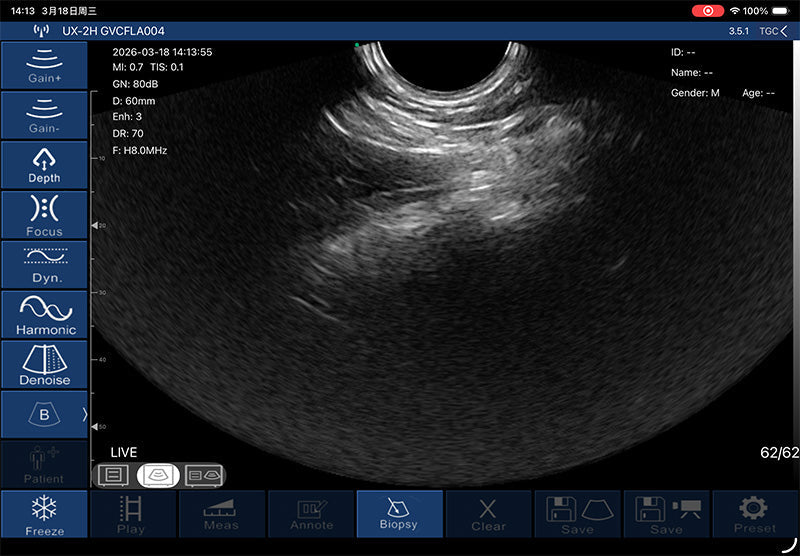

Convex array mode – for broader, deeper visualization of pelvic and rectal structures
-

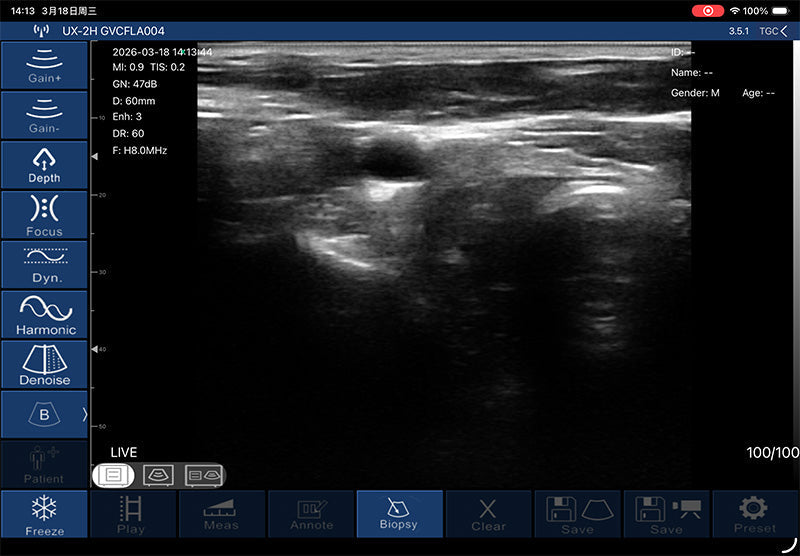

Linear array mode – for higher-resolution, near-field assessment of superficial and layered tissues
This dual-plane capability provides comprehensive visualization of prostate, perirectal, and pelvic floor anatomy from multiple angles, supporting accurate assessment and guided interventions.
High-Resolution Imaging Performance
The system delivers high-quality imaging with advanced technical specifications:
| Specification | Detail |
|---|---|
| Scanning Mode | Electronic array |
| Probe Type | T-type biplane (convex + linear) |
| Frequency | 6.5 MHz / 8 MHz |
| Elements | 192 |
| Channels | 64 |
| Scan Depth | 40 – 100 mm (adjustable) |
| Scan Angle | R13 |
| Image Frame Rate | 18 frames/second |
| Gain Range | 30 – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 levels |
Imaging modes supported:
-
B‑Mode – fundamental 2D imaging with 256-level gray scale
-
B/M Mode – combined anatomical and motion imaging
-
Color Doppler – real-time blood flow visualization
-
Power Doppler Imaging (PDI) – sensitive low-flow detection
-
Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment
Image adjustments include Gain, DYN, Focus, Depth, Harmonic imaging, and Denoise. Cineplay supports manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000).

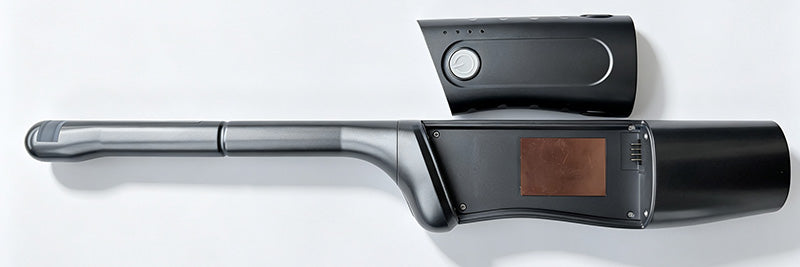

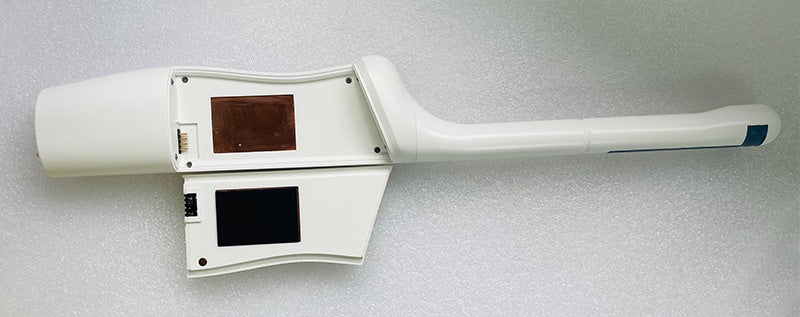

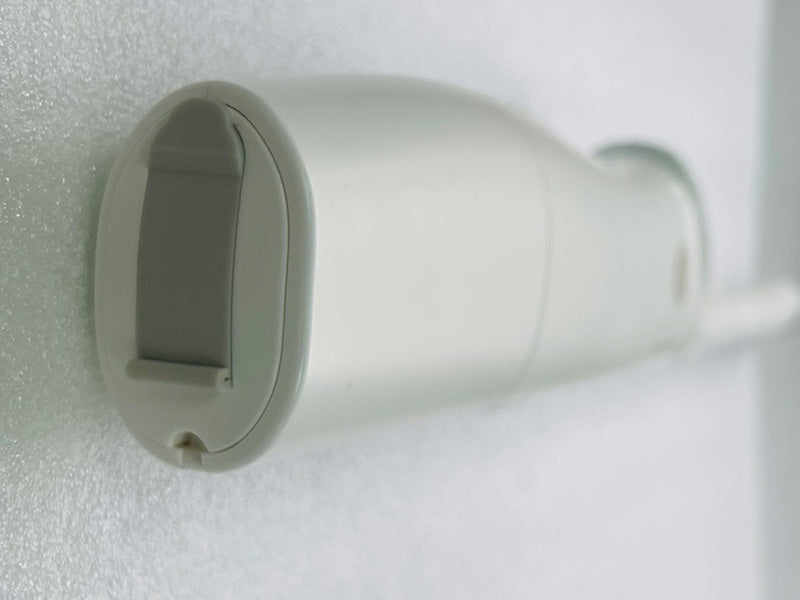

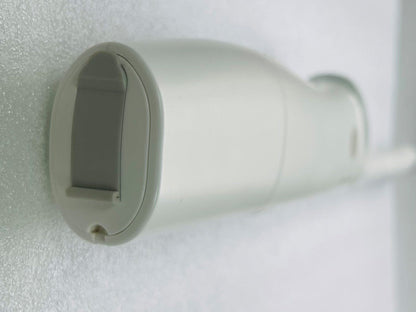

Replaceable Battery for Extended Scanning
The system features a replaceable battery design with a standard configuration that includes two batteries, each providing approximately 1.5 hours of continuous working time. When one battery runs low, simply swap in the spare and continue working without interruption. Charging is available via USB or an optional wireless charger.
Puncture Assistance for Guided Procedures
The scanner includes in-plane puncture guide line and out-of-plane puncture guide functions, making it a practical tool for ultrasound-guided transrectal interventions such as:
-
Prostate biopsy guidance – precise needle alignment for tissue sampling
-
Transrectal drainage procedures – guided aspiration of pelvic collections
-
Perirectal interventions – accurate targeting of perirectal lesions

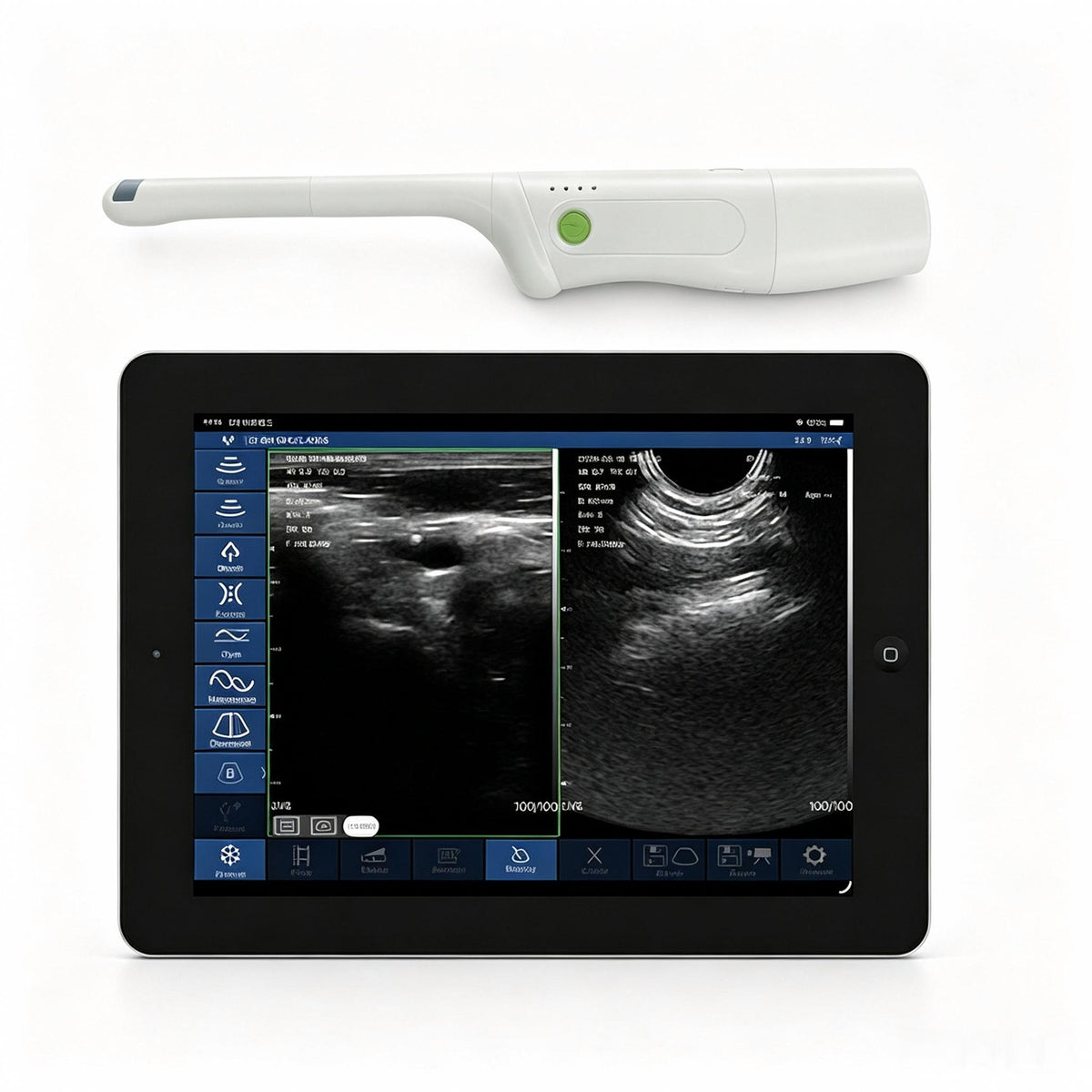

Wireless Convenience for Point-of-Care Use
-
No separate console – images display directly on your smartphone or tablet
-
Real-time image display – instant visualization on your existing device
-
Image/video storage – save in jpg, mp4, and DCM formats to your mobile device
-
Broad compatibility – works with Android and iOS devices
-
WiFi connectivity – 802.11g / 20MHz / 5G / 450Mbps for fast, stable transmission
Comprehensive Measurement Capabilities
-
Measurements – Length, Area, Angle, and Obstetrics calculations
-
Image gray scale – 256 levels for detailed tissue differentiation
Comprehensive Clinical Applications
| Specialty | Applications |
|---|---|
| Urology | Prostate assessment, prostate biopsy guidance, seminal vesicle evaluation |
| Colorectal | Rectal and perirectal evaluation, sphincter assessment, perirectal abscess detection |
| Gynecology | Pelvic floor assessment, endocavity evaluation |
| Veterinary | Reproductive assessment in livestock, transrectal pregnancy diagnosis |
| Emergency Medicine | Pelvic pain evaluation, suspected abscess assessment |
| Primary Care | Routine urological and colorectal screening |
Technical Specifications
| Specification | Detail |
|---|---|
| Scanning Mode | Electronic array |
| Probe Type | T-type biplane (convex + linear) |
| Frequency | 6.5 MHz / 8 MHz |
| Elements | 192 |
| Channels | 64 |
| Scan Depth | 40 – 100 mm (adjustable) |
| Scan Angle | R13 |
| Display Mode | B, B/M, Color, PDI, PW |
| Image Adjustment | Gain, DYN, Focus, Depth, Harmonic, Denoise |
| Puncture Assist Function | In-plane puncture guide line, out-of-plane puncture guide function |
| Image Gray Scale | 256 levels |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 |
| Gain | 30 dB – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Image Frame Rate | 18 frames/second |
| Image Save Format | jpg, mp4, DCM |
| Measurements | Length, Area, Angle, Obstetrics |
| Battery | Replaceable; standard configuration includes 2 batteries |
| Battery Working Time | Per battery: approximately 1.5 hours |
| Charging | USB, or optional wireless charger |
| WiFi Type | 802.11g / 20MHz / 5G / 450Mbps |
| Working System | Android / iOS |
| Size | 336mm × 40mm × 28mm |
| Probe Length | 230mm |
| Net Weight | 200g |
Why Choose Global Healthcare Medical?
| Consideration | Our Palm-Sized Biplane Rectal Scanner |
|---|---|
| Need for dual-plane transrectal imaging | T-type biplane probe combines convex and linear modes in one unit |
| Portable, point-of-care imaging | Palm-sized, 200g design goes wherever you go |
| Extended scanning sessions | Two replaceable batteries, each providing ~1.5 hours of operation |
| No bulky equipment | Wireless—no console, no cables; use your existing Android or iOS device |
| Procedure guidance | In-plane and out-of-plane puncture guide functions |
| Quick, confident diagnosis | 5 imaging modes with adjustable depth and gain settings |
| Cost-effective solution | Professional imaging at a fraction of traditional system costs |
