Global Healthcare Medical Palm-Sized Wireless Biplane Rectal Ultrasound Scanner
Global Healthcare Medical Palm-Sized Wireless Biplane Rectal Ultrasound Scanner
Model: GHM 5CR HK

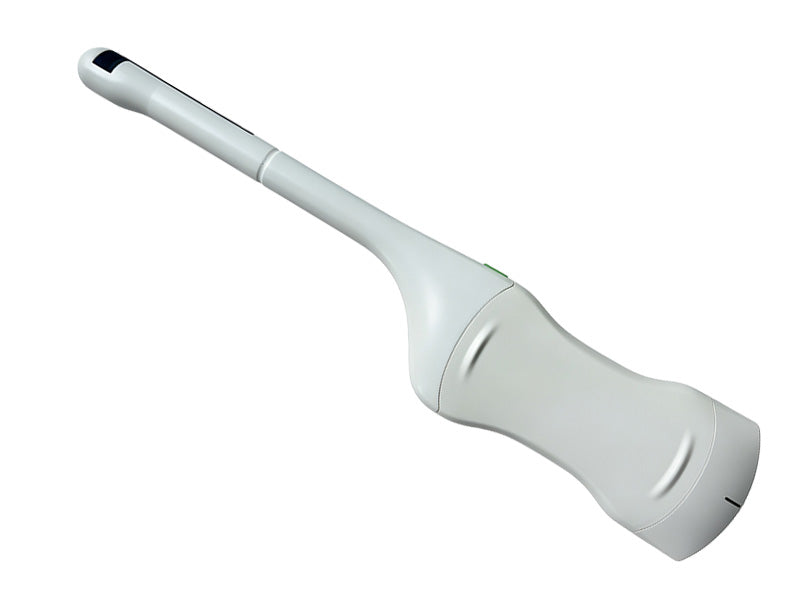

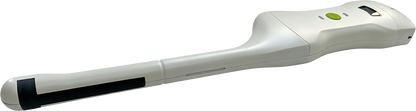

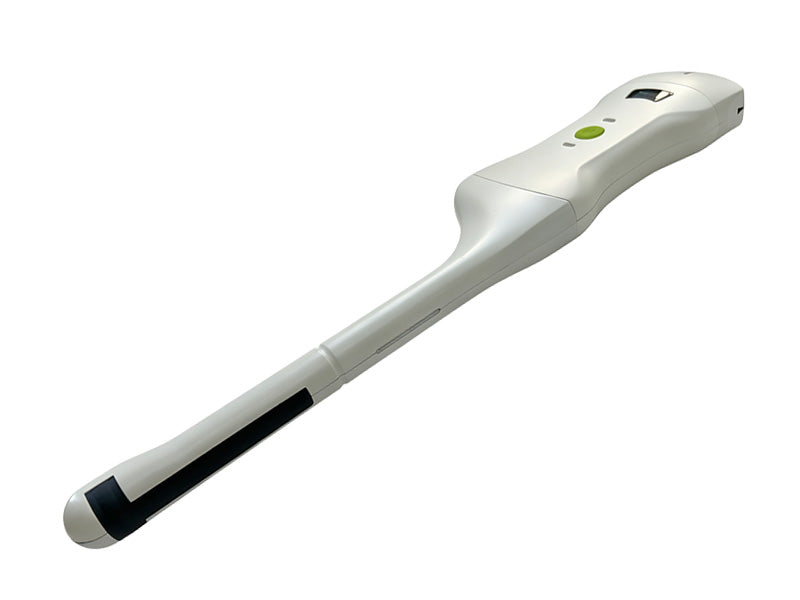

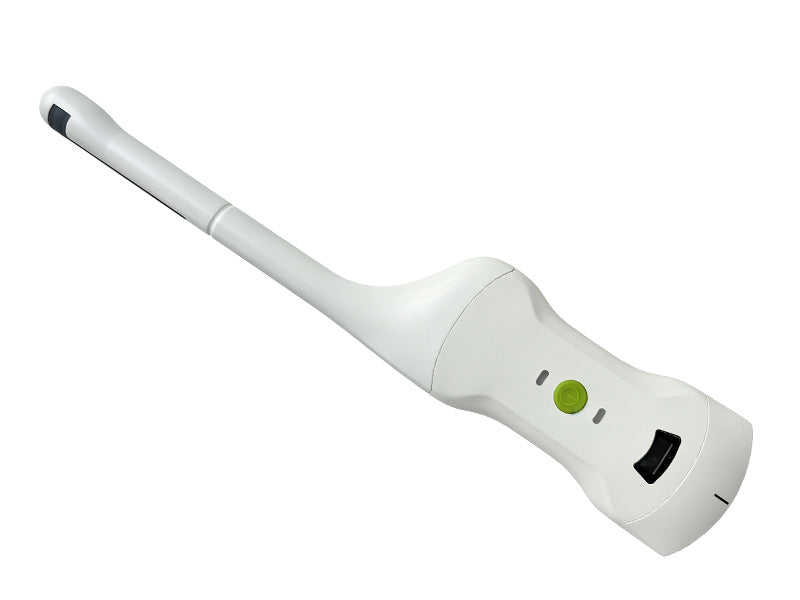

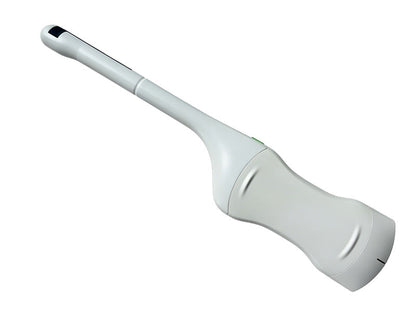

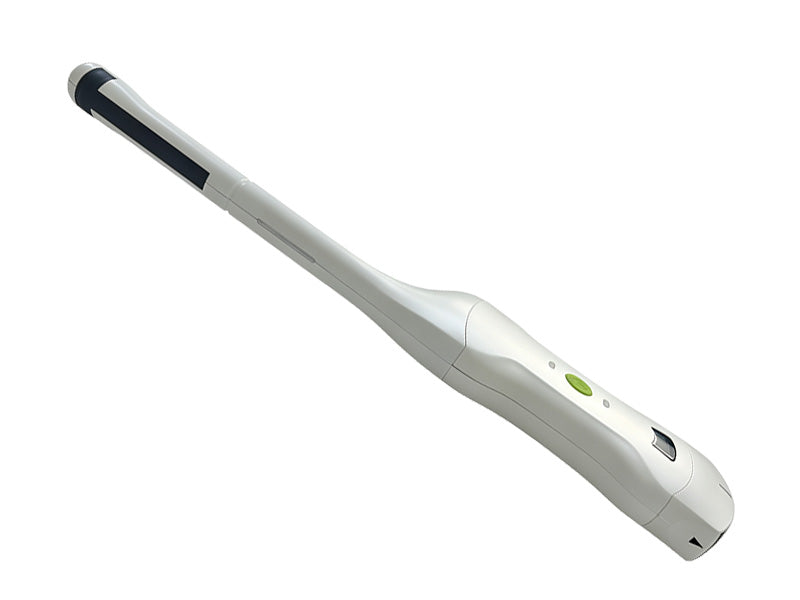

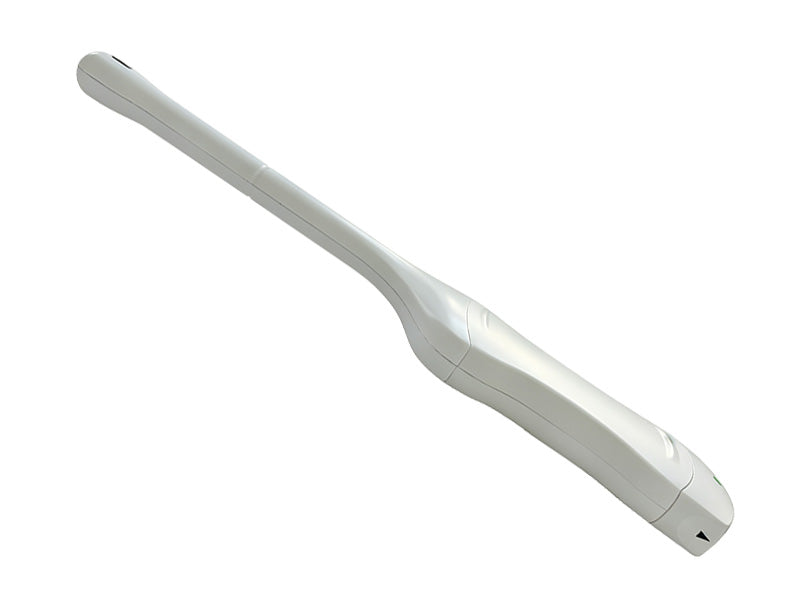

The Global Healthcare Medical Palm-Sized Wireless Biplane Rectal Ultrasound Scanner is a compact, probe-type diagnostic imaging system engineered to deliver high-resolution visualization for transrectal, urological, and anorectal applications. Weighing just 300g (approximately 0.66 lbs) and measuring 336mm × 70mm × 20mm, this handheld device integrates a specialized T-type biplane probe that combines convex and linear array capabilities in a single unit—enabling comprehensive visualization of prostate, rectal, and pelvic structures without the need for multiple probes or bulky cart-based equipment.

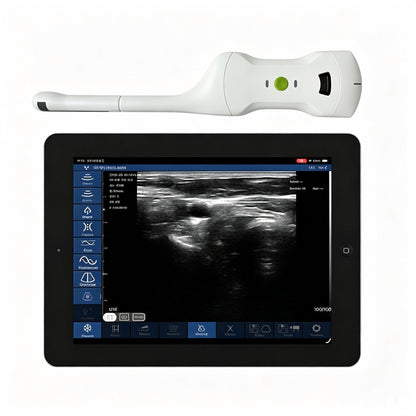

What sets this scanner apart is its dual-mode switching capability. A simple long-press of the power button toggles between convex array mode (for broader, deeper visualization) and biplane rectal mode (for higher-resolution, near-field assessment of layered tissues). The system operates wirelessly via WiFi (802.11g / 20MHz / 5G / 450Mbps) , transmitting real-time images directly to an Android or iOS smartphone or tablet—eliminating the need for a separate console and giving clinicians complete freedom of movement during examinations.
Global Healthcare Medical is dedicated to improving patient care around the world by delivering value-driven, innovative, and high-quality medical products and services.
Key Features & Benefits
T-Type Biplane Probe for Dual-Plane Visualization
This scanner features a specialized T-type biplane probe that integrates both convex and linear array scanning modes in a single unit. Long-press the power button to switch between modes, allowing seamless transition between:
| Probe Mode | Primary Applications |
|---|---|
| Convex Array Mode | Broader, deeper visualization of pelvic and rectal structures; abdominal assessment |
| Biplane Rectal Mode | Higher-resolution, near-field assessment of prostate, rectal wall, and layered tissues |
This dual-plane capability provides comprehensive visualization of prostate, perirectal, and pelvic floor anatomy from multiple angles, supporting accurate assessment and guided interventions.
High-Resolution Imaging Performance
The system delivers high-quality imaging with advanced technical specifications:
| Specification | Detail |
|---|---|
| Scanning Mode | Electronic array |
| Probe Type | T-type biplane (convex + rectal biplane) |
| Frequency (Convex) | 3.2 MHz / 5.0 MHz |
| Frequency (Biplane Rectal) | 6.5 MHz / 8.0 MHz |
| Elements | 128 piezoelectric elements |
| Channels | 32 |
| Scan Depth (Convex) | 90 – 305 mm (adjustable) |
| Scan Depth (Biplane Rectal) | 40 – 100 mm (adjustable) |
| Scan Angle | R60 (convex) / R13 (biplane rectal) |
| Image Frame Rate | 18 frames/second |
| Gain Range | 30 – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 levels |

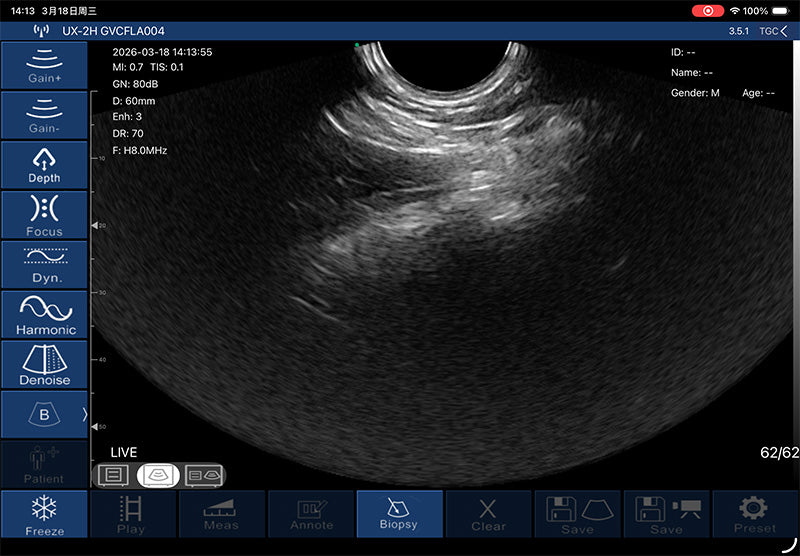

Imaging modes supported:
-
B‑Mode – fundamental 2D imaging with 256-level gray scale
-
B/M Mode – combined anatomical and motion imaging
-
Color Doppler – real-time blood flow visualization
-
Power Doppler Imaging (PDI) – sensitive low-flow detection
-
Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

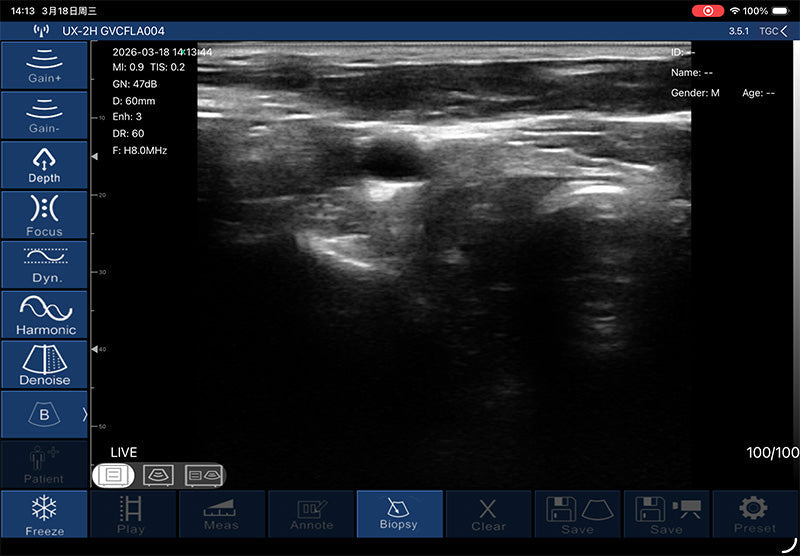

Image adjustments include Gain, DYN, Focus, Depth, Harmonic imaging, and Denoise. Cineplay supports manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000).
Puncture Assistance for Guided Procedures
The scanner includes in-plane puncture guide line and out-of-plane puncture guide functions, making it a practical tool for ultrasound-guided transrectal interventions such as:
-
Prostate biopsy guidance – precise needle alignment for tissue sampling
-
Transrectal drainage procedures – guided aspiration of pelvic collections
-
Perirectal interventions – accurate targeting of perirectal lesions
These features are particularly valuable for transrectal ultrasound-guided prostate biopsy, a key diagnostic tool for prostate cancer, prostatitis, prostatic abscess, and benign prostatic hyperplasia. Research has demonstrated that transrectal biplane ultrasound-guided transperineal biopsy is a safe, real-time, and highly accurate technique for diagnosing rectal and perirectal lesions.
Wireless Convenience for Point-of-Care Use

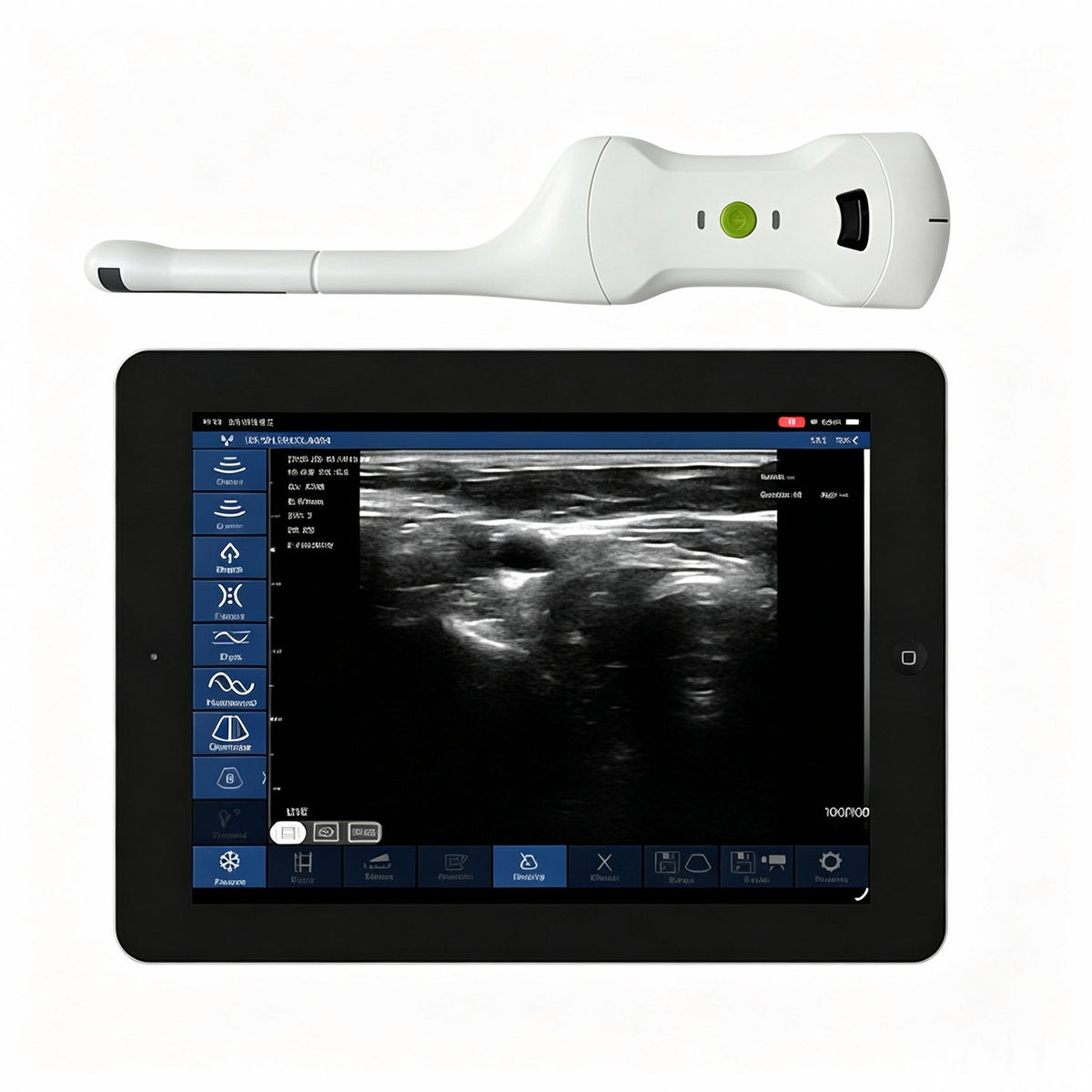

The scanner connects wirelessly to your mobile device, offering:
-
No separate console – images display directly on your smartphone or tablet
-
Real-time image display – instant visualization on your existing device
-
Image/video storage – save in jpg, mp4, and DCM formats to your mobile device
-
Broad compatibility – works with Android and iOS devices
-
WiFi connectivity – 802.11g / 20MHz / 5G / 450Mbps for fast, stable transmission
Extended Battery Life with Flexible Charging
The system features a built-in 2800mAh lithium battery providing approximately 2 hours of continuous working time. Charging is available via USB or an optional wireless charger for added convenience.
Comprehensive Measurement Capabilities
-
Measurements – Length, Area, Angle, and Obstetrics calculations
-
Image gray scale – 256 levels for detailed tissue differentiation
Comprehensive Clinical Applications
| Specialty | Applications |
|---|---|
| Urology | Prostate assessment, prostate biopsy guidance, seminal vesicle evaluation, bladder neck assessment |
| Colorectal | Rectal and perirectal evaluation, sphincter assessment, perirectal abscess detection, rectal cancer staging |
| Gynecology | Pelvic floor assessment, endocavity evaluation |
| Emergency Medicine | Pelvic pain evaluation, suspected abscess assessment |
| Primary Care | Routine urological and colorectal screening |
Clinical Value of Transrectal Biplane Imaging

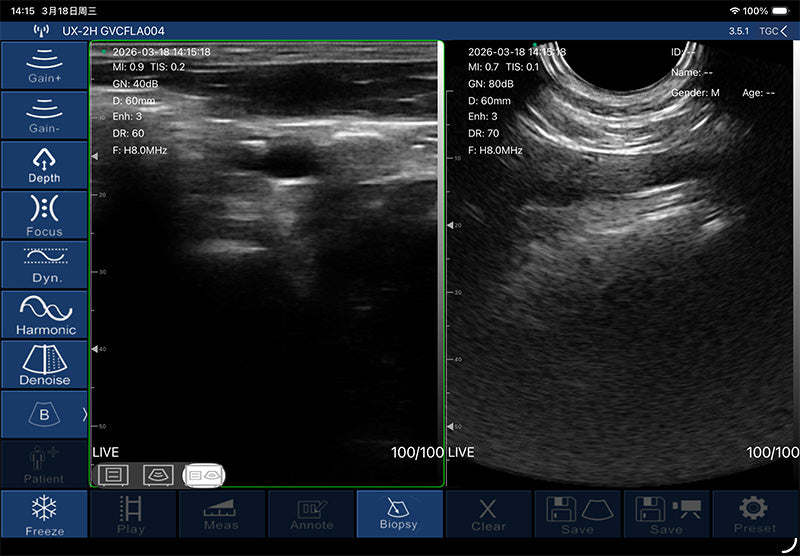

Transrectal biplane ultrasound is an essential tool for evaluating the lower rectum, anal sphincters, and pelvic floor in patients with various anorectal diseases. The biplane design provides complementary perspectives—the linear plane offers high-resolution detail of layered structures, while the convex plane provides broader anatomical context. This dual-plane capability is particularly valuable for:
-
Prostate cancer detection – TRUS-guided biopsies are frequently used for patients suspected of having prostate cancer due to hard nodules on digital rectal examination or persistently elevated PSA levels
-
Rectal cancer staging – transrectal biplane ultrasound features are predictive for distinguishing T3–T4 stage rectal cancer and improving preoperative staging accuracy
-
Anorectal disease assessment – evaluation of sphincter integrity, perirectal abscesses, and fistulous tracts
Technical Specifications
| Specification | Detail |
|---|---|
| Scan Mode | Electronic array |
| Probe Type | T-type biplane (convex + rectal biplane) |
| Frequency | Convex: 3.2 MHz / 5.0 MHz; Biplane Rectal: 6.5 MHz / 8.0 MHz |
| Elements | 128 |
| Channels | 32 |
| Scan Depth | Convex: 90 – 305 mm; Biplane Rectal: 40 – 100 mm (adjustable) |
| Scan Angle | R60 (convex) / R13 (biplane rectal) |
| Display Mode | B, B/M, Color, PDI, PW |
| Image Adjustment | Gain, DYN, Focus, Depth, Harmonic, Denoise |
| Puncture Assist Function | In-plane puncture guide line, out-of-plane puncture guide function |
| Image Gray Scale | 256 levels |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 |
| Gain | 30 dB – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Image Frame Rate | 18 frames/second |
| Image Save Format | jpg, mp4, DCM |
| Cineplay | Auto and manual; frames can set as 100 / 200 / 500 / 1000 |
| Measurements | Length, Area, Angle, Obstetrics |
| Battery | Built-in lithium battery, 2800mAh |
| Battery Working Time | 2 hours |
| Charging | USB, or optional wireless charger |
| WiFi Type | 802.11g / 20MHz / 5G / 450Mbps |
| Working System | Android / iOS |
| Size | 336mm × 70mm × 20mm |
| Net Weight | 300g |
Why Choose Global Healthcare Medical?
| Consideration | Our Palm-Sized Biplane Rectal Scanner |
|---|---|
| Need for dual-plane transrectal imaging | T-type biplane probe combines convex and rectal biplane modes in one unit |
| Portable, point-of-care imaging | Palm-sized, 300g design goes wherever you go |
| No bulky equipment | Wireless—no console, no cables; use your existing Android or iOS device |
| Procedure guidance | In-plane and out-of-plane puncture guide functions for transrectal interventions |
| Extended scanning sessions | 2800mAh battery with 2-hour working time and flexible charging options |
| Quick, confident diagnosis | 5 imaging modes with adjustable depth and gain settings |
| Cost-effective solution | Professional imaging at a fraction of traditional system costs |
| Clinical versatility | Suitable for urology, colorectal, gynecology, and emergency applications |
