Global Healthcare Medical Palm-Sized Wireless Convex Ultrasound Scanner
Global Healthcare Medical Palm-Sized Wireless Convex Ultrasound Scanner
Model: GHM 7C HK
The Global Healthcare Medical Palm-Sized Wireless Convex Ultrasound Scanner is a compact, probe-type diagnostic imaging system engineered to deliver deep-tissue visualization for abdominal, obstetric, gynecological, and general clinical applications. Designed for healthcare professionals who need reliable imaging at the point of care—from emergency departments and critical care units to remote clinics, ambulatory services, and bedside rounds—this handheld scanner combines professional-grade imaging performance with the convenience of a truly portable form factor.

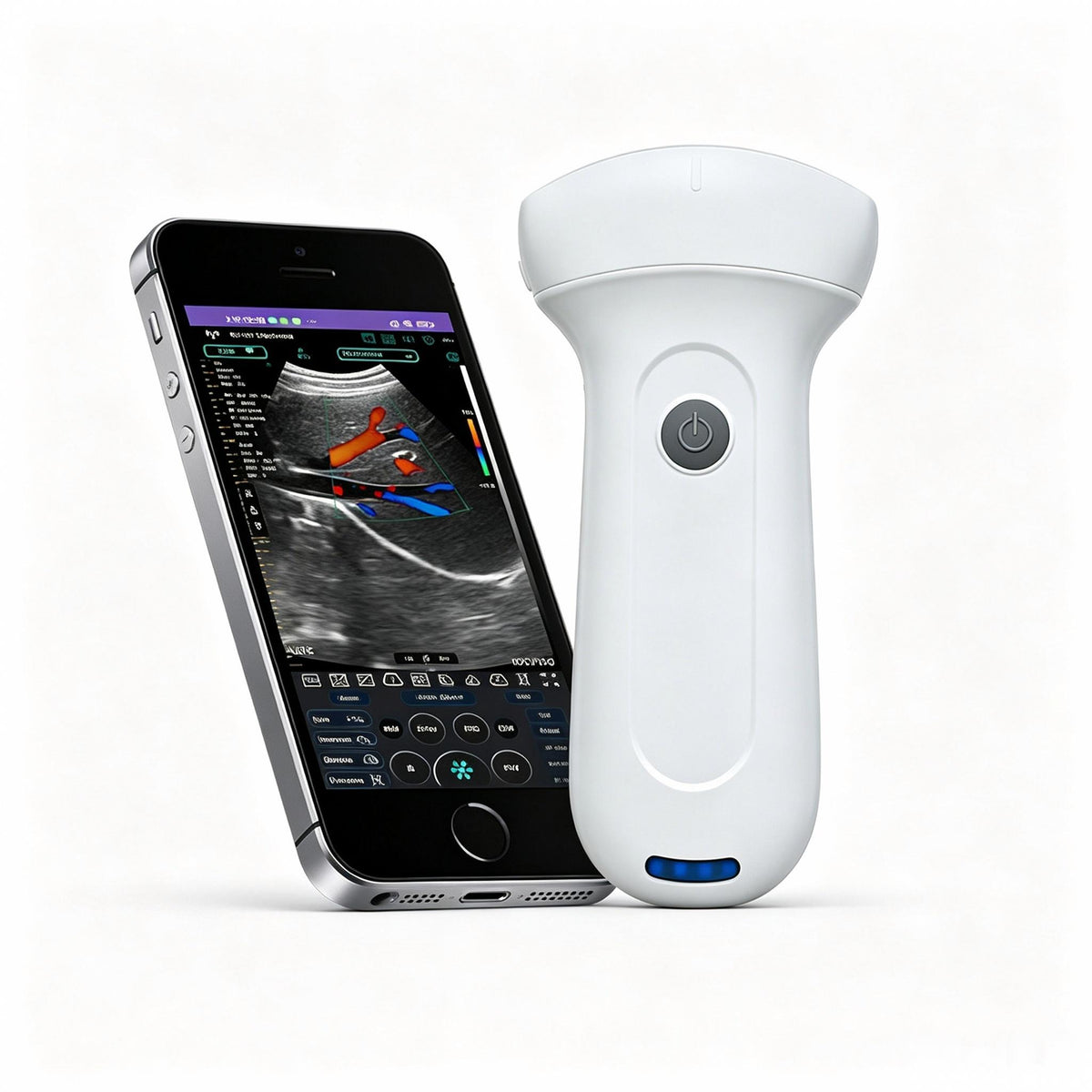

Weighing just 180g (approximately 0.4 lbs) and measuring 140mm × 55mm × 20mm, this device fits comfortably in the palm of your hand. It operates wirelessly via WiFi (802.11g / 20MHz / 5G / 450Mbps) , transmitting real-time images directly to your smartphone, tablet, or PC. Compatible with Apple iOS, Android, and Windows devices, it eliminates the need for bulky consoles and tangled cables, giving clinicians complete freedom of movement during examinations.
This system is intended for use by trained healthcare professionals. It supports a wide range of diagnostic applications including abdominal, obstetric, gynecological, urological, and general imaging.
Key Features & Benefits
Convex Array for Deep-Tissue and General Imaging
This scanner is equipped with a convex (curvilinear) array probe featuring 192 piezoelectric elements and 32 channels, optimized for imaging deep structures with exceptional detail. The R60 convex radius and 60° scan angle provide a broad field of view for comprehensive examination of abdominal organs, obstetric structures, and deep tissue. Key imaging specifications include:
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array, Electronic Convex array scanning |
| Frequency | 3.2 MHz / 5.0 MHz |
| Elements | 192 |
| Channels | 32 |
| Scanning Depth | 90 – 305 mm (adjustable) |
| Scan Angle | R60 |
| Image Frame Rate | 18 frames/second |
The adjustable scanning depth from 90mm to 305mm allows you to adapt the imaging depth to the patient‘s body type and the specific clinical application—from superficial abdominal structures to deep obstetric imaging.
Comprehensive Imaging Modes
The system supports a full range of imaging modes for diverse clinical applications:
-

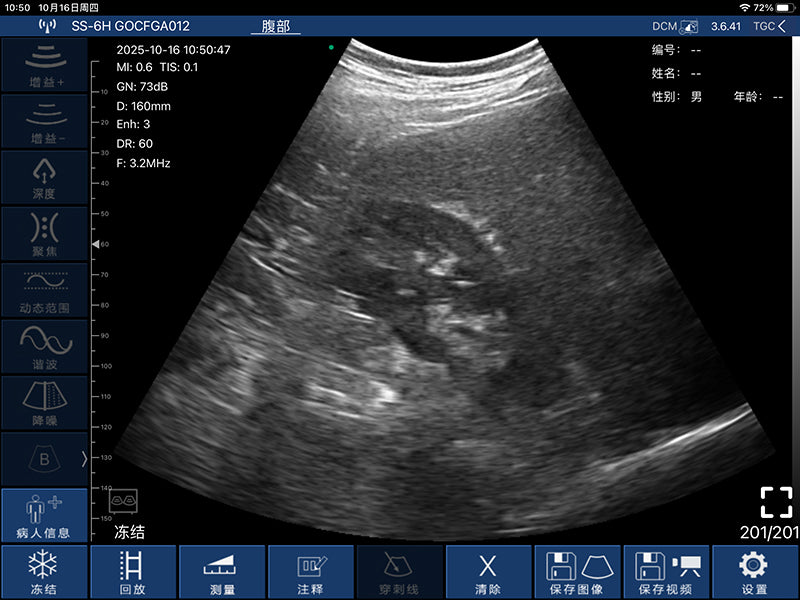

B‑Mode – fundamental 2D imaging with 256-level gray scale
-
B/M Mode – combined anatomical and motion imaging
-

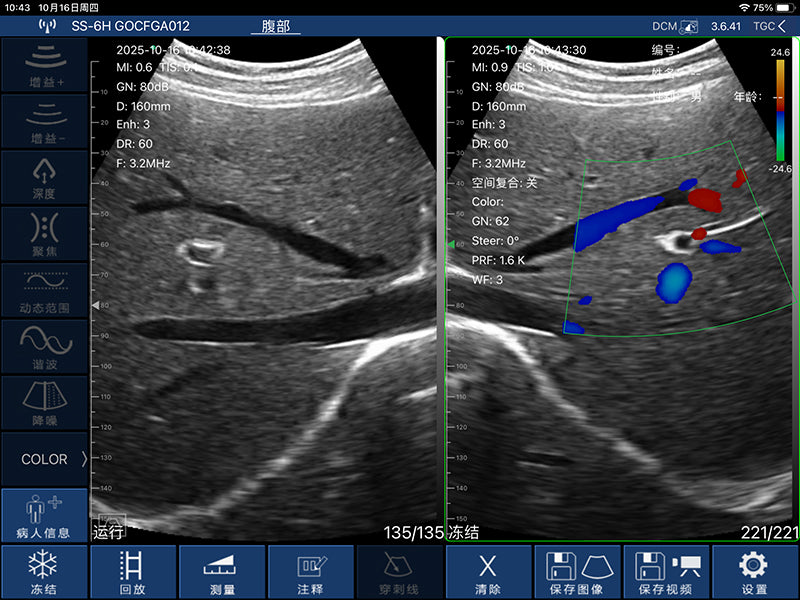

Color Doppler – real-time blood flow visualization
-
Power Doppler Imaging (PDI) – sensitive low-flow detection
-
Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment
Image adjustment features include Gain (30–105 dB), Dynamic Range (40–110 across 8 settings), Focus, Depth, Harmonic imaging, and Denoise (0–4 levels). These adjustments allow clinicians to optimize image quality for different tissue types and patient conditions.
Extended Battery Life with Wireless Charging
The system features a built-in 2200mAh lithium battery providing approximately 1.5 hours of continuous working time. With wireless charging, working time can be extended indefinitely—simply place the probe on a compatible charger between scans. A full charge takes approximately 2 hours.
Wireless Freedom for Point-of-Care Imaging
The scanner connects wirelessly to your mobile device or PC, offering:
-
Real-time image display – instant visualization on your existing screen
-
Image/video storage – save directly to your mobile phone or tablet
-
Broad compatibility – works with Apple iOS, Android, and Windows devices
-
WiFi type – 802.11g / 20MHz / 5G / 450Mbps for fast, stable transmission
Puncture Assistance for Guided Procedures
The system includes a comprehensive suite of puncture assistance tools, making it a practical tool for ultrasound-guided interventions:
-
In-plane puncture guide line – for precise needle alignment within the scan plane
-
Out-of-plane puncture guide line – with automatic blood vessel measurement function
-
Needle point enhancement – improved visualization of the needle tip for accurate guidance
-
Automatic vascular measurement – supports pre-procedure vessel assessment
Comprehensive Measurement and Review Tools
-
Measurements – distance, area, and obstetric calculations
-
Cineplay – manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000)
-
Image gray scale – 256 levels for detailed tissue differentiation
Comprehensive Clinical Applications
This convex array ultrasound system is ideal for a wide range of clinical applications:
| Specialty | Applications |
|---|---|
| Abdominal | Liver, gallbladder, pancreas, spleen, kidney evaluation |
| Obstetrics | Fetal biometry, gestational age assessment, pregnancy confirmation |
| Gynecology | Uterine and ovarian evaluation |
| Urology | Renal, bladder, and prostate examinations |
| Emergency Medicine | FAST exams, bedside diagnostics, trauma assessment |
| Critical Care | ICU patient evaluation, fluid status assessment |
| Primary Care | Routine screening and point-of-care diagnostics |
Technical Specifications
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array, Electronic Convex array scanning |
| Frequency | Convex probe 3.2 MHz / 5.0 MHz |
| Elements | 192 |
| Channels | 32 |
| Scanning Depth | 90 – 305 mm, adjustable |
| Scan Angle | R60 |
| Display Mode | B, B/M, Color, PDI, PW |
| Image Gray Scale | 256 levels |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 |
| Gain | 30 dB – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Image/Video Storage | Store on mobile phones or tablet PCs |
| Measurements | Distance, area, obstetrics and other |
| Puncture Assist Function | In-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, needle point enhancement |
| Battery | Built-in lithium battery, 2200mAh |
| Battery Working Time | 1.5 hours |
| Charging | Wireless charging, 2 hours |
| WiFi Type | 802.11g / 20MHz / 5G / 450Mbps |
| Working System | Apple iOS, Android, Windows |
| Size | 140mm × 55mm × 20mm |
| Net Weight | 180g |
Why Choose Global Healthcare Medical?
| Consideration | Our Palm-Sized Wireless Convex Scanner |
|---|---|
| Need for deep-tissue imaging | 192-element convex array with 3.2/5.0 MHz frequency and up to 305mm depth |
| Portable, point-of-care imaging | Palm-sized, 180g design goes wherever you go |
| No bulky equipment | Wireless—no console, no cables |
| Extended scanning sessions | 2200mAh battery with wireless charging for continuous operation |
| Multi-platform compatibility | Works with iOS, Android, and Windows devices |
| Procedure guidance | In-plane/out-of-plane puncture guides and automatic vascular measurement |
| Quick, confident diagnosis | 5 imaging modes with adjustable depth and gain settings |
| Cost-effective solution | Professional imaging at a fraction of traditional system costs |
