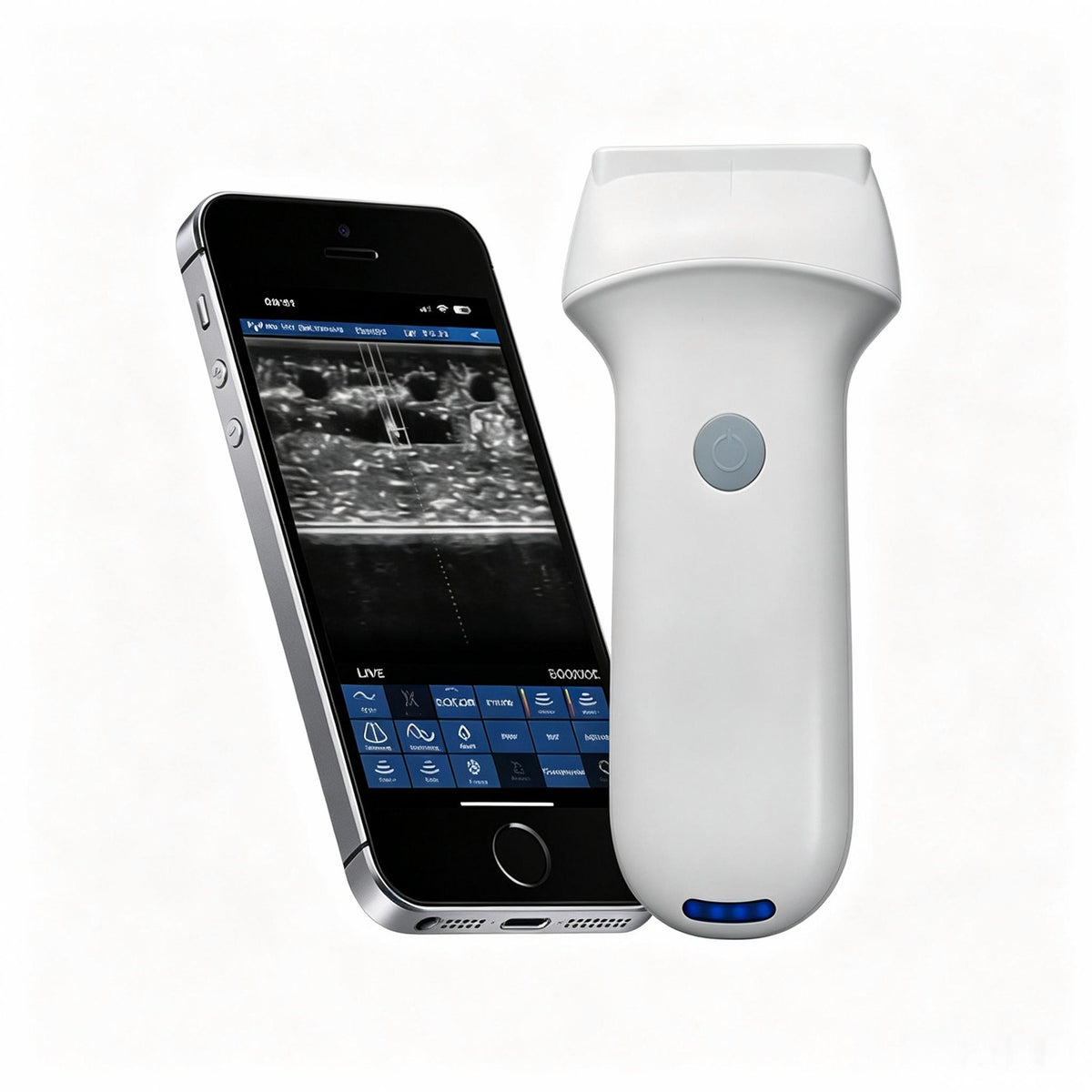

Global Healthcare Medical Palm-Sized Wireless Linear Color Doppler Ultrasound Scanner with Magnetic Navigation

Model: GHM 8X HK

The Global Healthcare Medical Palm-Sized Wireless Linear Color Doppler Ultrasound Scanner is a compact, probe-type diagnostic imaging system engineered to bring advanced needle visualization and precise puncture guidance directly to the point of care. Weighing just 180g (approximately 0.4 lbs) and measuring 140mm × 55mm × 20mm, this handheld device fits comfortably in the palm of your hand—yet delivers high-resolution linear imaging with an integrated magnetic navigation system that transforms how clinicians approach ultrasound-guided procedures.

What sets this scanner apart is its magnetic navigation technology for needle visualization. The probe contains a built-in magnetic sensor that captures the environmental magnetic field vector and the magnetized needle‘s induced magnetic field vector. This information is transmitted to a processing unit that calculates the needle’s displacement and angle in real time, generating an augmented ultrasound image with the puncture needle‘s position and trajectory overlaid directly on the display. The result is multi-directional, cross-verified needle visualization that improves puncture accuracy, raises intervention success rates, and reduces procedural difficulty—all without the need for a traditional puncture frame or bracket.

The system operates wirelessly via WiFi (802.11n / 2.4G / 5G dual-band, 450Mbps) , transmitting real-time images directly to your smartphone, tablet, or PC. Compatible with Apple iOS, Android, and Windows devices, it eliminates the need for bulky consoles and tangled cables, giving clinicians complete freedom of movement during examinations and procedures.

Key Features & Benefits

Magnetic Navigation for Precision Needle Visualization

The scanner‘s defining feature is its integrated magnetic navigation system, which provides real-time visualization of the puncture needle within the ultrasound image. Unlike conventional ultrasound guidance that requires the operator to mentally track the needle tip, this technology overlays the needle’s displacement and angle directly onto the ultrasound image, enabling simultaneous visualization of the needle and surrounding anatomy.

Key advantages of magnetic navigation:

• In-plane and out-of-plane puncture support – clear needle tip visualization regardless of the puncture approach

• Multi-directional and cross-verified visualization – more reliable confirmation of needle position

• No puncture frame required – simplifies setup and reduces equipment dependency

• Improved puncture accuracy – higher success rates and reduced intervention difficulty

• Real-time trajectory projection – supports precise needle alignment throughout the procedure

Clinical evidence supports the benefits of magnetic needle navigation. A systematic review and meta-analysis found that magnetic field needle positioning for ultrasound-guided central venous cannulation was associated with higher out-of-plane success rates and significantly fewer complications, including a 70% reduction in posterior wall puncture rates and an 86% reduction in artery puncture rates compared to conventional ultrasound.

High-Frequency Linear Array for Superior Superficial Imaging

The scanner is equipped with a linear array probe featuring 192 piezoelectric elements and 64 channels, optimized for high-resolution imaging of superficial structures. The 40mm scan width provides a broad field of view for efficient examination of tendons, ligaments, nerves, blood vessels, and small parts. Key imaging specifications include:

The adjustable scanning depth from 20mm to 100mm allows you to adapt the imaging depth to the specific clinical application—from very superficial structures such as skin and subcutaneous tissue to deeper musculoskeletal and vascular targets.

Comprehensive Imaging Modes

The system supports a full range of imaging modes for diverse clinical applications:

• B‑Mode – fundamental 2D imaging with 256-level gray scale

• B/M Mode – combined anatomical and motion imaging

• Color Doppler – real-time blood flow visualization

• Power Doppler Imaging (PDI) – sensitive low-flow detection

• Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

Image adjustment features include gain (30–105 dB), focus, reverse pulse harmonics, and noise reduction (0–4 levels). Dynamic range is adjustable across 8 settings (40–110).

Extended Battery Life with Wireless Charging

The system features a built-in 2200mAh lithium battery providing approximately 1.5 hours of continuous working time. With wireless charging, working time can be extended indefinitely—simply place the probe on a compatible charger between scans. Charging is also available via USB for universal convenience.

Wireless Freedom for Point-of-Care Imaging

The scanner connects wirelessly to your mobile device or PC, offering:

• Real-time image display – instant visualization on your existing screen

• Image/video storage – save in jpg, MP4, and DCM formats directly to your mobile phone or tablet

• Broad compatibility – works with Apple iOS, Android, and Windows devices

• WiFi type – 802.11n / 2.4G / 5G dual-band 450Mbps for fast, stable transmission

Puncture Assistance for Guided Procedures

The system includes a comprehensive suite of puncture assistance tools:

• In-plane puncture guide line – for precise needle alignment within the scan plane

• Out-of-plane puncture guide line – with automatic blood vessel measurement function

• Needle visualization via magnetic navigation – real-time overlay of needle position and trajectory

• Automatic vascular measurement – supports pre-procedure vessel assessment

Comprehensive Measurement and Review Tools

• Measurements – distance, area, circumference, heart rate, and obstetric calculations

• Cineplay – manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000)

• Image gray scale – 256 levels for detailed tissue differentiation

Comprehensive Clinical Applications

This handheld ultrasound scanner with magnetic navigation is ideal for a wide range of clinical applications requiring precise needle guidance and high-resolution superficial imaging:

Technical Specifications

Why Choose Global Healthcare Medical?

Evidence-based advantages of magnetic navigation:

• Higher out-of-plane success rates for vascular cannulation compared to conventional ultrasound guidance

• 70% reduction in posterior wall puncture and 86% reduction in artery puncture in central venous cannulation

• Improved needle tip visualization for both in-plane and out-of-plane approaches

About Global Healthcare Medical

Global Healthcare Medical is dedicated to improving patient care around the world by delivering value-driven, innovative, and high-quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging and guided procedures accessible, portable, and affordable for healthcare professionals everywhere.
