Global Healthcare Medical Palm-Sized Wireless Linear Ultrasound Scanner
Global Healthcare Medical Palm-Sized Wireless Linear Ultrasound Scanner
Model: GHM 7H HK

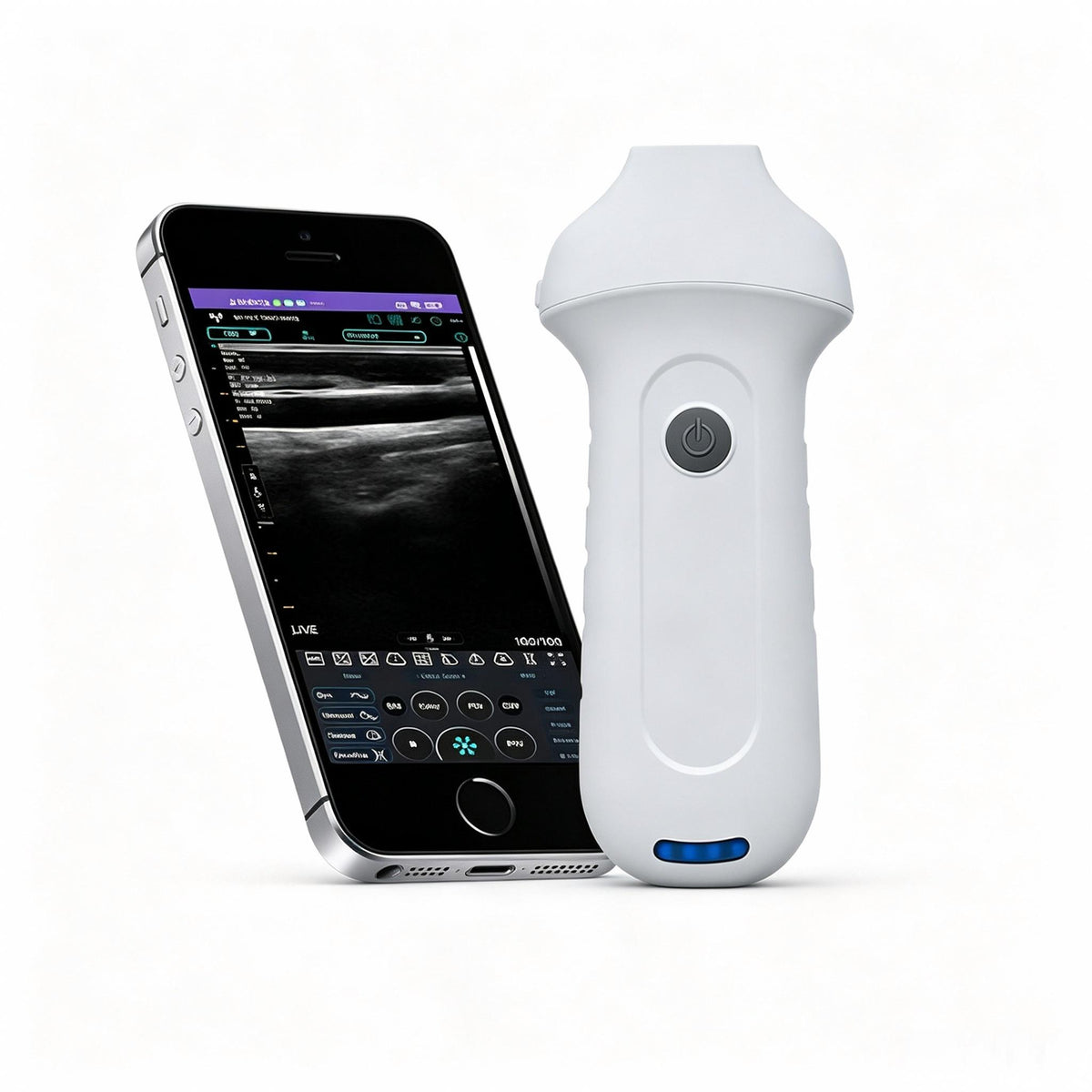

The Global Healthcare Medical Palm-Sized Wireless Linear Ultrasound Scanner is a compact, probe-type diagnostic imaging system engineered to deliver ultra-high-resolution near-field visualization for superficial structures. Designed for healthcare professionals who need precise imaging at the point of care—from vascular access and musculoskeletal assessment to small parts, nerve blocks, and pediatric examinations—this handheld scanner combines professional-grade imaging performance with the convenience of a truly portable form factor.

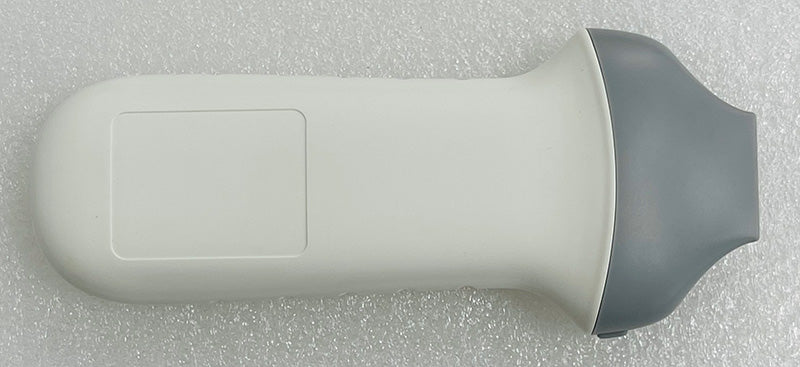

Weighing just 180g (approximately 0.4 lbs) and measuring 140mm × 55mm × 20mm, this device fits comfortably in the palm of your hand. It operates wirelessly via WiFi, transmitting real-time images directly to your smartphone, tablet, or PC. Compatible with Apple iOS, Android, and Windows devices, it eliminates the need for bulky consoles and tangled cables, giving clinicians complete freedom of movement during examinations.
This system is intended for use by trained healthcare professionals. It supports a wide range of diagnostic applications including vascular, musculoskeletal, small parts, and pediatric imaging.
Key Features & Benefits
Ultra-High Frequency Linear Array for Exceptional Superficial Resolution
This scanner is equipped with a linear array probe featuring 192 piezoelectric elements and 32 channels, optimized for ultra-high-resolution imaging of very superficial structures. The 18mm scan width provides a focused field of view for precise examination of fine anatomical details, small nerves, superficial tendons, and dermal layers. Key imaging specifications include:
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array, Electronic Linear array scanning |
| Frequency | 16 MHz / 20 MHz |
| Elements | 192 |
| Channels | 32 |
| Scanning Depth | 10 / 20 / 30 / 40 mm (adjustable) |
| Scan Angle | Linear L18 |
The adjustable scanning depth from 10mm to 40mm allows you to adapt the imaging depth to the specific clinical application—from the most superficial structures such as skin, subcutaneous tissue, and small peripheral nerves to deeper musculoskeletal and vascular targets.
Comprehensive Imaging Modes
The system supports a full range of imaging modes for diverse clinical applications:
-
B‑Mode – fundamental 2D imaging with 256-level gray scale
-
B/M Mode – combined anatomical and motion imaging
-
Color Doppler – real-time blood flow visualization
-
Power Doppler Imaging (PDI) – sensitive low-flow detection
-
Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment
Image adjustment features include Gain (30–105 dB), Dynamic Range (40–110 across 8 settings), Focus, Depth, and Noise Reduction (0–4 levels). These adjustments allow clinicians to optimize image quality for different tissue types and patient conditions.
Extended Battery Life with Wireless Charging
The system features a built-in 2200mAh lithium battery providing approximately 1.5 hours of continuous working time. With wireless charging, working time can be extended indefinitely—simply place the probe on a compatible charger between scans.
Wireless Freedom for Point-of-Care Imaging
The scanner connects wirelessly to your mobile device or PC, offering:
-
Real-time image display – instant visualization on your existing screen
-
Image/video storage – save directly to your mobile phone or tablet
-
Broad compatibility – works with Apple iOS, Android, and Windows devices
-
WiFi type – for fast, stable transmission
Puncture Assistance for Guided Procedures
The system includes a comprehensive suite of puncture assistance tools, making it a practical tool for ultrasound-guided interventions:
-
In-plane puncture guide line – for precise needle alignment within the scan plane
-
Out-of-plane puncture guide line – with automatic blood vessel measurement function
-
Needle point enhancement – improved visualization of the needle tip for accurate guidance
-
Automatic vascular measurement – supports pre-procedure vessel assessment
Comprehensive Measurement and Review Tools
-
Measurements – distance, area, and obstetric calculations
-
Cineplay – manual and automatic playback with adjustable frame settings
-
Image gray scale – 256 levels for detailed tissue differentiation
Comprehensive Clinical Applications
This ultra-high frequency linear ultrasound system is ideal for a wide range of superficial imaging applications:
| Specialty | Applications |
|---|---|
| Musculoskeletal | Fine tendon, ligament, joint, and muscle assessment; superficial structure evaluation |
| Vascular | Peripheral vascular assessment, blood flow detection, vein mapping, small vessel evaluation |
| Small Parts | Thyroid, breast, and superficial structure imaging with exceptional detail |
| Nerve | Peripheral nerve imaging and nerve block guidance |
| Anesthesiology | Nerve block guidance, vascular access |
| Pain Management | Injection guidance |
| Dermatology | Skin and subcutaneous tissue evaluation |
| Emergency Medicine | Bedside diagnostics, trauma assessment |
| Primary Care | Routine screening and point-of-care diagnostics |
| Veterinary | Small and medium-sized animals |
Technical Specifications
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array, Electronic Linear array scanning |
| Frequency | Linear probe 16 MHz / 20 MHz |
| Elements | 192 |
| Channels | 32 |
| Scanning Depth | Linear 10 – 40 mm, adjustable |
| Scan Angle | Linear L18 |
| Display Mode | B, B/M, Color, PDI, PW |
| Image Gray Scale | 256 levels |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 |
| Gain | 30 dB – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Image/Video Storage | Store on mobile phones or Tablet PC |
| Subject Applications | Thyroid, Small Organ, Pediatric, Vascular, Carotid, Mammary, Musculoskeletal, Blood Flow, Neurological |
| Power | Built-in lithium battery, 2200mAh |
| Battery Working Time | 1.5 hours |
| Charging | Wireless charging |
| WiFi Type | 802.11n / 2.4G / 5G dual-band |
| Working System | Apple iOS, Android, Windows |
| Size | 140mm × 55mm × 20mm |
| Net Weight | 180g |
Why Choose Global Healthcare Medical?
| Consideration | Our Palm-Sized Wireless Linear Scanner |
|---|---|
| Need for ultra-high resolution superficial imaging | 192-element linear array with 16/20 MHz frequency and 18mm scan width |
| Portable, point-of-care imaging | Palm-sized, 180g design goes wherever you go |
| No bulky equipment | Wireless—no console, no cables; use your existing iOS, Android, or Windows device |
| Extended scanning sessions | 2200mAh battery with wireless charging for continuous operation |
| Procedure guidance | In-plane/out-of-plane puncture guides and automatic vascular measurement |
| Quick, confident diagnosis | 5 imaging modes with adjustable depth and gain settings |
| Cost-effective solution | Professional imaging at a fraction of traditional system costs |
