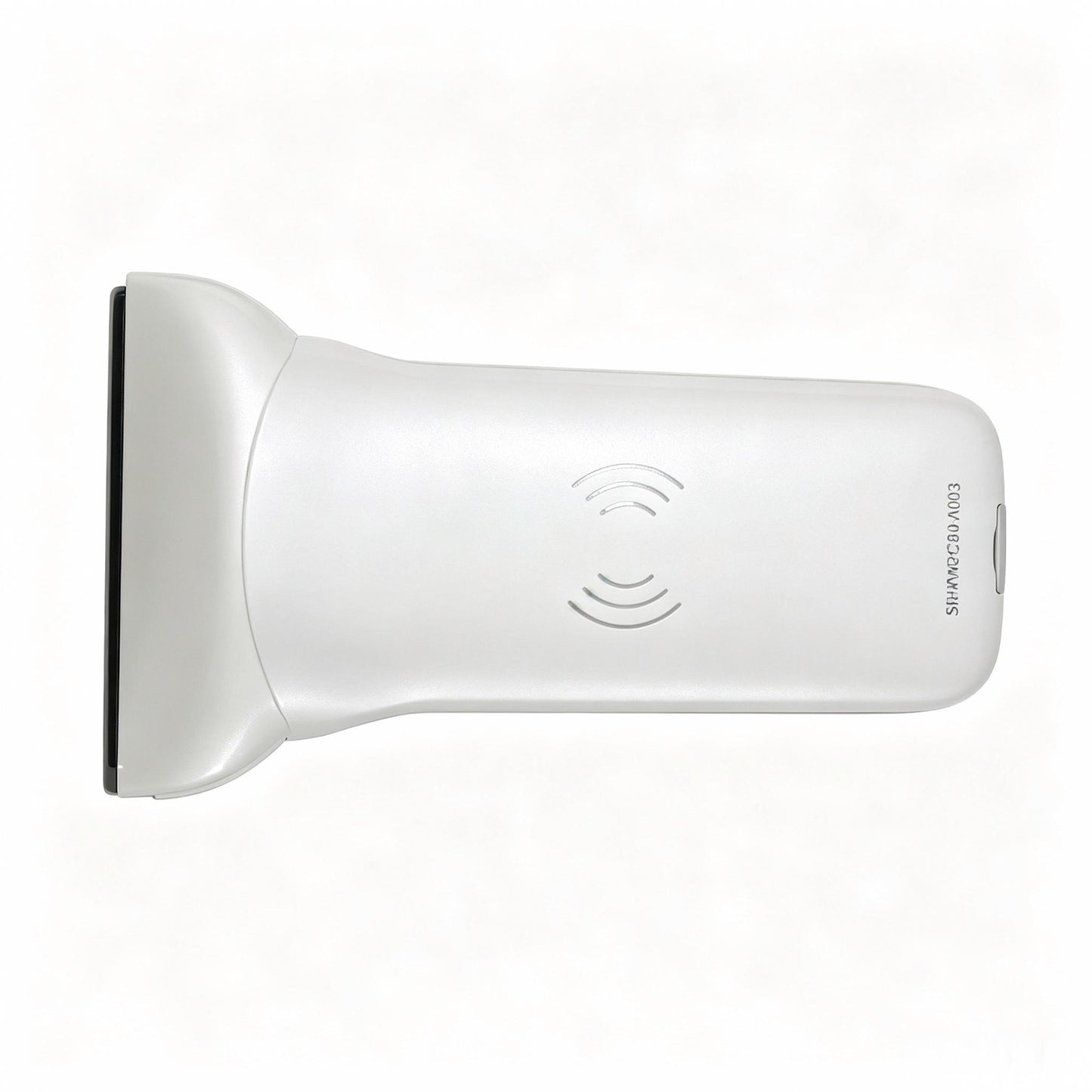

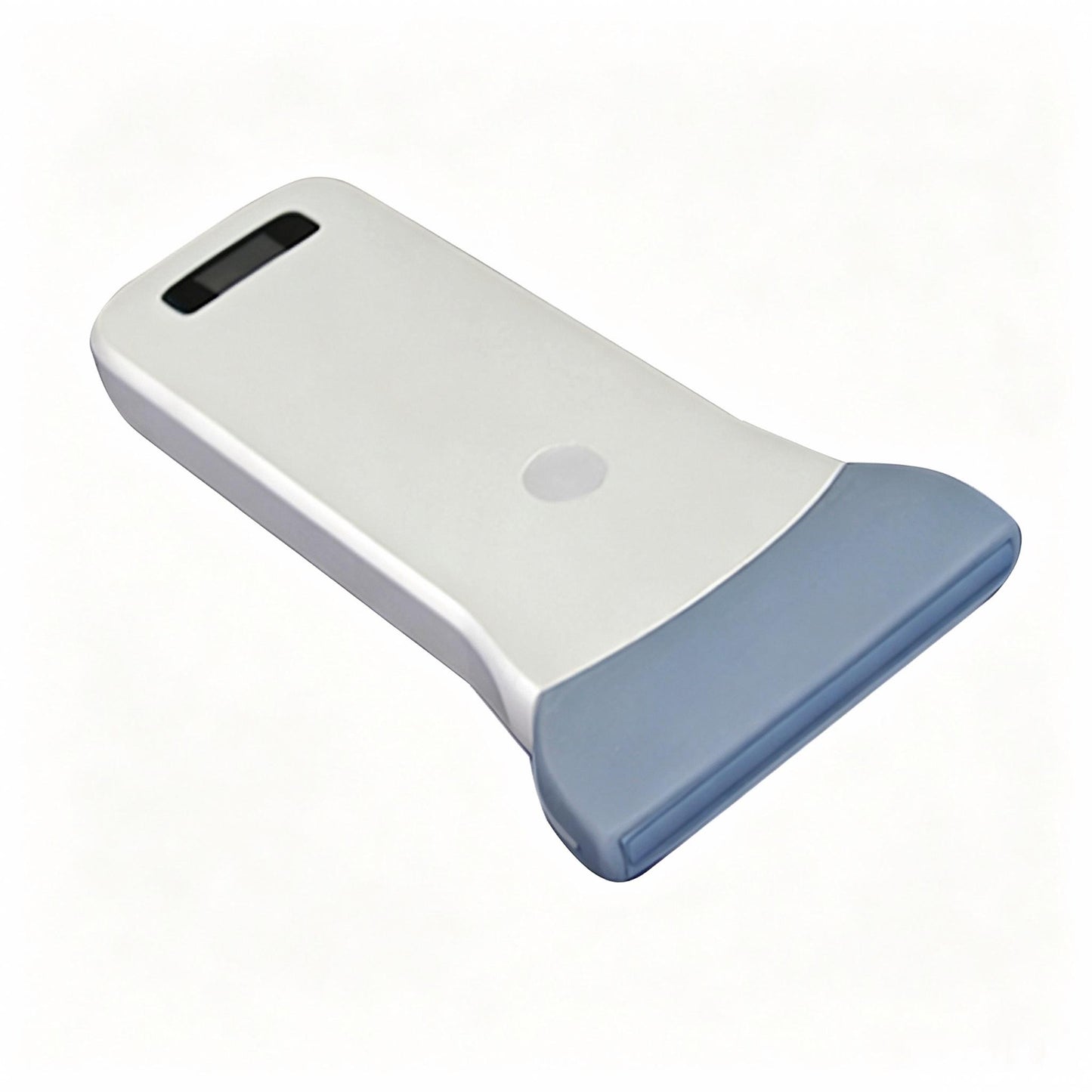

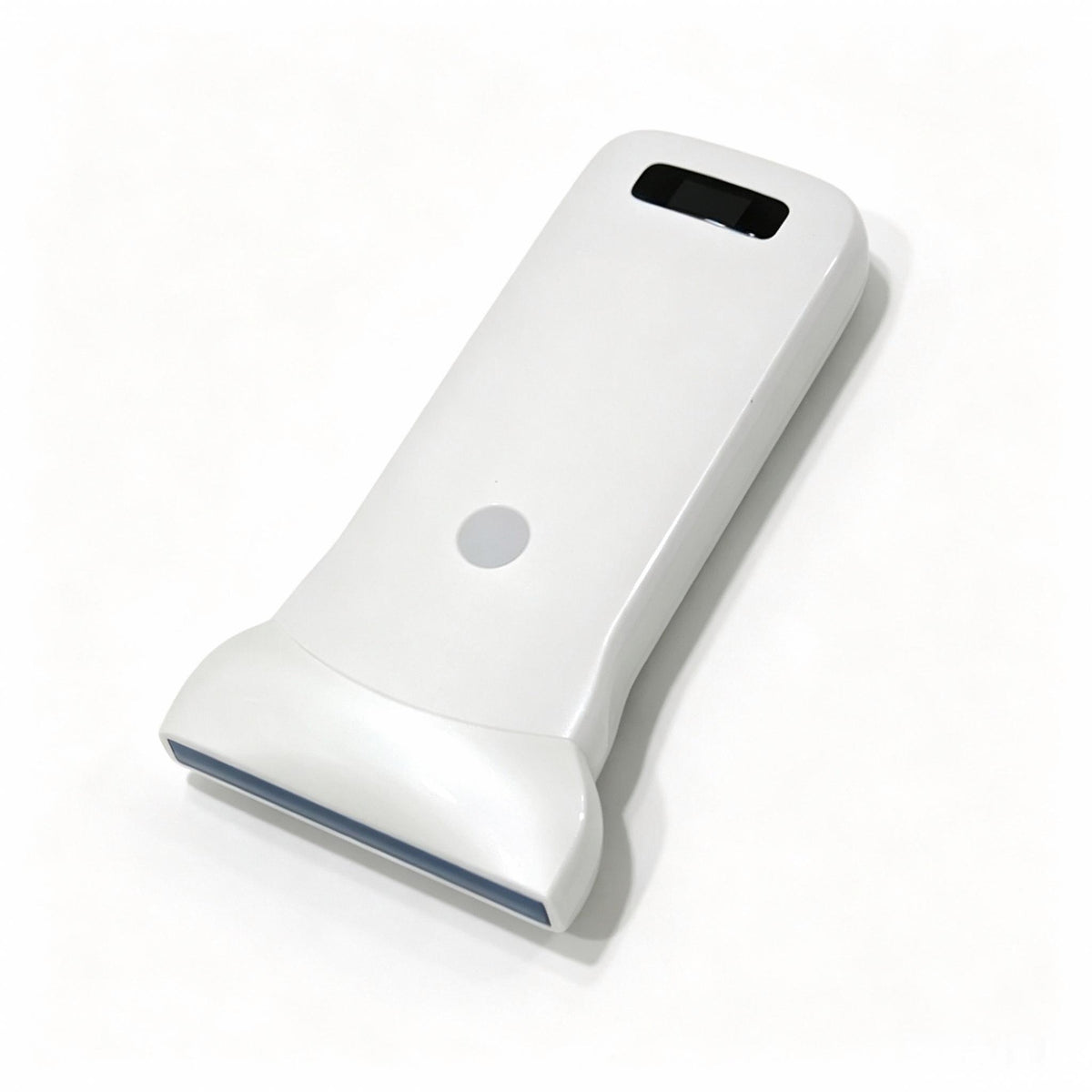

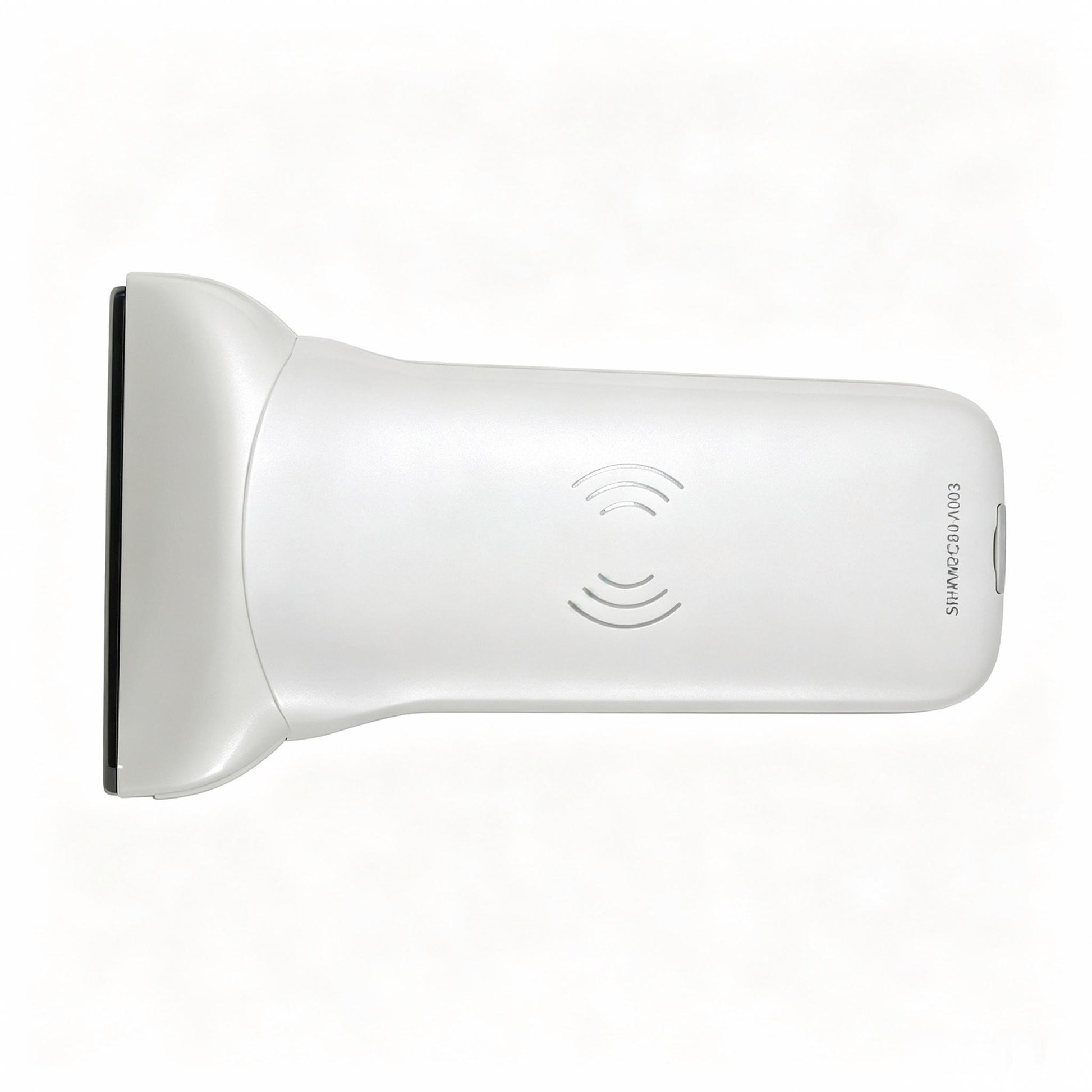

Global Healthcare Medical Super‑Width Linear Wireless Handheld Ultrasound System

Model: GHM CProbe-L5W HK

The Global Healthcare Medical Super‑Width Linear Wireless Handheld Ultrasound System is a compact, pocket‑sized diagnostic imaging solution engineered to deliver exceptional near‑field resolution with an ultra‑wide field of view. Designed for healthcare professionals who need reliable, high‑quality imaging wherever patients are—from emergency departments and vascular access clinics to operating rooms, remote clinics, and ambulatory services—this wireless probe‑type system delivers outstanding performance in a lightweight, portable form factor.

Weighing just 250g (approximately 0.55 lbs) and measuring 156mm × 70mm × 20mm (6.1″ × 2.8″ × 0.8″), this device fits comfortably in your hand or pocket. The system operates wirelessly via WiFi, transmitting real‑time images directly to a smartphone, tablet, or PC—eliminating the need for bulky consoles or tangled cables.

Key Features & Benefits

Super‑Wide Linear Array for Expanded Field of View

This system features a dedicated super‑width linear array probe with 256 piezoelectric elements and 32 transmit channels, delivering an 80mm scan width—significantly wider than standard linear probes. This expanded footprint provides:

• Excellent coverage for superficial imaging – ideal for vascular and musculoskeletal applications

• High‑definition imaging – 256 elements ensure detailed evaluation of small parts and superficial structures

• Broader field of view – examine larger areas such as breast masses, vascular structures, tendons, and joints in a single sweep

• High sensitivity – detects subtle structural changes with confidence

Exceptional Imaging Performance

The system delivers high‑quality imaging across a broad range of clinical applications:

Imaging modes supported:

• B‑Mode – fundamental 2D imaging with exceptional clarity

• B/M Mode – combined anatomical and motion imaging

• Color Doppler – real‑time blood flow visualization

• Power Doppler Imaging (PDI) – sensitive low‑flow detection

• Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

Image adjustments include gain (30–105 dB), dynamic range (40–110), focus, reverse pulse harmonics, and noise reduction (0–4 levels). Frame rate is 18 frames/second for smooth, real‑time visualization. Gray scale is 256 levels for detailed tissue differentiation.

Smartphone‑Powered Convenience

The system connects wirelessly to a mobile device or PC running the companion software application. This smartphone‑powered approach offers:

• Intuitive touchscreen interface – familiar and easy to learn

• No separate display or console – reduces equipment costs and footprint

• Wireless operation – eliminates cable tangles and improves workflow

• Image storage and sharing – easily save, review, and share images in jpg, mp4, png, and DCM formats

• Broad compatibility – works with Apple iOS, Android, and Windows devices

• WiFi 802.11n / 2.4G / 5G dual‑band – fast, stable wireless connectivity

Puncture Assistance for Guided Procedures

The system includes in‑plane puncture guide lines, out‑of‑plane puncture guidance with automatic blood vessel measurement, and needle tip enhancement, making it an ideal tool for ultrasound‑guided interventions such as:

• Nerve blocks – precise guidance for regional anesthesia

• Vascular access – safe and accurate line placement

• Joint injections – targeted delivery of therapeutic agents

• Biopsy guidance – accurate sampling of superficial lesions

Comprehensive Measurement and Review Tools

• Measurements – distance, area, circumference, heart rate, and obstetric calculations

• Cineplay – manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000 frames)

• Image/video saving – supports jpg, mp4, png, and DCM formats

Portable, Durable, and Ready When You Are

• Lightweight design – 250g for effortless handling

• Pocket‑sized form factor – 156mm × 70mm × 20mm

• Extended battery life – 2.5 hours of continuous scanning on a single charge

• Wireless charging or USB charging – eliminates cable clutter

• No subscription fees – one‑time purchase, full access

Comprehensive Clinical Applications

Regulatory Compliance and Quality Assurance

• FDA‑cleared – meets U.S. regulatory standards for medical devices

• CE marked – compliant with EU Medical Device Regulation

• ISO 13485 certified – meets international quality management standards
