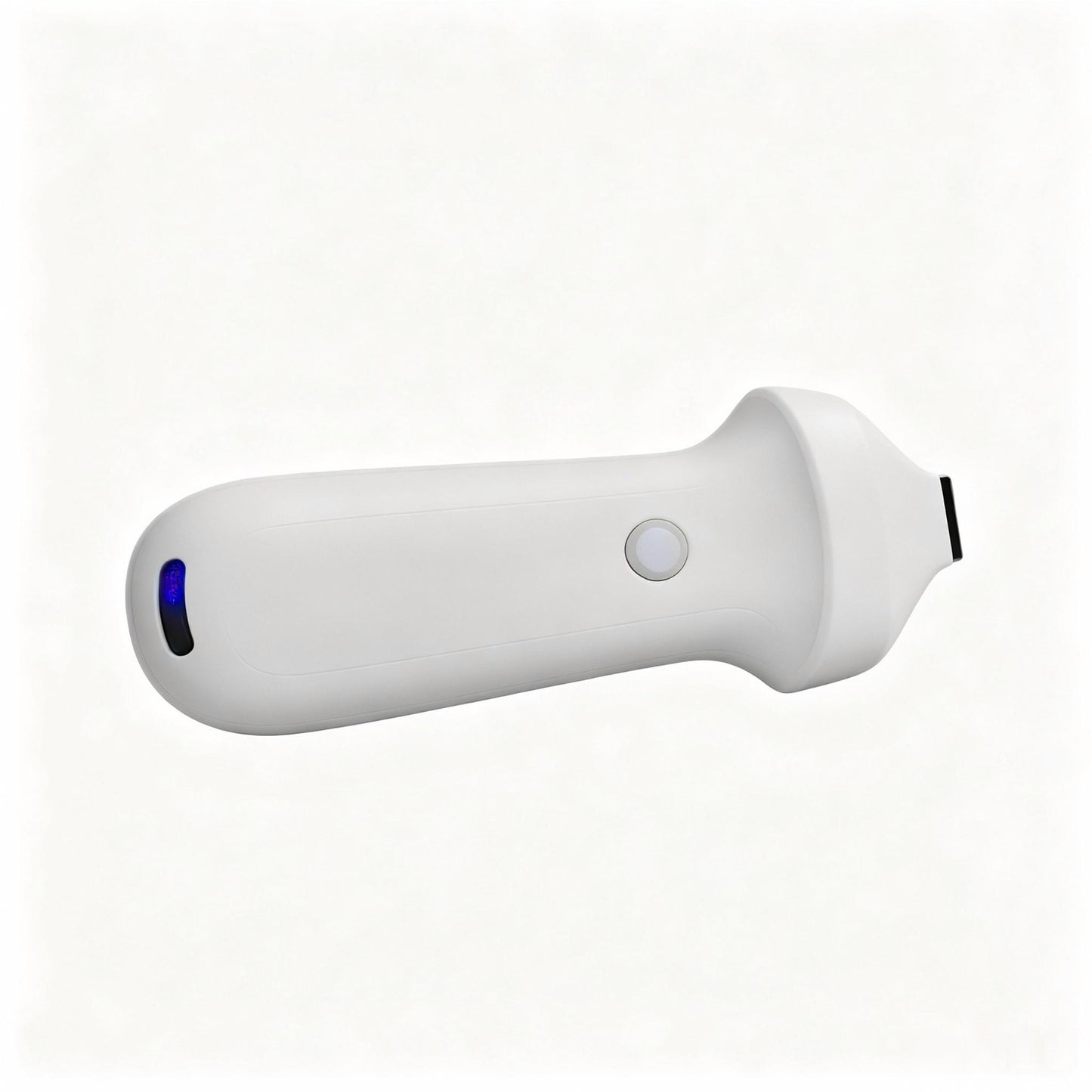

Global Healthcare Medical Ultra‑High Frequency Linear Wireless Handheld Ultrasound System

The Global Healthcare Medical Ultra‑High Frequency Linear Wireless Handheld Ultrasound System is a compact, pocket‑sized imaging solution engineered to deliver exceptional near‑field resolution for superficial structures. Designed for healthcare professionals who require reliable imaging wherever patients are—from sports medicine clinics and dermatology practices to operating rooms, remote clinics, and ambulatory services—this wireless probe‑type system delivers outstanding performance in a lightweight, portable form factor.

Weighing just 180g (approximately 0.4 lbs) and measuring 140mm × 60mm × 20mm (5.5″ × 2.4″ × 0.8″), this device fits comfortably in your hand or pocket, making it a practical companion for daily point‑of‑care ultrasound (POCUS) and ultrasound‑guided procedures. The system operates wirelessly via WiFi, transmitting real‑time images directly to a smartphone, tablet, or PC—eliminating the need for bulky consoles or tangled cables.

FDA‑cleared (K211321) for clinical use, this system is indicated for diagnostic ultrasound echo imaging, measurement, and analysis of the human body for general clinical applications including musculoskeletal, vascular, small parts, thyroid, breast, and pediatric imaging. The device has an expected use life of 10 years and is designed for durable, long‑term clinical performance.

Key Features & Benefits

Ultra‑High Frequency Linear Array for Superior Superficial Imaging

This system features a dedicated ultra‑high frequency linear array probe with 192 piezoelectric elements and 64 transmit channels, optimized for imaging superficial structures with exceptional detail. The linear probe delivers:

• Outstanding near‑field resolution – ideal for visualizing tendons, ligaments, nerves, thyroid, breast tissue, and small parts

• Ultra‑high frequency range – 18 MHz / 24 MHz frequencies optimized for high‑resolution superficial imaging

• Narrow scan width – 15mm for precise examination of small anatomical structures

• Adjustable scan depth – 10 / 15 / 20 / 25mm for precise imaging of very superficial structures

Exceptional Imaging Performance

The system delivers high‑quality imaging across a broad range of clinical applications:

Imaging modes supported:

• B‑Mode – fundamental 2D imaging with exceptional clarity

• B/M Mode – combined anatomical and motion imaging

• Color Doppler – real‑time blood flow visualization

• Power Doppler Imaging (PDI) – sensitive low‑flow detection

• Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

Image adjustments include gain (30–105 dB), focus, reverse pulse harmonics, and noise reduction (0–4 levels). Dynamic range is adjustable from 40 to 110. Gray scale is 256 levels for detailed tissue differentiation.

Replaceable Battery with Extended Working Time

The device features a removable, replaceable 2200mAh lithium battery with 1.5 hours of continuous working time. The innovative design supports wireless charging or USB charging — with wireless charging, you can extend working time indefinitely by simply placing the probe on a compatible charger between scans. This flexibility is ideal for busy clinical days and extended bedside rounds.

Smartphone‑Powered Convenience

The system connects wirelessly to a mobile device or PC running the companion software application. This smartphone‑powered approach offers:

• Intuitive touchscreen interface – familiar and easy to learn

• No separate display or console – reduces equipment costs and footprint

• Wireless operation – eliminates cable tangles and improves workflow

• Image storage and sharing – easily save, review, and share images in jpg, png, mp4, and DCM formats

• Broad compatibility – works with Apple iOS, Android, and Windows devices

• WiFi 802.11n / 2.4G / 5G dual‑band (450Mbps) – fast, stable wireless connectivity

Puncture Assistance for Guided Procedures

The system includes in‑plane puncture guide lines and out‑of‑plane puncture guidance with automatic blood vessel measurement, making it a practical tool for ultrasound‑guided interventions such as:

• Nerve blocks – precise guidance for regional anesthesia

• Vascular access – safe and accurate line placement

• Joint injections – targeted delivery of therapeutic agents

• Biopsy guidance – accurate sampling of superficial lesions

Comprehensive Measurement and Review Tools

• Measurements – distance, area, circumference, and obstetric calculations

• Cineplay – manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000 frames)

• Image frame rate – 18 frames/second for smooth, real‑time visualization

• Image/video saving – supports jpg, png, mp4, and DCM formats

Comprehensive Clinical Applications

Regulatory Compliance and Quality Assurance

• FDA‑cleared (K211321) – meets U.S. regulatory standards for medical devices

• CE marked – compliant with EU Medical Device Regulation

• ISO 13485 certified – meets international quality management standards

Intended Use: The device is intended for diagnostic ultrasound echo imaging, measurement, and analysis of the human body for general clinical applications including obstetrics (OB), gynecology (GY), and general (abdominal) imaging. It is a prescription device restricted by federal law to sale by or on the order of a physician.

Why Choose Global Healthcare Medical?

About Global Healthcare Medical

Global Healthcare Medical is dedicated to improving patient care around the world by delivering value‑driven, innovative, and high‑quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals everywhere.
