Global Healthcare Medical Wireless 4D Bladder Scanner
Global Healthcare Medical Wireless 4D Bladder Scanner
Model: GHM BProbe-5 HK

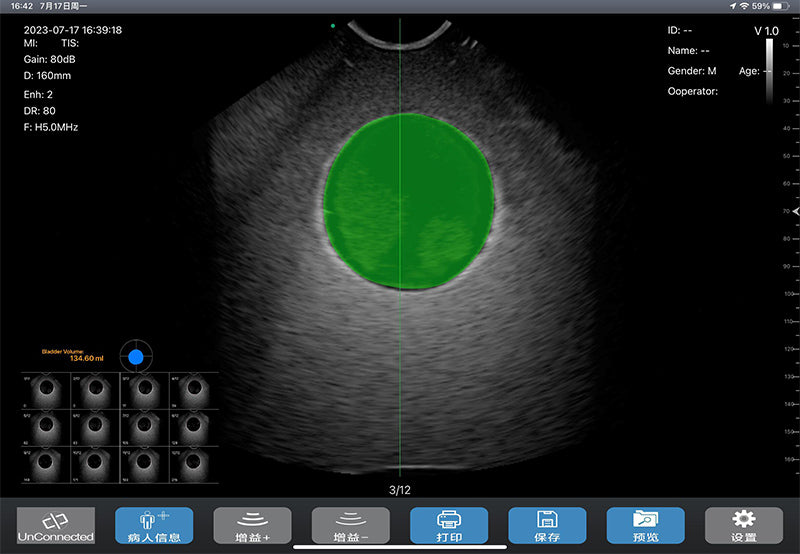

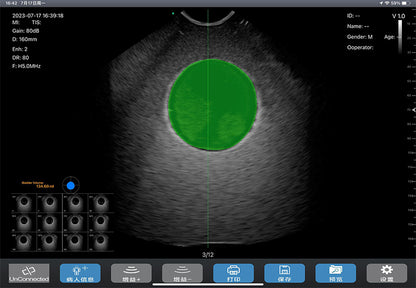

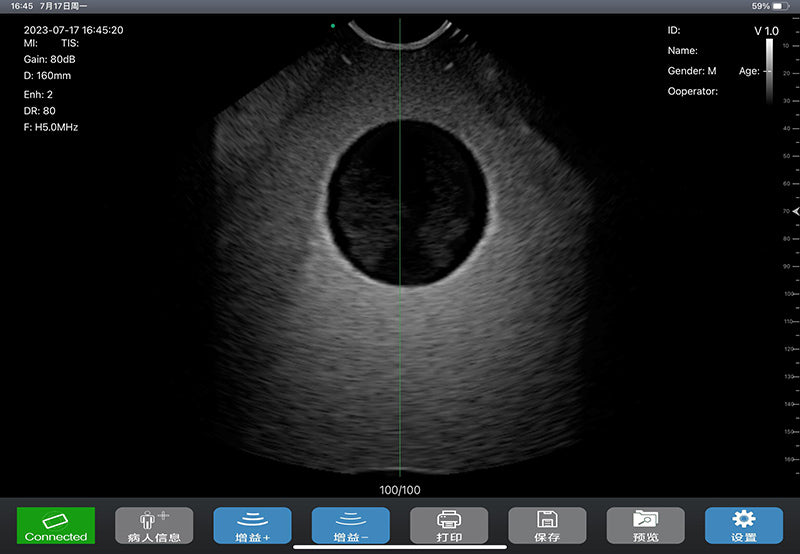

The Global Healthcare Medical Wireless 4D Bladder Scanner is a compact, probe-type ultrasound device engineered to deliver rapid, accurate bladder volume measurement at the point of care. Unlike traditional bladder scanners that require bulky consoles and multiple components, this innovative device condenses the entire ultrasound system into a single handheld probe—no screen, no base unit, no cables. Images are transmitted wirelessly via built-in WiFi to a smartphone or tablet, where the companion app displays real-time 4D imaging and automatically calculates bladder volume.

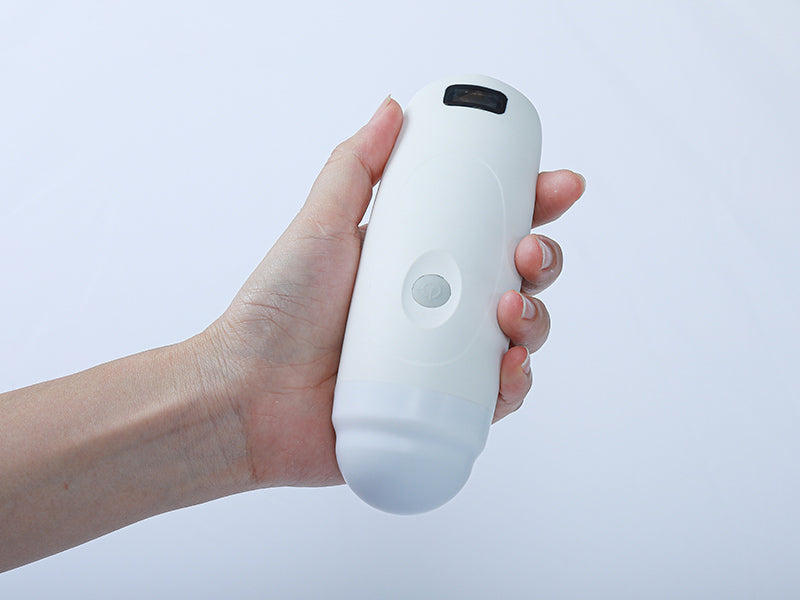

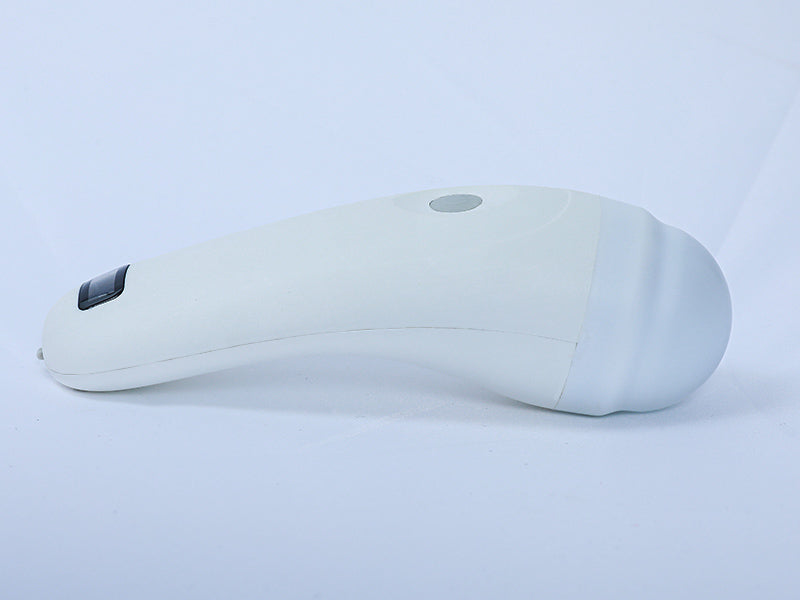

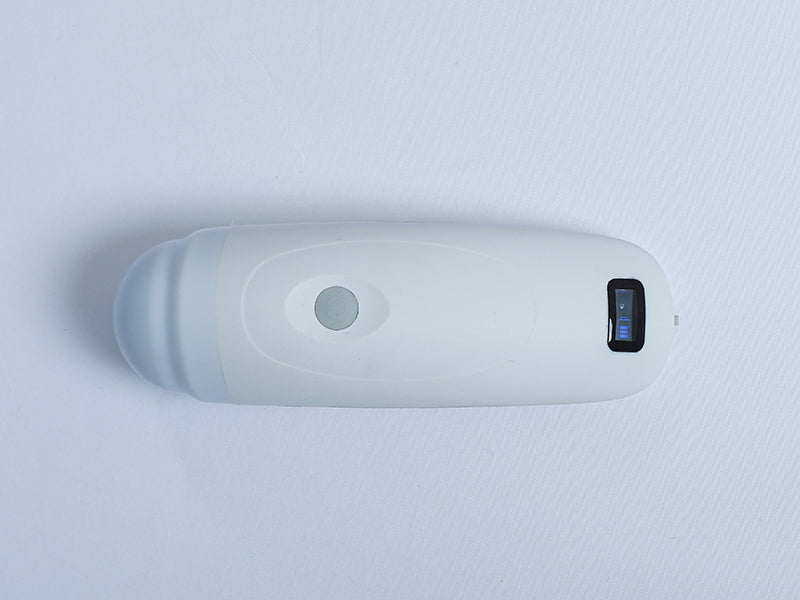

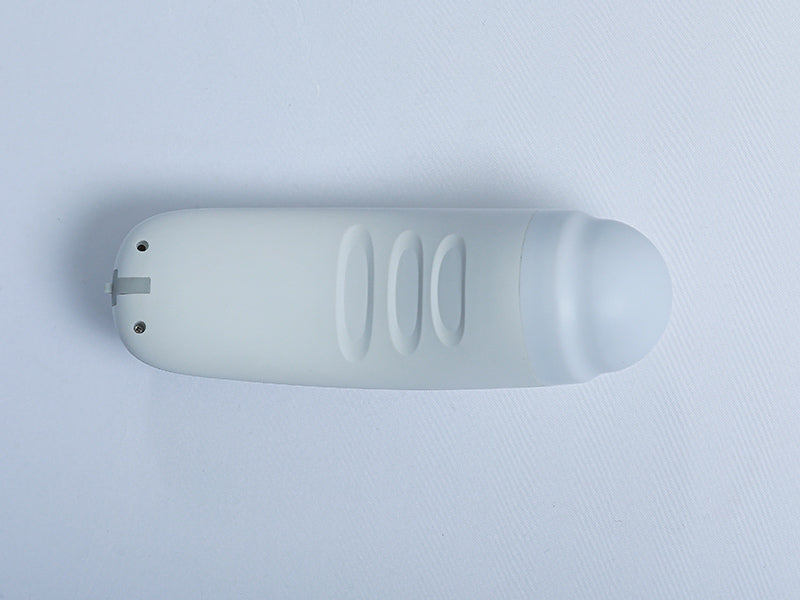

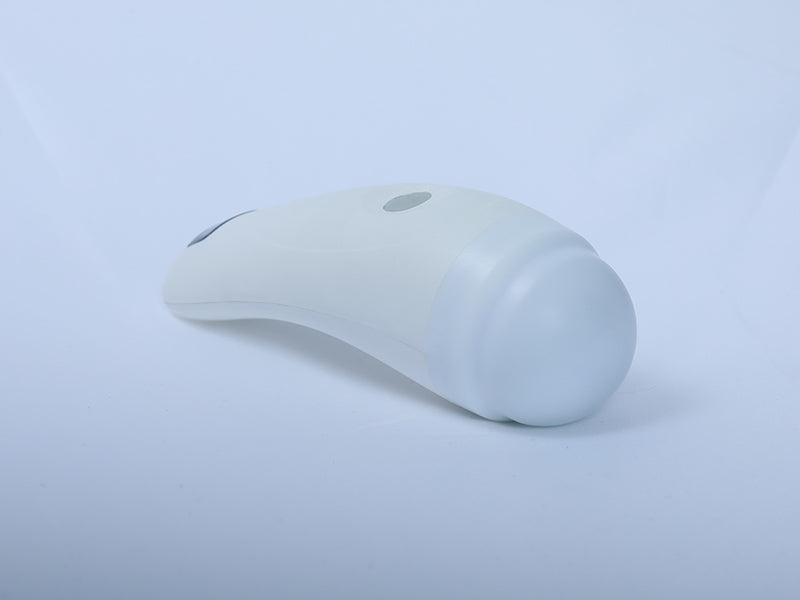

Weighing just 200g and measuring 170mm × 52mm × 55mm, this device is designed for clinicians who need quick, reliable bladder assessments in urology, ICU, emergency, obstetrics, gynecology, neurology, rehabilitation, and nursing settings. Its advanced algorithms deliver measurement accuracy within ±5% and results in under 2 seconds—making it an efficient, hygienic, and portable solution for bladder volume monitoring.
Key Features & Benefits
4D Array Scanning for Clear, Accurate Imaging
This device utilizes 4D array scanning technology with an electronic convex array probe, delivering clear imaging without the distortion associated with traditional mechanical scanning. The advanced array design ensures:
-
Superior image clarity – high-resolution visualization of bladder structures
-
No mechanical distortion – array scanning eliminates the image warping common in mechanical probes
-
15 frames per second display rate for smooth, real-time imaging
-
R20 probe with a large scanning angle and wide coverage area
High Accuracy with Advanced AI Algorithms

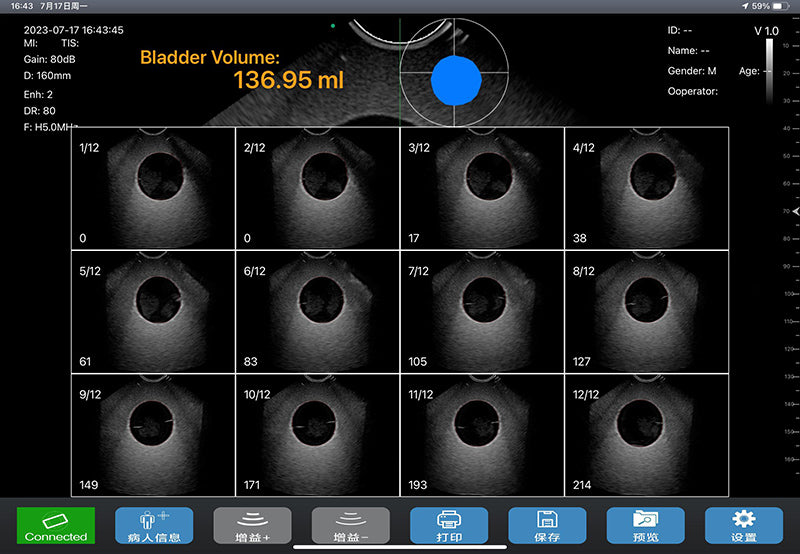

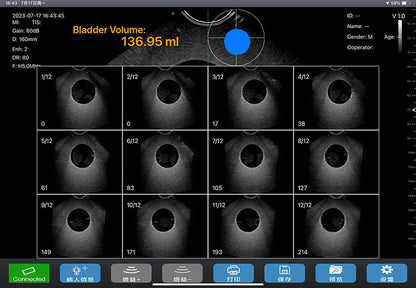

The system employs advanced bladder wall recognition technology and refined contour algorithms to deliver measurement accuracy of <5%. Key advantages include:
-
High recognition rate – even for bladder walls with air artifacts
-
Shape and size independence – measurement results are not affected by bladder shape or size
-
No need to select gender or age group – eliminates user input errors
-
Special case compatibility – accurate results even for post-hysterectomy patients
-
Small volume accuracy – reliable measurement of small or irregularly shaped bladders
-
AI-powered edge detection – accurately identifies bladder walls that are difficult to hook, even when the bladder is not full
High-Speed Scanning and Processing
Bladder volume measurement is completed in under 2 seconds, enabling rapid assessments without keeping patients waiting. This speed is particularly valuable in busy clinical environments where efficiency directly impacts patient throughput. The scanning process provides good real-time imaging, which can be used for real-time visual monitoring of Foley catheter insertion and removal—helping to prevent the pain caused by blind insertion.
Never Requires Calibration
The device features a high-precision rotary encoder with precise positioning that never requires calibration. This eliminates the need for scheduled maintenance and ensures consistent performance over the lifetime of the device.

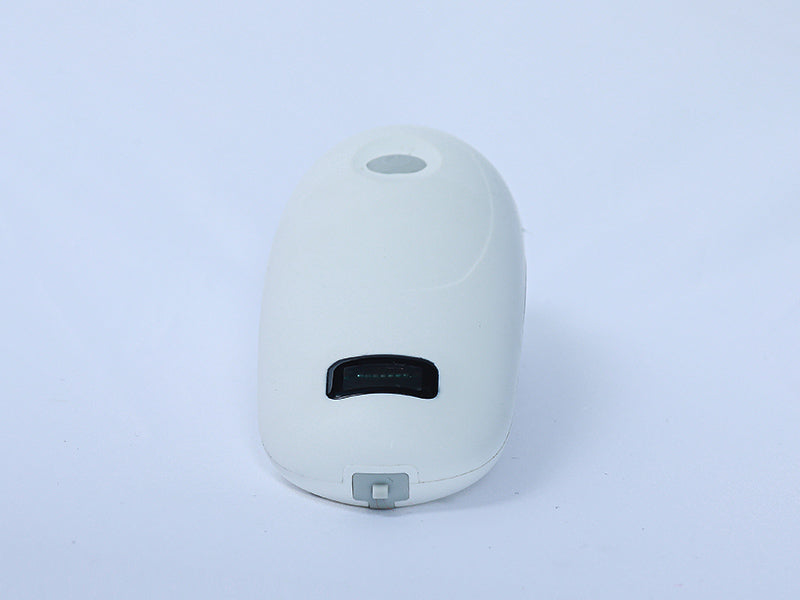

Single-Probe, Screen-Free Design
The screen-free design offers significant advantages over traditional bladder scanners:
-
Only one probe – no base unit, no bulky console
-

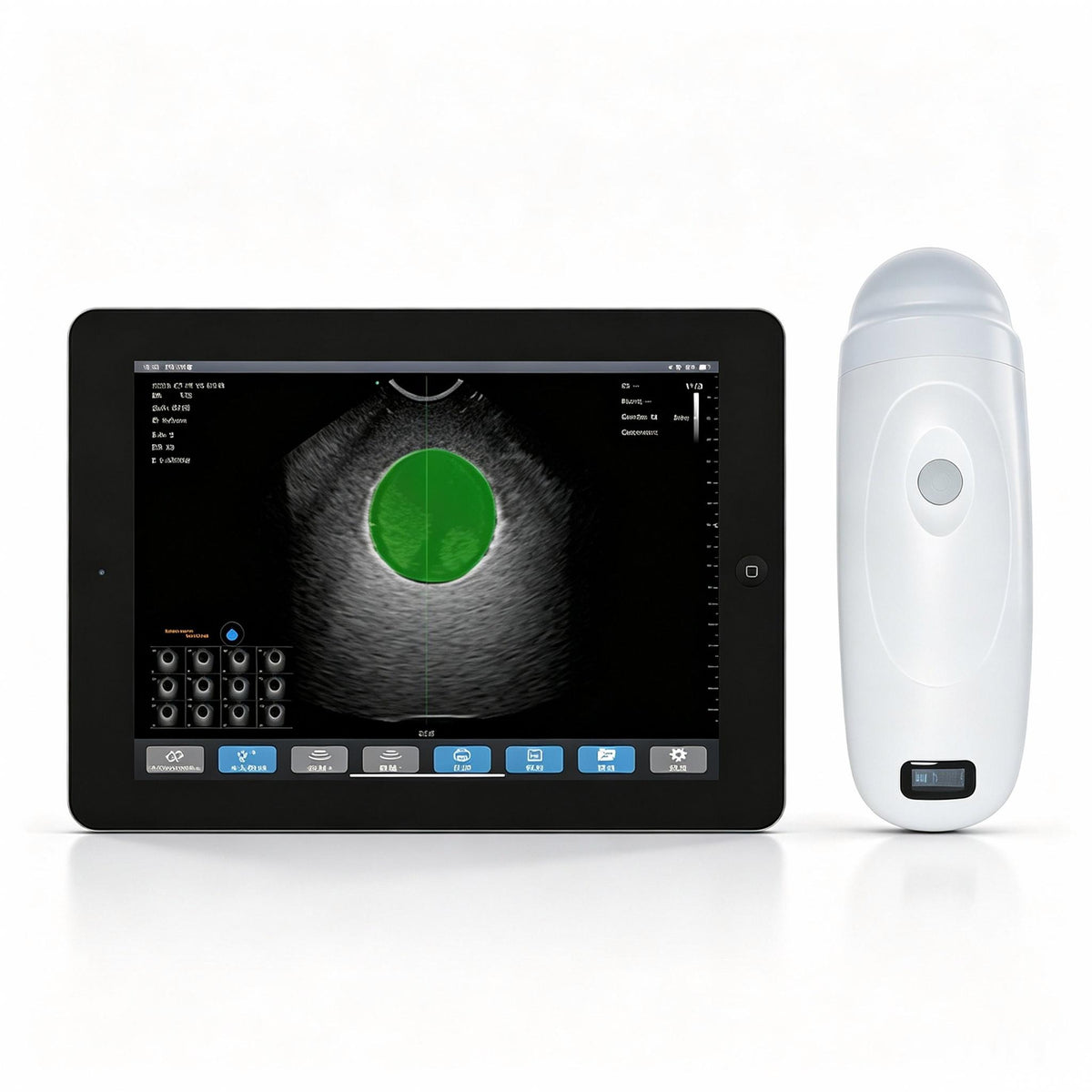

Wireless operation – built-in WiFi transmits images directly to your tablet or smartphone
-
No external WiFi needed – the probe generates its own signal
-
Convenient to carry – lightweight 200g design fits in a carry bag
-
Easy operation – connect tablet with probe by WiFi
Long Battery Life for Busy Clinical Days
The built-in battery supports over 200 patient scans on a single charge. Charging is done via USB cable and is convenient and universal.
Technical Specifications
| Specification | Detail |
|---|---|
| Scan Mode | Array probe, 4D scan |
| Supporting System | Apple iOS (tablet or smartphone) |
| Measuring Range | 50 ml – 2000 ml |
| Automatic Measurement Inaccuracy | < 5% |
| Scan and Process Time | < 2 seconds |
| Image Display Frame Rate | 15 frames/second |
| Case Storage | By tablet or mobile phone |
| Printing | External wireless thermal printer |
| Battery | Built-in, > 200 patient scans per charge |
| Charging | USB cable |
| Dimensions | 170mm × 52mm × 55mm |
| Weight | 200g |
| Probe | Electronic convex array, R20 |
| Calibration | Never requires calibration (high-precision rotary encoder) |
Comprehensive Clinical Applications
This device is engineered for a wide range of clinical applications:
| Specialty | Applications |
|---|---|
| Urology | Determine the degree of acute and chronic urinary retention; determine the timing of catheterization and surgery; neuromodulation assessment post-surgery; determination of urethral obstruction or prostate hyperplasia |
| Obstetrics | Postpartum stress urinary incontinence assessment; determine the degree of postpartum pelvic floor muscle damage |
| Gynecology | Determine the degree of pelvic floor neuromuscular injury after pelvic tumor surgery; determine surgical or rehabilitation therapy plans |
| Critical Care / ICU | Determine the timing of intermittent catheterization for patients with long-term indwelling catheters; reduce catheterization frequency; reduce infection risk; help patients recover spontaneous urination |
| Neurology | Determine the damage degree of detrusor and sphincter in patients with neurogenic bladder |
| Nursing | Determine the timing of catheter removal after surgery; reduce catheter retention duration; reduce infection risk |
| Rehabilitation | Monitor the effectiveness of pelvic floor rehabilitation treatment; develop bladder retraining and rehabilitation plans; provide a basis for bladder function recovery |
| Emergency Department | Diagnosis of acute urinary retention and guidance for catheterization; assessment of bladder damage or rupture in acute trauma |
| Radiotherapy | Determine bladder function during radiotherapy for patients with pelvic floor tumors or bladder tumors |
Why Choose Global Healthcare Medical?
| Clinical Challenge | Our Wireless 4D Bladder Scanner |
|---|---|
| Need for rapid bladder volume assessment | Results in under 2 seconds—faster than traditional scanners |
| Accuracy concerns across diverse patients | <5% error rate; independent of bladder shape, size, gender, or age |
| Cumbersome equipment | Single probe, screen-free design—carry it in your bag |
| Frequent calibration and maintenance | Never requires calibration; high-precision rotary encoder |
| Foley catheter insertion | Real-time visual monitoring helps prevent blind insertion pain |
| Long clinical shifts | Over 200 scans per charge |
| Limited workspace | No base unit, no console—use your existing tablet or smartphone |
About Global Healthcare Medical
Global Healthcare Medical is dedicated to improving patient care around the world by delivering value-driven, innovative, and high-quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals everywhere.
