Global Healthcare Medical Wireless Handheld Transvaginal Ultrasound Scanner
Global Healthcare Medical Wireless Handheld Transvaginal Ultrasound Scanner
Model: GHM 5T HK

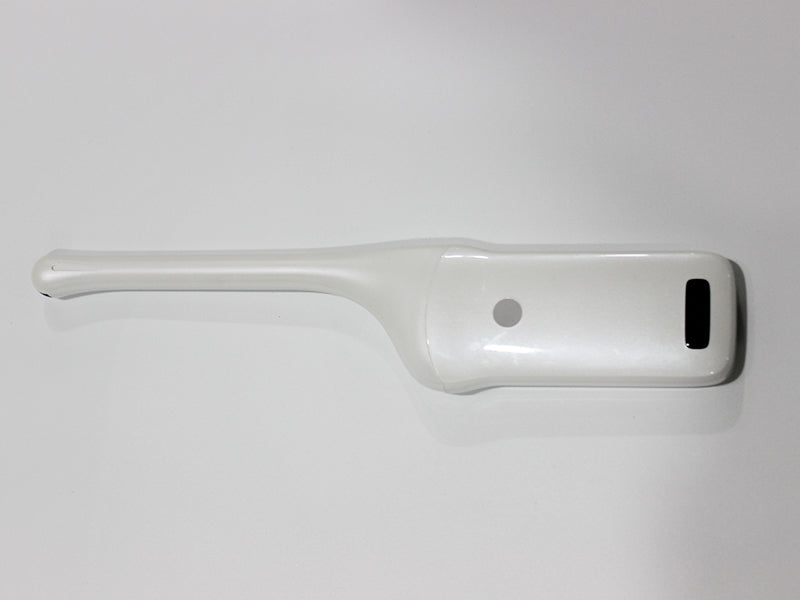

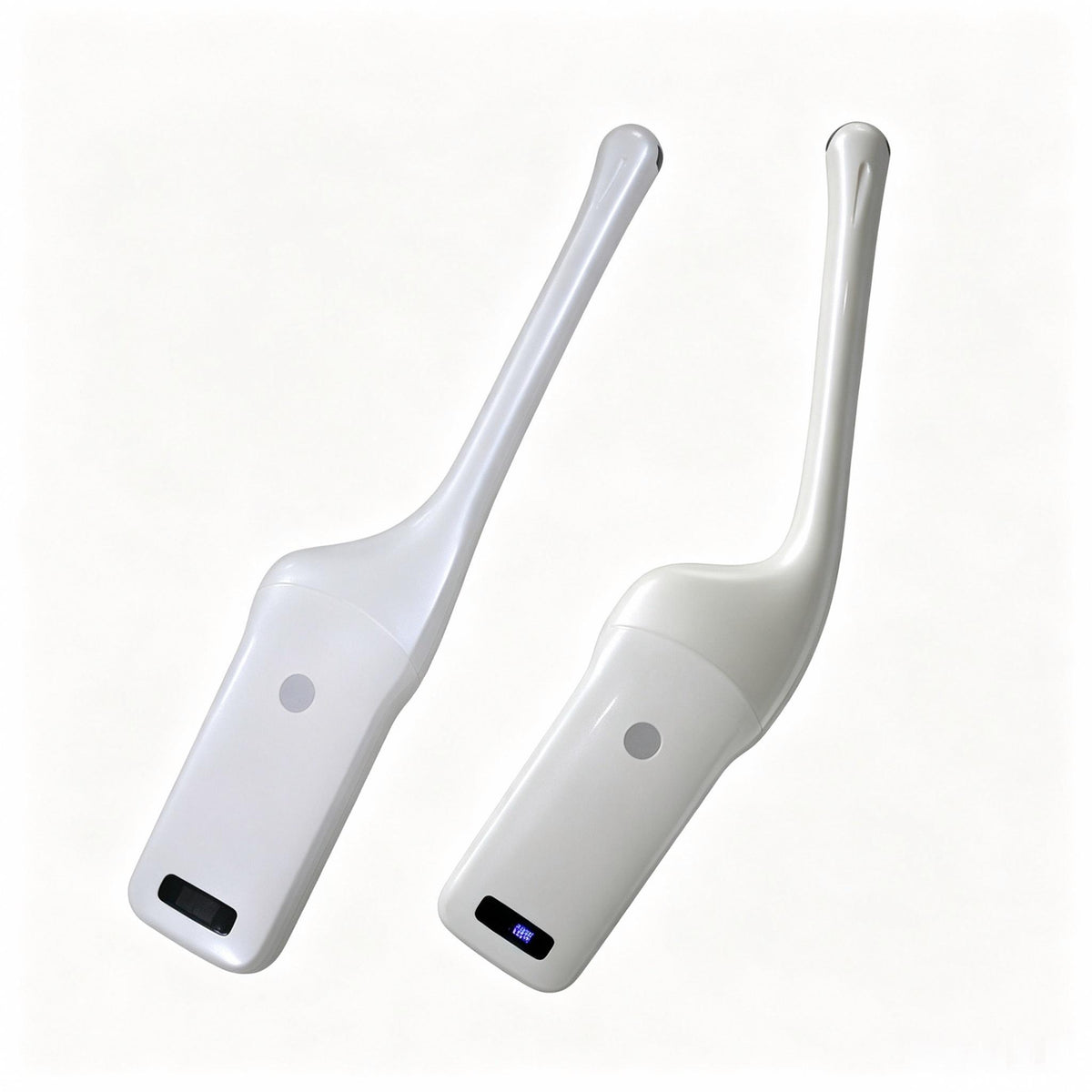

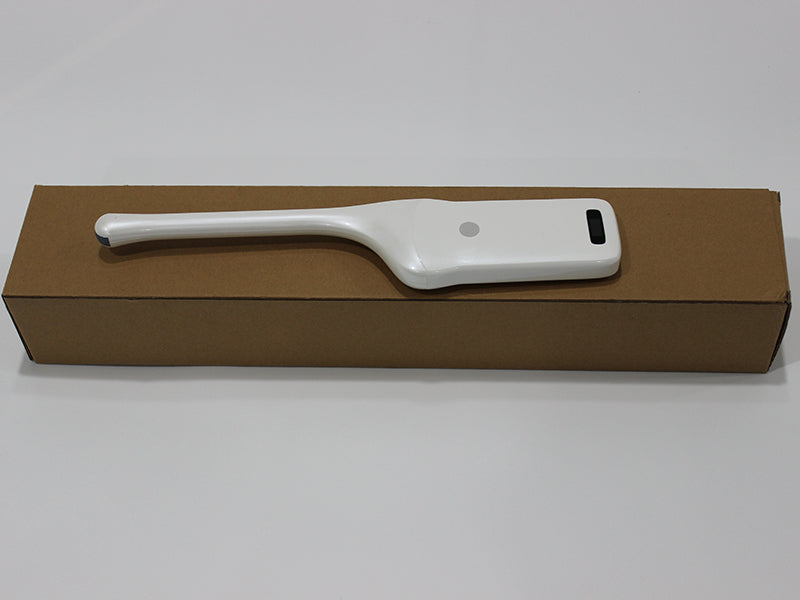

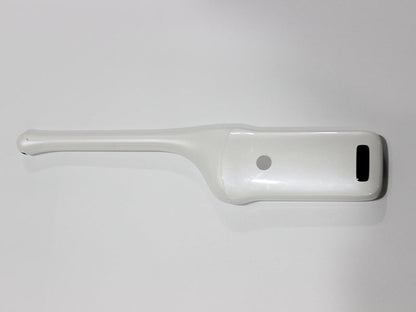

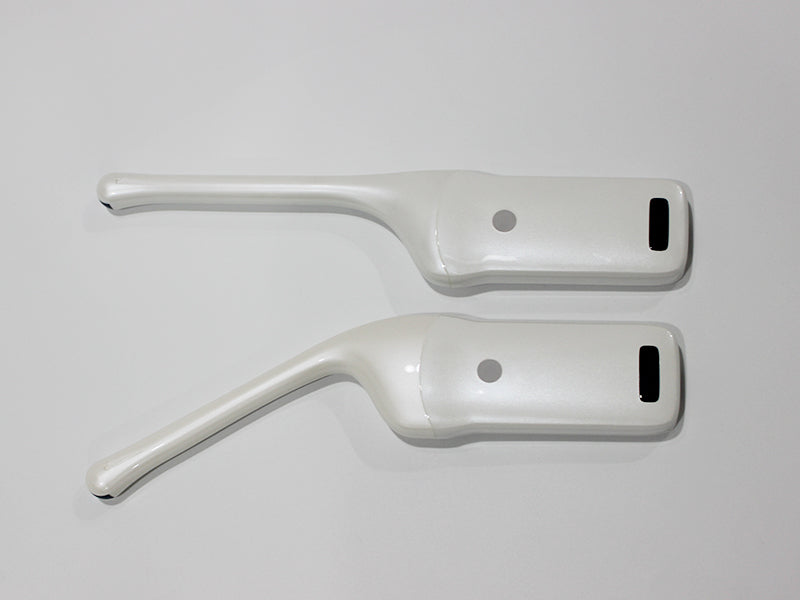

The Global Healthcare Medical Wireless Handheld Transvaginal Ultrasound Scanner is a compact, probe-type diagnostic imaging system engineered to deliver high-resolution pelvic imaging for obstetrics, gynecology, and reproductive medicine applications. Weighing just 300g and measuring 336mm × 70mm × 20mm, this specialized scanner brings hospital-grade transvaginal ultrasound capabilities directly to the point of care.
Designed for clinicians who need reliable imaging in women‘s health settings—from emergency departments and obstetric clinics to fertility centers and remote care environments—this handheld device combines 128 piezoelectric elements with a 13° scan angle to deliver exceptional near-field resolution of pelvic structures. The system operates wirelessly via WiFi (802.11g / 20MHz / 5G / 450Mbps) , transmitting real-time images to your smartphone, tablet, or PC. Compatible with Apple iOS, Android, and Windows devices, it eliminates bulky consoles and tangled cables, giving clinicians complete freedom of movement during examinations.
Global Healthcare Medical is dedicated to improving patient care worldwide by delivering value-driven, innovative, and high-quality medical products and services.
Key Features & Benefits
Dedicated Transvaginal Probe for Pelvic Imaging

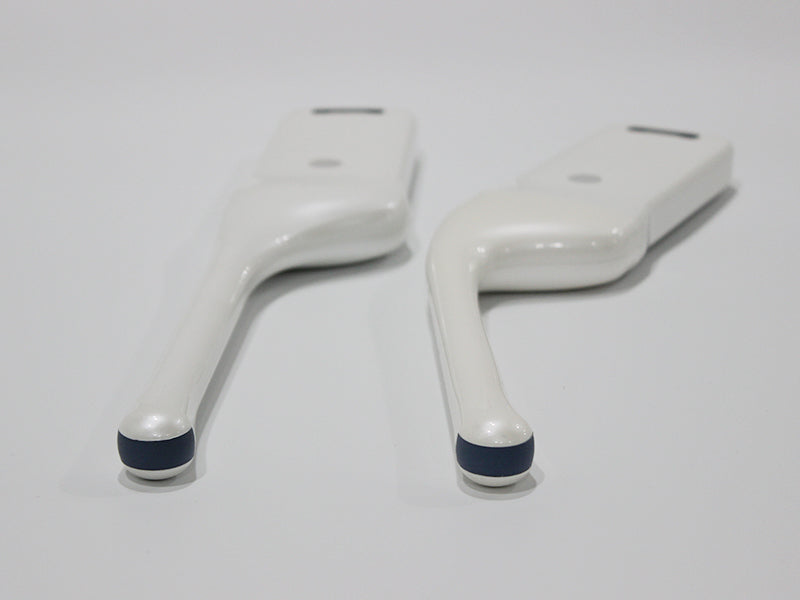

This scanner features a dedicated transvaginal (endocavity) probe with a 13° scan angle, specifically optimized for imaging female pelvic anatomy. The compact acoustic footprint enables visualization of the uterus, ovaries, adnexa, and early gestational structures through the vaginal canal, providing superior resolution compared to transabdominal imaging for these target areas.
Key imaging specifications:
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array |
| Frequency | 6.6 MHz / 8 MHz |
| Scan Depth | 20 – 100 mm (adjustable) |
| Scan Angle | 13° |
| Elements | 128 |
| Channels | 32 |
| Image Frame Rate | 18 frames/second |
The adjustable scanning depth from 20mm to 100mm allows clinicians to adapt the imaging depth to the specific anatomical region and clinical application—from superficial cervical assessment to deeper pelvic structures.
Comprehensive Imaging Modes
The system supports a full range of imaging modes for diverse clinical applications:
-

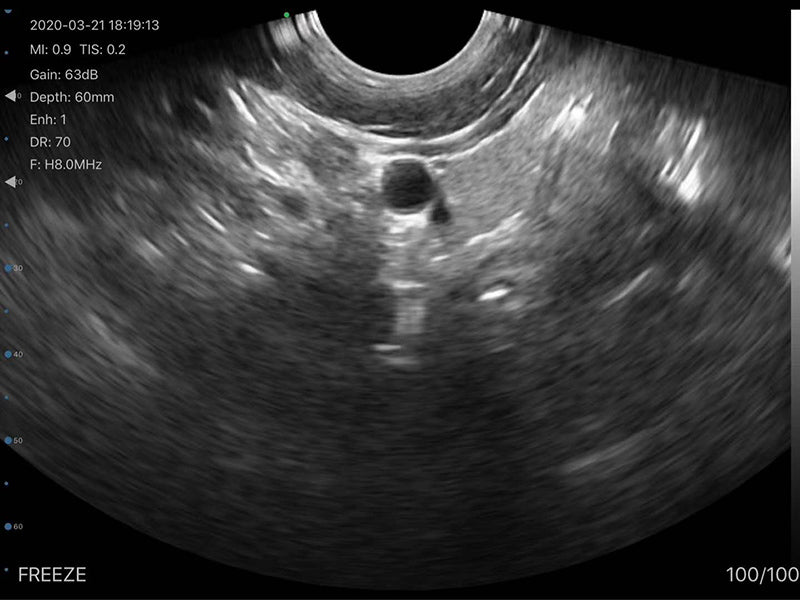

B‑Mode – fundamental 2D imaging with 256-level gray scale
-
B/M Mode – combined anatomical and motion imaging
-

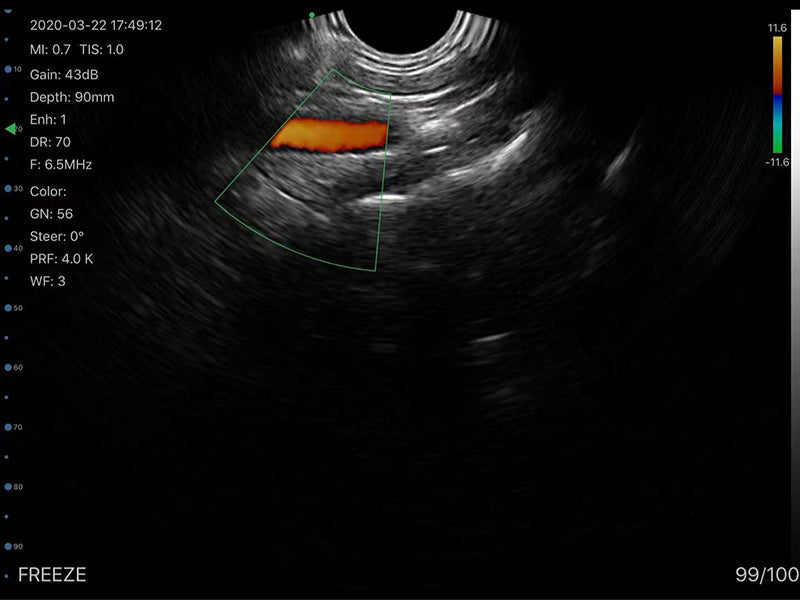

Color Doppler – real-time blood flow visualization
-
Power Doppler Imaging (PDI) – sensitive low-flow detection
-

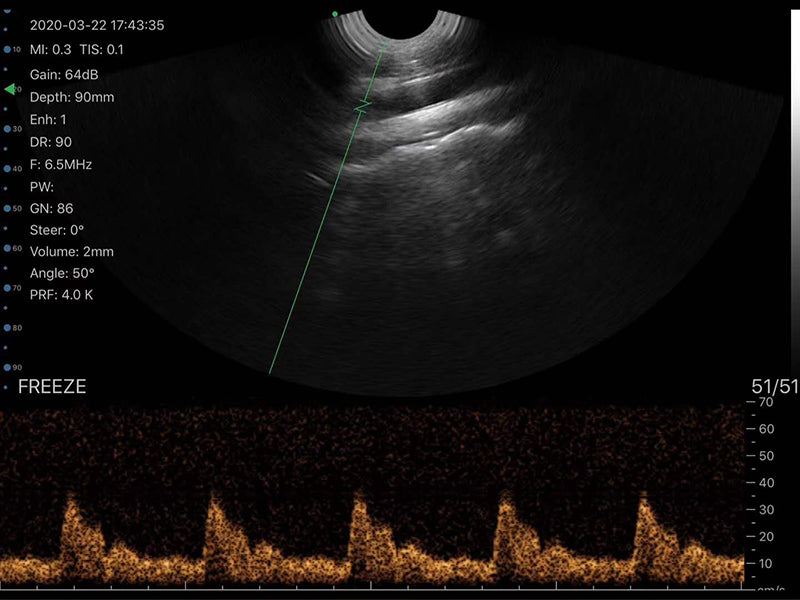

Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment
Image adjustment features include Gain (30–105 dB), Dynamic Range (40–110 across 8 settings), Focus, Depth, Harmonic imaging, and Denoise (0–4 levels). These adjustments allow clinicians to optimize image quality for different tissue types and patient conditions.
Extended Battery Life with Flexible Charging
The system features a built-in 2800mAh lithium battery providing approximately 2.5 hours of continuous working time. For extended procedures, the device can be connected via data cable for sustainable battery life. Charging is available via USB or an optional wireless charger for added convenience.
Wireless Freedom for Point-of-Care Imaging
The scanner connects wirelessly to your mobile device or PC, offering:
-
Real-time image display – instant visualization on your existing screen
-
Image/video storage – save in jpg, MP4, and DCM formats directly to your mobile phone or tablet
-
Cineplay – manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000)
-
Broad compatibility – works with Apple iOS, Android, and Windows devices
Puncture Assistance for Guided Procedures
The system includes in-plane puncture guide line and out-of-plane puncture guide functions, making it a practical tool for ultrasound-guided transvaginal interventions such as:
-
Oocyte retrieval – precise guidance for assisted reproduction procedures
-
Cyst aspiration – accurate targeting of pelvic cysts
-
Endometrial sampling – guided tissue collection
Comprehensive Clinical Applications
This transvaginal ultrasound scanner is ideal for a wide range of women‘s health applications:
| Specialty | Applications |
|---|---|
| Gynecology | Uterine and ovarian evaluation, endometrial assessment, pelvic mass characterization, fibroid assessment |
| Obstetrics | Early pregnancy confirmation, fetal viability assessment, gestational sac visualization, ectopic pregnancy detection |

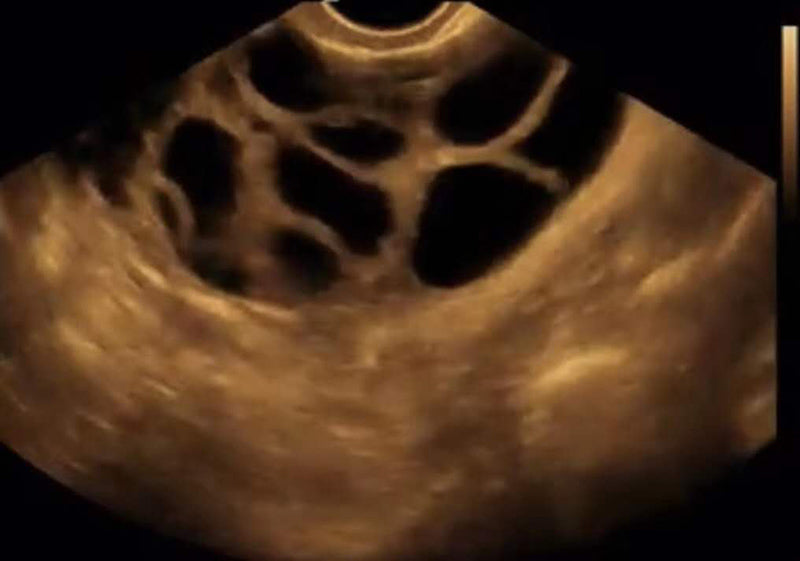

| Reproductive Medicine | Follicle monitoring, oocyte retrieval guidance, endometrial receptivity assessment, ovarian reserve evaluation |
| Emergency Medicine | Evaluation of pelvic pain, suspected ectopic pregnancy, rapid assessment of the cul-de-sac in unstable patients |
| Primary Care | Routine gynecological screening and point-of-care diagnostics |
Clinical Value of Transvaginal Imaging
Transvaginal ultrasound is an essential component of point-of-care obstetric and gynecologic assessment. Its superior image resolution and diagnostic value make it indispensable for evaluating early pregnancy, pelvic pain, and pregnancy-related emergencies. Point-of-care transvaginal ultrasound can be utilized by emergency medicine physicians to confirm intrauterine pregnancies and identify associated complications. Studies have shown that self-administered transvaginal ultrasound exams guided remotely by a trained technologist can produce clinical-quality images comparable to in-clinic ultrasonography.
Technical Specifications
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array |
| Frequency | 6.6 MHz / 8 MHz |
| Elements | 128 |
| Channels | 32 |
| Scan Depth | 20 – 100 mm (adjustable) |
| Scan Angle | 13° |
| Display Mode | B, B/M, Color, PDI, PW |
| Image Adjustment | Gain, DYN, Focus, Depth, Harmonic, Denoise |
| Image Gray Scale | 256 levels |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 |
| Gain | 30 dB – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Image Frame Rate | 18 frames/second |
| Image Save Format | jpg, mp4, DCM |
| Cineplay | Auto and manual; frames can set as 100 / 200 / 500 / 1000 |
| Measurements | Length, Area, Angle, Obstetrics |
| Puncture Assist Function | In-plane puncture guide line function, out-of-plane puncture guide function |
| Battery | Built-in lithium battery, 2800mAh |
| Battery Working Time | 2.5 hours; sustainable with data line connection |
| Charging | USB, or optional wireless charger |
| WiFi Type | 802.11g / 20MHz / 5G / 450Mbps |
| Working System | Android / iOS / Windows |
| Size | 336mm × 70mm × 20mm |
| Net Weight | 300g |
Why Choose Global Healthcare Medical?
| Consideration | Our Wireless Transvaginal Ultrasound Scanner |
|---|---|
| Need for dedicated pelvic imaging | Specialized transvaginal probe with 13° scan angle and 6.6/8 MHz frequency |
| Portable, point-of-care imaging | Palm-sized, 300g design goes wherever you go |
| No bulky equipment | Wireless—no console, no cables; use your existing iOS, Android, or Windows device |
| Extended scanning sessions | 2800mAh battery with 2.5-hour working time and USB data line support |
| Procedure guidance | In-plane and out-of-plane puncture guide functions |
| Quick, confident diagnosis | 5 imaging modes with adjustable depth and gain settings |
| Cost-effective solution | Professional imaging at a fraction of traditional system costs |
| Clinical versatility | Suitable for gynecology, obstetrics, reproductive medicine, and emergency applications |
