Model:GHM0201C1

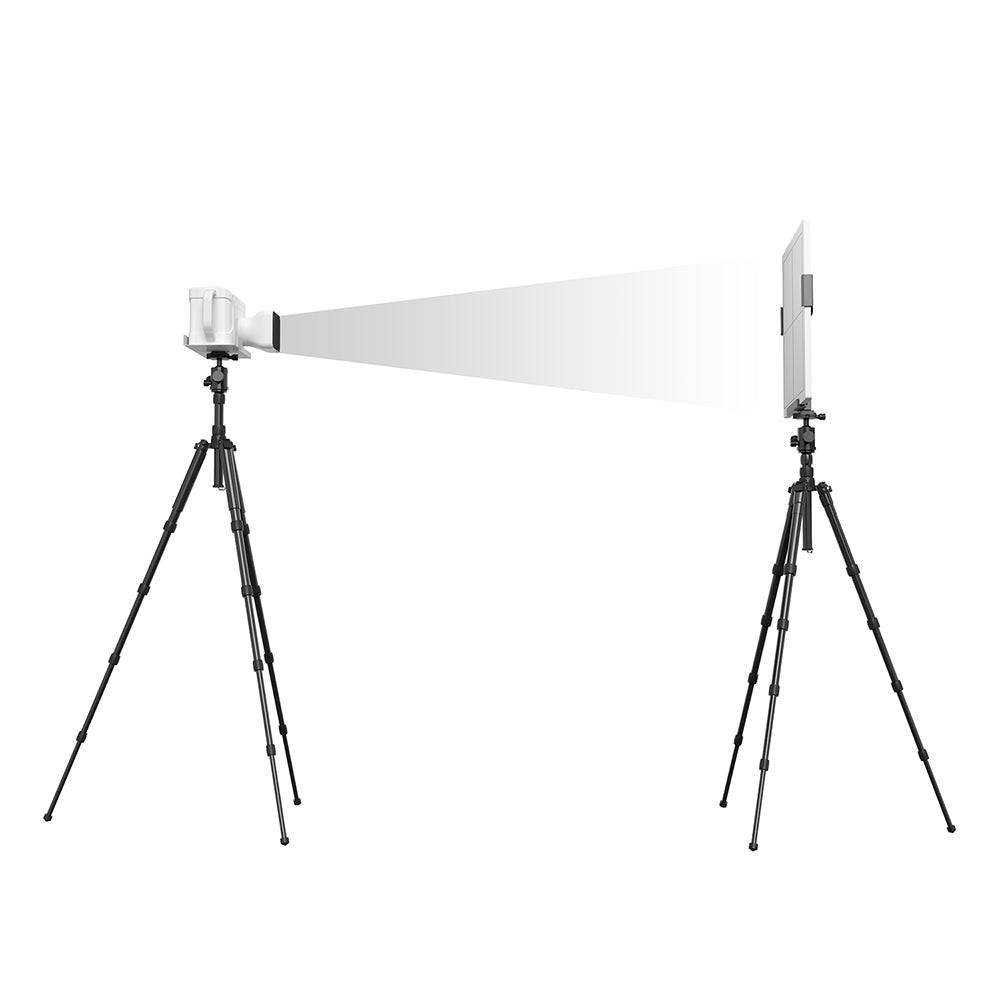

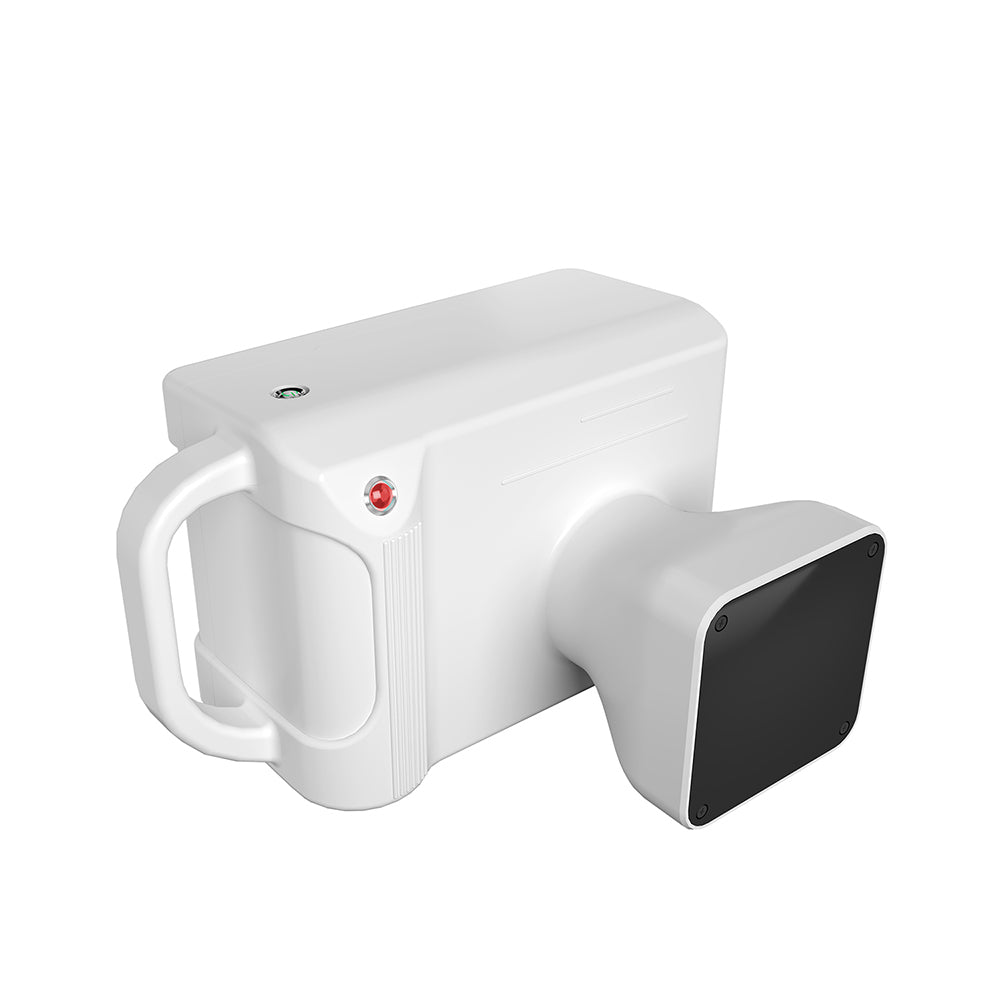

A Handheld X-Ray Camera is a portable imaging device used to capture X-ray images quickly and conveniently without the need for a fixed X-ray machine.
Features:
*Minimized Radiation Exposure/Reduced Time
Reduced radiation exposure time with low dose product design and mechanism minimized radiation exposure for users and patients
Image acquisition under 3 seconds
*Superior Quality X-ray Image
75kV:Improved image penetration
8mA:Reduced required irradiation time
0.4mm Focal Spot
*LED and Laser Guided Beam
Helps users to pinpoint accurate exposure area
Specifications:
|
Generator |
Charging power supply(VAC) |
100-240V |
|
Output Power(W) |
560 |
|
|
kV range(KV) |
40-75 |
|
|
mA range(mA) |
2- 8mA |
|
|
Exposure time(ms) |
50-2000 |
|
|
X-ray Tube |
Focus |
0.4mm |
|
Angle of target |
12° |
|
|
Anode Heat Storage Capacity |
4500J(6300HU) |
|
|
Detector |
Size |
17* 17inch |
|
Resolution |
3.6 |
|
|
AD Conversion |
16 |
|
|
Scintillator |
CsI |
|
|
Pixel Size |
139um |
|
|
Pixels |
3072*3072 |
