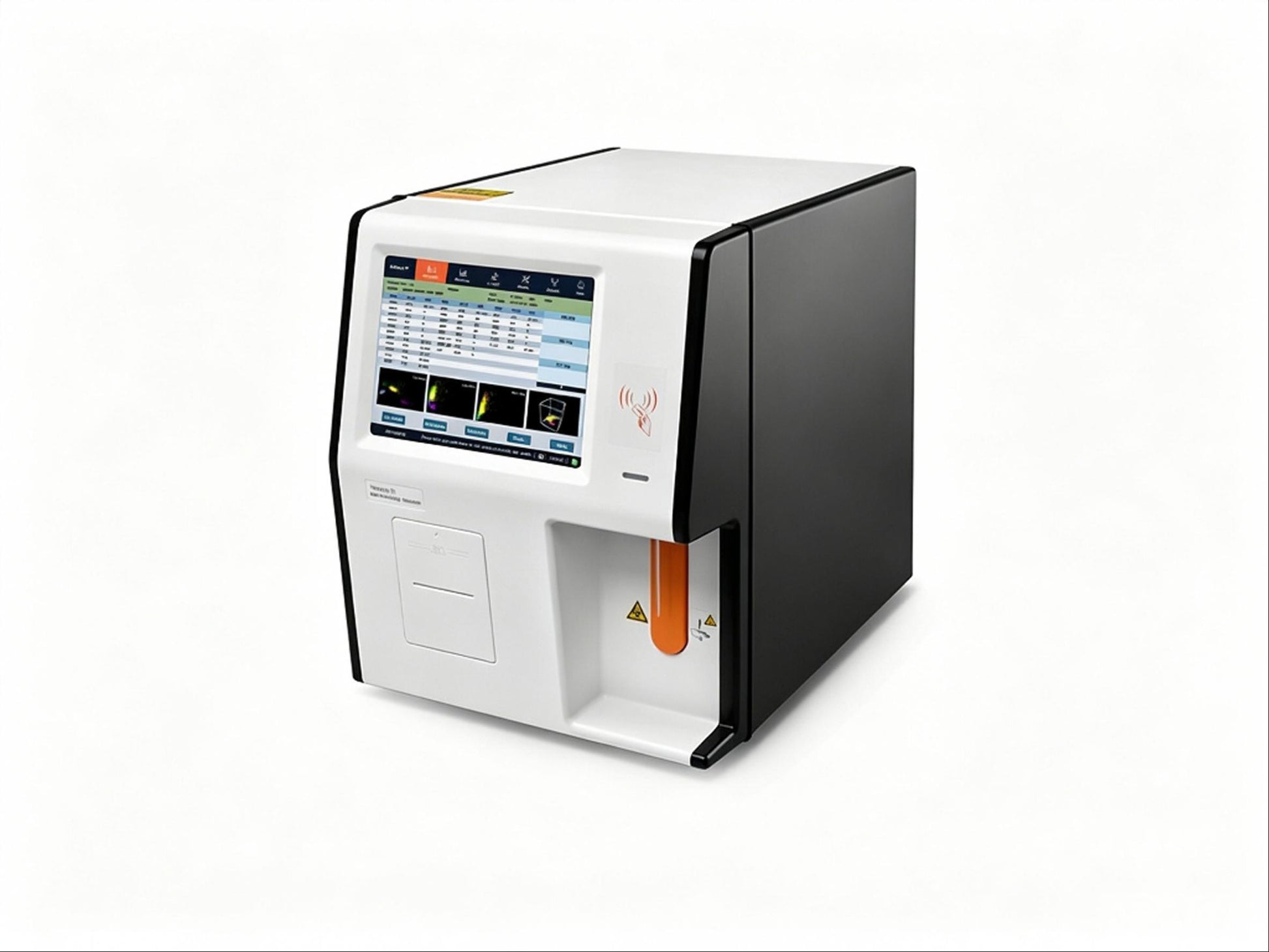

Hemaray 51 Hematology Analyzer | 5‑Part Diff CBC Machine with 30 Parameters

Fully automatic 5‑part differential hematology analyzer with 30 parameters, 60 tests/hour throughput, and tri‑angular laser scatter technology. Ideal for hospitals, clinics, and clinical laboratories.

The Global Healthcare Medical Hemaray 51 Hematology Analyzer is a fully automatic 5‑part differential hematology system engineered for reliable and efficient complete blood count (CBC) analysis in clinical laboratories, hospitals, and clinics. Featuring 30 reportable parameters, a throughput of 60 samples per hour, and advanced tri‑angular laser scatter + flow cytometry technology for white blood cell classification, the Hemaray 51 delivers exceptional performance and accuracy.

With its compact design, integral PC, 10.4‑inch touch screen, and built‑in printer, the Hemaray 51 is designed to maximize laboratory efficiency while minimizing bench space requirements. The analyzer supports whole blood, peripheral blood, and pre‑diluted sample modes, and features a reagent management system that tracks residue and expiry dates to streamline workflow. Whether you are performing routine CBCs in a hospital lab, a private clinic, or a primary care facility, the Hemaray 51 delivers the performance, efficiency, and ease of use you need.

This device is intended for professional use in clinical laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.

Key Features

📊 30 Parameters & 5‑Part Differential

The Hemaray 51 provides a comprehensive 5‑part white blood cell differential (neutrophils, lymphocytes, monocytes, eosinophils, and basophils) with 30 parameters, including 4 research parameters, 3 scattergrams, and 3 histograms for complete hematological assessment.

Regular Parameters (26):

• WBC Differential: WBC, NEU#, NEU%, LYM#, LYM%, MON#, MON%, EOS#, EOS%, BAS#, BAS%

• RBC Parameters: RBC, HGB, HCT, MCV, MCH, MCHC, RDW‑CV, RDW‑SD

• PLT Parameters: PLT, MPV, PDW, PCT, P‑LCR, P‑LCC

Research Parameters (4):

• ALY#, ALY% – Atypical lymphocytes

• LIC#, LIC% – Large immature cells

🔬 Advanced Tri‑Angular Laser Scatter + Flow Cytometry

The Hemaray 51 uses tri‑angular laser scatter + flow cytometry for precise 5‑part WBC counting. This advanced technology, combined with an independent BASO counting channel, ensures accurate differentiation of the five white blood cell subtypes based on cell size, complexity, and granularity.

⚡ High‑Throughput Performance – 60 T/H

With a throughput of 60 samples per hour, the Hemaray 51 ensures efficient processing of routine CBCs in busy laboratory environments, reducing turnaround times and improving patient care.

🖥️ Compact Design with Integral PC & Touch Screen

The Hemaray 51 features a compact design with an integral PC, a 10.4‑inch TFT touch screen, and a built‑in printer. This all‑in‑one design saves valuable bench space while providing a clear, intuitive interface for easy operation.

🧪 Versatile Sample Modes

The analyzer supports three sample modes to accommodate various sample types:



📋 Two Testing Modes

The Hemaray 51 supports two testing modes to accommodate different clinical requirements:

• CBC Mode – Complete blood count with histograms

• CBC+DIFF Mode – Complete blood count with 5‑part differential

📊 Comprehensive Data Output

The analyzer generates 3 scattergrams and 3 histograms for visual interpretation of cell populations, supporting confident diagnostic decision‑making.

🔧 Reagent Management System

The Hemaray 51 features a reagent management system that tracks residue levels and expiry dates, ensuring reagents are always available and within their usable period—reducing waste and improving workflow efficiency.

🔌 Bi‑Directional LIS Connectivity

The analyzer supports bi‑directional LIS (Laboratory Information System) connectivity, enabling seamless data exchange and reducing manual data entry errors.

🔬 Low Sample Volume

With a whole blood sample volume of just 15 µL, the Hemaray 51 is economical and ideal for pediatric and geriatric patients where sample volume is limited.

🔄 Optional Barcode Reader

An optional barcode reader enables efficient sample tracking and data management, reducing manual data entry errors.

Specifications

Applications

The Hemaray 51 Hematology Analyzer is suitable for:

• Hospitals & Medical Centers – Routine CBC screening and diagnostic testing

• Clinical Laboratories – High‑volume 5‑part differential analysis

• Private Clinics – Point‑of‑care complete blood counts

• Primary Care Facilities – Efficient patient testing

• Physical Examination Centers – Health screening workflows

• Outpatient Clinics – Rapid turnaround testing

Why Choose the Hemaray 51?

What's Included

• Hemaray 51 Hematology Analyzer Main Unit

• 10.4‑inch TFT Touch Screen Display

• Integral PC

• Built‑in Thermal Printer

• 5‑Part Differential Analysis System

• Tri‑Angular Laser Scatter + Flow Cytometry Technology

• Independent BASO Counting Channel

• Power Cable

• User Manual

• Installation and Training Support

FAQ

Q: What is the Hemaray 51 Hematology Analyzer?

A: The Hemaray 51 is a fully automatic 5‑part differential hematology analyzer designed for efficient and reliable complete blood count (CBC) analysis in clinical laboratories, hospitals, and clinics, with a throughput of 60 samples per hour.

Q: How many parameters does the Hemaray 51 report?

A: The Hemaray 51 provides 30 parameters including 26 regular parameters and 4 research parameters, plus 3 scattergrams and 3 histograms.

Q: What technology does the Hemaray 51 use for WBC classification?

A: The Hemaray 51 uses tri‑angular laser scatter + flow cytometry with an independent BASO counting channel for accurate 5‑part WBC differentiation.

Q: What is the throughput of the Hemaray 51?

A: The Hemaray 51 delivers a throughput of 60 samples per hour.

Q: What sample volume is required?

A: The Hemaray 51 requires 15 µL for whole blood and peripheral blood samples, and 20 µL for pre‑diluted samples.

Q: What sample modes does the Hemaray 51 support?

A: The analyzer supports three sample modes: Whole Blood, Peripheral Blood, and Pre‑diluted Blood.

Q: What testing modes are available?

A: The Hemaray 51 supports two testing modes: CBC Mode and CBC+DIFF Mode.

Q: Does the Hemaray 51 have a built‑in printer?

A: Yes. The Hemaray 51 features a built‑in thermal printer.

Q: Does the Hemaray 51 support LIS connectivity?

A: Yes. The analyzer supports bi‑directional LIS connectivity for seamless data exchange.

Q: What certifications does the Hemaray 51 have?

A: The Hemaray 51 is CE and ISO13485 certified.

Q: What is the display size?

A: The Hemaray 51 features a 10.4‑inch TFT touch screen display.
