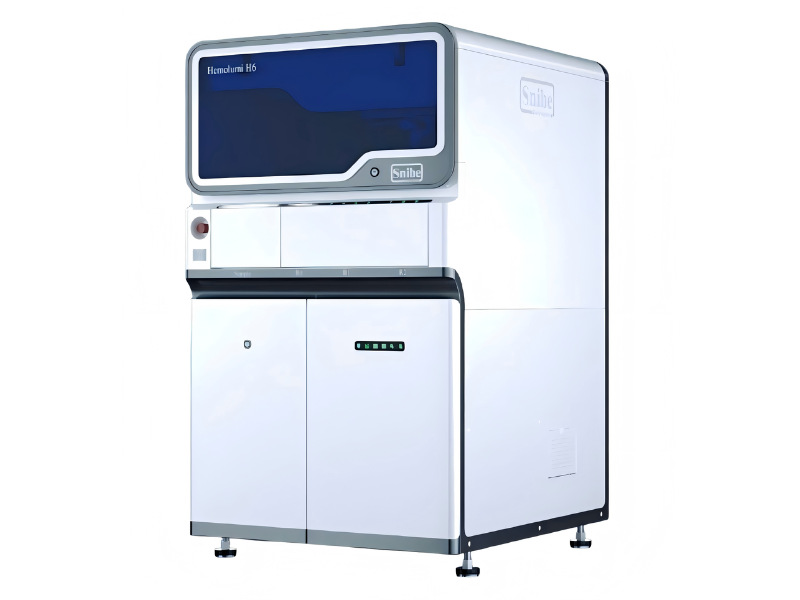

Hemolumi H6 Automated Coagulation Analyzer #

Product Overview

The Hemolumi H6 is a high-performance automated coagulation analyzer designed to deliver efficient, reliable, and accurate hemostasis testing. Combining dual detection technologies—mechanical (viscosity-based) and optical—it ensures precise results across a wide range of sample conditions. With high throughput, user-friendly automation, and intelligent features, the Hemolumi H6 is the ideal solution for clinical laboratories seeking to optimize their coagulation workflow.

Key Features

• High Throughput: Up to 450 tests per hour, meeting the demands of busy clinical laboratories.

• Dual Detection Technology: Combines mechanical (viscosity-based) and optical methods for enhanced accuracy and reliability.

  • Mechanical Method: Measures clot formation based on viscosity changes. Considered the gold standard for coagulation testing, as it is unaffected by hemolysis, icterus, and lipemia (HIL).

  • Optical Method: Measures coagulation based on changes in optical density. Offers high detection sensitivity.

• Automated HIL Interference Detection: Automatically detects hemolysis, icterus, and lipemia in each sample, ensuring result integrity.

• Automatic APTT Correction Test: One-click automatic APTT correction test without manual intervention.

• R2 Reagent Pre-Heating: Automatic pre-heating function for R2 reagents ensures stable reaction temperature and accurate results.

• High Onboard Capacity:

  • Sample Positions: 84

  • Reagent Positions: 69

  • Incubation Positions: 36

  • Measurement Positions: 26

  • Cuvette Storage: 2,312 cuvettes

• Continuous Loading: Samples, reagents, and consumables can be loaded and unloaded continuously without interrupting testing.

• STAT Priority: Any sample position can be defined as STAT for priority testing.

• Contamination Prevention: Independent washing needles with ultrasonic cleaning prevent cross-contamination.

• Magnetic Bead Automatic Loading: Automatic loading of magnetic beads as needed, reducing consumable costs.

• RFID Reagent Management: RFID reading quickly captures all reagent information for efficient tracking.

• Refrigerated Reagent Area: Refrigerated reagent compartment with automatic reagent cap reduces evaporation and maintains reagent integrity.

• Automated Cuvette Loading: Single-unit packaged cuvettes with automatic loading prevent jamming.

• Intelligent Support System: Real-time display of test status, reagent levels, and consumable quantities.

• Simple Operation: One-click testing, calibration, and daily maintenance streamline workflow.

• LIS Connectivity: Connects to Laboratory Information Systems via COM and Ethernet ports.

• Laboratory Automation Compatibility: Capable of connecting to Total Laboratory Automation Systems (TLA/LAS) for streamlined workflow integration.

• Long Walk-Away Time: ≥5 hours of walk-away capability, minimizing manual intervention.

Technical Specifications

Reagent Classification & Test Menu

The Hemolumi H6 supports a comprehensive range of coagulation assays. Reagents are available in multiple specifications to meet different laboratory testing needs.

Routine Coagulation

• PT – Prothrombin Time

• APTT – Activated Partial Thromboplastin Time (with automatic correction test)

• TT – Thrombin Time

• FIB – Fibrinogen (Clauss method)

Coagulation Factors

• Factor II – Prothrombin

• Factor V – Proaccelerin

• Factor VII – Proconvertin

• Factor VIII – Antihemophilic Factor

• Factor IX – Christmas Factor

• Factor X – Stuart-Prower Factor

• Factor XI – Plasma Thromboplastin Antecedent

• Factor XII – Hageman Factor

Anticoagulant Monitoring

• LMWH – Low Molecular Weight Heparin

• UFH – Unfractionated Heparin (Anti-Xa)

Thrombophilia & Special Assays

• AT-III – Antithrombin III

• Protein C – PC

• Protein S – PS

• Plasminogen – PLG

• α2-Antiplasmin – α2-AP

• D-Dimer – D-Dimer

• vWF – von Willebrand Factor (Antigen and Activity)

Why Choose Hemolumi H6?

• Dual Detection Technology: Mechanical and optical methods provide flexibility and confidence—mechanical method eliminates HIL interference, while optical method offers high sensitivity.

• Exceptional Throughput: Up to 450 tests/hour with 2,312 cuvettes onboard supports high-volume testing with minimal interruptions.

• Reliable Results: Automatic HIL detection, R2 reagent pre-heating, and ultrasonic needle cleaning ensure accuracy and prevent carryover.

• User-Friendly Operation: One-click testing, calibration, and maintenance, combined with an intelligent real-time monitoring system, simplify daily operations.

• Cost-Effective Design: Automatic magnetic bead loading reduces consumable costs; multiple reagent specifications minimize waste.

• Seamless Integration: LIS connectivity and compatibility with TLA/LAS systems enable smooth incorporation into existing laboratory workflows.

• Long Walk-Away Time: ≥5 hours of walk-away capability allows staff to focus on other tasks while the analyzer runs.
