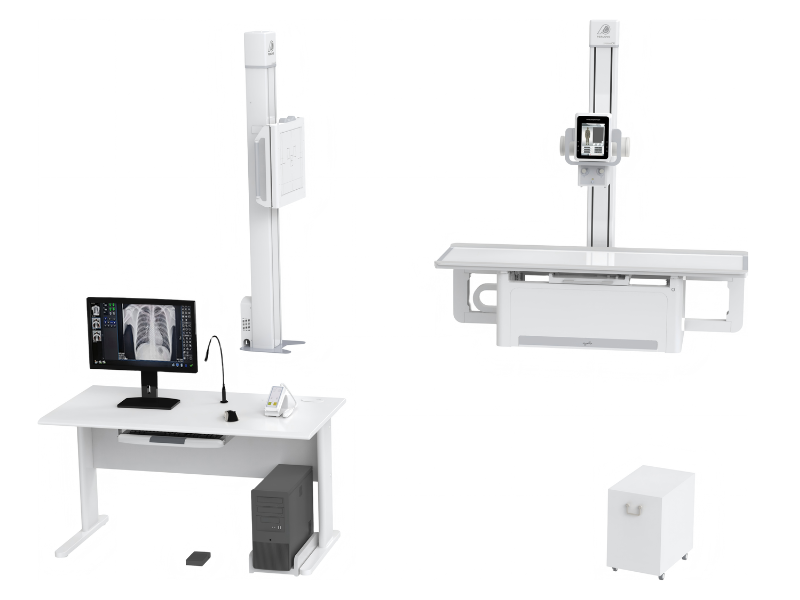

Perlove High Frequency Radiography & Fluoroscopy Digital X-Ray System PLD5600A #

Cost-Effective Static DR with High-Voltage Generator & Fixed Table

Key Features:

1. High Frequency Inverter Technology

• Equipped with a 500kHz high-frequency inverter, ensuring stable output, reduced patient dose, and enhanced image quality by minimizing soft radiation.

2. Powerful Generator Performance

• Power: 50kW

• Tube Voltage: 40-150kV

• Tube Current: 10-630mA

• Capacity: 85kVA

• This configuration supports a wide range of general radiography exams with excellent penetration for all body types.

3. High-Resolution Imaging System

• Detector: 17" x 17" PLD-1717CWE Flat Panel Detector (Domestic)

• Pixel Matrix: 3072 x 3072

• Pixel Pitch: 139μm

• Spatial Resolution: 3.7 lp/mm

• Gray Scale: 16-bit

• Captures clear, diagnostic-quality images for accurate clinical analysis.

4. Stable Fixed Table Design

• Table Bearing: 200kg capacity

• Fixed Table (Model 10B) provides a stable and durable platform for patient positioning.

• Horizontal Travel: 260mm for flexible alignment.

5. Precision X-Ray Tube

• Focus Sizes: 0.6/1.2mm (Dual focus for fine and general imaging)

• Anode Heat Capacity: 300kHu

• Cooling: 1300kHu thermal capacity with 8400rpm anode rotation for sustained workflows.

6. Optional Advanced Functions (Upgradeable)

• AEC (Automatic Exposure Control) – $2,228

• DAP (Dose Area Product) Meter – $2,228

• Automatic Image Stitching – $2,160

• Mobile Standing Pedal – $2,565

• *Note: Tube and Bucky stand tracking is also available (+$3,250).*

7. Technical Specifications (Summary)

• Voltage: 380V ± 38V

• Frequency: 50Hz ± 1Hz

• Internal Resistance: ≤0.17Ω

Why Choose PLD5600A?
The PLD5600A offers a perfect balance of performance and affordability for clinics starting their digital transformation. With a robust 50kW generator, high-frequency stability, and a large-format flat panel detector, it delivers consistent, high-quality radiographic results for everyday diagnostic needs.
