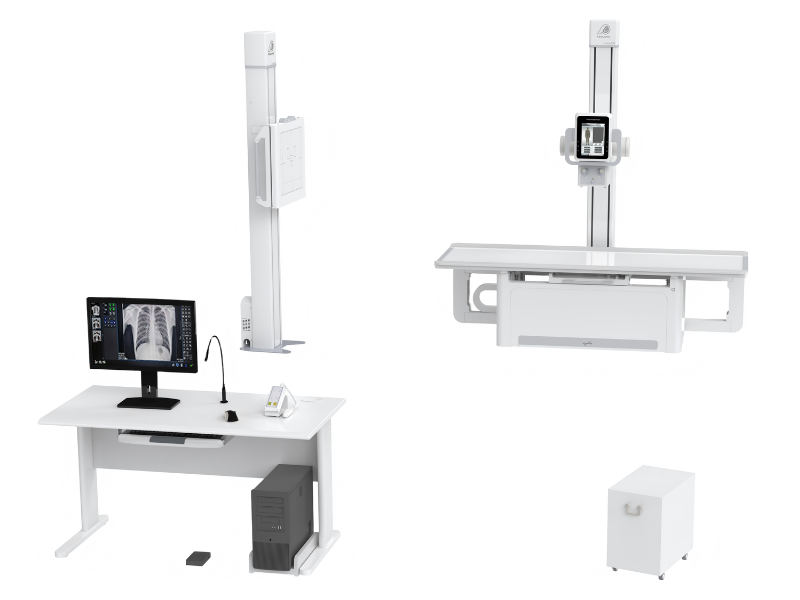

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD5600B #

Dual-Panel Digital DR with High-Frequency Generator & Fixed Table

Key Features:

1. High Frequency Inverter Technology

• Equipped with a 500kHz high-frequency inverter, delivering stable X-ray output, reduced patient dose, and superior image quality by minimizing soft radiation.

2. Powerful 50kW Generator

• Tube Voltage: 40-150kV

• Tube Current: 10-630mA

• Capacity: 85kVA

• Maximum Exposure: 0.1-630mAs

• Provides consistent power for a wide range of general radiography exams, ensuring excellent penetration and diagnostic clarity.

3. Dual-Panel Digital Detector System – Maximum Workflow Efficiency

• Detector 1 (Main): 17" x 17" PLD-1717CWE

• Detector 2 (Secondary): 17" x 17" PLD-1717LE

• Pixel Matrix: 3072 x 3072

• Pixel Pitch: 139μm

• Spatial Resolution: 3.7 lp/mm

• Gray Scale: 16-bit

• With two high-resolution flat panel detectors, you can seamlessly switch between table and chest stand exams without moving a single detector, dramatically improving workflow efficiency.

4. Dual Grid System for Optimized Imaging

• Table Grid: 18" x 18", 103 LP/inch, 10:1 ratio, fixed (100cm SID)

• Chest Stand Grid: 18" x 18", 103 LP/inch, 10:1 ratio, fixed (180cm SID)

• Dedicated grids for both table and chest applications ensure scatter rejection and consistently sharp images.

5. Stable Fixed Table Design

• Bed Bearing Capacity: 200kg

• Horizontal Travel (Table Surface): 260mm

• The fixed table (Model 10B) provides a stable, durable platform for patient positioning.

6. High-Performance X-Ray Tube

• X-Ray Tube: Domestic X-ray tube

• Focus Sizes: 0.6mm / 1.2mm (dual focus for fine detail and general imaging)

• Anode Heat Capacity: 300kHu

• Thermal Heat Capacity: 1300kHu

• Anode Rotating Speed: 8400rpm

• Designed for reliable, continuous operation in busy clinical environments.

7. Flexible Chest Stand & Tube Positioning

• Chest Stand Vertical Travel: 1500mm (full-range positioning)

• Tube Column Longitudinal Movement: 1300mm along the bed

• Allows easy positioning for standing, supine, and wheelchair exams.

8. Optional Advanced Functions (Upgradeable)

• Tube & Bucky Stand Auto-Tracking – $3,250

• AEC (Automatic Exposure Control) – $2,228

• DAP (Dose Area Product) Meter – $2,228

• Automatic Image Stitching – $2,160

• Mobile Standing Pedal – $2,599

9. Technical Specifications (Summary)

• Voltage: 380V ± 38V

• Frequency: 50Hz ± 1Hz

• Internal Resistance: ≤0.17Ω

Why Choose PLD5600B?
The PLD5600B is the ideal solution for clinics that need high throughput and maximum flexibility. With dual flat panel detectors, dedicated grids for table and chest work, and a reliable 50kW generator, this system eliminates detector swapping and accelerates your daily workflow—all at an exceptional value.
