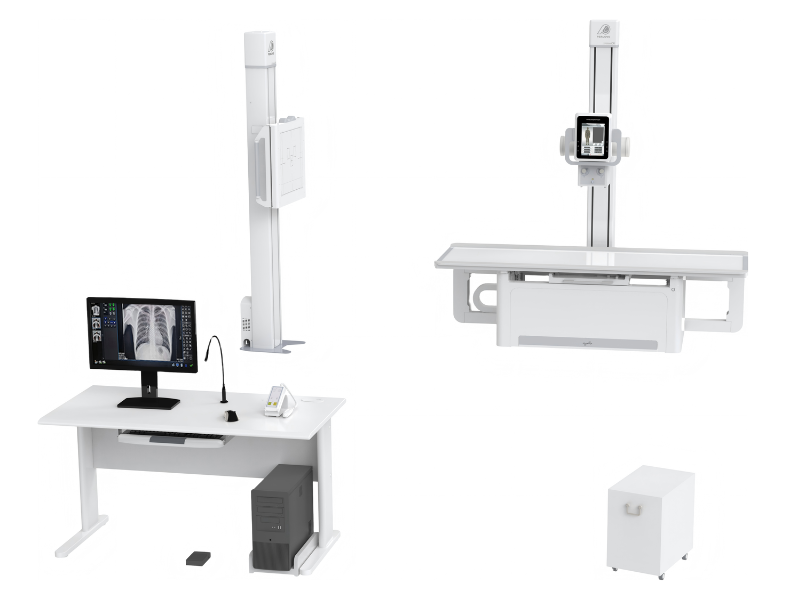

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD5600C #

Premium Imported Detector DR with High-Frequency Generator & Fixed Table

Key Features:

1. High Frequency Inverter Technology

• Powered by a 500kHz high-frequency inverter, ensuring ultra-stable X-ray output, reduced patient dose, and exceptional image quality by minimizing soft radiation.

2. Powerful 50kW Generator

• Tube Voltage: 40-150kV

• Tube Current: 10-630mA

• Capacity: 85kVA

• Maximum Exposure: 0.1-630mAs

• Delivers consistent, reliable power for a full range of general radiography procedures.

3. Imported High-Resolution Flat Panel Detector

• Detector Model: FDXA4343R (Imported)

• Detector Size: 17" x 17"

• Pixel Matrix: 3040 x 3036

• Pixel Pitch: 140μm

• Spatial Resolution: 3.7 lp/mm

• Gray Scale: 16-bit

• The imported detector provides superior image uniformity, lower noise, and exceptional long-term reliability for demanding clinical environments.

4. Dual Grid System for Optimized Imaging

• Table Grid: 18" x 18", 103 LP/inch, 10:1 ratio, fixed (100cm SID)

• Chest Stand Grid: 18" x 18", 103 LP/inch, 10:1 ratio, fixed (180cm SID)

• Dedicated grids for both table and chest applications effectively reduce scatter radiation, producing consistently sharp, high-contrast images.

5. Stable Fixed Table Design

• Bed Bearing Capacity: 200kg

• Horizontal Travel (Table Surface): 260mm

• The fixed table (Model 10B) offers a sturdy, wobble-free platform for precise patient positioning.

6. Reliable X-Ray Tube Assembly

• X-Ray Tube: Domestic X-ray tube

• Focus Sizes: 0.6mm / 1.2mm (dual focus for fine detail and general imaging)

• Anode Heat Capacity: 300kHu

• Thermal Heat Capacity: 1300kHu

• Anode Rotating Speed: 8400rpm

• Engineered for dependable, continuous operation in busy radiology departments.

7. Flexible Chest Stand & Tube Positioning

• Chest Stand Vertical Travel: 1500mm (full-range positioning)

• Tube Column Longitudinal Movement: 1300mm along the bed

• Enables easy positioning for standing, supine, and wheelchair patients.

8. Optional Advanced Functions (Upgradeable)

• Tube & Bucky Stand Auto-Tracking – $3,250

• AEC (Automatic Exposure Control) – $2,228

• DAP (Dose Area Product) Meter – $2,228

• Automatic Image Stitching – $2,160

• Mobile Standing Pedal – $2,599

9. Technical Specifications (Summary)

• Voltage: 380V ± 38V

• Frequency: 50Hz ± 1Hz

• Internal Resistance: ≤0.17Ω

Why Choose PLD5600C?
The PLD5600C combines the reliability of a 50kW high-frequency generator with the superior image quality of an imported flat panel detector. For clinics that demand the best in image uniformity, low noise, and long-term detector stability—all within a cost-effective fixed table configuration—the PLD5600C is the ideal choice.
