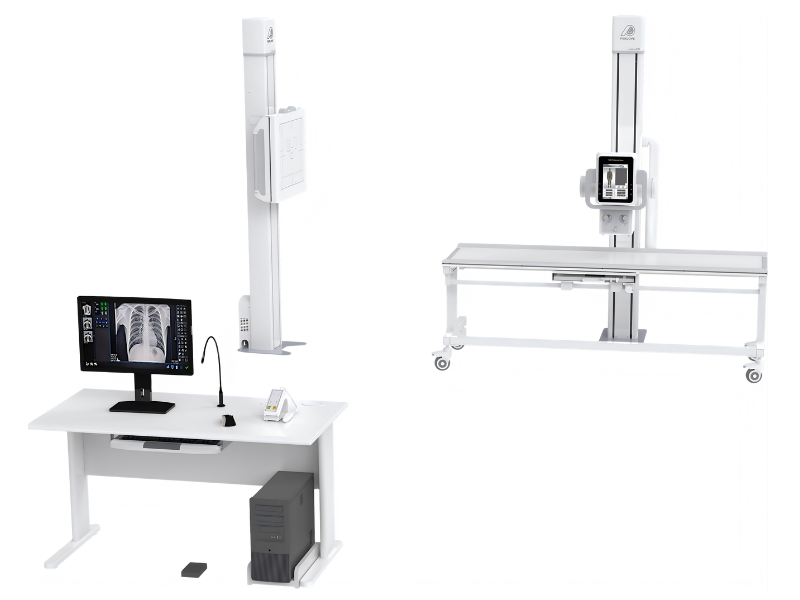

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD5600D #

Mobile-Bed Digital DR with High-Frequency Generator & Single Panel

Key Features:

1. High Frequency Inverter Technology

• Powered by a 500kHz high-frequency inverter, delivering ultra-stable X-ray output, reduced patient dose, and superior image quality by minimizing soft radiation.

2. Powerful 50kW Generator

• Tube Voltage: 40-150kV

• Tube Current: 10-630mA

• Capacity: 85kVA

• Maximum Exposure: 0.1-630mAs

• Provides consistent, reliable power for a full range of general radiography procedures, from extremities to chest and abdominal exams.

3. High-Resolution Domestic Flat Panel Detector

• Detector Model: 17" x 17" PLD-1717CWE

• Pixel Matrix: 3072 x 3072

• Pixel Pitch: 139μm

• Spatial Resolution: 3.7 lp/mm

• Gray Scale: 16-bit

• Delivers crisp, diagnostic-quality images with excellent detail for accurate clinical analysis.

4. Mobile Moving Table for Maximum Flexibility

• Table Type: 40C Mobile Moving Bed

• Bed Bearing Capacity: 200kg

• Unlike fixed-bed versions, the mobile table can be easily repositioned within the exam room, allowing for greater workflow flexibility and accommodating patients in various scenarios, including emergency or portable-style positioning.

5. Dual Grid System for Optimized Imaging

• Table Grid: 18" x 18", 103 LP/inch, 10:1 ratio, fixed (100cm SID)

• Chest Stand Grid: 18" x 18", 103 LP/inch, 10:1 ratio, fixed (180cm SID)

• Dedicated grids for both table and chest applications effectively reduce scatter radiation, producing consistently sharp, high-contrast images.

6. High-Performance X-Ray Tube

• X-Ray Tube: Perlove X-ray tube

• Focus Sizes: 0.6mm / 1.2mm (dual focus for fine detail and general imaging)

• Anode Heat Capacity: 300kHu

• Thermal Heat Capacity: 1300kHu

• Anode Rotating Speed: 8400rpm

• Engineered for dependable, continuous operation in busy clinical environments.

7. Flexible Chest Stand & Tube Positioning

• Chest Stand Vertical Travel: 1500mm (full-range positioning)

• Enables easy positioning for standing, supine, and wheelchair patients.

8. Optional Advanced Functions (Upgradeable)

• Tube & Bucky Stand Auto-Tracking – $3,245

• AEC (Automatic Exposure Control) – $2,228

• DAP (Dose Area Product) Meter – $2,228

• Automatic Image Stitching – $2,160

• Mobile Standing Pedal – $2,599

9. Technical Specifications (Summary)

• Voltage: 380V ± 38V

• Frequency: 50Hz ± 1Hz

• Internal Resistance: ≤0.17Ω

Why Choose PLD5600D?
The PLD5600D offers the perfect balance of mobility and performance. With a mobile moving table, a powerful 50kW high-frequency generator, and a high-resolution domestic flat panel detector, this system provides exceptional flexibility for clinics that need to adapt their workspace—all at an outstanding value.
