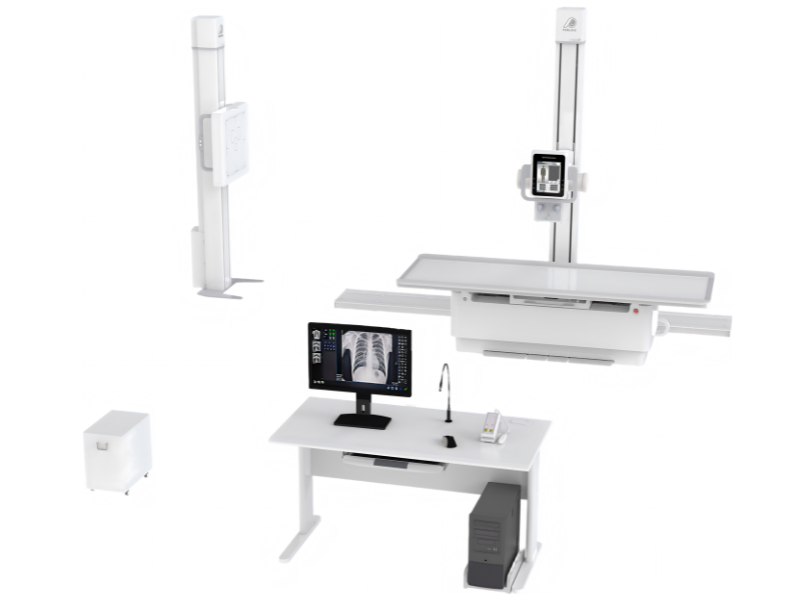

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD6500B #

Dual-Panel Configuration for Maximum Workflow Efficiency
The PLD6500B comes with two domestic flat panel detectors (PLD-1717CWE + PLD-1717LE) , enabling simultaneous or rapid-switch imaging between the table and chest stand — significantly reducing exam time.

High-Frequency Generator for Superior Image Quality
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system delivers consistent, high-resolution imaging with low patient dose.

Flexible Exposure Parameters

• Tube Voltage: 40–150kV

• Tube Current: 10–800mA

• mAs Range: 0.1–800mAs

Wide parameter ranges support everything from pediatric to bariatric imaging.

Canon X-Ray Tube – Reliable & Durable

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Anode speed: 9700rpm

Engineered for high workload environments with consistent output.

High-Resolution Imaging System

• Detector size: 17"x17"

• Pixel pitch: 139μm

• Pixel matrix: 3072×3072

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

Captures fine anatomical details with excellent contrast.

Ergonomic Lifting Bed (SYC30E)

• Load capacity: 200kg

• Lifting range: 220mm (500mm – 720mm)

• Longitudinal travel: 1000mm

• Horizontal travel: 260mm

Easily adjust bed height for patient comfort and operator convenience.

Comprehensive Positioning Capabilities

• Tube column longitudinal travel: 2500mm

• Vertical tube travel: 1300mm

• Tube arm rotation: ±90°

• Chest stand vertical travel: 1500mm

Covers all standard radiographic projections with minimal patient repositioning.

Built-in Fixed Grids

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Reduces scatter radiation for cleaner, more diagnostic images.

Optional Add-Ons for Enhanced Functionality

• Bucky stand & tube tracking: $2,199

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,160

• Mobile standing pedal: $2,599
