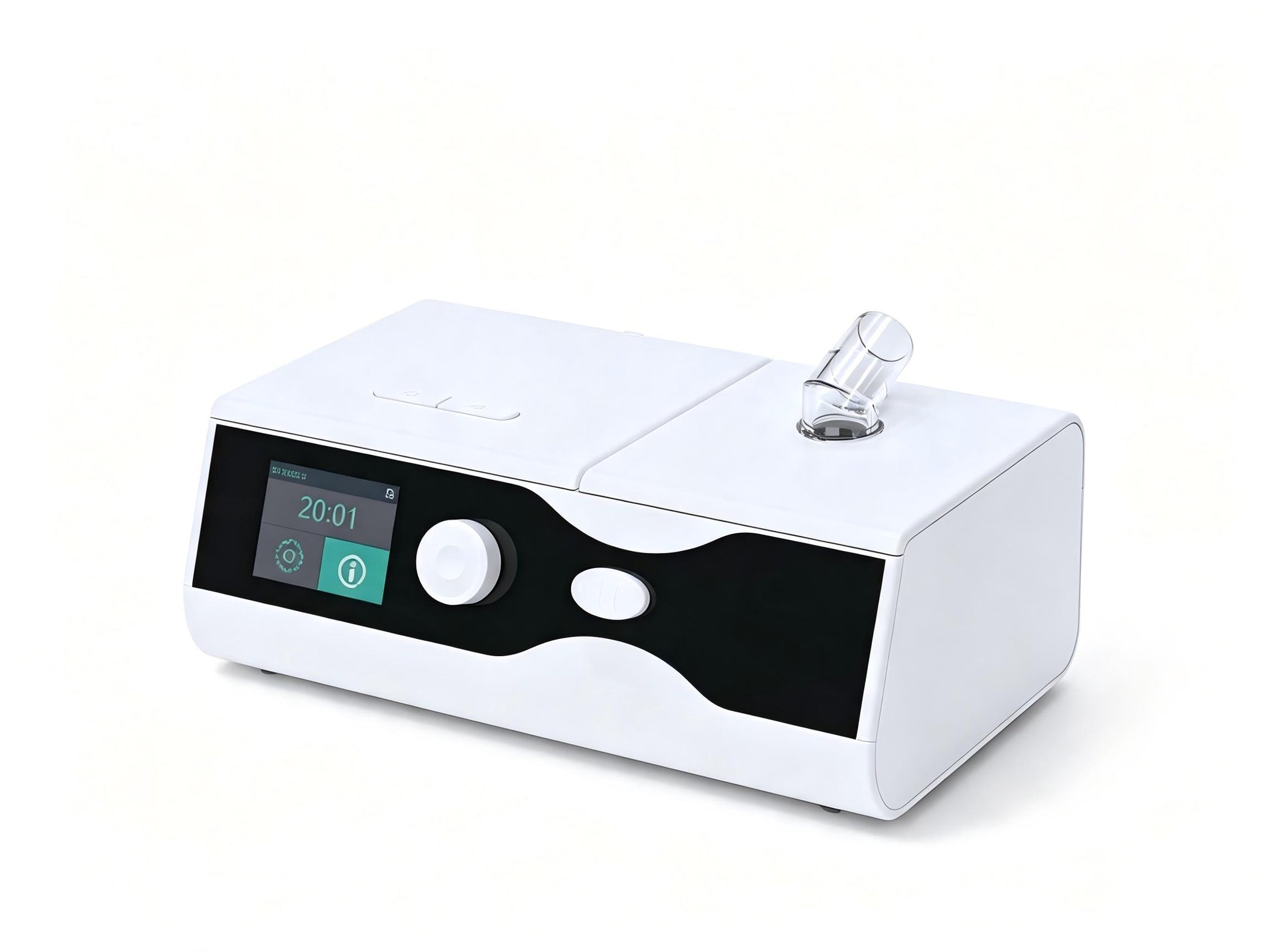

High-Performance Bi-Level Ventilator | ST Mode Bilevel PAP with 30 hPa Pressure Range

Model: GHM BPAP ST30

High-performance bi-level ventilator with ST mode, 4–30 hPa pressure range, 5-level humidification, real-time waveforms, and ultra-quiet operation (<30 dB). Ideal for severe sleep apnea, COPD, and respiratory insufficiency.

The Global Healthcare Medical High-Performance Bi-Level Ventilator with ST Mode is a sophisticated non-invasive ventilator engineered to deliver advanced respiratory support for patients with complex and severe breathing disorders. Featuring a comprehensive pressure range of 4–30 hPa, this device provides the higher pressure capabilities required for patients with more demanding clinical needs.

Designed for both hospital and home use, this versatile system supports an extensive array of therapy modes including CPAP, Auto CPAP, S (Spontaneous), Auto S, T (Timed), and S/T (Spontaneous/Timed) with backup rate functionality. The device integrates advanced flow sensing technology, real-time waveform display, comprehensive safety alarms, and intelligent auto-compensation features to deliver precise, patient-centered therapy.

The system is complemented by robust data management capabilities, including more than one year of onboard data storage, SD card support, and 4G/Wi-Fi connectivity for seamless data upload and remote clinical monitoring. Whether for obstructive sleep apnea, central sleep apnea, COPD, or respiratory insufficiency, this high-performance bi-level ventilator provides the power, precision, and reliability that clinicians and patients demand.

This device is intended for professional use under physician prescription. Not a substitute for professional medical diagnosis.

Key Features

🌬️ Extended Pressure Range for Demanding Clinical Needs

Delivers the higher pressure capabilities required for complex respiratory conditions:

• Pressure range: 4–30 hPa – Extended range suitable for patients with severe sleep apnea, COPD, and respiratory insufficiency

• Dual-level IPAP/EPAP therapy – Inspiratory pressure supports inhalation; expiratory pressure maintains airway patency

• Multiple therapy modes – CPAP, Auto CPAP, S (Spontaneous), Auto S, T (Timed), and S/T (Spontaneous/Timed) with backup rate

• S/T mode with backup rate – Essential for patients with irregular breathing patterns or central sleep apnea who require triggered or timed breaths

📊 Real-Time Waveform Display and Clinical Monitoring

Provides immediate visual feedback for clinical assessment:

• Real-time airflow and pressure waveforms – Visual display of breathing patterns for immediate clinical assessment

• Comprehensive safety alarms – Triggers alerts for apnea, low minute volume, and excessive leaks

• Continuous monitoring – Real-time tracking of respiratory parameters

🧠 Advanced Respiratory Event Detection and Synchrony

Ensures optimal therapy through intelligent monitoring:

• Multilevel respiratory event detection – Identifies flow limitation, snoring, and hypopnea events and responds appropriately

• Advanced flow sensors – International-leading technology enables accurate collection of small airflow volumes

• SAF leak detection algorithm – Proprietary algorithm ensures accurate leak calculation for optimal patient-ventilator synchrony

• Auto leak compensation – Maintains therapy pressure despite leaks

💧 Advanced Humidification System

Enhances therapy comfort and compliance:

• 5-level humidification – Customizable moisture delivery

• Constant-temperature humidification – Maintains consistent, comfortable humidity levels

• Open water tank design – Easy-to-clean with one-touch refill function

• Multi-layer protection system – Ensures safe, reliable operation

🔇 Ultra-Quiet, Sleep-Friendly Operation

Minimizes therapy disruption for restful sleep:

• Noise level: <30 dB – Whisper-quiet operation for undisturbed sleep

• S-shaped airway pathway – Smooth airflow while effectively filtering conducted noise

📱 Comprehensive Data Management and Connectivity

Empowers clinicians with actionable insights:

• Onboard storage – Stores more than one year of therapy data

• SD card support – For data transfer and backup

• 4G/Wi-Fi connectivity – Auto-upload of therapy data for real-time clinical optimization

• Data analysis software – Full software playback functionality for physician review

• Compliance monitoring – Track therapy adherence over time

• Report generation – Print and email capabilities for easy sharing

🛡️ Automatic Compensation Features

Ensures consistent therapy across varying conditions:

• Auto altitude compensation – Automatic pressure adjustment for different elevations

• Auto leak compensation – Maintains therapy pressure despite leaks

• Ramp function – Gradual pressure increase for comfortable therapy initiation

🧳 Lightweight, Portable Design

Travel-friendly for therapy on the go:

• Weight: 0.95 kg (without humidifier); 1.5 kg (with humidifier) – Lightweight and easy to carry

• Compact dimensions: 140 × 156 × 94 mm (without humidifier); 262 × 156 × 94 mm (with humidifier) – Fits easily on nightstands and in luggage

• Travel-friendly – Ideal for home, hospital, and travel use

✅ Quality and Certification

Built to international standards:

• CE certified – Meets rigorous European regulatory standards

• ISO 13485 certified – Quality management system for medical devices

• 3-year warranty – Long-term reliability and peace of mind

Specifications

What's Included

Standard Package:

• High-Performance Bi-Level Ventilator Main Unit

• Integrated Humidifier

• AC/DC Power Adapter

• Power Cord

• Air Tubing

• Reusable Pollen/Fine Filter

• Carrying Case

• User Manual

• Quick Operation Manual

Optional:

• Full Face Mask or Nasal Mask (available in package configurations)

Applications

The High-Performance Bi-Level Ventilator with ST Mode is suitable for:

• Severe Obstructive Sleep Apnea (OSA) – Higher pressure capabilities for patients who do not respond to standard CPAP therapy

• Central Sleep Apnea (CSA) – ST mode with backup rate provides timed breaths when spontaneous breathing is absent

• Mixed Sleep Apnea – Comprehensive mode selection for complex sleep-disordered breathing

• Chronic Obstructive Pulmonary Disease (COPD) – Non-invasive ventilation for respiratory insufficiency

• Respiratory Insufficiency – Support for patients with compromised breathing

• Obesity Hypoventilation Syndrome (OHS) – Ventilatory support for obesity-related breathing disorders

• Neuromuscular Disorders – Respiratory support for conditions affecting respiratory muscles

• Hospital Use – Non-invasive ventilation in clinical and institutional settings

• Home Therapy – Convenient, comfortable treatment in the patient's own environment

Why Choose the High-Performance Bi-Level Ventilator with ST Mode?



FAQ

Q: What is a high-performance bi-level ventilator with ST mode?
A: This is an advanced non-invasive ventilator that delivers two alternating pressure levels—inspiratory pressure (IPAP) and expiratory pressure (EPAP)—with a pressure range of up to 30 hPa. The ST mode adds a timed backup rate for patients who may not trigger breaths spontaneously.

Q: What is the pressure range of the device?
A: The device delivers a pressure range of 4–30 hPa, providing higher pressure capabilities for patients with more demanding clinical needs.

Q: What therapy modes are available?
A: The device supports CPAP, Auto CPAP, S (Spontaneous), Auto S, T (Timed), and S/T (Spontaneous/Timed) modes.

Q: What conditions can this device treat?
A: The device is suitable for severe obstructive sleep apnea, central sleep apnea, mixed sleep apnea, COPD, respiratory insufficiency, obesity hypoventilation syndrome, and neuromuscular disorders.

Q: Does the device have a backup rate?
A: Yes, the S/T mode includes a backup rate for patients who require triggered or timed breaths.

Q: Does the device display real-time waveforms?
A: Yes, the device features real-time airflow and pressure waveform display on screen.

Q: What safety features are included?
A: The device includes comprehensive safety alarms for apnea, low minute volume, and excessive leaks.

Q: How loud is the device during operation?
A: The device operates at less than 30 dB, making it whisper-quiet and suitable for undisturbed sleep.

Q: Does the device have a humidifier?
A: Yes, the device features an integrated 5-level constant-temperature humidification system with an easy-to-clean open water tank design.

Q: What data management capabilities are available?
A: The device stores more than one year of therapy data onboard, supports SD card data transfer, and features 4G/Wi-Fi connectivity for auto-upload of therapy data.

Q: Does the device automatically compensate for altitude changes?
A: Yes, the device features automatic altitude compensation for consistent therapy at different elevations.

Q: Is the device portable for travel?
A: Yes, the device weighs only 0.95 kg (without humidifier) with compact dimensions, making it ideal for travel.

Q: Is the device certified?
A: Yes, the device is CE certified and manufactured under ISO 13485 quality management standards.

Q: What is the warranty period?
A: The device comes with a 3-year warranty.

Q: What is the delivery lead time?
A: The delivery lead time is approximately 5–30 working days, depending on quantity and request.
