High Throughput Real-time PCR Machine #

High Throughput Real-time PCR Machine #

$21,057.90
$24,070.98 $21,057.90
Sale Sold out
Shipping calculated at checkout.

Model:GHM030702

A Real-Time PCR System is a highly sensitive instrument used to detect and quantify nucleic acids (DNA or RNA) in real-time. It is widely used in clinical diagnostics, research, infectious disease screening, genetic testing, and biotechnology applications.

Features:

*2/4/5/6 fluorescence channels
*96 Wells High Throughput

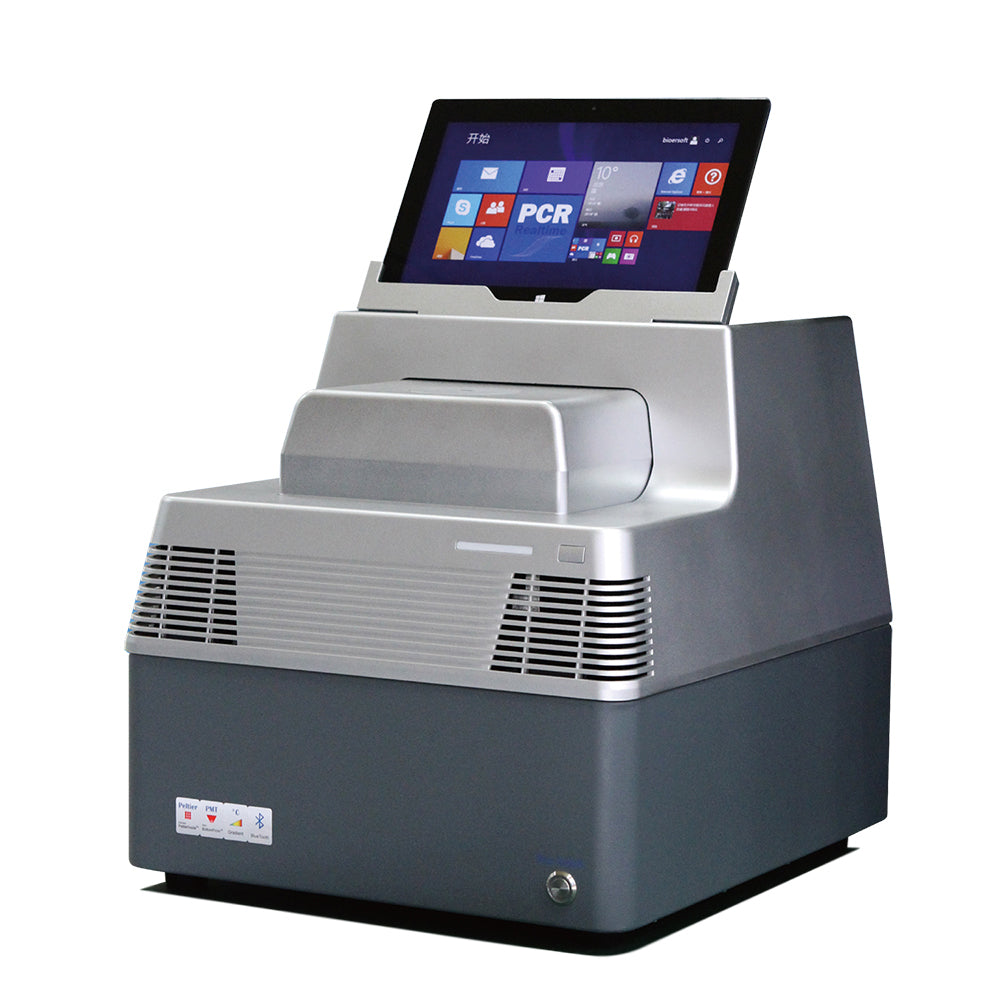

*Integrated Tablet Computer
Convenient Operation, Wireless Experience
*Upgraded Motors with Automatic Brake Function
*Max. Gradient Range 36℃
*3D Hotlid Design

Specifications:

Sample Capacity

96-Well PCR plate, 12x 8-strip, 96 x 0.2ml(Bottom Transparent)

Dynamics Range

1~1010Copies

Excitation Wavelength

300-800nm

Emission Wavelength

500-800nm

Detected Fluorescence

F1:FAM,SYBR Green I ; F2:VIC,HEX,TET,JOE,CY3,NED,TAMRA;

F3:ROX,TEXAS- RAD,F4:CY5;F5:CY5.5;

Block Temp. Range

4~105 °C(Minimum Increment: 0.1°C)

SOAK Low Temp. Conservation Function

Heating/Cooling Rate

4.0 °C/s(max)

Temp. Control Accuracy

≤±0.2 °C

Temp. Fluctuation

≤±0.1 °C

Temp. Uniformity

≤±0.4 °C

Temp. Control Mode

BLOCK/Tube Simulation Mode

(Automatic Control Based On Sample Volume)

Sample Volume Range

5~100μL

Gradient Temp. Range

1~36°C

Hot-lid Temp. Range

30~110°C(Adjustable, Default 105°C), Automatic Hot -lid

Fluorescence Detection Repeatability

5%

Scan Mode

Entire Plate or Designated Line

Program

Max 20 Segments for Each Program, Max 99 Cycles

Operation Mode

Continuous

Scan Period

5.5s

Power Supply

100-240V~ 50/60Hz 600W

Dimension(L x W x H)

410mm x 386mm x 352mm
