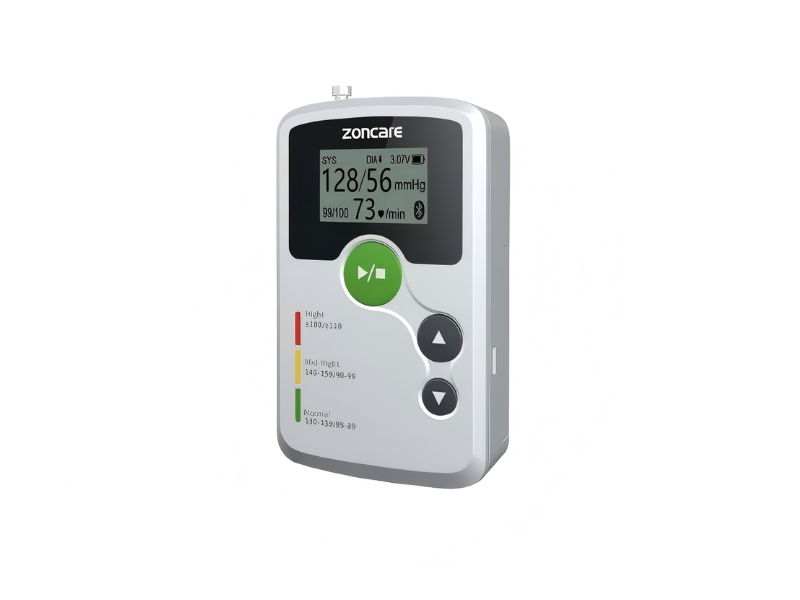

Zoncare iE75 24-Hour Ambulatory Blood Pressure Monitor

The Zoncare iE75 is a portable 24-hour ambulatory blood pressure monitor (ABPM) engineered to record systolic and diastolic blood pressure and pulse rate during a patient’s routine daily activities, outside the clinical setting. It uses the oscillometric method and is designed to support automated, averaged blood pressure readings across programmed measurement intervals—providing a longitudinal record that can be reviewed alongside office measurements.

The device is lightweight (approximately 210 g including battery) and compact (approximately 118 × 67 × 29 mm), with a handheld form factor that supports continuous wear during normal activity. It stores at least 300 blood pressure readings internally and supports multiple measurement interval settings—ranging from 5 to 120 minutes—allowing the monitoring schedule to be tailored to day, night, morning, or custom periods.

The iE75 includes intelligent position detection through a built-in gravity sensor, recording the patient’s posture at the time of each measurement to support posture-related blood pressure analysis. It also supports self-adaptive measurement technology intended to improve patient comfort during cuff inflation, alongside automatic retry for failed measurements and manual insertion of additional readings.

Data can be transferred to a PC via USB 2.0 or Bluetooth (V4.2 BLE) for review in the blood pressure management software, which supports morning blood pressure index, variability index, and arteriosclerosis index analysis, along with automatic PDF report generation.

Regulatory status: The iE75 holds China NMPA registration for 24-hour ambulatory blood pressure and pulse rate recording, storage, and display in humans, not applicable to children under 12 years of age. Zoncare states that its products are NMPA-certified, with some products also holding CE, FDA, and ANVISA registrations depending on the model and market. No independent FDA 510(k) clearance specific to the iE75 model name was identified in the public FDA database during preparation of this page; no independent CE MDR certificate specific to the iE75 was identified, and Zoncare documentation references Windows 2003/XP or higher for the analysis software rather than a specific EU regulatory classification. No independent peer-reviewed clinical validation study specific to the iE75 was identified in the public literature during preparation of this page. Availability, labeling, and cleared claims vary by market; confirm local registration and intended use before purchase.

Key Features & Benefits

24-Hour Oscillometric Monitoring with Programmable Intervals

The iE75 uses the oscillometric method to measure systolic blood pressure (60–200 mmHg) and diastolic blood pressure (30–180 mmHg) , with indication range 0–280 mmHg and accuracy of ±3 mmHg. Pulse rate range is 40–240 bpm with ±3 BPM accuracy, and pressure measurement range is 0–37.3 kPa. Measurement intervals can be set at 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115, or 120 minutes, supporting day, night, morning, special, and custom schedules.

Intelligent Position Detection with Gravity Sensor

The iE75 includes a built-in 3-axis gravity sensor that records the patient’s body position at the time of each measurement, supporting posture-related blood pressure analysis in the review software. This is intended to help clinicians interpret readings in context—for example, distinguishing seated, standing, and supine measurements—rather than treating all readings as equivalent.

Self-Adaptive Cuff Inflation and Automatic Retry

The device supports self-adaptive measurement technology designed to improve patient comfort during cuff inflation, alongside automatic retry when a measurement attempt is unsuccessful and manual insertion of additional readings where needed. These workflow features are intended to support data completeness during unattended 24-hour wear.

300+ Reading Storage with USB and Bluetooth Transfer

The iE75 stores at least 300 blood pressure readings internally, with data transfer via USB 2.0 or Bluetooth V4.2 BLE. The included blood pressure management software supports multiple analysis outputs, including morning blood pressure index, variability index, and arteriosclerosis index, along with automatic PDF report generation and various blood pressure parameter and statistical results.

Lightweight 210 g Design for Daily Wear

At approximately 210 g including battery and 118 × 67 × 29 mm, the iE75 is designed for comfortable continuous wear during routine daily activities. The handheld form factor and included carry pouch support mobility and patient compliance across the monitoring period.

PC-Based Analysis Software with PDF Reporting

The blood pressure management software runs on Microsoft Windows 2003, Windows XP, or higher and supports automated report generation in PDF format. The analysis module includes correlogram, histogram, pie graph, and trend graph outputs, alongside morning index, variability index, and arteriosclerosis index analysis. These are review and reporting tools—they support the clinician’s interpretation and do not constitute a diagnosis.

Technical Specifications

Why Choose the Zoncare iE75?
