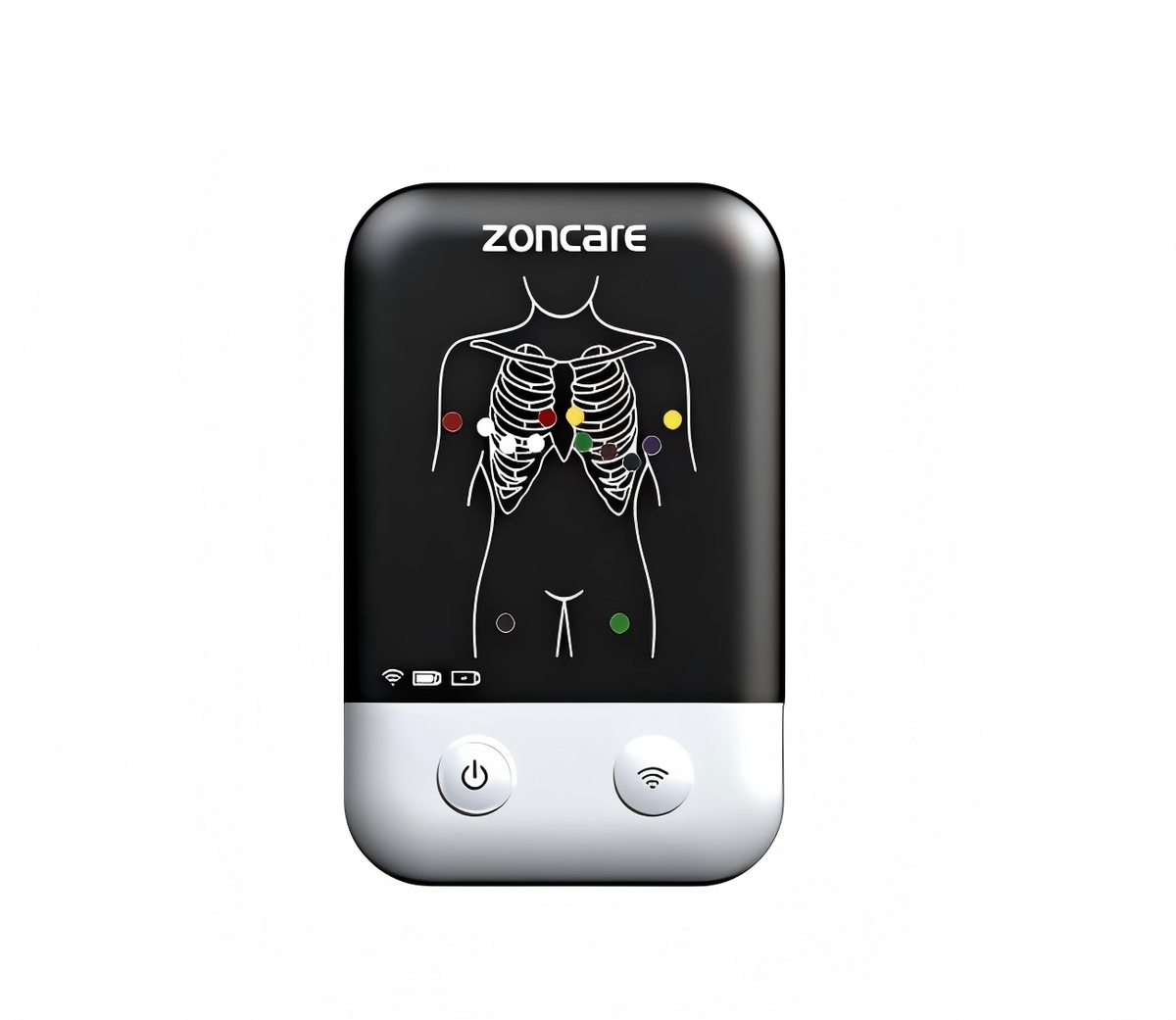

Zoncare iMAC 10 Bluetooth ECG Monitor Home EKG Monitor

The Zoncare iMAC 10 is a pocket-sized Bluetooth ECG acquisition unit engineered for home EKG monitoring, telemedicine, and point-of-care cardiac screening. At approximately 100 g and 97.5 × 61.9 × 19.5 mm, it supports standard 12-lead synchronous acquisition and wirelessly transmits ECG data to a PC or tablet via Bluetooth—turning a clinician’s existing computer into a fully functional ECG workstation without a dedicated cart, console, or thermal printer.

The iMAC 10 is designed for clinicians and patients who need ECG acquisition outside the traditional clinic environment—including home visits, telemedicine consultations, rural outreach, and bedside assessment. The unit has only two buttons, simplifying operation for intermittent users, and includes a high-precision digital filter that suppresses baseline drift and other interference without distorting the waveform.

The acquisition chain includes a 24-bit A/D converter and 32,000 Hz per-channel sampling rate, supporting high-resolution ECG capture. The Bluetooth 5.1 connection transmits data to the Zoncare ECG workstation software (available in Windows and Android versions) for real-time display, measurement, storage, and export. The system also includes pacemaker signal detection and supports multi-format export in PDF, PNG, XML, HL7, and DICOM.

Regulatory status: The iMAC 10 holds China NMPA registration for ECG signal acquisition and data transmission in humans, to be used with Zoncare‘s digital ECG workstation software. Wuhan Zoncare’s quality system for Digital Multi-Channel Electrocardiographs is covered by an EC Certificate (No. 12350-2018-CE-RGC-NA-PS) issued under Council Directive 93/42/EEC by DNV GL (Notified Body 2460) , valid until 27 May 2024. The device is classified as Class II, Type CF, with defibrillation and pacemaker protection circuits in Zoncare documentation. No FDA 510(k) clearance specific to the iMAC 10 model name was identified in the public FDA database during preparation of this page; confirm local registration and intended use before purchase. No independent peer-reviewed clinical validation study specific to the iMAC 10 was identified in the public literature during preparation of this page. Availability, labeling, and cleared claims vary by market.

Key Features & Benefits

100 g Pocket-Sized Design with 12-Lead Synchronous Acquisition

The iMAC 10 weighs approximately 100 g and measures 97.5 × 61.9 × 19.5 mm, supporting single-hand transport and use in home, telemedicine, and mobile settings. Despite the compact form factor, it supports standard 12-lead synchronous acquisition, capturing the full diagnostic ECG lead set in a single pass. A waterproof suitcase is referenced for portable storage and field use.

Bluetooth 5.1 Wireless Transmission to PC or Tablet

The iMAC 10 transmits ECG data wirelessly via Bluetooth 5.1 to a PC or tablet running the Zoncare ECG workstation software (Windows or Android). Communication range is referenced as up to 10 m without obstruction. Seamless connection to third-party hospital information systems is supported, and the system can automatically connect to the PC for routine workflow. This architecture eliminates the need for a dedicated ECG cart or console, leveraging the clinician‘s existing computer hardware.

24-Bit A/D, 32,000 Hz Sampling, and High-Precision Digital Filter

The acquisition chain uses a 24-bit A/D converter and 32,000 Hz per-channel sampling rate, supporting high-resolution ECG signal capture. A unique high-precision digital filter prevents baseline drift and other interference without causing waveform distortion, improving waveform interpretability. Frequency response is referenced as 0.05–200 Hz, and gain settings include 2.5, 5, 10, 20, and 40 mm/mV plus automatic (gain accuracy ±3%).

Pacemaker Signal Detection

The iMAC 10 includes pacemaker signal detection, with detection parameters referenced as ≤2 mV to 250 mV amplitude and 0.1 ms to 2.0 ms pulse width. This supports review of patients with implanted devices during ECG acquisition. The device is classified as Class II, Type CF, with defibrillation and pacemaker protection circuits, supporting safe use in patients with implanted devices.

Two-Button Operation and ≥6-Hour Battery

The unit has only two buttons, supporting flexible and simple operation that reduces workload and improves efficiency for users who perform ECGs intermittently. The built-in lithium battery provides ≥6 hours of continuous acquisition, and an optional removable battery is referenced in Zoncare documentation. Magnetic USB charging is designed to avoid damage from repeated plugging and unplugging or accidental dragging.

Multi-Format Export and Workstation Software

The Zoncare ECG workstation software supports real-time display, measurement, storage, and export. Export formats include PDF, PNG, XML, HL7, and DICOM, supporting integration with PACS and hospital information systems where configured. The Windows software requires a registration code provided by Zoncare after installation record submission; the Android version is also available.
