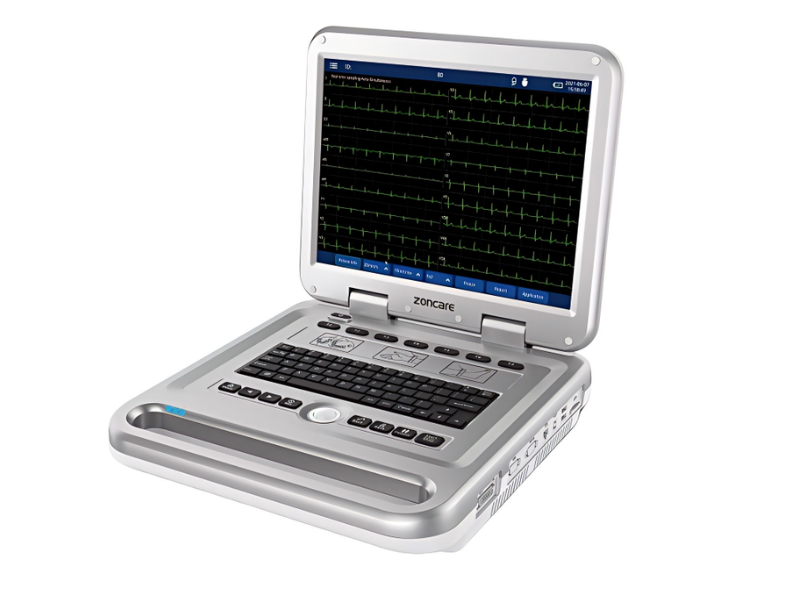

Zoncare iMAC 1800 Pro Professional 12/18-Lead ECG Machine

The Zoncare iMAC 1800 Pro is a professional-grade 12/18-lead digital electrocardiograph engineered for comprehensive cardiac assessment in hospitals, chest pain centers, and diagnostic facilities. It extends beyond standard 12-lead ECG by adding right precordial and posterior wall leads, enabling simultaneous acquisition, display, measurement, and analysis of all 18 leads on a single screen—addressing the clinical limitation of conventional 12-lead systems that cannot observe multiple cardiac regions at once.

The system pairs a 15-inch high-resolution color touchscreen with a QWERTY keyboard, trackball mouse, and seven shortcut keys, alongside a carry handle for transport between examination rooms and bedside locations. The multi-axis TP® thermal printer is designed to accurately trace every waveform point, supporting 18-lead printing in 6×3 format and conventional 12-lead layouts.

The acquisition chain includes a 32,000 Hz per-channel sampling rate, 24-bit A/D conversion, and a 0.01–350 Hz ultra-wide frequency response—parameters intended to capture signals from pediatric through elderly patients. The proprietary iFilter™ adaptive filtering technology is designed to significantly improve ECG signal quality, and the system supports single-chamber and dual-chamber pacemaker detection.

The Glasgow ECG analysis algorithm enables auto-diagnosis and auto-analysis based on age, gender, race, and prior medications, positioned as a clinical decision-support tool for interpreting ST-segment elevation myocardial infarction (STEMI), with VCG/TVCG advanced analysis functions available to assist in diagnosing certain cardiac diseases not identifiable by normal ECG alone.

Reports can be transmitted directly to hospital PACS, HIS, and EMR systems via DICOM, HTTP, FTP, or SAMBA protocols without a dedicated workstation, and saved in PNG, DCM, XML, HL7, PDF, JPG, GDT, or ZQECG formats. Wi-Fi and LAN connectivity are standard, and the VGA interface enables external display for online education or consultation scenarios.

Regulatory status: The iMAC 1800 Pro is covered under China NMPA registration as a Class II medical device. Distributor documentation references FDA, CE, ISO 13485, and SFDA certifications for the platform. A 2022 FDA import alert referencing Wuhan Zoncare cited failure to list under 510(j) or provide 510(k) notification for an ECG device; the specific model involved and current status should be confirmed directly with Zoncare before U.S. purchase. A prospective paired-device clinical study reported that the iMAC 1800 Pro showed clinical equivalence to the reference device in all measured parameters, with no statistically significant differences (P > 0.05). Availability, labeling, and cleared claims vary by market.

Key Features & Benefits

18-Lead Synchronous Acquisition for Expanded Cardiac Coverage

The iMAC 1800 Pro acquires, displays, measures, and analyzes all 18 leads simultaneously, adding right precordial and posterior wall coverage to the standard 12-lead set. This configuration is intended to support simultaneous observation of multiple cardiac regions—including the right ventricle, anterior wall, posterior wall, and inferior wall—within a single acquisition pass, and is described in Zoncare documentation as greatly increasing the detection rate of right ventricular and posterior wall myocardial infarction. The system remains compatible with standard 12-lead ECG for routine examinations, allowing the same platform to serve both expanded and conventional workflows.

32,000 Hz Sampling, 24-Bit A/D, and 0.01–350 Hz Bandwidth

The 32,000 Hz per-channel sampling rate, 24-bit A/D converter, and 0.01–350 Hz ultra-wide frequency response are positioned to capture signals across pediatric to elderly patients. iFilter™ adaptive filtering technology is designed to significantly improve ECG signal quality, and baseline stability is referenced at 1 second. These are signal-chain specifications—clinical value depends on proper electrode placement and clinician review.

Glasgow ECG Analysis with STEMI Interpretation and Advanced Analysis

The Glasgow ECG analysis algorithm enables auto-diagnosis and auto-analysis based on age, gender, race, and prior medications, positioned for effective interpretation of STEMI. Optional VCG/TVCG advanced analysis functions are provided to help diagnose certain cardiac diseases that cannot be identified by normal ECG alone. Single-chamber and dual-chamber pacemaker signal acquisition and analysis are also supported. These functions are presented as clinical decision-support tools—they support the clinician’s review and do not constitute a diagnosis on their own.

15-Inch Touchscreen with QWERTY Keyboard and Trackball Mouse

The 15-inch LCD touchscreen with standard grid background supports multi-touch operation and an adjustable viewing angle for professional user experience. The QWERTY keyboard, trackball mouse, and seven shortcut keys are designed to support PC-like menu navigation and efficient patient information entry in routine clinical operation. A carry handle supports hand-carried transport between examination rooms and bedside locations.

Multi-Axis TP® Thermal Printer with 12/18-Lead Output

The multi-axis TP® thermal printer is designed to accurately trace each segment of the ECG waveform in any application scenario, supporting clear and meticulous report output. The system supports 18-lead printing in 6×3, 6×3+1, 9×2, and 9×2+1 formats, alongside 12-lead layouts including 3×4, 3×4+1, 3×4+3, 6×2, 6×2+1, 12×1, and 6×2+3 formats.

DICOM Connectivity for PACS, HIS, and EMR Integration

The iMAC 1800 Pro supports direct transmission of reports to hospital PACS, HIS, and EMR systems via DICOM, HTTP, FTP, or SAMBA protocols, without requiring a dedicated ECG workstation. Wi-Fi and LAN connectivity are standard, and the VGA interface supports external display for online education or consultation scenarios. Export formats include PNG, DCM, XML, HL7, PDF, JPG, GDT, and ZQECG.

Comprehensive Peripheral and Connectivity Interface

The system includes USB, VGA, LAN (RJ45), SD card, and RS232 interfaces, supporting USB disk, barcode scanner, mouse, keyboard, and external printer connectivity. The three-pronged lead wire design is intended to reduce cable tangling during examination setup.
