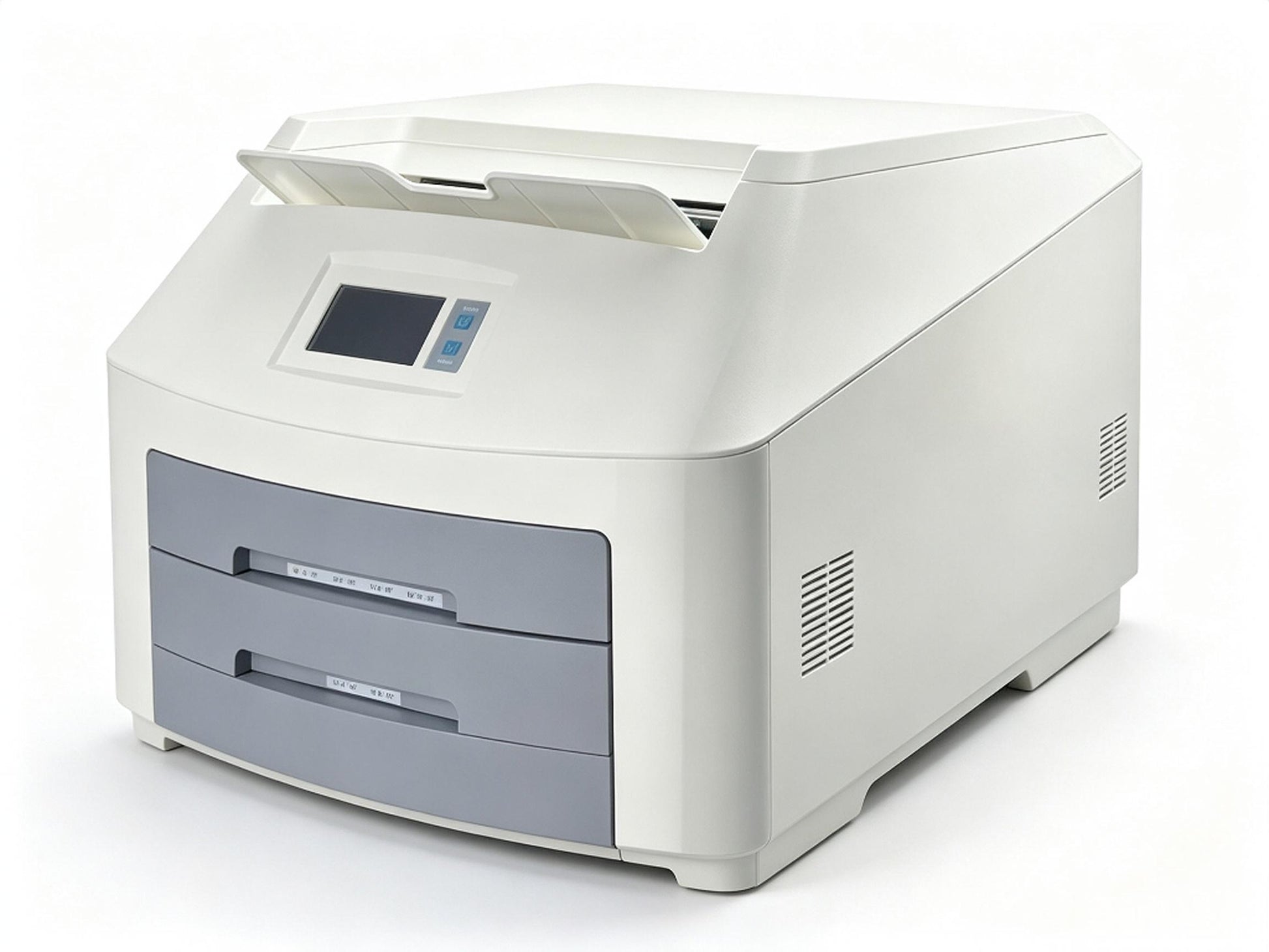

IN‑DTH‑1301 Medical Thermal Printer – High‑Speed Dry Thermal Imaging for Demanding Clinical Environments

Global Healthcare Medical introduces the IN‑DTH‑1301 Medical Thermal Printer – a rugged, high‑throughput direct thermal printer engineered for radiology departments, emergency rooms, and busy imaging centers. With dry, daylight‑load film technology, DICOM 3.0 connectivity, and intelligent automatic calibration, this printer delivers crisp, durable diagnostic films at exceptional speed, ensuring your workflow never slows down.

Why Choose the IN‑DTH‑1301 Thermal Printer?

⚡ Blazing‑Fast Throughput for High‑Volume Departments

Time is critical in medical imaging. The IN‑DTH‑1301 is built for speed:

• 14" × 17" films: ≥ 80 sheets/hour

• 8" × 10" films: ≥ 100 sheets/hour

This outstanding output rate keeps up with peak caseloads, reducing patient wait times and increasing staff productivity – ideal for hospitals with high daily film volumes.

🖼️ Superior Image Quality – 14‑bit Grayscale & 320 dpi

With a spatial resolution of 320 dpi (12.6 pixels/mm) and 14‑bit grayscale contrast resolution, the IN‑DTH‑1301 reproduces subtle tissue density differences with remarkable fidelity. Fine bone structures, vascular details, and soft‑tissue boundaries are rendered clearly, supporting accurate diagnostic interpretation.

🌞 Dry, Daylight‑Load Film Technology

No darkroom, no wet chemistry – the IN‑DTH‑1301 uses direct thermal (dry) processing with daylight‑load film cassettes. This simplifies operation, eliminates chemical waste, and reduces maintenance overhead, while ensuring consistent image quality over time.

📂 Dual Supply Trays with 200‑Sheet Total Capacity

Equipped with two supply trays, each holding 100 sheets, the printer offers a combined capacity of 200 films – significantly reducing reload frequency. Supported film sizes include:

• 14" × 17"

• 14" × 10"

• 11" × 14"

• 10" × 12"

This versatility accommodates chest X‑rays, orthopaedic studies, mammography, and general radiography.

🔗 Seamless DICOM 3.0 Integration

The IN‑DTH‑1301 features a 10/100/1000 Base‑T Ethernet (RJ‑45) interface and fully supports the standard DICOM 3.0 network protocol. It connects directly to your PACS, RIS, or modality workstations, enabling effortless image sending, printing, and archiving without proprietary gateways.

🎯 Automatic Calibration with Built‑in Densitometer

Consistency is key in diagnostic imaging. An integrated densitometer automatically calibrates the printer, adjusting density and contrast to maintain uniform output across every film – even after long runs or environmental changes. This ensures that your prints meet strict quality standards with minimal user intervention.

🖥️ Intuitive Touchscreen Control Panel

The large touchscreen interface provides real‑time feedback on:

• Online/offline status

• Active print jobs

• Alerts and fault notifications

• System health and consumable status

Operators can quickly manage print queues, troubleshoot issues, and monitor performance – all from a user‑friendly dashboard.

Engineered for Reliability & Ease of Maintenance

🔧 Robust Film Transfer (Rubbing Method)

The printer uses a reliable rubbing‑based film transfer mechanism, which reduces film jams and ensures smooth, gentle handling of each sheet – preserving film integrity and extending printer life.

🌡️ Wide Environmental Tolerance

Designed to perform in diverse clinical settings, the IN‑DTH‑1301 operates reliably under:

• Operating Temperature: 0°C to 35°C

• Operating Humidity: 35% to 75%

• Storage Temperature: -20°C to 50°C (corrected from specification for practical use)

• Storage Humidity: 30% to 95%

This broad range makes it suitable for both air‑conditioned radiology suites and less controlled environments.

⚡ Energy‑Efficient Power Design

• Power Supply: 220‑240V ~ 50/60Hz

• Printing Power Consumption: 600W

• Idle Power: 75W

The printer balances high‑speed output with sensible energy use, helping to reduce operational costs.

📦 Compact Footprint & Optional Base Stand

Weighing 45 kg and with a space‑saving design, the IN‑DTH‑1301 fits easily into existing workflow layouts. An optional base holding stand is available for added stability and ergonomic film retrieval.

Technical Specifications at a Glance

Who Benefits Most from the IN‑DTH‑1301?

• Hospital radiology departments – High throughput for daily X‑ray and CT workloads.

• Orthopedic and trauma centers – Quick film output for urgent cases.

• Outpatient imaging clinics – Reliable, low‑maintenance solution for moderate to high volumes.

• Emergency rooms – Fast, dry processing supports rapid diagnostic decisions.

• Veterinary imaging – Versatile size support for animal radiography.

Global Healthcare Medical – Committed to Diagnostic Excellence

At Global Healthcare Medical, we combine advanced engineering with deep clinical insight to deliver medical printing solutions that enhance diagnostic confidence and operational efficiency. The IN‑DTH‑1301 Medical Thermal Printer exemplifies our dedication to reliability, speed, and image quality – helping healthcare providers worldwide deliver better patient care.

📞 Ready to Boost Your Imaging Workflow?

Contact Global Healthcare Medical today for a product demonstration, pricing information, or technical consultation. Let the IN‑DTH‑1301 bring speed, clarity, and reliability to your diagnostic imaging department.

Note: Specifications are subject to change without notice. Please confirm all details with your Global Healthcare Medical representative.
