INC-15kW-A Mobile C‑arm X‑ray | 15kW Digital Surgical Imaging System for OR

15kW mobile digital C‑arm X‑ray with dynamic flat panel detector, 34" ultrawide HD monitor, and high‑frequency pulsed fluoroscopy. Ideal for orthopedics, neurosurgery, pain management, and trauma surgery.

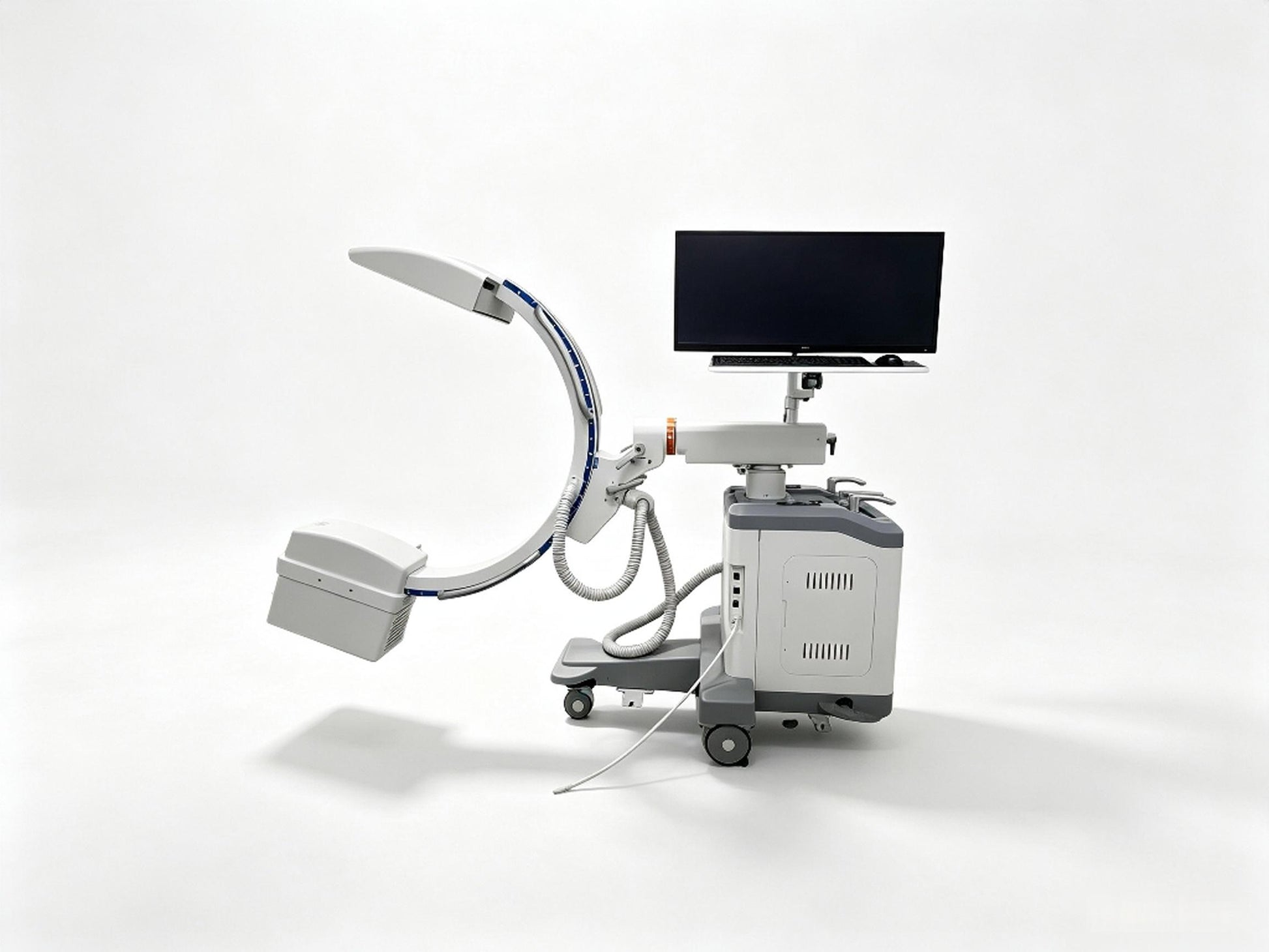

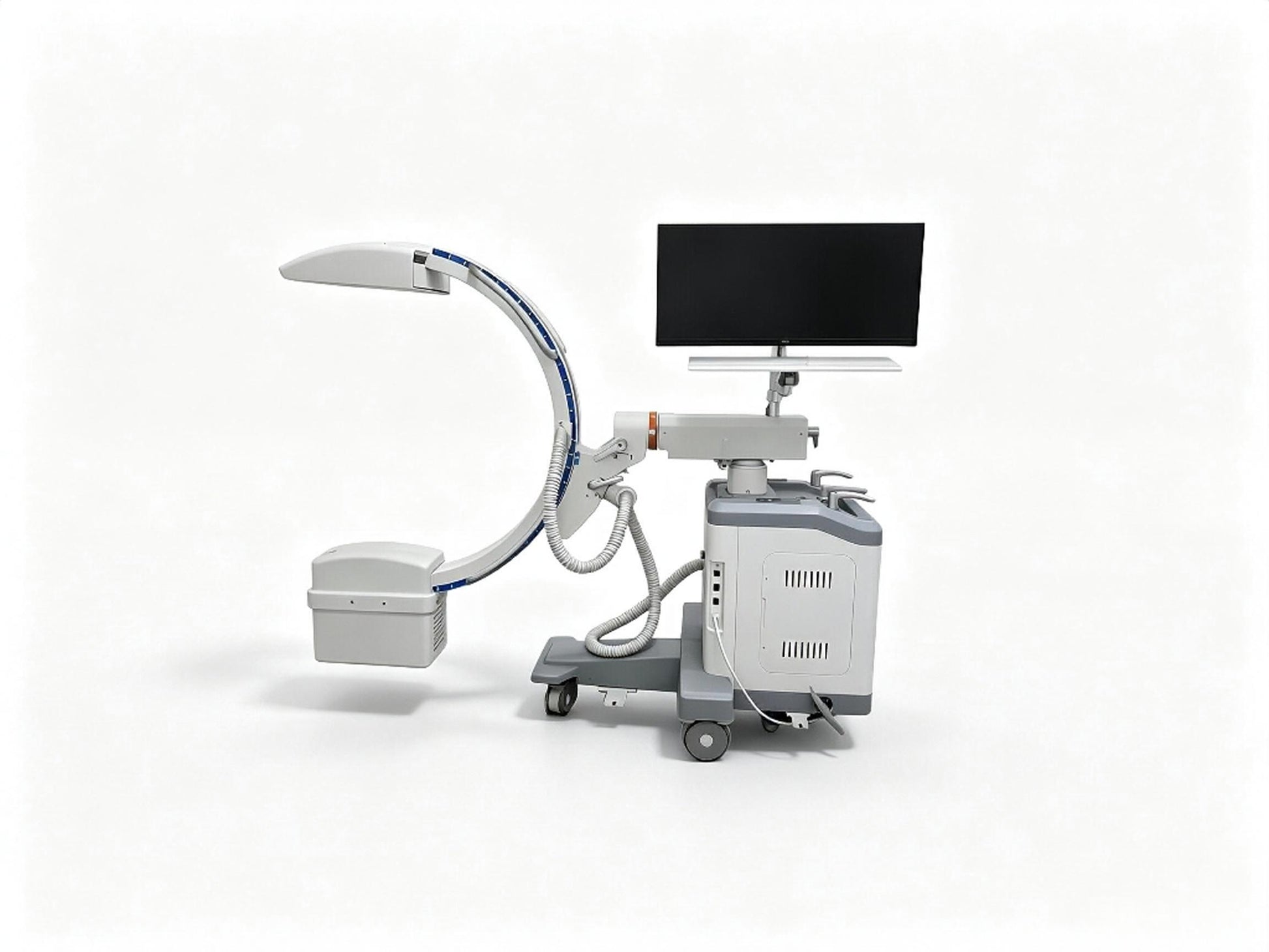

The Global Healthcare Medical INC‑15kW‑A Mobile Digital C‑arm X‑ray Machine is a high‑power surgical imaging system engineered for demanding intraoperative procedures. Featuring a 15kW high‑frequency generator—three times the power of standard 5kW systems—this mobile C‑arm delivers exceptional imaging performance for complex orthopedic, neurosurgical, trauma, and pain management procedures.

Equipped with a dynamic flat panel detector (FPD) featuring high DQE and low noise, the INC‑15kW‑A produces clearer images with superior anatomical detail. The 9" × 9" FPD expands the field of view by 22% compared to conventional 9‑inch image intensifiers, while 16‑bit depth delivers up to 65,536 grayscale values for HD resolution. With its all‑in‑one compact design eliminating the monitor cart and wires, a 1m² footprint, and fast imaging in less than 1 second, this system seamlessly integrates into sterile OR workflows.

This device is intended for professional use in surgical and clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ Powerful 15kW High‑Frequency Generator

The INC‑15kW‑A is powered by a 15kW high‑frequency generator—delivering three times the power of standard 5kW systems. This higher output ensures superior image quality even for larger patients and more complex anatomies, providing consistent, high‑quality X‑ray output throughout lengthy surgical procedures.

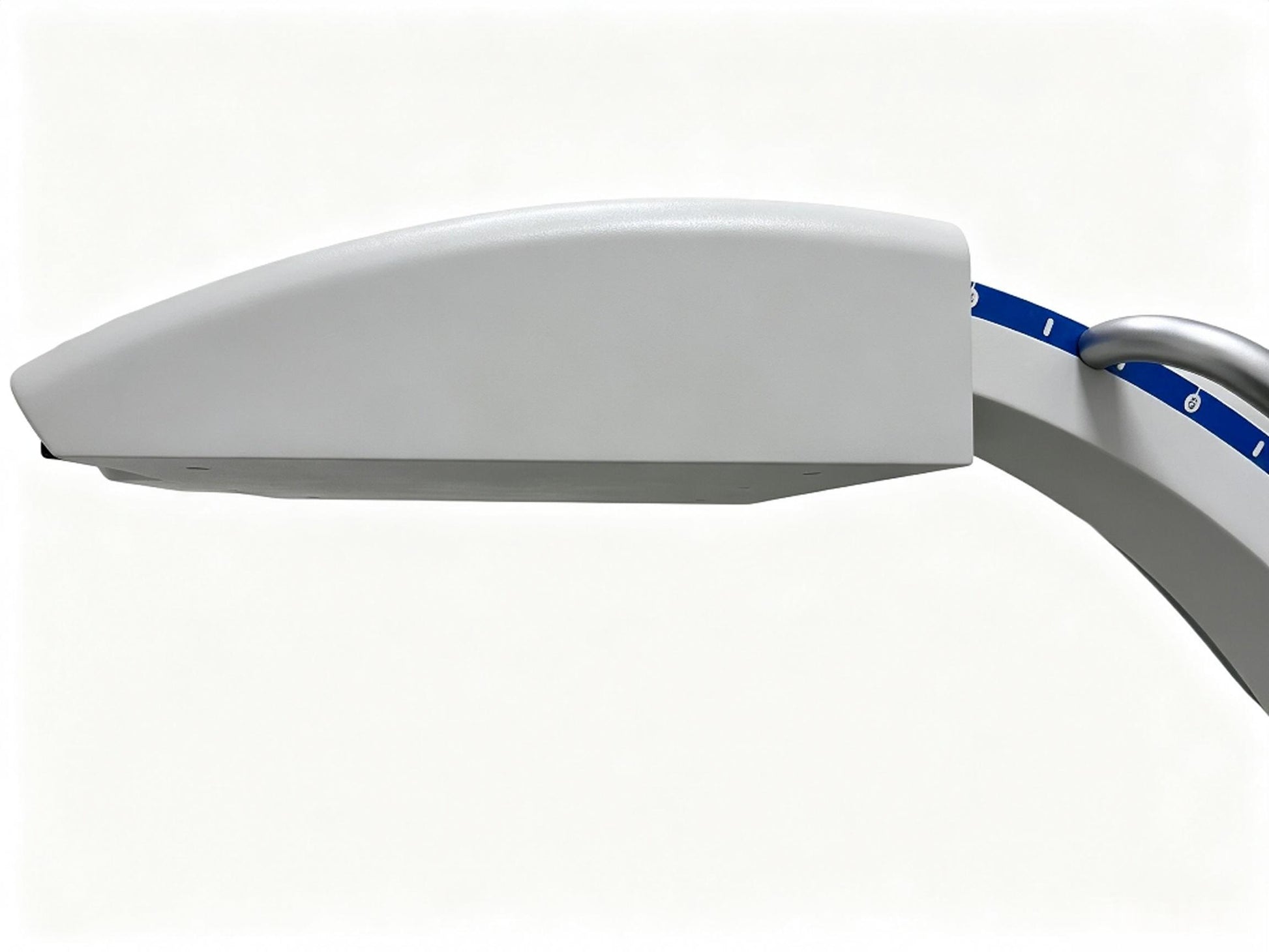

🖼️ High‑Definition Digital Imaging with Flat Panel Detector

The system is equipped with a dynamic flat panel detector (FPD) featuring high DQE (Detective Quantum Efficiency) and low noise for clearer images. Key advantages include:

• 22% wider field of view – Compared to conventional 9‑inch image intensifiers, the 9" × 9" FPD expands the FoV by 22%, providing more perspective for clinical diagnosis

• 16‑bit depth – Delivers up to 65,536 grayscale values for HD resolution, revealing more anatomical details

• Eliminates distorted images – FPD technology removes distortions caused by electron beam deflection, presenting an actual vision of anatomical structure

• Higher signal conversion efficiency – Ensures higher image quality and lower dose

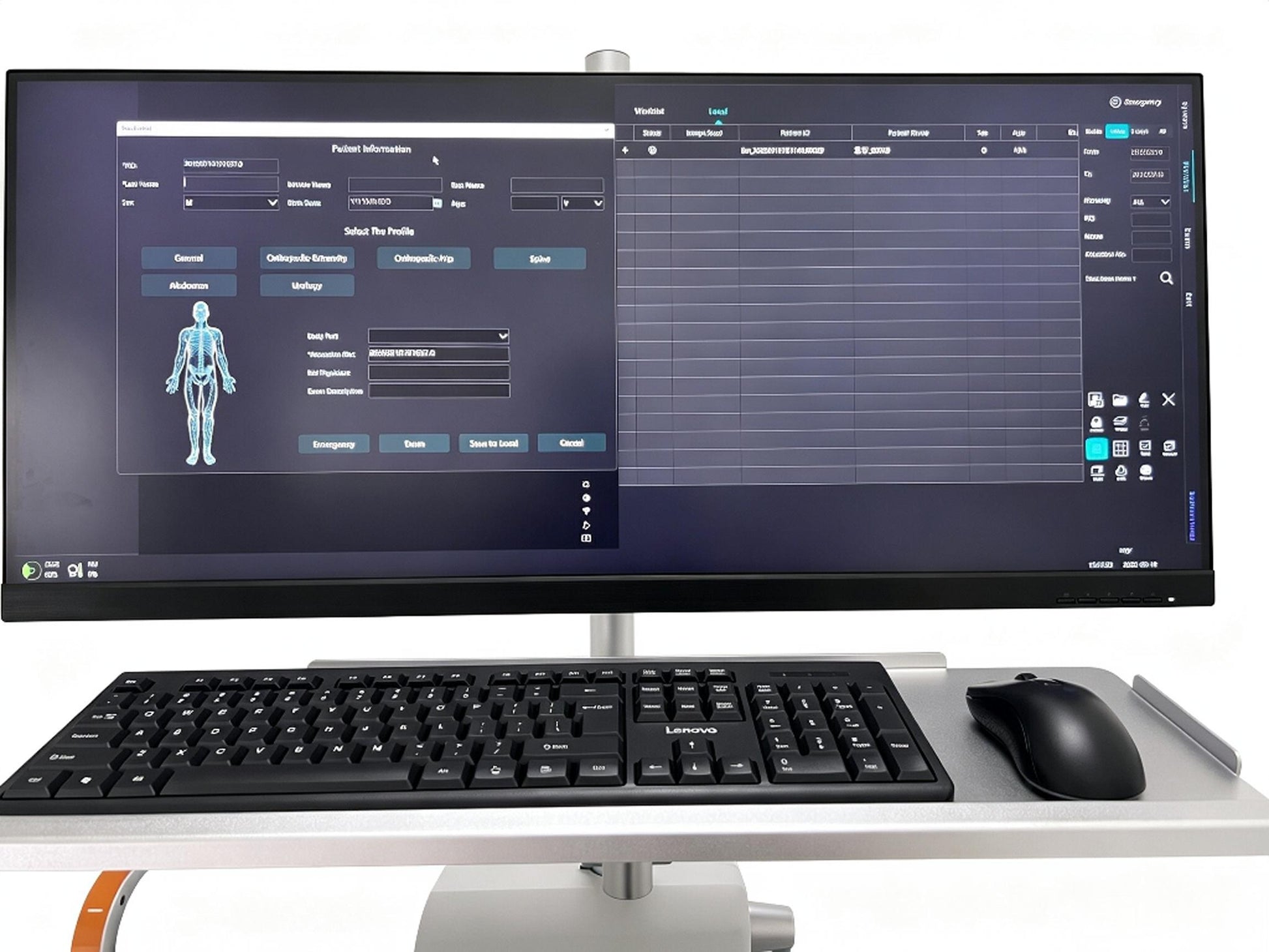

🖥️ Ultrawide 34‑Inch HD Monitor with Dual‑Screen Interface

The system features an ultrawide 34‑inch LCD HD monitor with a dual‑screen interface, delivering clear and detailed images for better examination and surgical guidance.

🏗️ Flexible, Counter‑Balanced C‑arm

The adjustable counter‑balanced C‑arm can be held steady in any position or any angle when unlocked, providing extensive movement for optimal procedural angles. This flexibility enables easy positioning for a wide variety of surgical procedures, including trauma surgery, spine surgery, and minimally invasive pain management.

🛡️ Intelligent Dose Management & Radiation Protection

Multiple advanced features protect both staff and patients:

• High‑frequency pulsed fluoroscopy – Reduces radiation dose by up to 50% compared with continuous fluoroscopy, while weakening motion artifacts

• Real‑time DAP monitoring – Dose Area Product meter displayed on the image for easy radiation level tracking

• Aluminum beam filtration – Decreases radiation levels by absorbing soft X‑rays while ensuring high‑quality images

• Lower leakage radiation – X‑ray tube leakage radiation in the loading state is lower, providing better protection from the X‑ray source

🏥 Wide Clinical Applications

The INC‑15kW‑A is suitable for a comprehensive range of surgical and interventional procedures:

• Orthopedics – Trauma surgery, spine surgery, joint replacement, fracture reduction

• Neurosurgery – Spinal procedures, cranial navigation

• Pain Management – Minimally invasive pain interventions, nerve blocks

• Emergency Medicine – Rapid trauma assessment in emergency rooms

• Urology – Intraoperative imaging for urological procedures

🔄 All‑in‑One Compact Design for Seamless OR Workflow

The all‑in‑one compact design eliminates the monitor cart and wires, making the system move dexterously within the OR. With a 1m² footprint, it is ideal for smaller operating rooms. The system achieves fast imaging in less than 1 second, sparing valuable time during surgery and improving workflow efficiency.

🎯 Two‑Way Laser Positioning & Intelligent Parameter Adjustment

Equipped with a laser positioning system on both ends of the tube and flat panel detector for fast, accurate patient locating. Optimized and adjustable exposure parameters, created by intelligent hardware and algorithms, provide a friendly examination scenario and consistent image quality.

Specifications

Why Choose the INC‑15kW‑A?

What's Included

• INC‑15kW‑A Mobile Digital C‑arm X‑ray Main Unit

• 15kW High‑Frequency Generator

• 9" × 9" Dynamic Flat Panel Detector

• 34‑inch Ultrawide HD Monitor (dual‑screen interface)

• Counter‑balanced C‑arm with adjustable positioning

• Two‑way Laser Positioning System

• High‑Performance Anode X‑ray Tube

• Power Cable

• User Manual

• Installation and Training Support

Applications

The INC‑15kW‑A Mobile Digital C‑arm X‑ray Machine is suitable for:

• Operating Rooms – Real‑time surgical guidance for orthopedic, neurosurgical, and trauma procedures

• Emergency Departments – Rapid imaging for trauma and fracture assessment

• Pain Management Clinics – Minimally invasive pain interventions and nerve blocks

• Orthopedic Centers – Fracture reduction, joint replacement, and spine surgery

• Urology Departments – Intraoperative imaging for urological procedures

• Outpatient Surgical Centers – Versatile imaging for ambulatory surgical procedures

FAQ

Q: What is the INC‑15kW‑A Mobile Digital C‑arm X‑ray Machine?

A: The INC‑15kW‑A is a high‑power mobile surgical imaging system designed for real‑time fluoroscopic guidance in orthopedics, neurosurgery, pain management, and trauma procedures, featuring a 15kW generator and a 9" × 9" flat panel detector.

Q: How does the 15kW generator compare to standard systems?

A: The 15kW generator delivers three times the power of standard 5kW systems, ensuring superior image quality even for larger patients and more complex anatomies.

Q: What is the field of view compared to image intensifiers?

A: The 9" × 9" flat panel detector expands the field of view by 22% compared to conventional 9‑inch image intensifiers, providing more perspective for clinical diagnosis.

Q: How does the system manage radiation dose?

A: The system features high‑frequency pulsed fluoroscopy that reduces radiation dose by up to 50% compared to continuous fluoroscopy, plus real‑time DAP monitoring, aluminum beam filtration, and lower leakage radiation for comprehensive dose management.

Q: Is the system easy to move in the operating room?

A: Yes. The all‑in‑one compact design eliminates the monitor cart and wires, with a 1m² footprint that fits smaller operating rooms.

Q: How fast is the imaging?

A: The system achieves fast imaging in less than 1 second, sparing valuable time during surgery and improving workflow efficiency.

Q: What is the grayscale depth?

A: The system delivers 16‑bit depth with up to 65,536 grayscale values for HD resolution, revealing more anatomical details.

Q: Can the C‑arm be positioned precisely?

A: Yes. The counter‑balanced C‑arm can be held steady in any position or any angle when unlocked, with two‑way laser positioning for fast, accurate patient positioning.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.

Q: Can the system be customized?

A: Yes. We accept OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates and packaging.
