INC-5kW-A Mobile C-arm X-ray | Digital Surgical Imaging System for Orthopedics & Pain Management

Mobile digital C-arm X-ray system with 5kW high-frequency generator, 9"x9" flat panel detector, and 30 fps real‑time imaging. Ideal for orthopedics, neurosurgery, pain management, and emergency procedures.

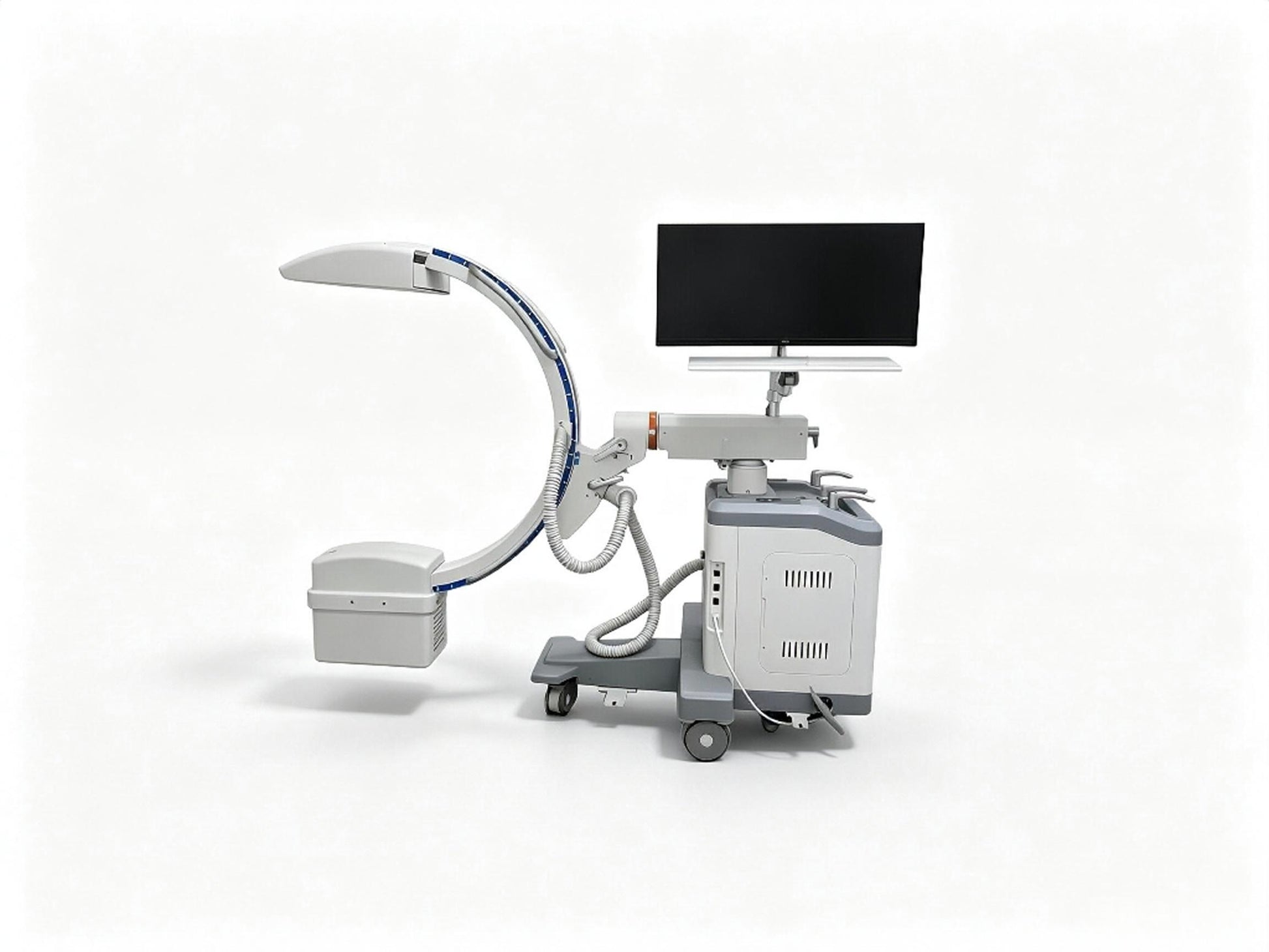

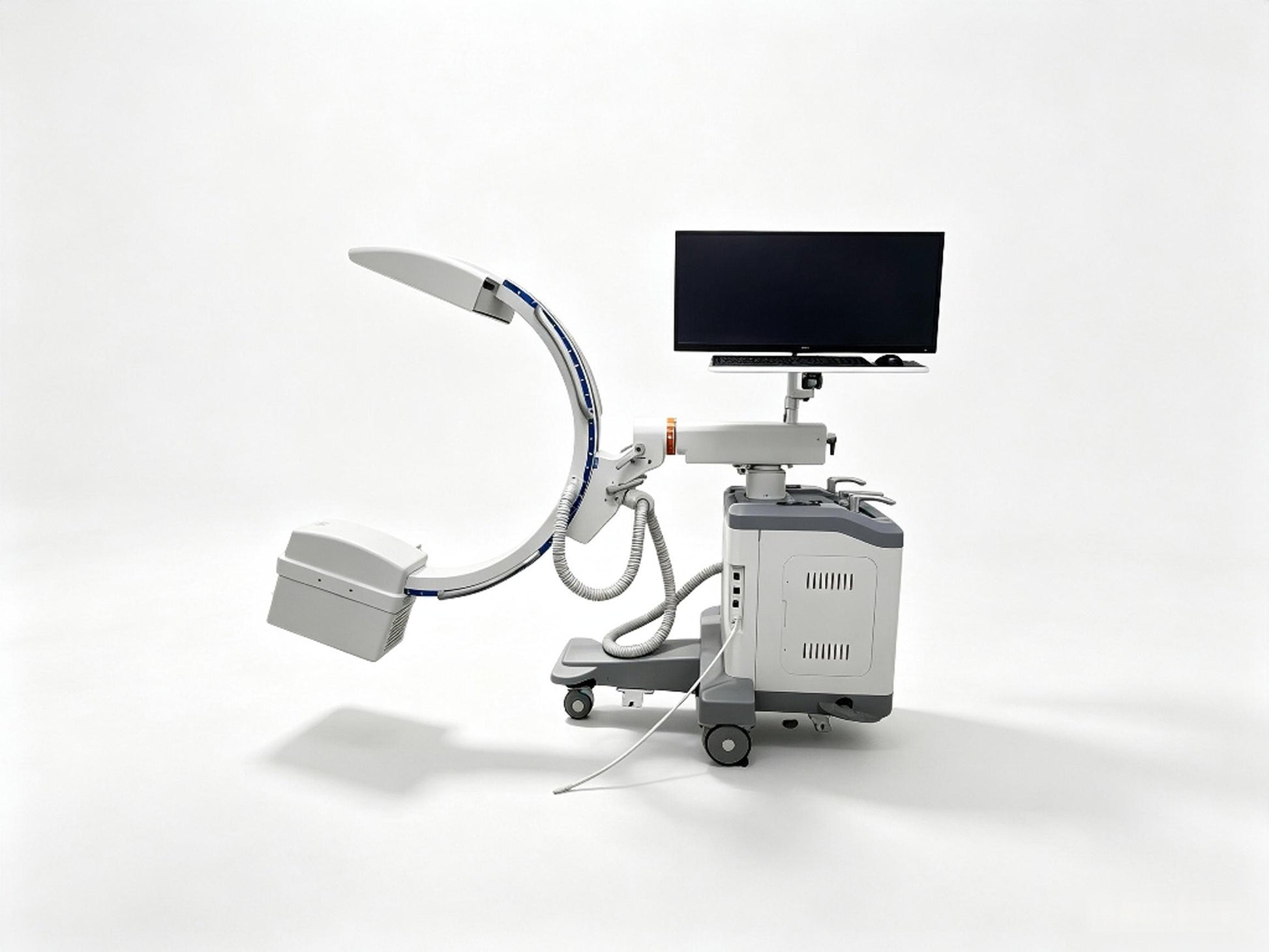

The Global Healthcare Medical INC‑5kW‑A Mobile Digital C‑arm X‑ray Machine is a high‑performance surgical imaging system designed to deliver real‑time, high‑definition fluoroscopic guidance in the operating room. Engineered for a wide range of surgical applications—including orthopedics, neurosurgery, pain management, and emergency procedures—this mobile C‑arm combines exceptional image quality, flexible positioning, and intelligent dose management in a compact, OR‑integrated design.

Featuring a 5kW high‑frequency generator, a 9" × 9" dynamic flat panel detector (FPD) with 16‑bit depth and 2.5 lp/mm spatial resolution, and a 34‑inch ultrawide HD monitor, the INC‑5kW‑A delivers brilliant images with expanded field‑of‑view and exceptional anatomical detail. Its all‑in‑one compact design eliminates the monitor cart and wires, enabling seamless mobility and efficient workflow in space‑constrained operating rooms.

This device is intended for professional use in surgical and clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🖼️ High‑Definition Digital Imaging with Flat Panel Detector

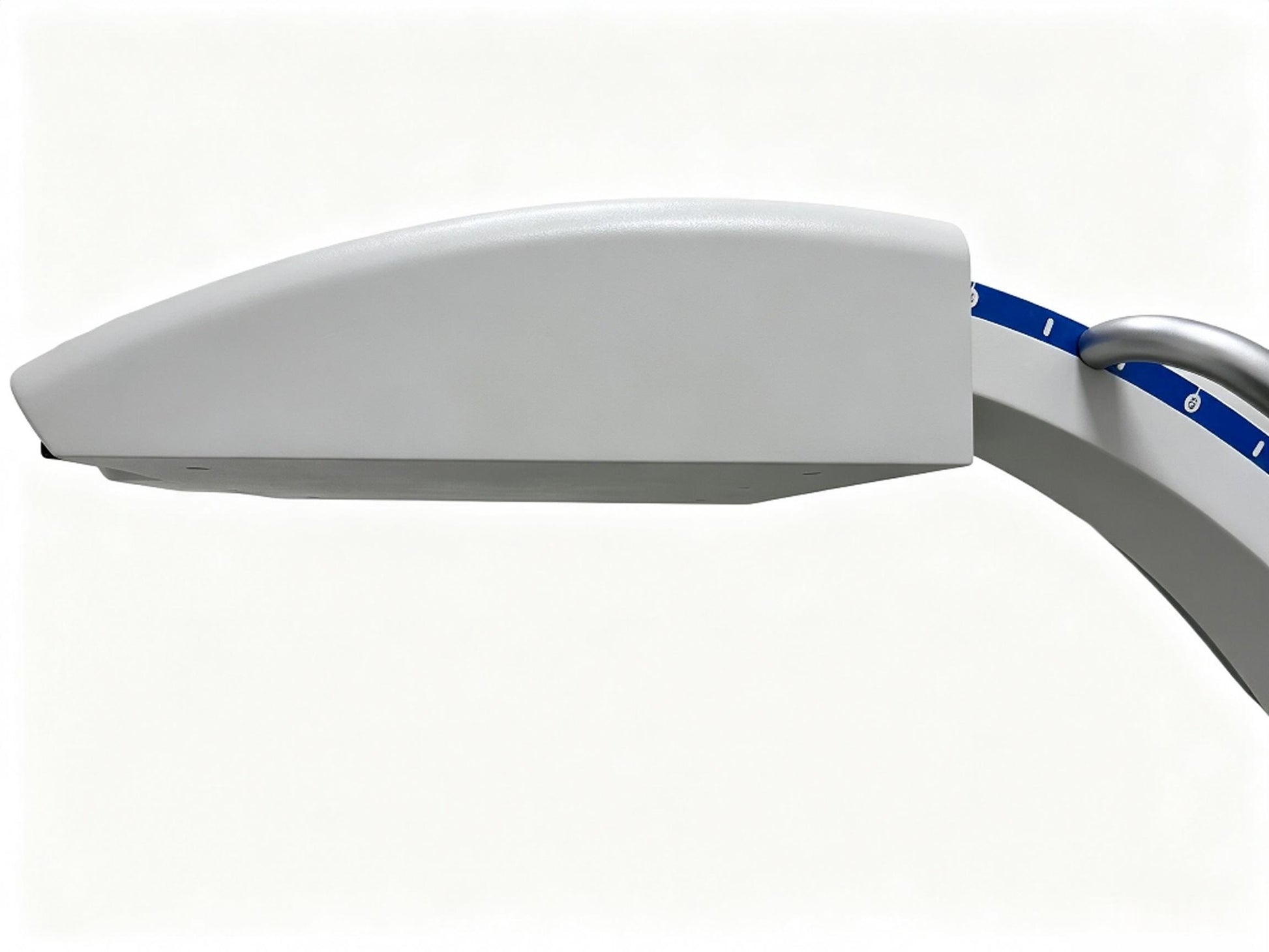

The INC‑5kW‑A is equipped with a dynamic flat panel detector (FPD) that delivers superior image quality with high DQE (Detective Quantum Efficiency) and low noise. Compared to conventional 9‑inch image intensifiers, the 9" × 9" FPD expands the field of view by 22%, providing more perspective for clinical diagnosis. With 16‑bit depth delivering up to 65,536 grayscale values, the system reveals fine anatomical details with HD resolution. The detector achieves a spatial resolution of 2.5 lp/mm and supports 30 frames per second for smooth, real‑time imaging.

⚡ High‑Frequency Generator for Superior Image Quality

The system is powered by a 5kW high‑frequency generator that produces stable, high‑quality X‑ray output. The generator supports a radiography voltage range of 40–125 kV and a current range of 0.1–100 mA. The high‑frequency pulsed fluoroscopy technology reduces radiation dose by up to 50% compared to continuous fluoroscopy, while also weakening motion artifacts for clearer images.

🏗️ Flexible, Counter‑Balanced C‑arm for Optimal Positioning

The adjustable counter‑balanced C‑arm can be held steady in any position or angle when unlocked, providing extensive movement for optimal procedural angles. This flexibility enables easy positioning for a variety of surgical procedures, including trauma surgery, spine surgery, and minimally invasive pain management.

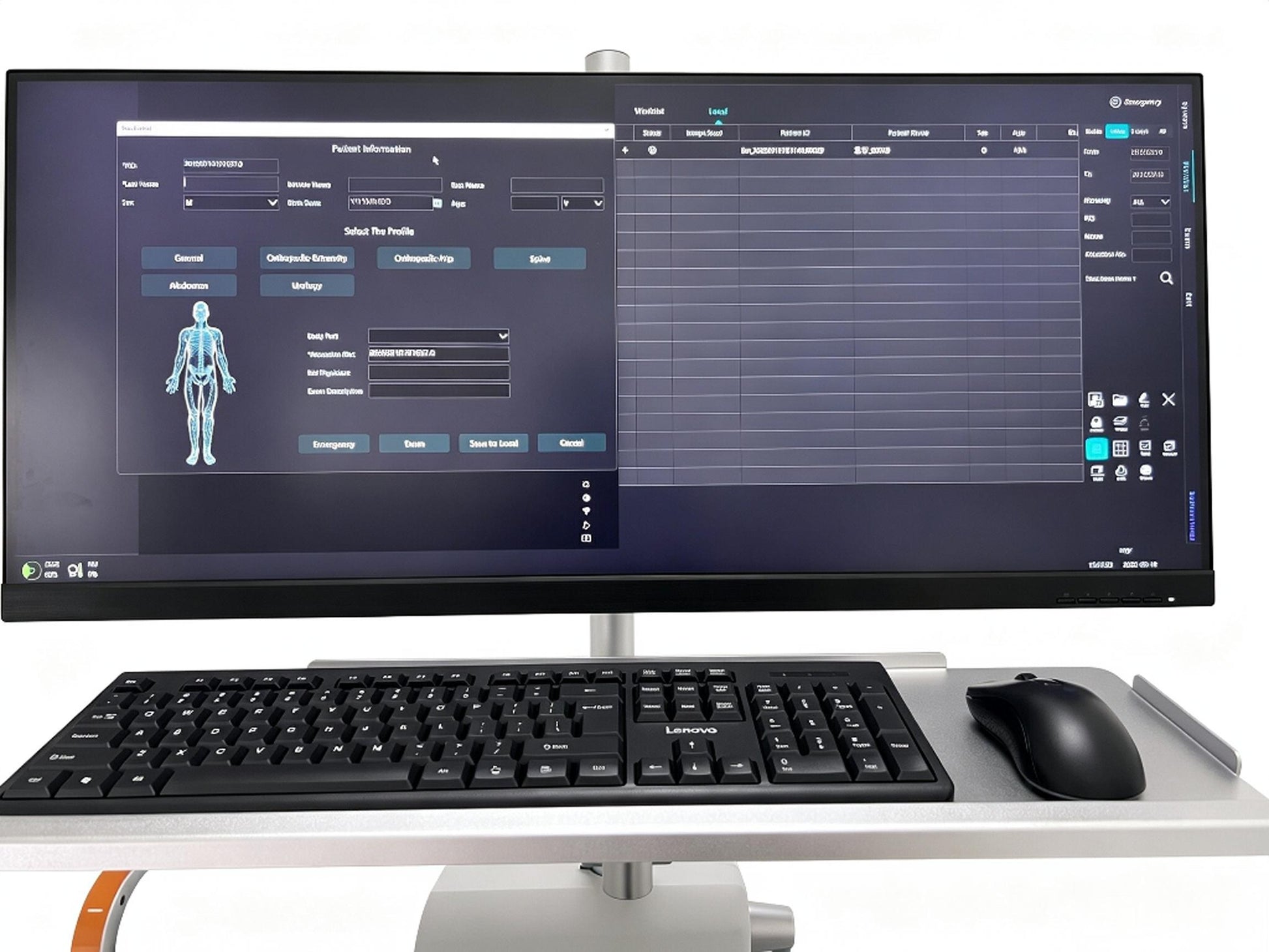

🖥️ Ultrawide 34‑Inch HD Monitor for Superior Visualization

The system features an ultrawide 34‑inch LCD HD monitor with a dual‑screen interface, delivering clear and detailed images for better examination and surgical guidance.

🛡️ Intelligent Dose Management & Radiation Protection

Patient and staff safety are prioritized with multiple radiation protection features:

• Real‑time DAP (Dose Area Product) monitoring displayed on the image for easy radiation level tracking

• Aluminum beam filtration to decrease radiation levels by absorbing soft X‑rays

• Lower leakage radiation from the X‑ray tube in the loading state

• Two‑way laser positioning on both ends of the tube and flat panel detector for fast, accurate patient positioning

🔄 All‑in‑One Compact Design for Seamless OR Workflow

The all‑in‑one compact design eliminates the monitor cart and wires, making the system move dexterously within the OR. With a 1m² footprint, it is ideal for smaller operating rooms. The system achieves fast imaging in less than 1 second, sparing valuable time during surgery and improving workflow efficiency.

🔧 Intelligent Parameter Adjustment

Optimized and adjustable exposure parameters, created by intelligent hardware and algorithms, provide a friendly examination scenario and consistent image quality across different patient types and procedures.

🏥 Wide Clinical Applications

The INC‑5kW‑A is suitable for a comprehensive range of surgical and interventional procedures:

• Orthopedics – Trauma surgery, spine surgery, joint replacement, fracture reduction

• Neurosurgery – Spinal procedures, cranial navigation

• Pain Management – Minimally invasive pain interventions, nerve blocks

• Emergency Medicine – Rapid trauma assessment in emergency rooms

• Urology – Intraoperative imaging for urological procedures

• General Surgery – Intraoperative fluoroscopic guidance

Specifications

What's Included

• INC‑5kW‑A Mobile Digital C‑arm X‑ray Main Unit

• 5kW High‑Frequency Generator

• 9" × 9" Dynamic Flat Panel Detector

• 34‑inch Ultrawide HD Monitor (dual‑screen interface)

• Counter‑balanced C‑arm with adjustable positioning

• Two‑way Laser Positioning System

• High‑Performance Anode X‑ray Tube

• Power Cable

• User Manual

• Installation and Training Support

Applications

The INC‑5kW‑A Mobile Digital C‑arm X‑ray Machine is suitable for:

• Operating Rooms – Real‑time surgical guidance for orthopedic, neurosurgical, and trauma procedures

• Emergency Departments – Rapid imaging for trauma and fracture assessment

• Pain Management Clinics – Minimally invasive pain interventions and nerve blocks

• Orthopedic Centers – Fracture reduction, joint replacement, and spine surgery

• Urology Departments – Intraoperative imaging for urological procedures

• Outpatient Surgical Centers – Versatile imaging for ambulatory surgical procedures

Why Choose the INC‑5kW‑A?

FAQ

Q: What is the INC‑5kW‑A Mobile Digital C‑arm X‑ray Machine?

A: The INC‑5kW‑A is a high‑performance mobile surgical imaging system designed for real‑time fluoroscopic guidance in orthopedics, neurosurgery, pain management, and emergency procedures, featuring a 5kW generator and a 9" × 9" flat panel detector.

Q: What is the field of view compared to image intensifiers?

A: The 9" × 9" flat panel detector expands the field of view by 22% compared to conventional 9‑inch image intensifiers, providing more perspective for clinical diagnosis.

Q: How does the system manage radiation dose?

A: The system features high‑frequency pulsed fluoroscopy that reduces radiation dose by up to 50% compared to continuous fluoroscopy, plus real‑time DAP monitoring, aluminum beam filtration, and lower leakage radiation for comprehensive dose management.

Q: Is the system easy to move in the operating room?

A: Yes. The all‑in‑one compact design eliminates the monitor cart and wires, with a 1m² footprint that fits smaller operating rooms.

Q: How fast is the imaging?

A: The system achieves fast imaging in less than 1 second, sparing valuable time during surgery and improving workflow efficiency.

Q: What is the spatial resolution?

A: The system delivers a spatial resolution of 2.5 lp/mm with 16‑bit depth (65,536 grayscale values) for HD anatomical detail.

Q: What is the maximum frame rate?

A: The system supports a maximum frame rate of 30 frames per second for smooth, real‑time imaging.

Q: Can the C‑arm be positioned precisely?

A: Yes. The counter‑balanced C‑arm can be held steady in any position or angle when unlocked, with two‑way laser positioning for fast, accurate patient positioning.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.

Q: Can the system be customized?

A: Yes. We accept OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates and packaging.
