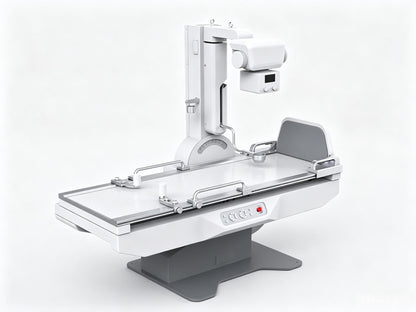

IND-80kW Dynamic DR/Fluoroscopy System | High‑Power Digital Radiography & Fluoroscopy

80kW dynamic digital radiography/fluoroscopy system with 17"x17" FPD, 3.6 lp/mm resolution, 1000mA output, motorized table, and panoramic stitching. Ideal for GI studies, interventional procedures, and high‑volume imaging.

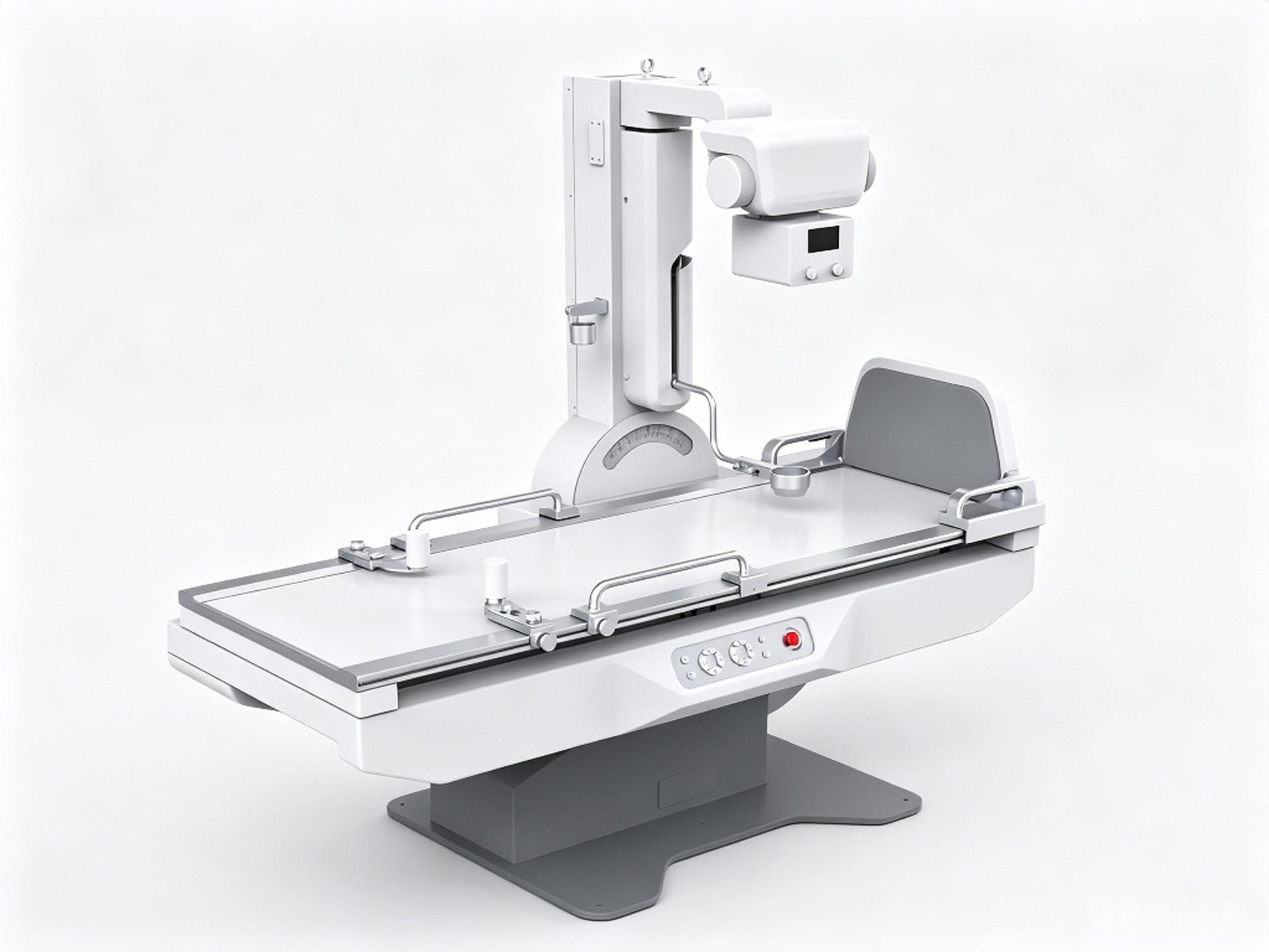

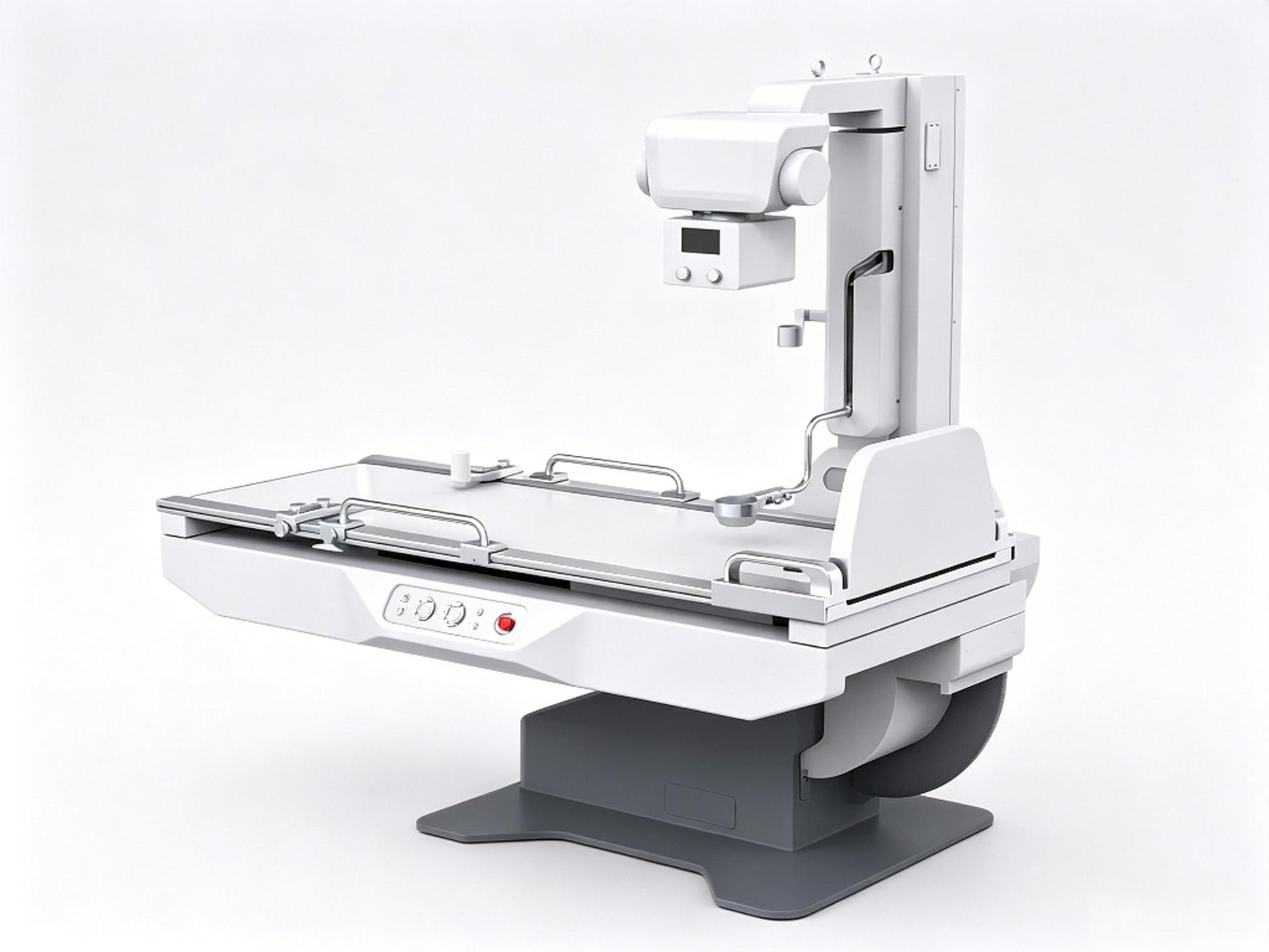

The Global Healthcare Medical IND-80kW Dynamic Digital Radiography/Fluoroscopy System is the pinnacle of the IND Series—a high‑performance, versatile imaging platform engineered for clinical environments where real‑time visualization, diagnostic imaging, and interventional guidance converge. Featuring the highest‑power 80kW high‑frequency generator in the series and a 17" × 17" flat panel detector with 3.6 lp/mm spatial resolution and 3072 × 3072 pixel matrix, this system delivers exceptional image quality for both static radiography and dynamic fluoroscopy applications.

What sets the IND‑80kW apart is its multifunctional design—combining DR photography, dynamic fluoroscopy, and digital contrast imaging in a single integrated platform. Whether you're performing GI studies, joint motion evaluation, swallowing assessments, digestive contrast imaging, or basic interventional procedures, this system provides real‑time imaging with playback and frame‑by‑frame analysis for accurate assessment. With smart dose management delivering clear dynamic images at controlled radiation levels and intelligent technology maximizing workflow efficiency, the IND‑80kW is the ideal solution for hospitals, orthopedic centers, and imaging facilities seeking a comprehensive dynamic imaging system.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🏥 Dynamic DR Photography & Fluoroscopy in One System

The IND‑80kW is a true multifunctional platform that handles a comprehensive range of clinical applications:

• DR Photography – High‑resolution static digital radiography

• Dynamic fluoroscopy – Real‑time imaging for functional studies

• Digital contrast imaging – Enhanced visualization for GI and vascular studies

• Visualized DR photography – Optimized imaging for diagnostic confidence

• Pneumoconiosis diagnosis – Specialized screening for occupational lung disease

• Orthopedic panoramic stitching – Seamless full‑extremity imaging

⚡ Powerful 80kW High‑Frequency Generator – Maximum Output

The IND‑80kW is equipped with the highest‑power 80kW high‑frequency generator in the IND Series, providing robust output for consistent image quality. With a voltage range of 40‑150kV and current range of 10‑1000mA, this system delivers exceptional imaging performance for the most demanding clinical applications.

📊 High‑Resolution Digital Imaging

The IND‑80kW delivers exceptional image quality with:

• Flat panel detector – 17" × 17" size for comprehensive imaging coverage

• 16‑bit A/D conversion – Delivers up to 65,536 grayscale values for exceptional image detail

• 3.6 lp/mm spatial resolution – High‑resolution imaging for fine anatomical details

• 3072 × 3072 pixel matrix – Sharp, detailed images for confident diagnosis

🔄 Motor‑Driven Radiography/Fluoroscopy Table

The system features a motor‑driven table for seamless patient positioning, enabling efficient workflow and reducing physical strain on operators. The swing arms with a large angle (+45°) satisfy special positioning requirements, including patella and calcaneus axial positions.

🧠 Intelligent Technology for Maximized Efficiency

The IND‑80kW is designed with intelligent technology to streamline workflow and maximize efficiency:

• Fully automatic collimator – Precise beam collimation

• 1.8M focal distance – Extended imaging range

• Elastic compressor – Consistent compression for optimal imaging

• One‑button auto SID – Instant source‑to‑image distance adjustment

• One‑button centrical patient table – Simplified patient positioning

• Concealed tank chain – Clean, organized design

• One‑button switch On/Off – Easy power control

• Orthopedic panoramic stitching – Seamless full‑extremity imaging

🩺 Comprehensive Clinical Applications

The IND‑80kW supports a wide range of clinical applications:

🖥️ Review & Analysis Capabilities

The system includes powerful review and analysis tools:

• Playback – Re‑examine dynamic studies

• Frame‑by‑frame analysis – Detailed evaluation of each image

• Accurate assessment – Supports confident diagnostic decisions

🛡️ Smart Dose Management

The IND‑80kW delivers clear dynamic images with controlled dose, ensuring patient safety while maintaining diagnostic image quality.

🛠️ Customization & Global Support

The IND‑80kW comes with comprehensive customization and support options:

• Custom‑make/OEM/ODM – Logo silk‑printing, customized nameplates, color boxes, and packaging cartons

• Global shipping – Exported to more than 120 countries with 11 years of experience

• Technical support – 10‑member sales service team, on‑site measurement and installation

• Delivery/Lead time – Approximately 7–30 days

• Warranty – 1 year for machine

• Payment terms – T/T, L/C

• Trade terms – EXW, FCA, FOB, C&F/CFR/CNF, CIF/CIP, DDU, DDP

Specifications

What's Included

• IND‑80kW Dynamic Digital Radiography/Fluoroscopy System Main Unit

• 80kW High‑Frequency Generator

• 17" × 17" Flat Panel Detector

• Motor‑Driven Radiography/Fluoroscopy Table

• Fully Automatic Collimator

• PC Workstation

• Monitor

• Image Processing Software (Dynamic DR/Fluoroscopy)

• Orthopedic Panoramic Stitching Software

• Pneumoconiosis Diagnosis Software

• Grid

• Power Cable

• User Manual

• Installation and Training Support

Applications

The IND‑80kW Dynamic Digital Radiography/Fluoroscopy System is suitable for:

• Gastrointestinal (GI) Studies – Swallowing assessments, digestive contrast imaging

• Joint Motion Evaluation – Dynamic fluoroscopy for functional joint assessment

• Interventional Procedures – Image‑guided therapies and basic interventions

• Orthopedic Imaging – Full‑extremity panoramic stitching

• Pneumoconiosis Screening – Occupational lung disease diagnosis

• Tumor Imaging – Contrast‑enhanced tumor detection and characterization

• Abdominal Imaging – Abdominal contrast studies

• Radiology Departments – High‑volume diagnostic imaging

Why Choose the IND‑80kW?



FAQ

Q: What is the IND‑80kW Dynamic Digital Radiography/Fluoroscopy System?

A: The IND‑80kW is a high‑performance imaging platform combining DR photography, dynamic fluoroscopy, and digital contrast imaging in a single system, featuring the highest‑power 80kW generator in the IND Series and a 17" × 17" flat panel detector.

Q: What clinical applications does the system support?

A: The system supports GI studies, joint motion evaluation, swallowing assessments, digestive contrast, abdominal contrast, tumor contrast, orthopedic panoramic stitching, and pneumoconiosis diagnosis.

Q: What is the image quality?

A: The system delivers 3.6 lp/mm spatial resolution with a 3072 × 3072 pixel matrix, 16‑bit A/D conversion, and a 17" × 17" flat panel detector.

Q: What is the power output of the generator?

A: The system is equipped with an 80kW high‑frequency generator—the highest power in the IND Series—with a voltage range of 40‑150kV and current range of 10‑1000mA.

Q: Does the system support orthopedic panoramic stitching?

A: Yes. The IND‑80kW features orthopedic panoramic stitching for seamless full‑extremity imaging.

Q: Does the system have a motor‑driven table?

A: Yes. The system features a motor‑driven radiography/fluoroscopy table for seamless patient positioning.

Q: Does the system support playback and frame‑by‑frame analysis?

A: Yes. The system includes playback and frame‑by‑frame analysis capabilities for accurate assessment of dynamic studies.

Q: How does the system manage radiation dose?

A: The IND‑80kW features smart dose management that delivers clear dynamic images with controlled dose.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.

Q: Can the system be customized?

A: Yes. We accept OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates and packaging.
