INF-80KW-D DR Floor-mounted System | 80kW High‑Power Digital Radiography for High‑Volume Imaging

80kW floor‑mounted DR system with 17"x17" FPD, 3.6 lp/mm resolution, 4‑way float table, touchscreen control, and motorized option. Ideal for hospitals, orthopedic centers, and high‑volume imaging facilities.

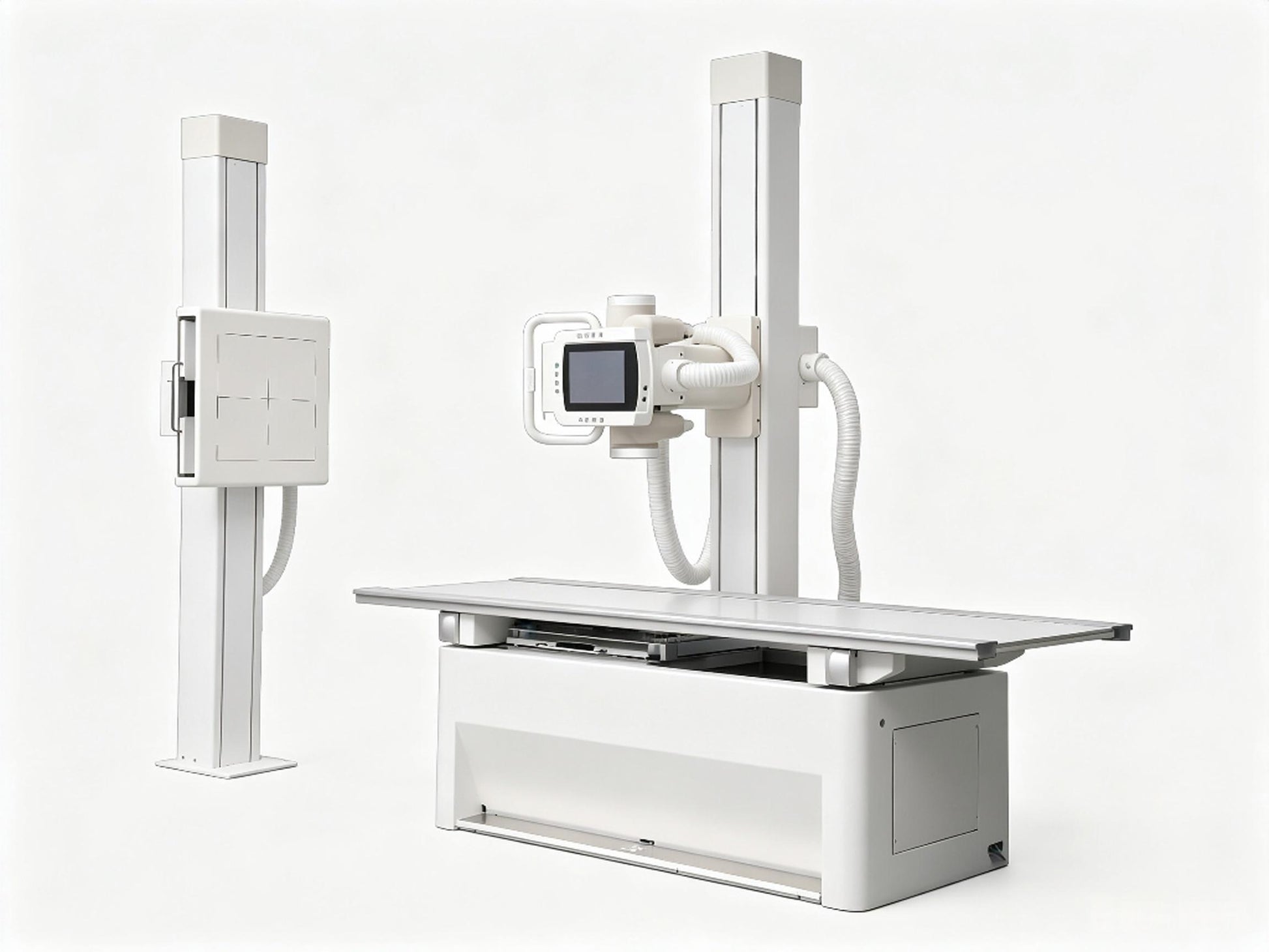

The Global Healthcare Medical INF-80KW-D DR Floor-mounted Digital Radiography System is a premier, high‑performance X‑ray solution engineered for the most demanding high‑volume clinical environments where image quality, workflow efficiency, and patient throughput are paramount. Featuring a powerful 80kW high‑frequency generator—the highest power output in the INF‑D Series—and a 17" × 17" flat panel detector with 3.6 lp/mm spatial resolution and 3072 × 3072 pixel matrix, this system delivers exceptional diagnostic image quality for a wide range of clinical applications.

Built on a robust two‑column design, the INF‑80KW‑D provides independent movement for perfect patient positioning, with seamless switching between upright and supine exams for maximum clinical flexibility. Its intuitive touchscreen control panel shortens the learning curve for technicians and reduces operational errors, while the 4‑way float‑top patient table ensures effortless positioning of elderly, non‑ambulatory, and casted patients, resulting in substantially increased patient throughput. Whether for orthopedic departments, health check centers, or busy radiology clinics, the INF‑80KW‑D delivers the power, reliability, and workflow efficiency that modern healthcare demands.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🏛️ Two‑Column Floor‑Mounted Design – Total Positioning Control

The INF‑80KW‑D features a two‑column floor‑mounted design with independent movement for perfect patient positioning. This robust construction offers exceptional stability and allows for smooth, precise adjustments to accommodate a wide range of patient sizes and examination types. The tube stand and chest stand can be upgraded to motorized and synchronized movement for automated workflow.

🔄 Weight‑Bearing to Tabletop – Seamless Exam Switching

The system enables seamless switching between upright and supine examinations. This weight‑bearing capability is ideal for weight‑bearing extremity imaging and allows for efficient patient flow without repositioning challenges, significantly improving clinical workflow.

⚡ Powerful 80kW High‑Frequency Generator – Maximum Power Output

The INF‑80KW‑D is equipped with the highest‑power 80kW high‑frequency generator in the INF‑D Series, providing robust output for consistent image quality. With a voltage range of 40‑150kV and current range of 10‑1000mA, this system delivers exceptional imaging performance for a wide range of patient sizes and anatomical regions.

🖥️ Intuitive Touchscreen Control Panel

The system is equipped with a touchscreen control panel that provides an intuitive, user‑friendly interface. This simple interface shortens the learning curve for technicians and reduces operational errors, enabling efficient, accurate exams.

📊 High‑Resolution Digital Imaging

The INF‑80KW‑D delivers exceptional image quality with:

• Flat panel detector – Available in 17" × 17" and 14" × 17" sizes for versatile imaging

• 16‑bit A/D conversion – Delivers up to 65,536 grayscale values for exceptional image detail

• 3.6 lp/mm spatial resolution – High‑resolution imaging for fine anatomical details

• 3072 × 3072 pixel matrix – Sharp, detailed images for confident diagnosis

🛏️ 4‑Way Patient Table for Effortless Positioning

The system features a four‑way float‑top patient table that provides smooth motions for effortless patient positioning. This feature is especially valuable when positioning elderly, non‑ambulatory patients, and/or patients with casts, resulting in substantially increased patient throughput.

🧱 Wall Bucky Stand with Wide Vertical Travel

The wall bucky stand offers a wide vertical‑travel range with a minimal focal spot‑to‑floor distance for a comfortable standing position. The counterbalanced design provides effortless, unforced motions, and locks secure at any vertical position. It is standard with a 17" × 17" durable bucky tray, able to place 17" × 17" or 14" × 17" flat panel detectors.

🔄 Streamlined Patient Flow – "One‑Stop" Inspection

The INF‑80KW‑D is designed for "one‑stop" inspection processes, making it particularly suitable for orthopedic departments and health check centers. This streamlined workflow reduces patient wait times and improves overall departmental efficiency.

🔧 Optional Motorized Synchronization

The tube stand and chest stand can be upgraded to motorized and synchronized movement, further streamlining workflow by automating positioning adjustments.

🛠️ Customization & Global Support

The INF‑80KW‑D comes with comprehensive customization and support options:

• Custom‑make/OEM/ODM – Logo silk‑printing, customized nameplates, color boxes, and packaging cartons

• Global shipping – Exported to more than 120 countries

• Technical support – 10‑member sales service team

• Delivery/Lead time – Approximately 7–30 days

• Warranty – 1 year for machine

Specifications

What's Included

• INF‑80KW‑D Floor‑mounted Digital Radiography System Main Unit

• 80kW High‑Frequency Generator

• 17" × 17" Flat Panel Detector

• Touchscreen Control Panel

• 4‑Way Float‑Top Patient Table

• Wall Bucky Stand with 17" × 17" Bucky Tray

• Power Cable

• User Manual

• Installation and Training Support

Optional Accessories

• 14" × 17" Flat Panel Detector

• Motorized Tube Stand and Chest Stand Synchronization

• Additional Detector Options

Applications

The INF‑80KW‑D Floor‑mounted Digital Radiography System is suitable for:

• Hospitals & Medical Centers – High‑volume general radiography

• Orthopedic Departments – Weight‑bearing extremity imaging and trauma exams

• Health Check Centers – Routine health screening and physical examinations

• Outpatient Clinics – Versatile imaging for diverse patient populations

• Emergency Departments – Rapid trauma and acute care imaging

Why Choose the INF‑80KW‑D?



FAQ

Q: What is the INF‑80KW‑D Floor‑mounted Digital Radiography System?

A: The INF‑80KW‑D is a high‑performance, floor‑mounted digital X‑ray system designed for high‑volume clinical environments, featuring an 80kW generator—the highest power in the INF‑D Series—17" × 17" flat panel detector, touchscreen control, and a versatile two‑column design for optimal patient positioning.

Q: What is the power output of the generator?

A: The system is equipped with an 80kW high‑frequency generator, providing the highest power output in the INF‑D Series for consistent image quality across demanding clinical applications.

Q: What detector sizes are available?

A: The system supports both 17" × 17" and 14" × 17" flat panel detectors.

Q: What is the spatial resolution and pixel matrix?

A: The system delivers a spatial resolution of 3.6 lp/mm with a 3072 × 3072 pixel matrix for high‑resolution diagnostic imaging.

Q: Does the system support weight‑bearing exams?

A: Yes. The INF‑80KW‑D features weight‑bearing to tabletop capability, allowing seamless switching between upright and supine examinations.

Q: Is the system easy to use?

A: Yes. The system features an intuitive touchscreen control panel that shortens the learning curve for technicians and reduces operational errors.

Q: What patient table does the system include?

A: The system includes a 4‑way float‑top patient table that provides smooth motions for effortless patient positioning.

Q: Can the system be upgraded with motorized movement?

A: Yes. The tube stand and chest stand can be upgraded to motorized and synchronized movement.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.

Q: Can the system be customized?

A: Yes. We accept OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates and packaging.
