INM-5kW Digital Mammography System | High‑Resolution Breast Imaging for Early Cancer Detection

5kW digital mammography system with 6 lp/mm resolution, 10"x12" FPD, IAE tube, and SMART paddle for early breast cancer detection. Ideal for hospitals, clinics, and screening centers.

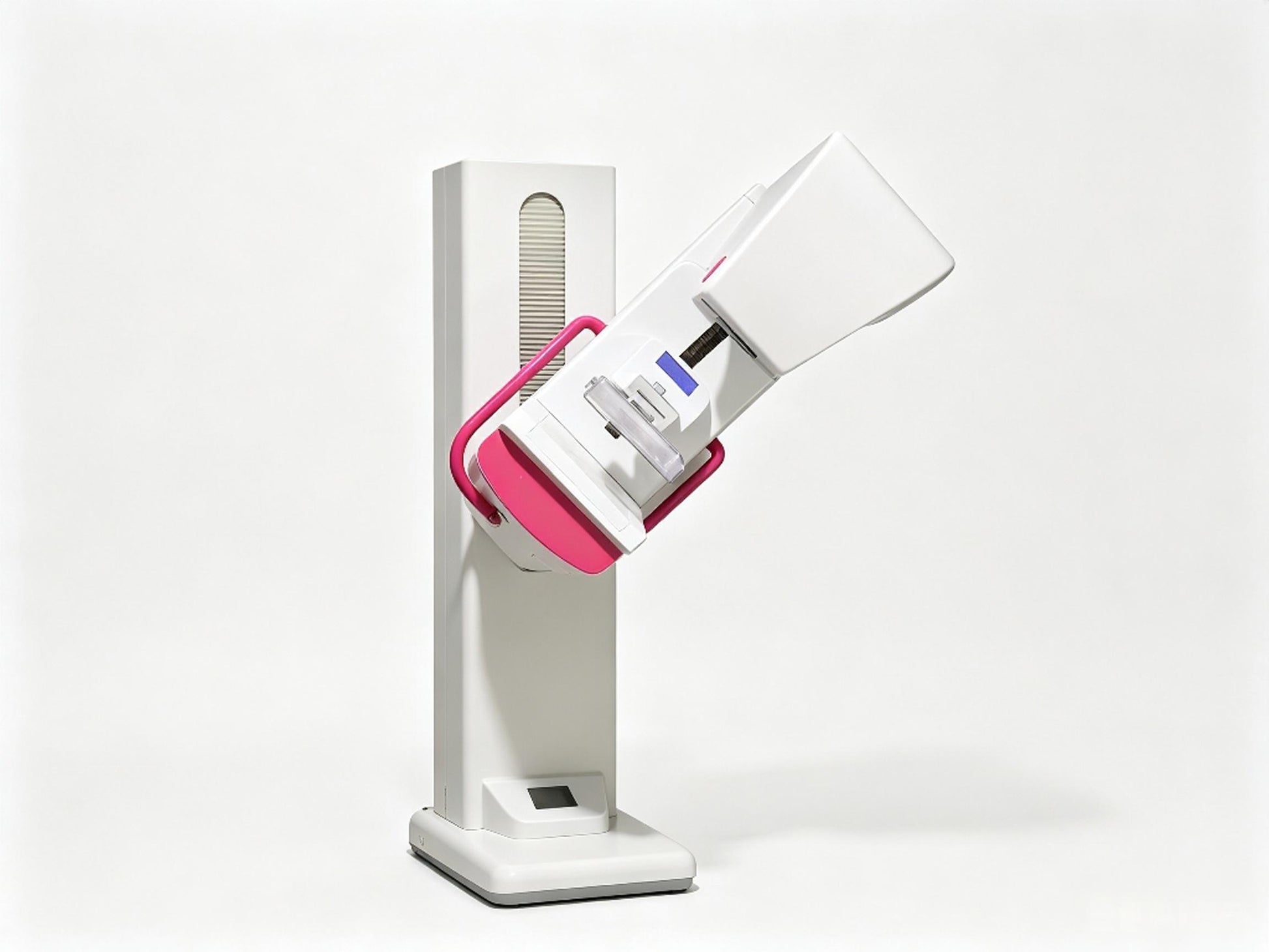

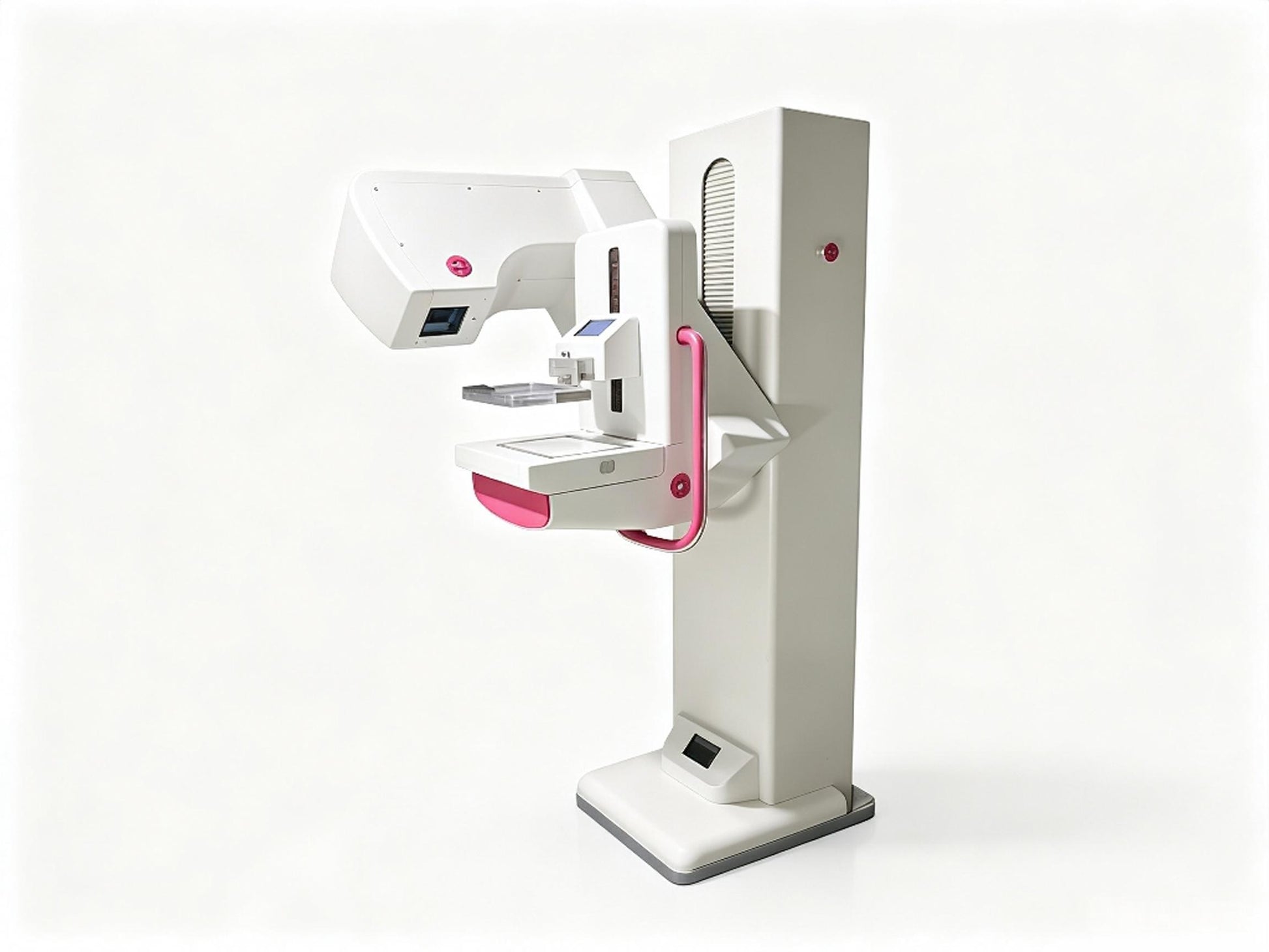

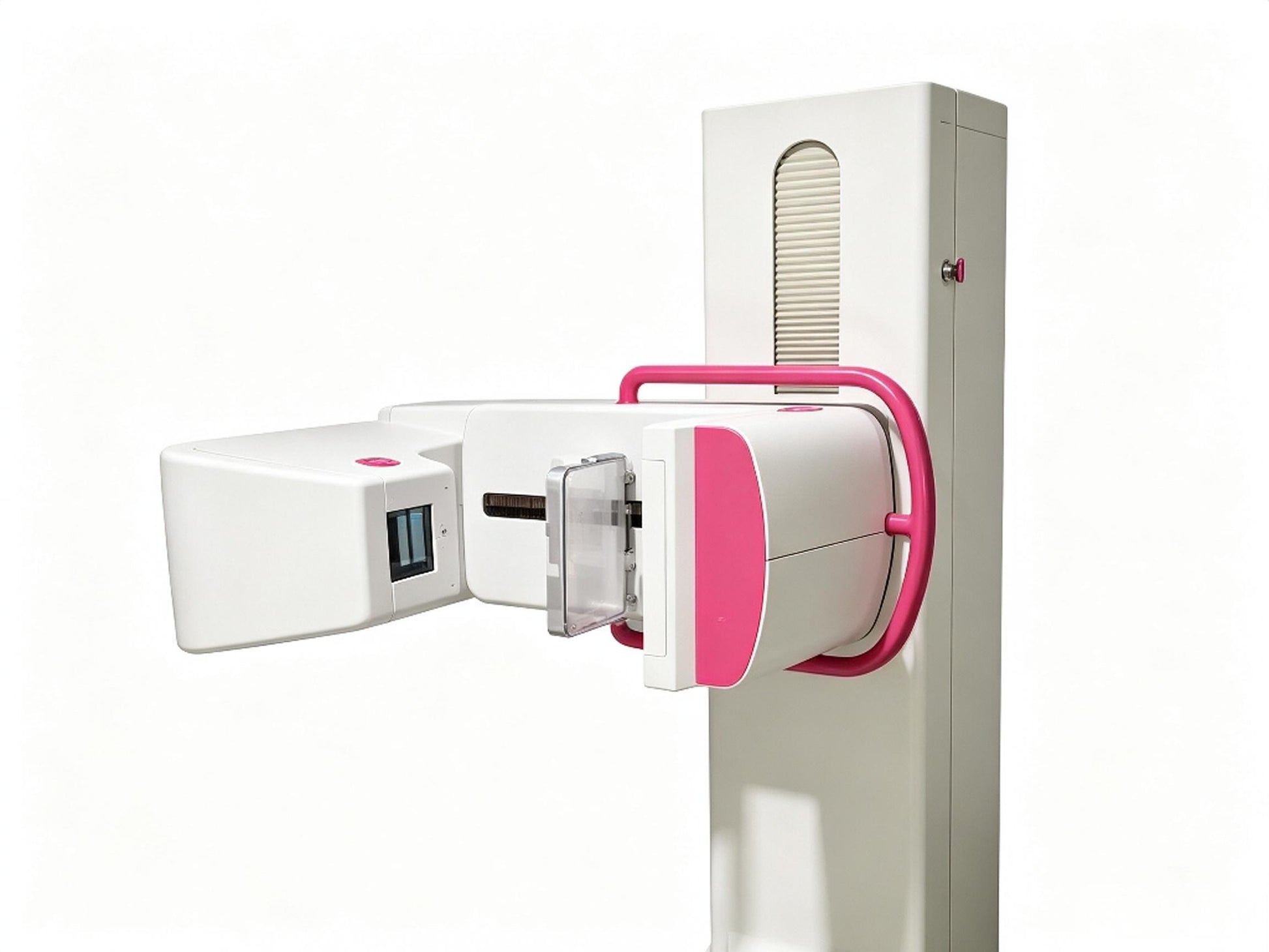

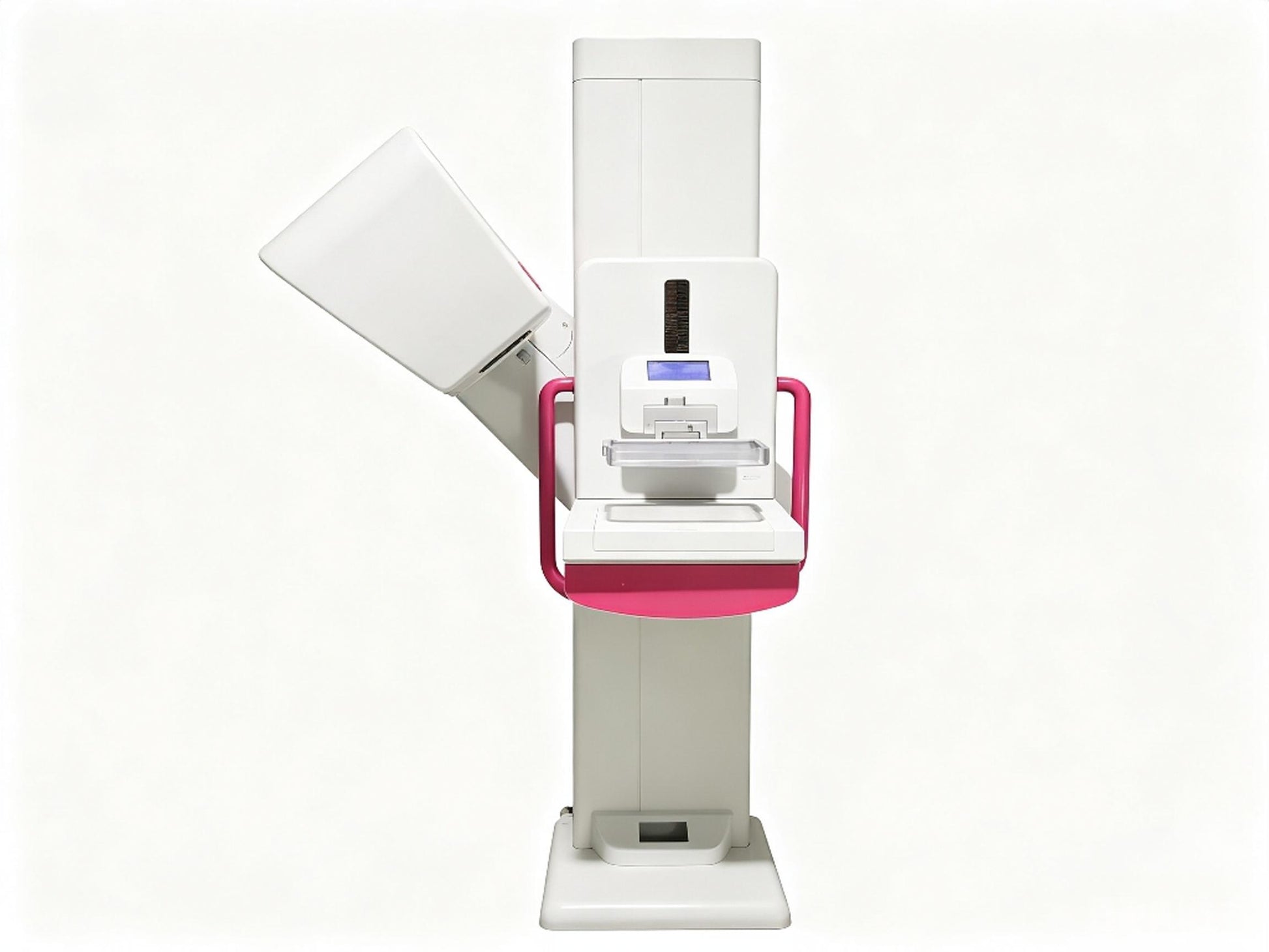

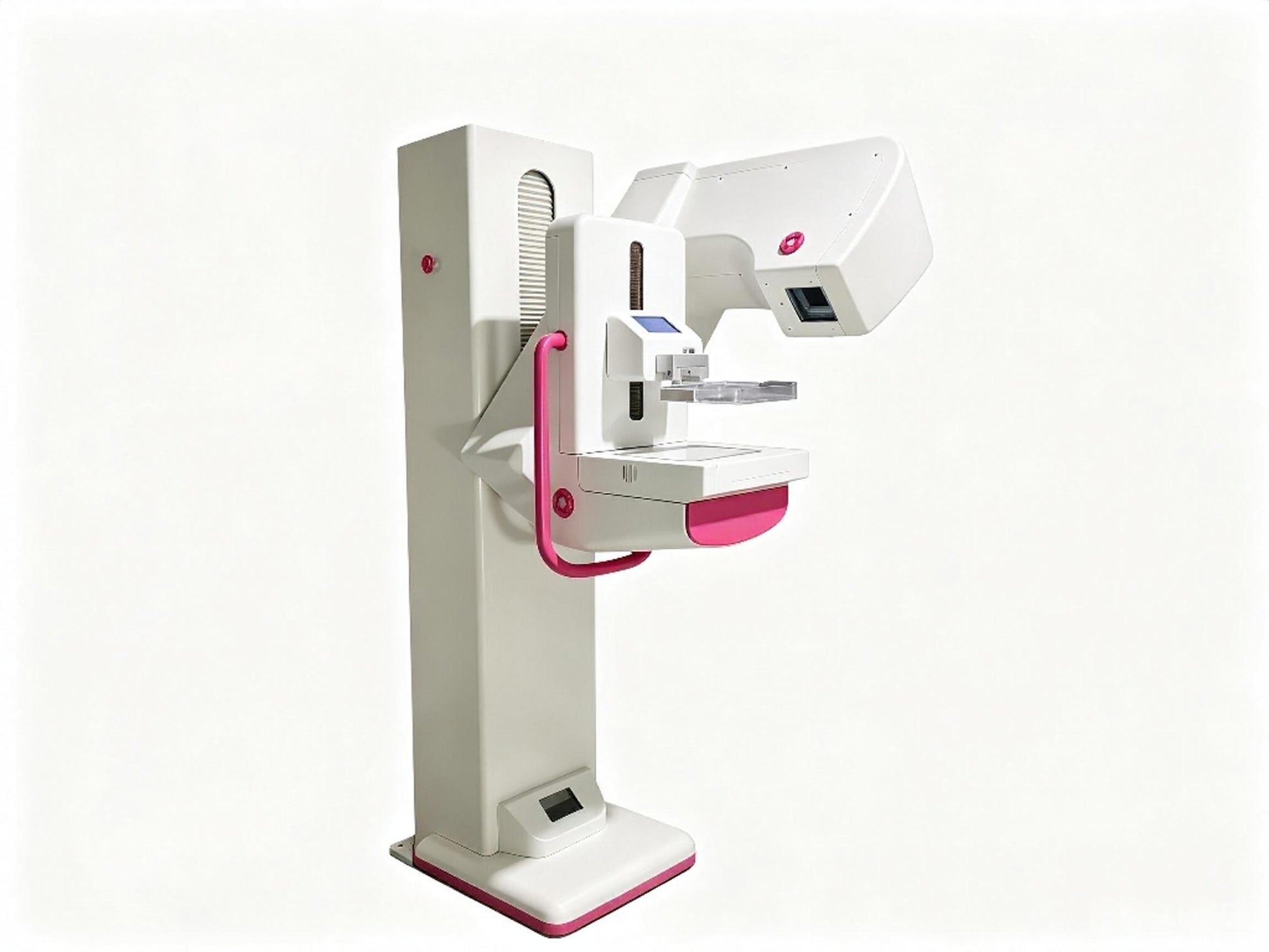

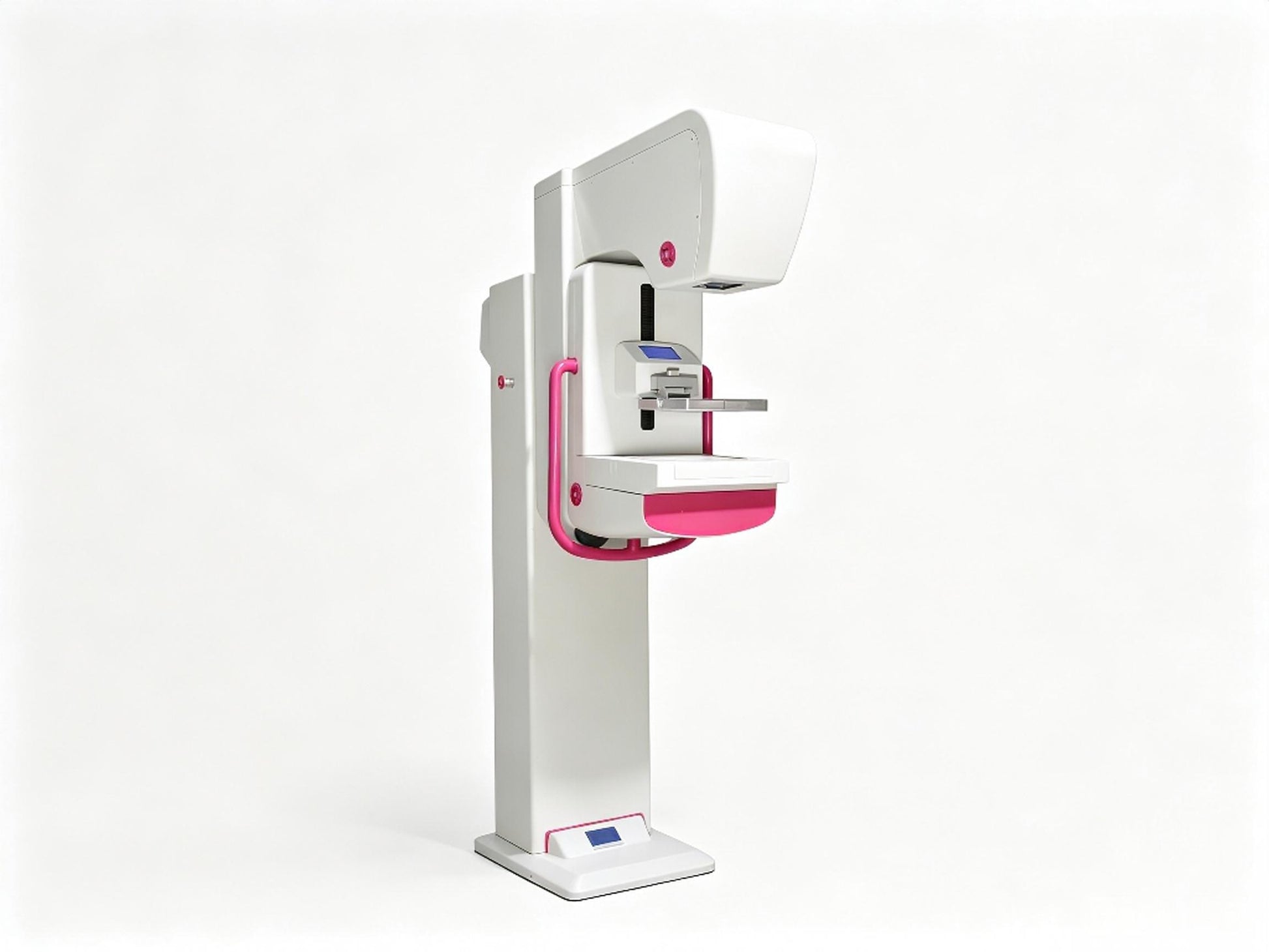

The Global Healthcare Medical INM‑5kW Digital Mammography System is a state‑of‑the‑art breast imaging solution engineered for early detection of breast cancer with exceptional image quality and patient comfort. Featuring a 5kW high‑frequency generator, a world‑famous IAE X‑ray tube, and a third‑generation 10" × 12" full‑size amorphous Silicon (a‑Si) flat panel detector with 6 lp/mm spatial resolution, this system delivers superior contrast for microcalcifications and subtle lesions—critical for early diagnosis.

Designed for clinical excellence and workflow efficiency, the INM‑5kW combines high‑intelligent one‑button positioning, multi‑frequency self‑induced compression technology for enhanced patient comfort, and DICOM 3.0 connectivity for seamless PACS integration. Whether for routine screening, diagnostic mammography, or biopsy procedures, the INM‑5kW delivers the image quality, accuracy, and efficiency that modern breast imaging demands.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🖼️ Exceptional Image Quality for Early Detection

The INM‑5kW delivers superior image quality for confident diagnosis:

• 6 lp/mm spatial resolution – Exceptional detail for visualizing microcalcifications and subtle lesions

• 16‑bit A/D conversion – Delivers rich grayscale depth for detailed tissue differentiation

• 10" × 12" flat panel detector – Amorphous Silicon (a‑Si) with high X‑ray conversion efficiency

• 2762 × 3308 pixel matrix – Sharp, detailed images for accurate diagnosis

🦴 World‑Famous IAE X‑Ray Tube

The system is equipped with a world‑famous brand IAE X‑ray tube from Italy, renowned for its reliability and superior imaging performance. This high‑quality tube, combined with intelligent software, provides higher‑quality images for diagnosis, ensuring consistent, reproducible results.

🔄 High‑Intelligent Positioning & Streamlined Workflow

The INM‑5kW features high‑intelligent positioning by one button, providing easy operation and improving work efficiency. The high‑precision multi‑function rack with high‑accuracy movement control allows the X‑ray tube to rotate around the detector isocenter for optimal positioning.

💆 Enhanced Patient Comfort with SMART Paddle

Patient comfort is prioritized with the SMART paddle design, which improves patient experience and compliance. The multi‑frequency self‑induced compression technology ensures the best image quality while reducing patients' pain maximally.

📋 Comprehensive Software & DICOM Connectivity

The INM‑5kW includes a complete software suite for efficient workflow:

• Case management – Manual registration and worklist auto‑searching

• Image acquisition – Auto window adjusting, auto cutting, and auto sending

• Image processing – Correcting, flipping, balancing, sharpening, and filtering

• Image viewing – Window position adjusting, flipping, rotating, zooming, and recovering

• Case report – Auto‑loading of patient information and expert templates

• Film printing – Supports DICOM 3.0 standard

• DICOM transfer – Images can be transferred to any DICOM 3.0 compatible PACS workstation

🏥 Versatile Clinical Applications

The INM‑5kW is suitable for:

• Routine screening mammography – Early detection in asymptomatic women

• Diagnostic mammography – Evaluation of breast abnormalities

• Image‑guided biopsy – With full‑field digital biopsy capability

• Contrast‑enhanced mammography – Advanced lesion characterization

• Standing or prone positioning – Using the MammoBed table for patient comfort

Specifications

What's Included

• INM‑5kW Digital Mammography System Main Unit

• 5kW High‑Frequency Generator

• IAE X‑ray Tube (Italy)

• 10" × 12" Amorphous Silicon Flat Panel Detector

• High‑Precision Multi‑Function Rack

• SMART Compression Paddle

• MammoBed Table (for prone positioning)

• PC Workstation

• Monitor

• Mammography Image Processing Software

• DICOM 3.0 Connectivity

• Power Cable

• User Manual

• Installation and Training Support

Applications

The INM‑5kW Digital Mammography System is suitable for:

• Hospitals & Medical Centers – Comprehensive breast imaging services

• Breast Imaging Centers – Dedicated mammography and biopsy procedures

• Radiology Clinics – Routine screening and diagnostic mammography

• Women's Health Clinics – Early detection and prevention programs

• Mobile Screening Units – Community outreach and screening programs

• Outpatient Imaging Centers – High‑quality breast imaging in ambulatory settings

Why Choose the INM‑5kW?

FAQ

Q: What is the INM‑5kW Digital Mammography System?

A: The INM‑5kW is a high‑performance digital mammography system designed for early breast cancer detection, featuring a 5kW generator, a world‑famous IAE X‑ray tube, and a 10" × 12" amorphous Silicon flat panel detector with 6 lp/mm resolution.

Q: What is the image resolution?

A: The system delivers a spatial resolution of 6 lp/mm with a 2762 × 3308 pixel matrix and 16‑bit A/D conversion, providing exceptional detail for visualizing microcalcifications and subtle lesions.

Q: What type of detector does the system use?

A: The system features a third‑generation full‑size amorphous Silicon (a‑Si) flat panel detector with high X‑ray conversion efficiency, better image resolution, and contrast.

Q: What X‑ray tube does the system use?

A: The system is equipped with a world‑famous brand IAE X‑ray tube from Italy, providing higher‑quality images for diagnosis.

Q: Does the system support biopsy procedures?

A: Yes. The system is designed for full‑field digital biopsy with the patient standing or in prone position using the MammoBed table.

Q: Is the system comfortable for patients?

A: Yes. The system features a SMART paddle design for improved patient experience and multi‑frequency self‑induced compression technology that ensures the best image quality while reducing patients' pain maximally.

Q: Does the system support DICOM connectivity?

A: Yes. The INM‑5kW supports DICOM 3.0 for seamless integration with PACS and hospital information systems.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.

Q: Can the system be customized?

A: Yes. We accept OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates and packaging.
