INP-5KW-D Mobile Digital Radiography System | 5kW Portable X‑ray for Hospital & Field Use

5kW mobile digital radiography system with high‑frequency generator, wireless FPD, integrated computer, and flight case transport. Ideal for hospitals, clinics, ICUs, and field use.

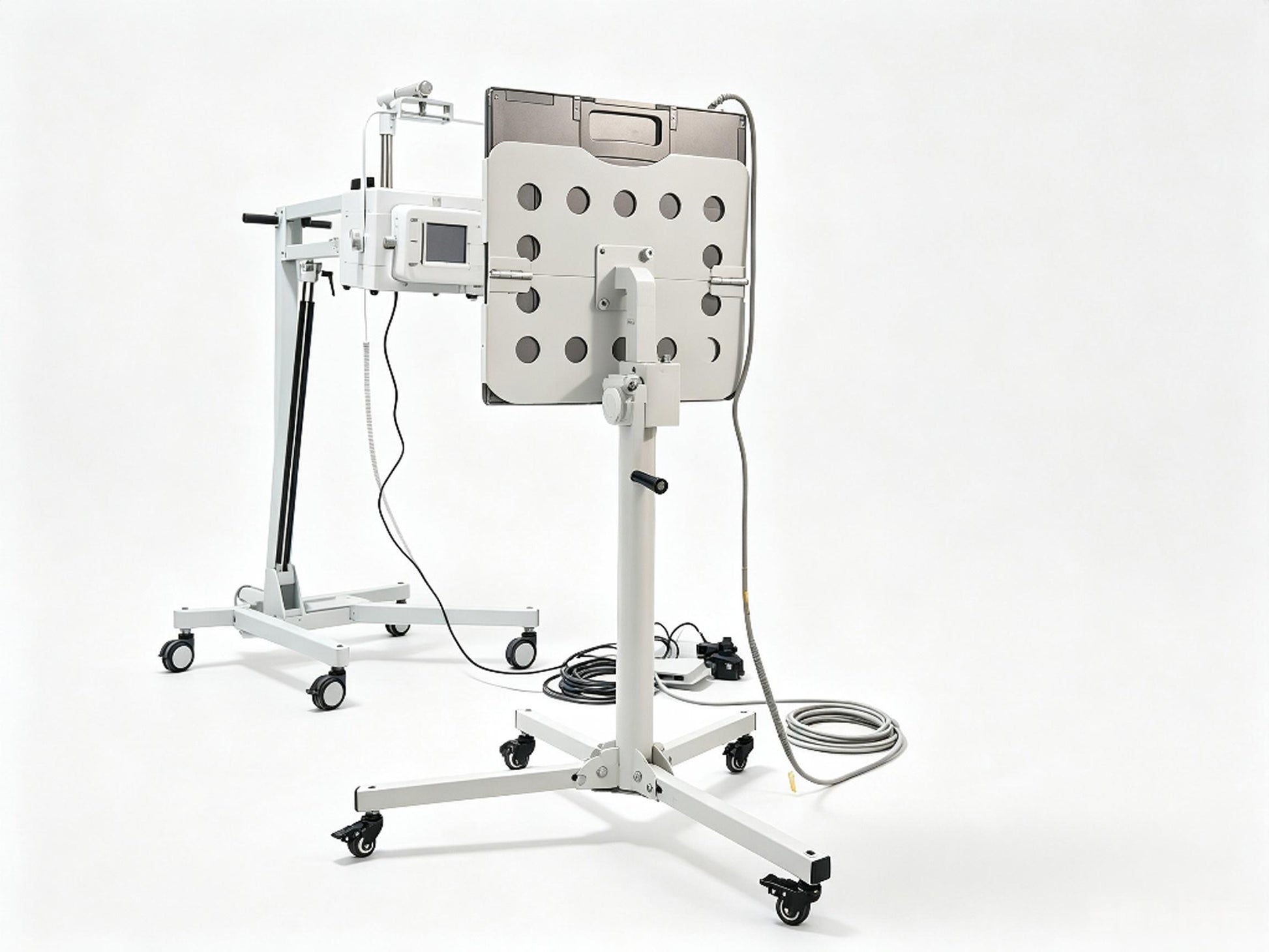

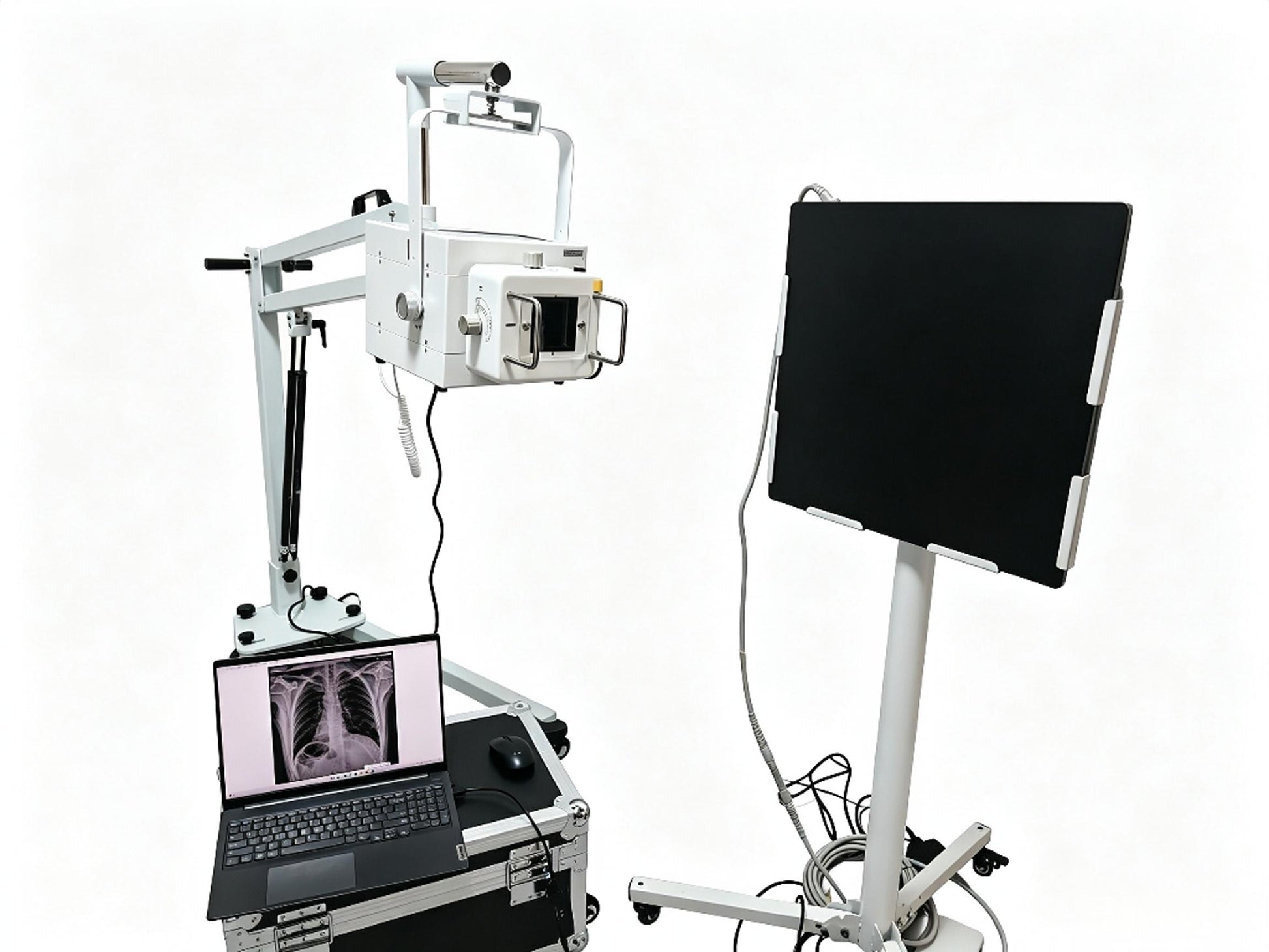

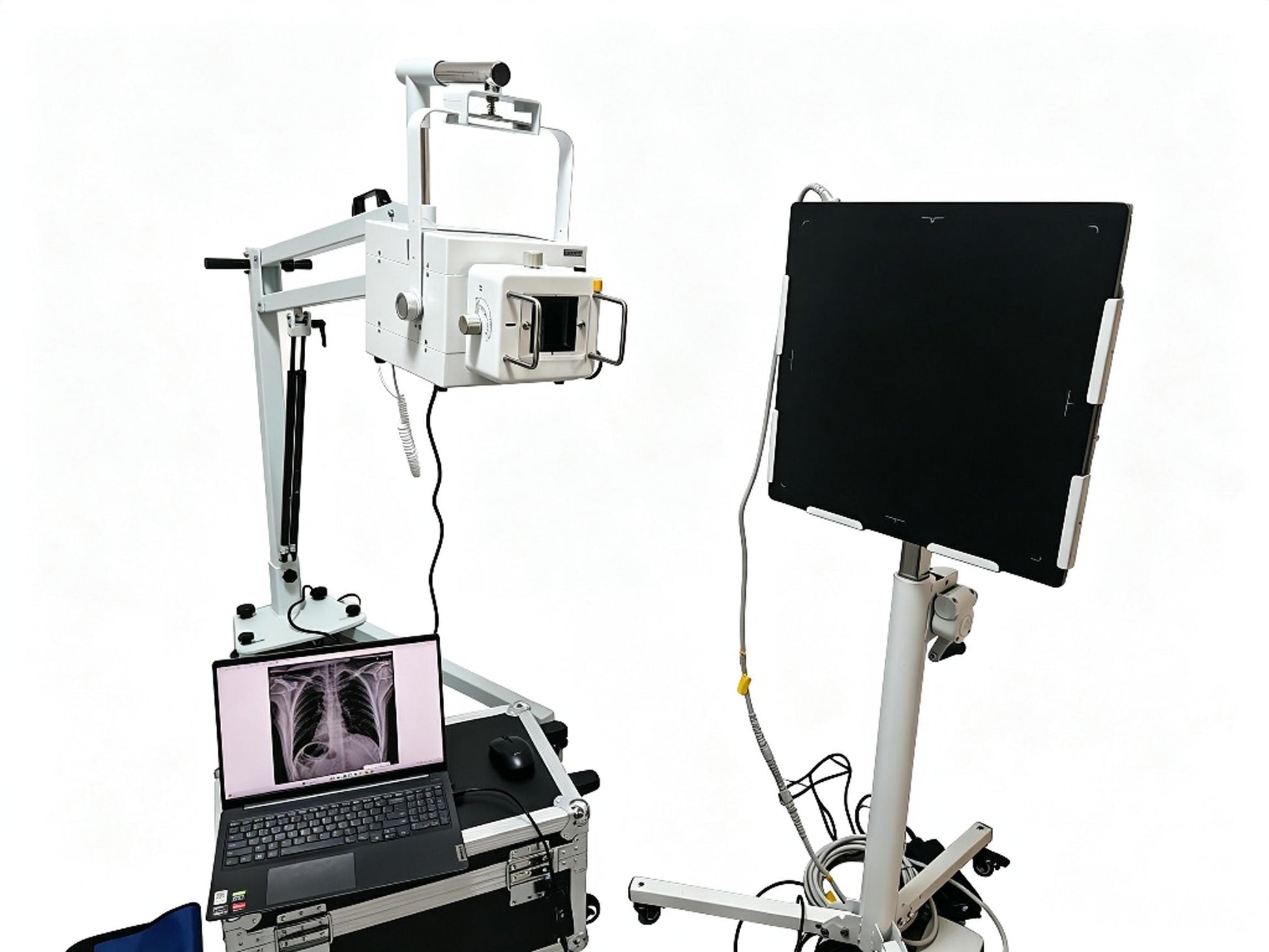

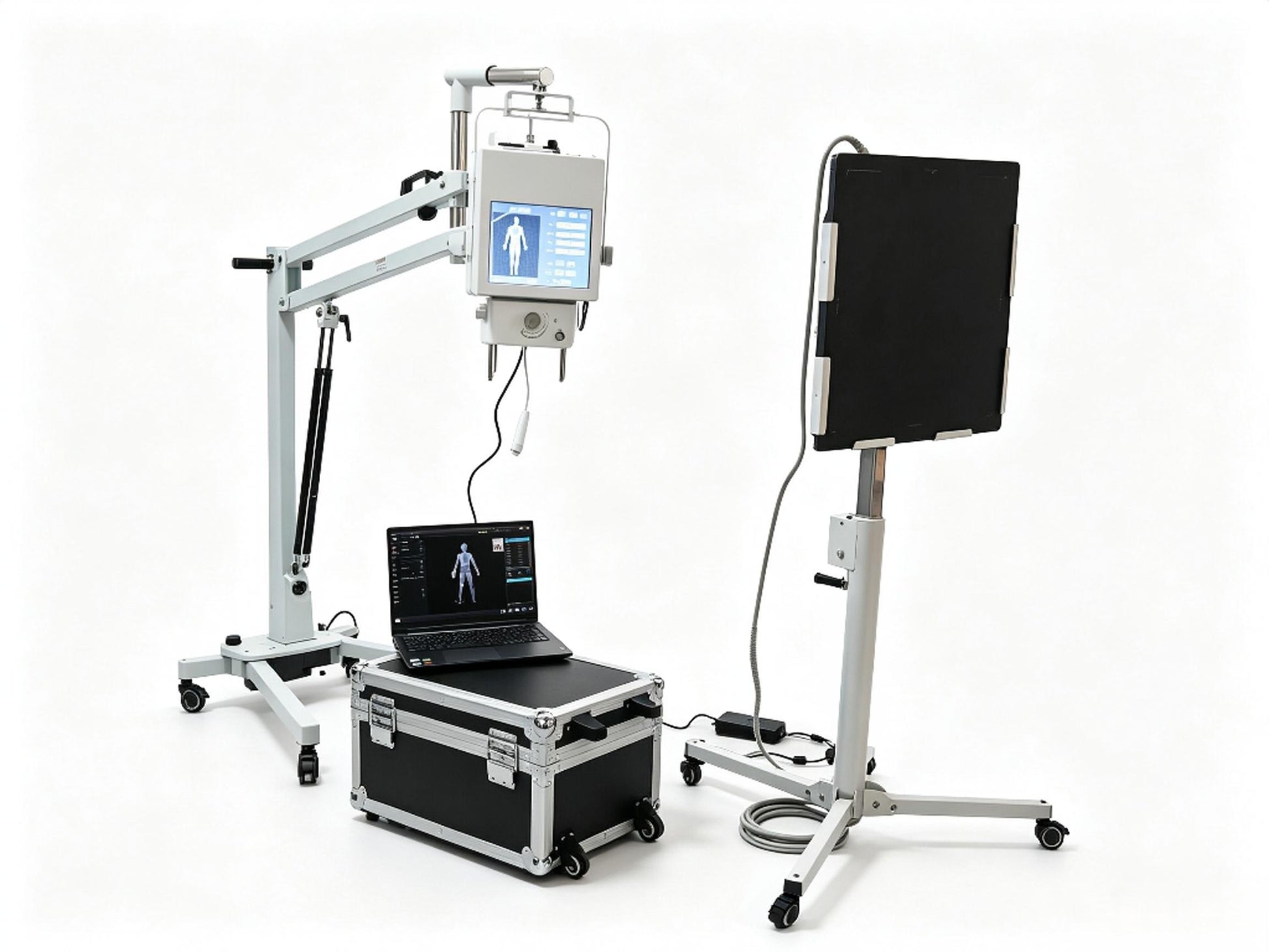

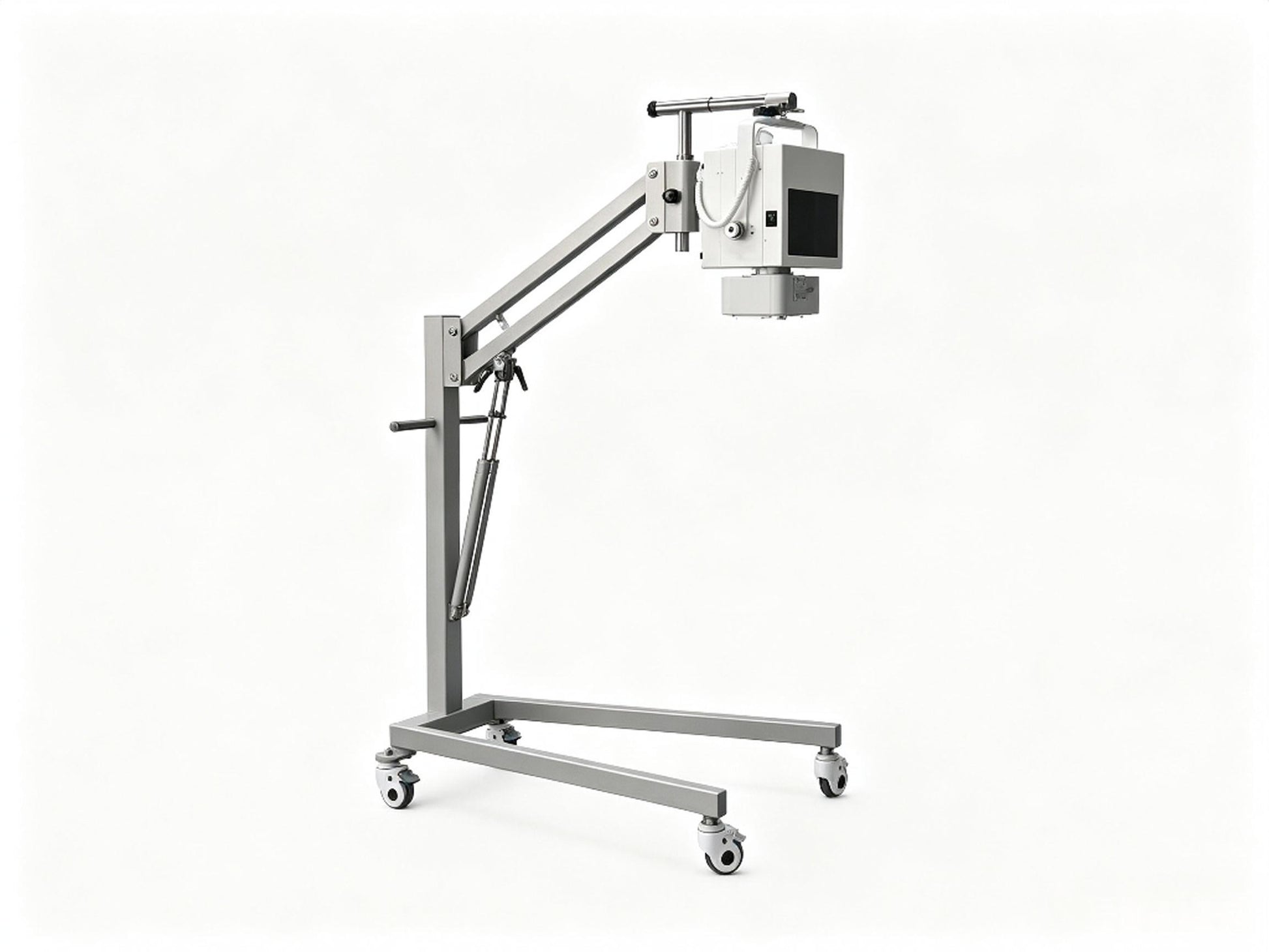

The Global Healthcare Medical INP-5KW-D Mobile Digital Radiography System is a versatile, high‑performance X‑ray solution designed for modern healthcare environments where mobility and image quality are paramount. Equipped with a high‑frequency 5 kW generator, the INP‑5KW‑D delivers stable, high‑quality imaging in any clinical situation—whether in hospital wards, ICUs, operating rooms, or remote field locations.

Designed for maximum flexibility, the system can be transported in a flight case for easy deployment anywhere. It can be used in combination with wireless flat panel detectors (FPD), computers, mobile chest X‑ray stands, and mobile radiography beds. An integrated computer enables instantaneous image display and immediate image processing, with convenient storage options including local and USB device storage, as well as networked archiving and printing. The intuitive user interface allows programming of almost unlimited anatomical protocols, while high‑quality preview images are displayed instantaneously prior to transmission using the industry‑standard DICOM interface.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ High‑Frequency 5 kW Generator for Superior Image Quality

The INP-5KW-D is equipped with a high‑frequency 5 kW X‑ray generator, supporting up to 125 kV and 200 mA output. This advanced generator technology ensures stable image performance and consistent diagnostic quality across different clinical conditions.

🖼️ High‑Resolution Digital Imaging with Wireless FPD

The system features a 14″ × 17″ wireless flat panel detector (FPD) with advanced imaging capabilities:

• Amorphous Silicon with Cesium Iodide scintillator for superior image quality

• 2304 × 2800 pixel matrix for exceptional detail

• 3.4 lp/mm spatial resolution – high‑resolution imaging

• 16‑bit A/D conversion – delivering 65,536 grayscale values

• ≥70% DQE – high detective quantum efficiency for low‑dose imaging

• ≤2 seconds acquisition time – fast image capture

💻 Integrated Computer & Instant Image Processing

The integrated computer enables seamless workflow efficiency:

• Instantaneous image display – Images are displayed immediately after capture

• Immediate image processing – Fast processing for rapid diagnosis

• Local and USB device storage – Flexible data management

• Networked archiving and printing – Seamless integration with hospital networks

• Industry‑standard DICOM interface – Easy integration with PACS

📦 Highly Portable & Flexible Design

Designed for maximum deployment flexibility:

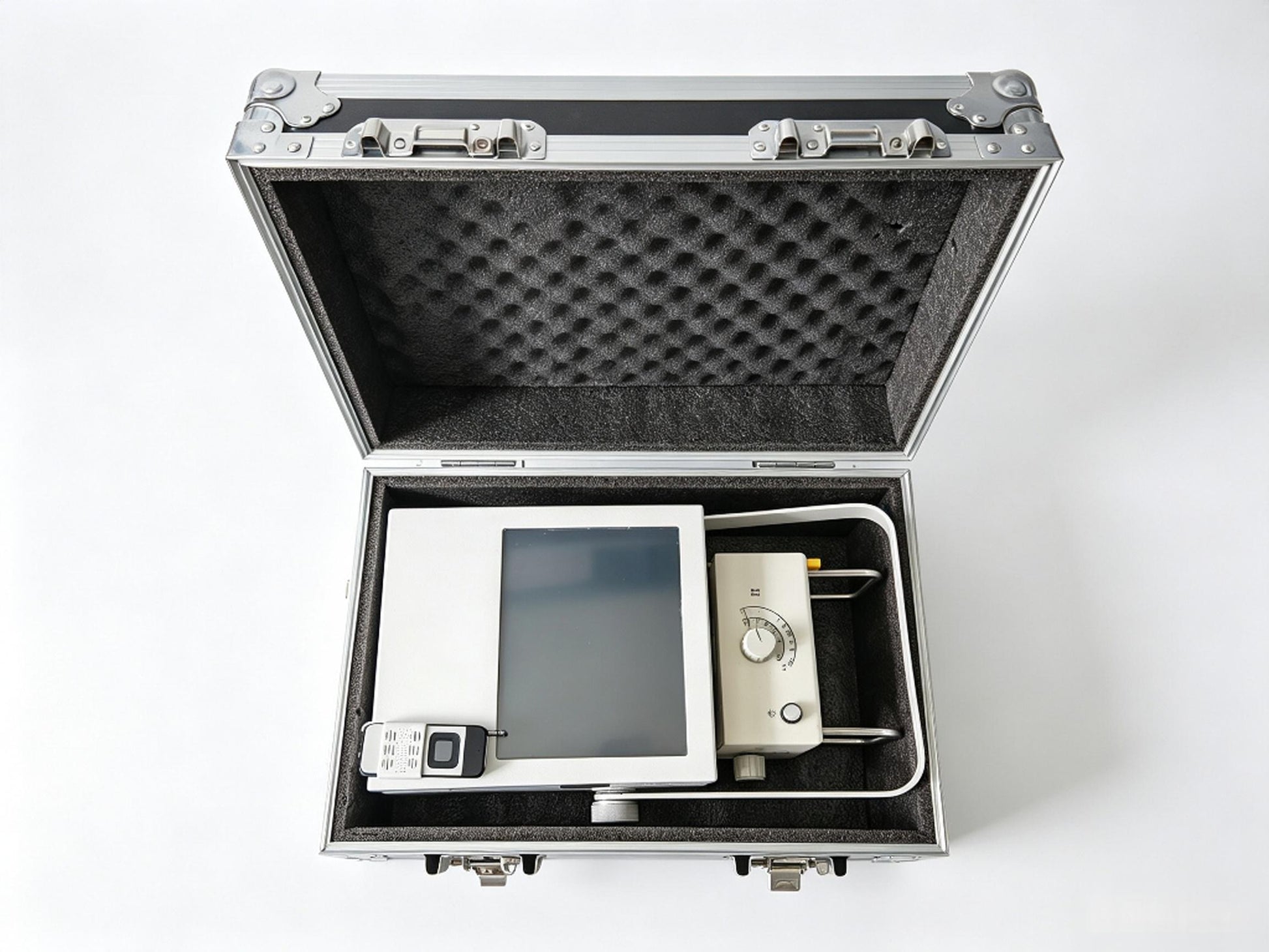

• Flight case transport – Safe and easy transportation to any location

• Free combination – Use with FPD, computer, mobile chest X‑ray stands, and mobile radiography beds

• Versatile applications – Ideal for hospitals, clinics, ICUs, operating rooms, and field use

🔧 Intuitive Operation & Workflow Efficiency

The system is designed for ease of use:

• Easy positioning changes – Sequential exposures of chest and abdomen can be acquired quickly and easily

• Four swiveling wheel casters – Allow precise, easy positioning and travel in any direction

• Articulating control panel – Allows rotation and height adjustment for instant image confirmation from any angle

• Small lightweight design – Extended reach of the tube head allows one‑hand operation for easy exam positioning

🔌 Advanced Connectivity

The system offers comprehensive connectivity options:

• USB devices

• Ethernet cable

• WiFi or wired connection

• CD/DVD Burner

Specifications

What's Included

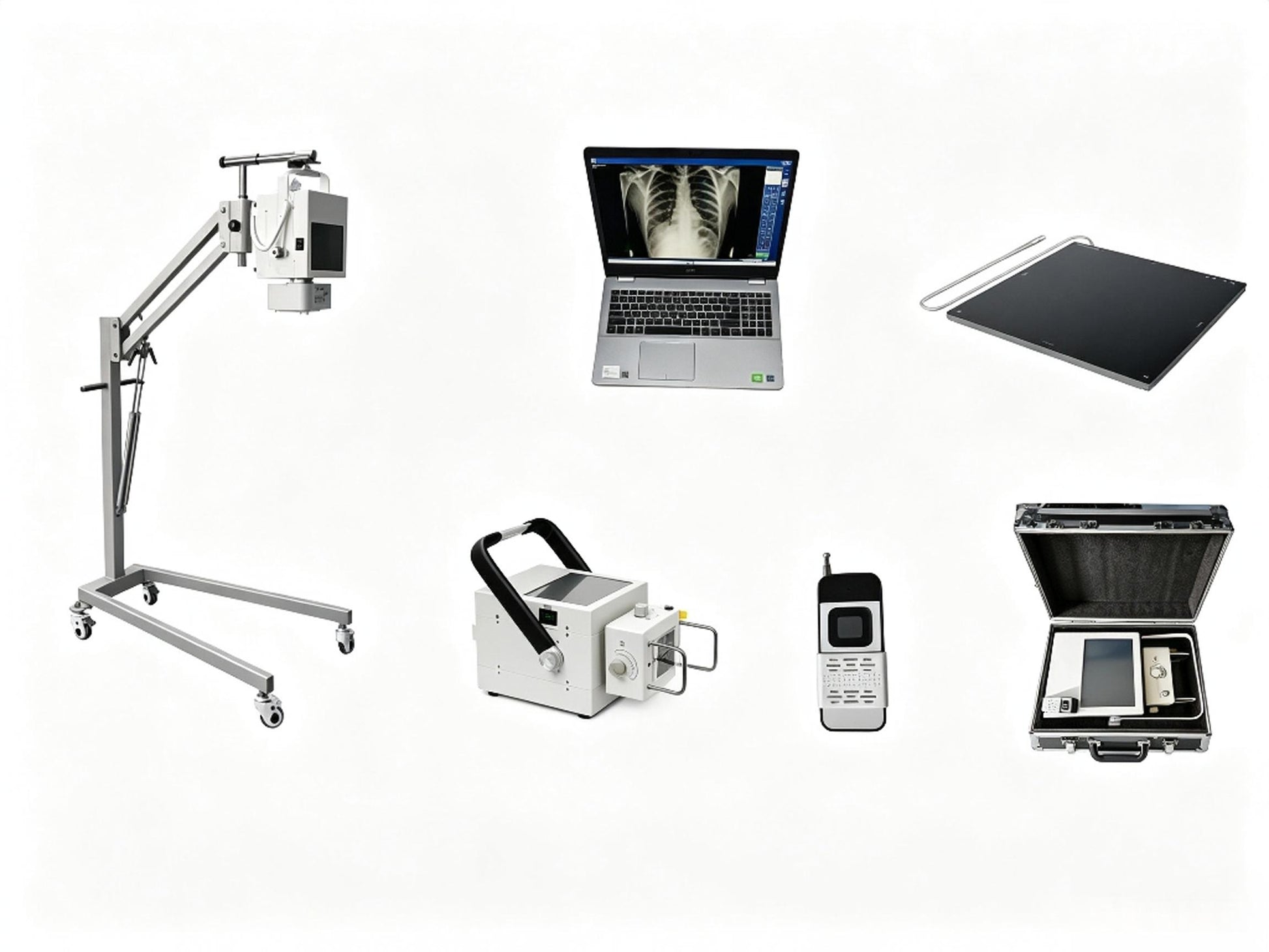

• INP-5KW-D Mobile Digital Radiography System Main Unit

• 5kW High‑Frequency Generator

• 14″ × 17″ Wireless Flat Panel Detector

• Integrated Computer with Imaging Software

• Flight Case for Transport

• Power Cable

• User Manual

• Installation and Training Support

Optional Accessories

• 17″ × 17″ Flat Panel Detector

• Mobile Chest X‑ray Stand

• Mobile Radiography Bed

• Trolley / Cart

Applications

The INP‑5KW‑D Mobile Digital Radiography System is suitable for:

• Hospitals & Clinics – Versatile imaging for radiology, orthopedics, and emergency departments

• Intensive Care Units (ICU) – Bedside imaging for critically ill patients

• Operating Rooms – Intraoperative imaging

• Mobile Health Services – Community health screenings and home healthcare

• Field Hospitals – Disaster relief and military medical operations

• Nursing Homes – Bedside imaging for elderly patients

Why Choose the INP‑5KW‑D?

FAQ

Q: What is the INP‑5KW‑D Mobile Digital Radiography System?

A: The INP‑5KW‑D is a versatile, high‑performance mobile X‑ray system featuring a 5kW high‑frequency generator, a 14″ × 17″ wireless flat panel detector, and an integrated computer for instant image display and processing—ideal for hospitals, ICUs, and field use.

Q: Is the system truly portable?

A: Yes. The INP‑5KW‑D can be packed into a flight case for easy and safe transportation to any location.

Q: What is the image quality?

A: The system delivers high image quality with a 5kW high‑frequency generator, 16‑bit A/D conversion, 3.4 lp/mm spatial resolution, a 2304 × 2800 pixel matrix, and ≥70% DQE.

Q: Does the system include a computer?

A: Yes. The INP‑5KW‑D includes an integrated computer that enables instantaneous image display and immediate image processing.

Q: How is image storage handled?

A: Images can be stored locally, on USB devices, or archived over a network.

Q: What are the key technical specifications?

A: The system features a 5kW generator with 40‑125 kV voltage range, 10‑100 mA current range, 0.1‑200 mAs, and 1‑4000 ms exposure time.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.
