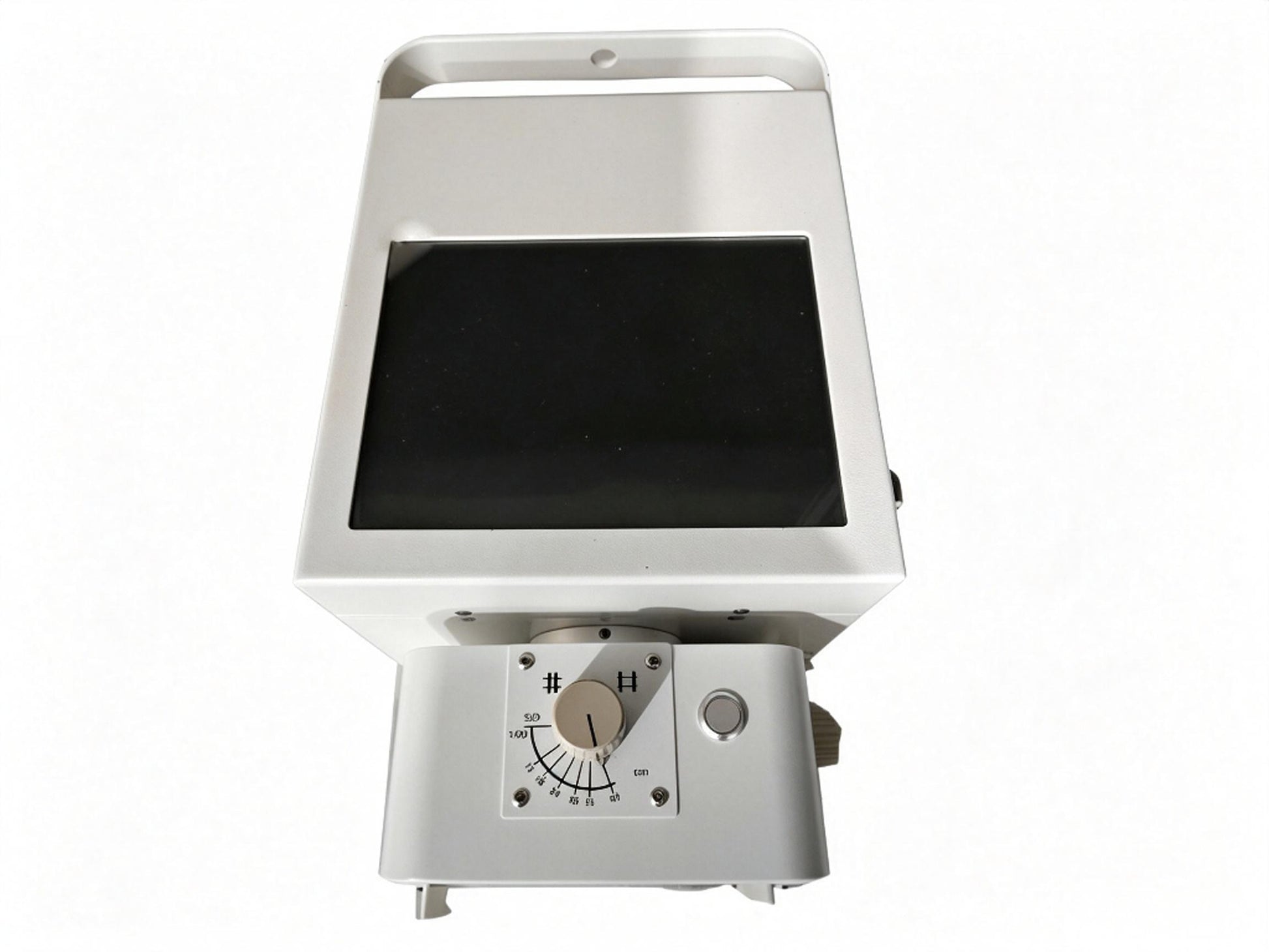

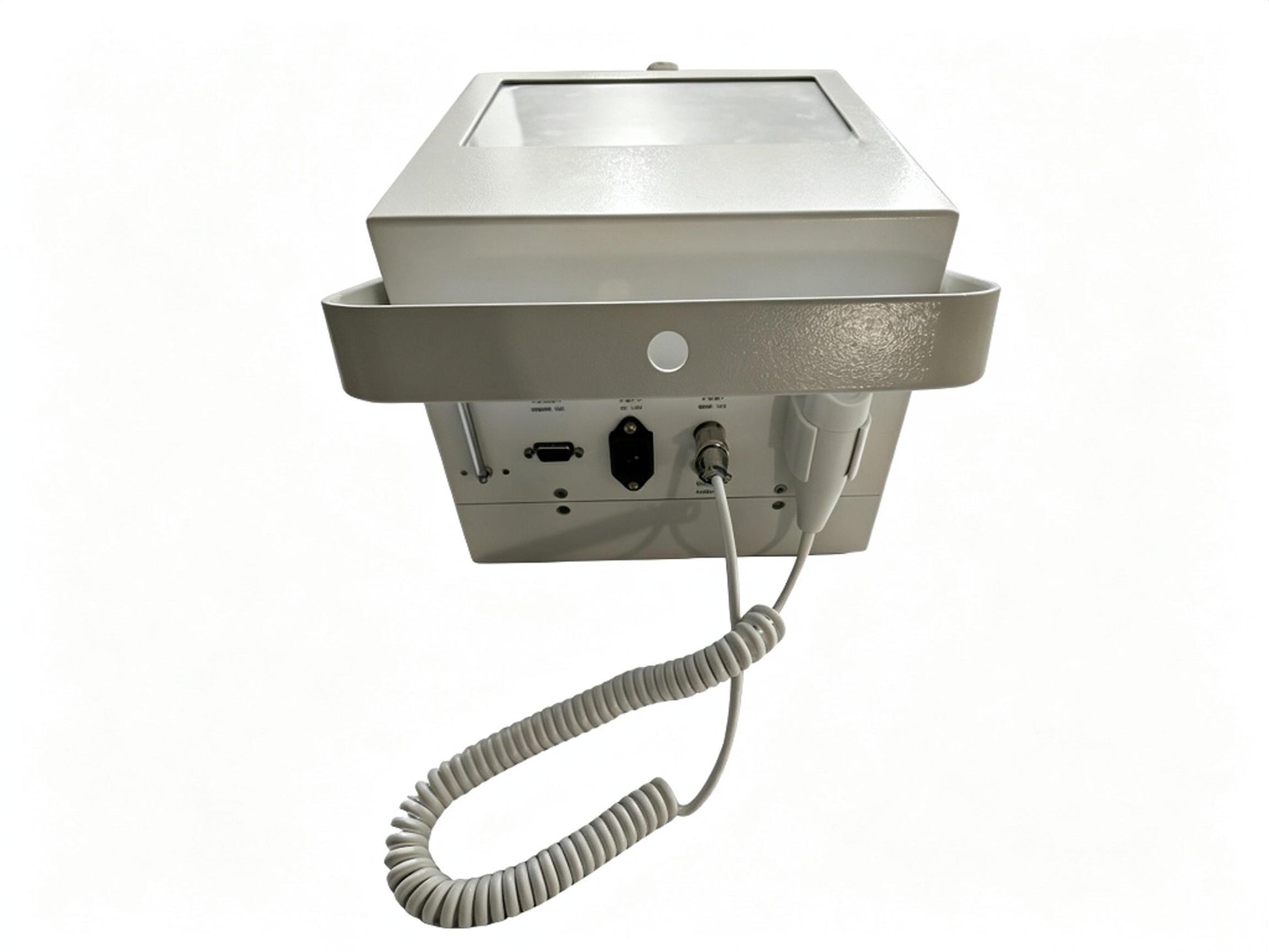

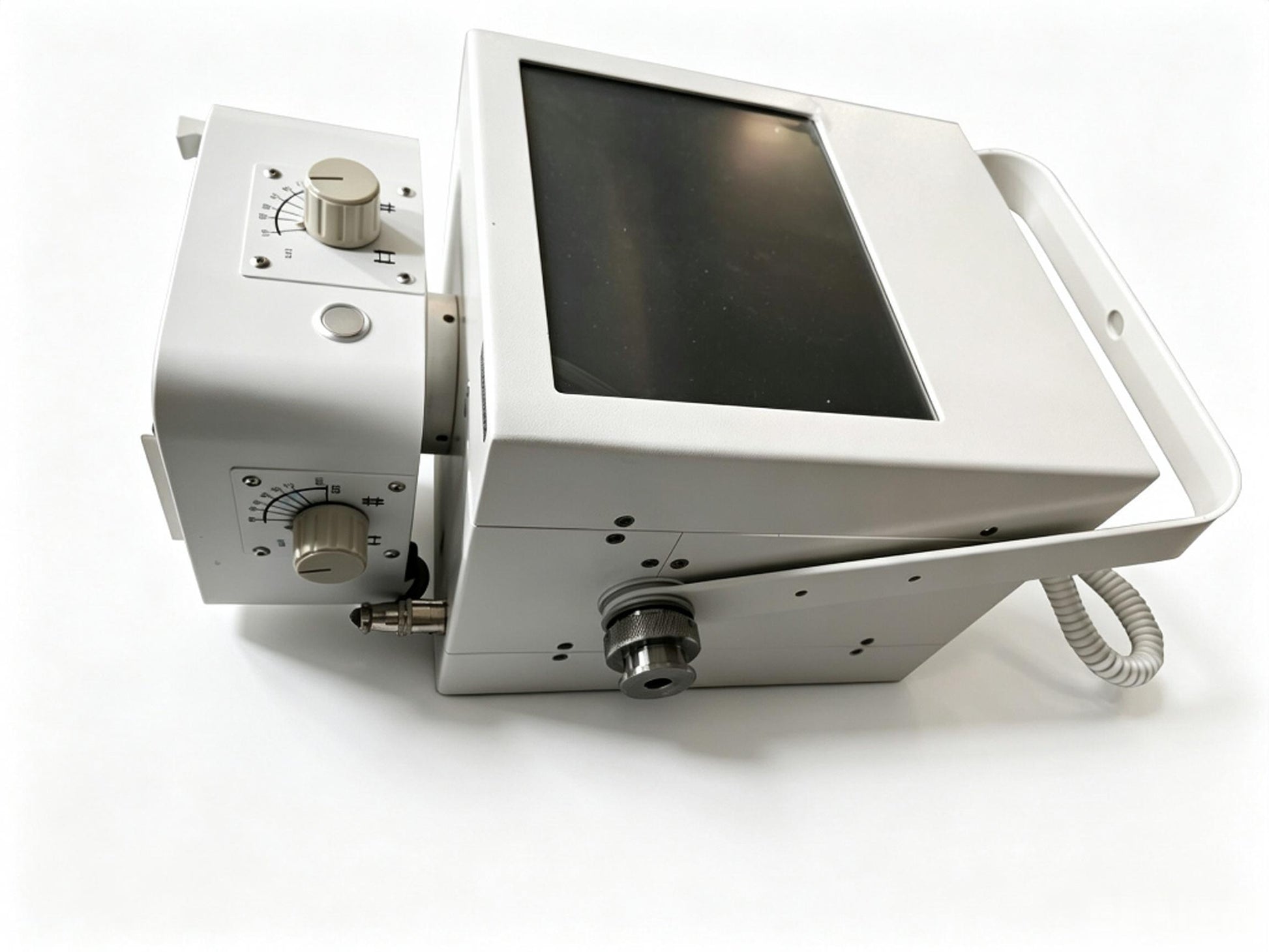

INP-8KW-B Portable X-ray Machine | 8kW Digital X-ray for Human & Veterinary Use

Portable 8kW digital X-ray machine with wireless FPD, integrated computer, extended exposure range, and flight case transport. Ideal for hospitals, clinics, field use, and veterinary practices.

The Global Healthcare Medical INP-8KW-B Portable X-ray Machine is a high‑performance digital radiography system designed for demanding clinical environments where superior image quality and extended exposure capabilities are essential. Featuring a powerful 8kW high‑frequency generator, a 14" × 17" wireless flat panel detector (FPD) , an integrated computer for instantaneous image display and processing, and an extended exposure time range of 1–6300 ms with a maximum mAs of 400, this system delivers exceptional image quality across a wide range of patient sizes and anatomical regions.

Whether in a hospital radiology department, a mobile clinic, a field hospital, or a veterinary practice, the INP-8KW-B offers the flexibility and performance that healthcare professionals demand. Its flight case portability, wireless detector, and compatibility with mobile X‑ray stands and radiography beds make it an ideal solution for both stationary and mobile imaging applications.

This device is intended for professional use in clinical and veterinary settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ High‑Power 8kW Generator for Superior Imaging

The INP-8KW-B is equipped with an 8kW high‑frequency generator that delivers outstanding image quality in any clinical situation. This increased power output, combined with a voltage range of 40–125kV, a current range of 10–125mA, and a maximum mAs of 400, provides exceptional imaging capabilities for a wide variety of patients—from small animals to bariatric human patients.

⏱️ Extended Exposure Time (1–6300 ms)

The INP-8KW-B offers an extended exposure time range of 1–6300 ms, providing greater flexibility for challenging imaging scenarios. This extended range allows for optimal exposure settings across diverse anatomical regions and patient sizes, ensuring consistent diagnostic image quality.

🖼️ High‑Resolution Wireless Flat Panel Detector

The system includes a 14" × 17" wireless flat panel detector (FPD) with advanced imaging technology:

• Amorphous Silicon with Cesium Iodide scintillator for superior image quality

• 2304 × 2800 pixel matrix for exceptional detail

• 3.4 lp/mm spatial resolution – high‑resolution imaging

• 16‑bit A/D conversion – delivering 65,536 grayscale values

• ≥70% DQE – high detective quantum efficiency for low‑dose imaging

• ≤2 seconds acquisition time – fast image capture

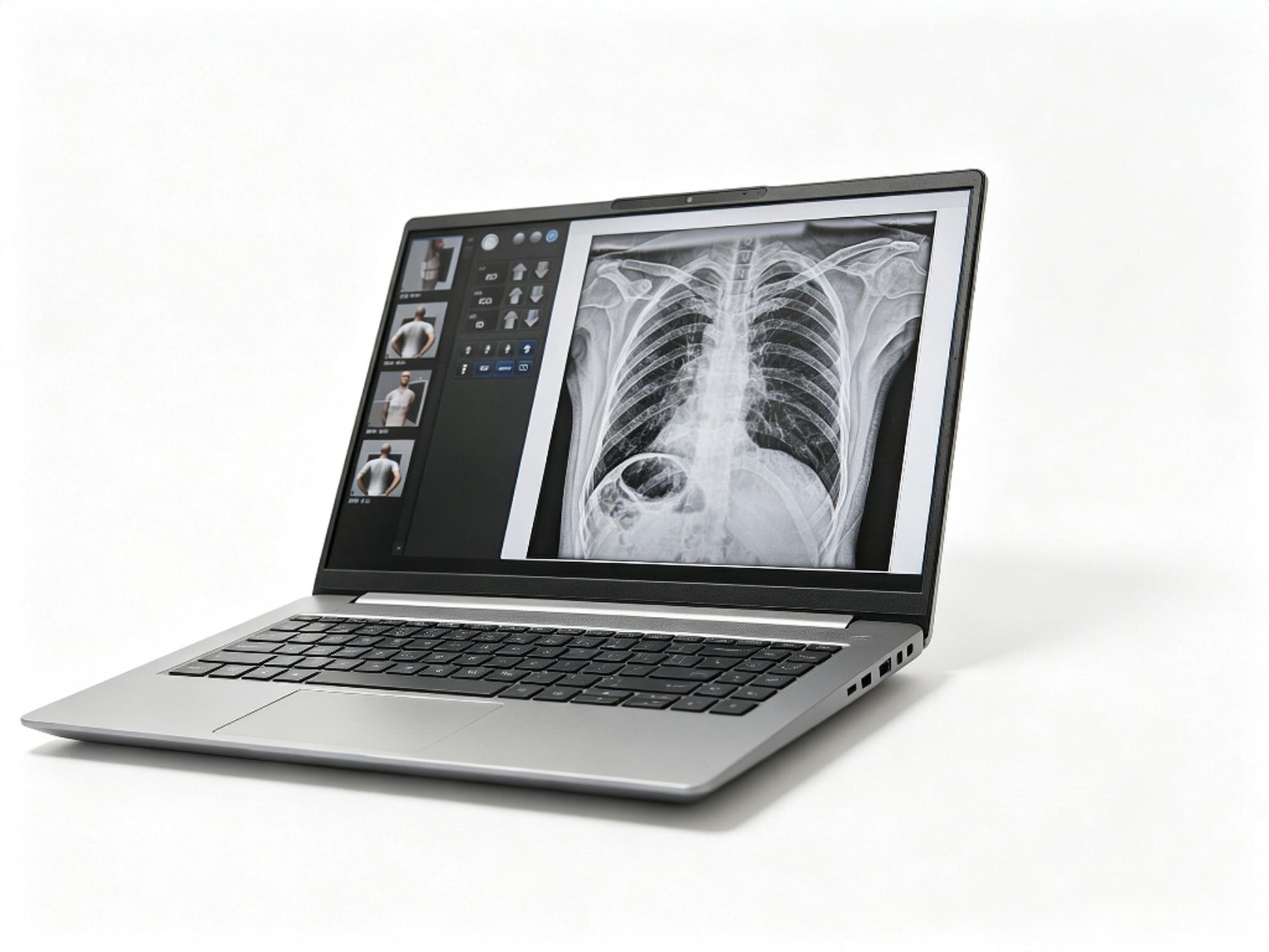

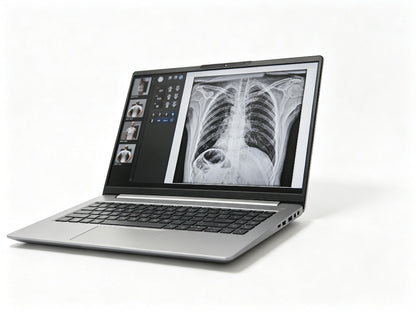

💻 Instant Image Processing & Storage

The integrated computer enables seamless workflow efficiency:

• Instantaneous image display – Images are displayed immediately after capture

• Immediate image processing – Fast processing for rapid diagnosis

• Local and USB device storage – Flexible data management

• Networked archiving and printing – Seamless integration with hospital networks

📦 Highly Portable & Flexible Design

Designed for maximum deployment flexibility:

• Flight case transport – Safe and easy transportation to any location

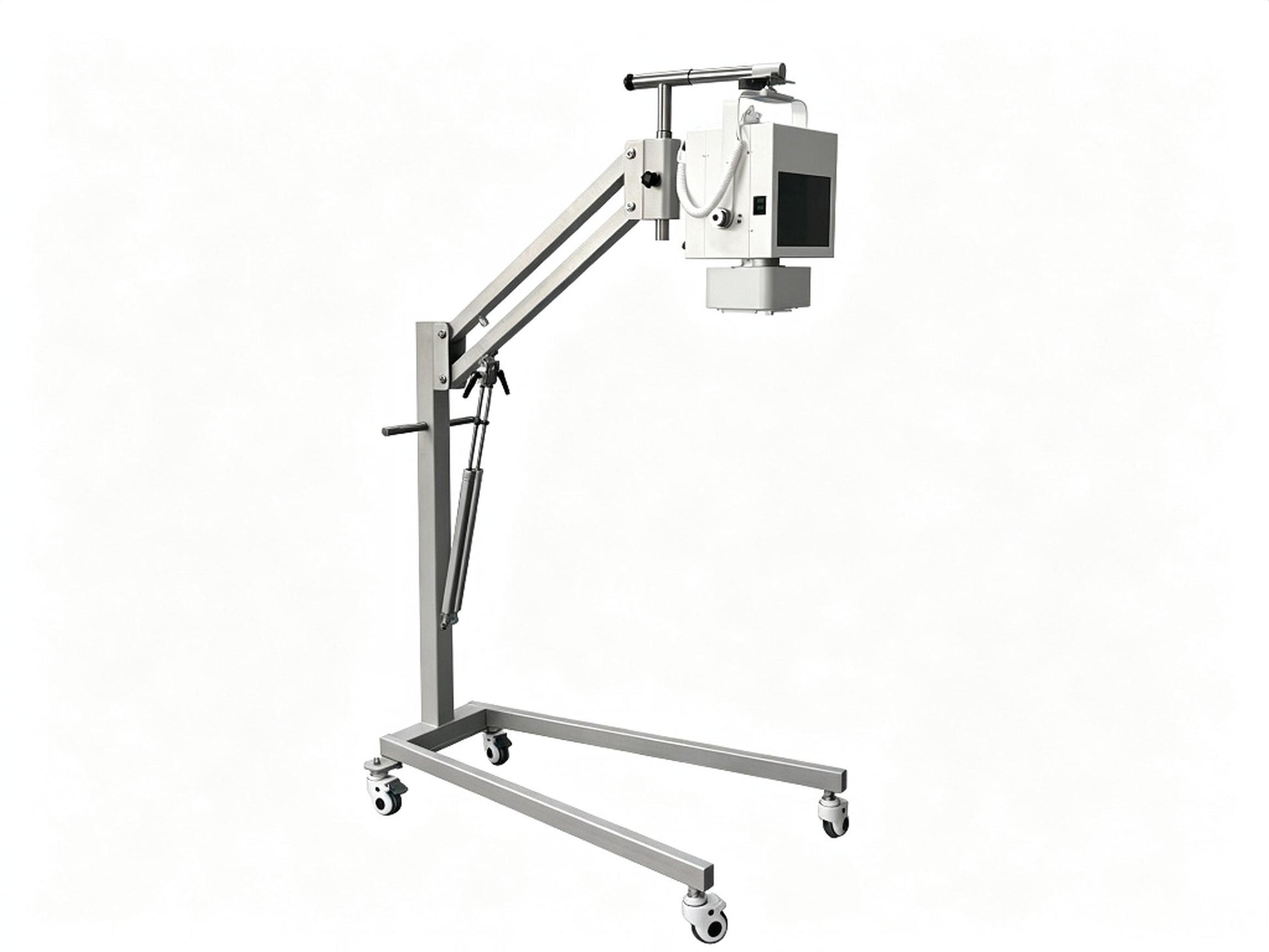

• Free combination – Use with FPD, computer, mobile chest X‑ray stands, and mobile radiography beds

• Versatile applications – Ideal for hospitals, clinics, field hospitals, disaster relief, and veterinary practices

🔧 Technical Specifications

🏥 Wide Clinical Applications

The INP-8KW-B is suitable for a comprehensive range of applications:

• Human Medicine – Chest X‑ray, orthopedic imaging, emergency radiology, mobile ICU imaging, bariatric imaging

• Veterinary Medicine – Companion animal imaging (dogs, cats), large animal imaging (horses, cattle), exotic animal imaging

• Field & Emergency Medicine – Disaster relief, sports medicine, remote clinic imaging

• Mobile Health Services – Community health screenings, nursing home visits, home healthcare

🛠️ Customization & Global Support

The INP-8KW-B comes with comprehensive customization and support options:

• Custom‑make/OEM/ODM – Logo silk‑printing, customized nameplates, color boxes, and packaging cartons

• Global shipping – Delivered to more than 120 countries

• Technical support – Strong engineer and sales team with on‑site measurement, installation, and other services

• Payment terms – T/T, L/C

• Trade terms – EXW, FCA, FOB, C&F/CFR/CNF, CIF/CIP, DDU, DDP

What's Included

• INP-8KW-B Portable X-ray Main Unit

• 8kW High-Frequency Generator

• 14" × 17" Wireless Flat Panel Detector

• Integrated Computer with Imaging Software

• Flight Case for Transport

• Power Cable

• User Manual

• Installation and Training Support

Optional Accessories

• 17" × 17" Flat Panel Detector

• Mobile Chest X-ray Stand

• Mobile Radiography Bed

• Trolley / Cart

• Detector options available upon request

Applications

The INP-8KW-B Portable X-ray Machine is suitable for:

• Hospitals & Clinics – Versatile imaging for radiology, orthopedics, and emergency departments

• Veterinary Practices – Companion and large animal imaging

• Mobile Health Services – Community health screenings and home healthcare

• Field Hospitals – Disaster relief and military medical operations

• Sports Medicine – On‑site injury assessment

• Nursing Homes – Bedside imaging for elderly patients

• Bariatric Imaging – Enhanced power for larger patients

Why Choose the INP-8KW-B?



FAQ

Q: What is the INP-8KW-B Portable X-ray Machine?

A: The INP-8KW-B is a high‑performance digital radiography system designed for both human and veterinary applications, featuring an 8kW high‑frequency generator, a 14" × 17" wireless flat panel detector, and an integrated computer for instant image display and processing.

Q: How does the 8kW model differ from the 5kW model?

A: The INP-8KW-B offers higher power output (8kW vs. 5kW) , higher mAs capacity (400 vs. 200) , extended exposure time (1–6300 ms vs. 1–4000 ms) , and a smaller focus size (0.6/1.2 vs. 1.0/2.0) for finer detail resolution.

Q: Is the system truly portable?

A: Yes. The INP-8KW-B can be packed into a flight case for easy and safe transportation to any location.

Q: What is the image quality?

A: The system delivers high image quality with an 8kW high‑frequency generator, 16‑bit A/D conversion (65,536 grayscale values), 3.4 lp/mm spatial resolution, a 2304 × 2800 pixel matrix, and ≥70% DQE.

Q: Can the system be used for both human and veterinary patients?

A: Yes. The INP-8KW-B is designed for both human and veterinary applications.

Q: What detector size is included?

A: The system comes with a 14" × 17" wireless flat panel detector. A 17" × 17" detector is also available as an option.

Q: Does the system include a computer?

A: Yes. The INP-8KW-B includes an integrated computer that enables instantaneous image display and immediate image processing.

Q: How is image storage handled?

A: Images can be stored locally, on USB devices, or archived over a network.

Q: Can the system be customized?

A: Yes. We accept Custom‑make/OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates, color boxes, and packaging cartons.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty for the machine.
