INP-8KW-C Mobile Digital Radiography System | 8kW Portable X‑ray for Hospitals & Field Use

8kW mobile digital radiography system with high‑frequency generator, wireless 14"x17" FPD, integrated computer, and flight case transport. Ideal for hospitals, ICUs, ORs, and field use.

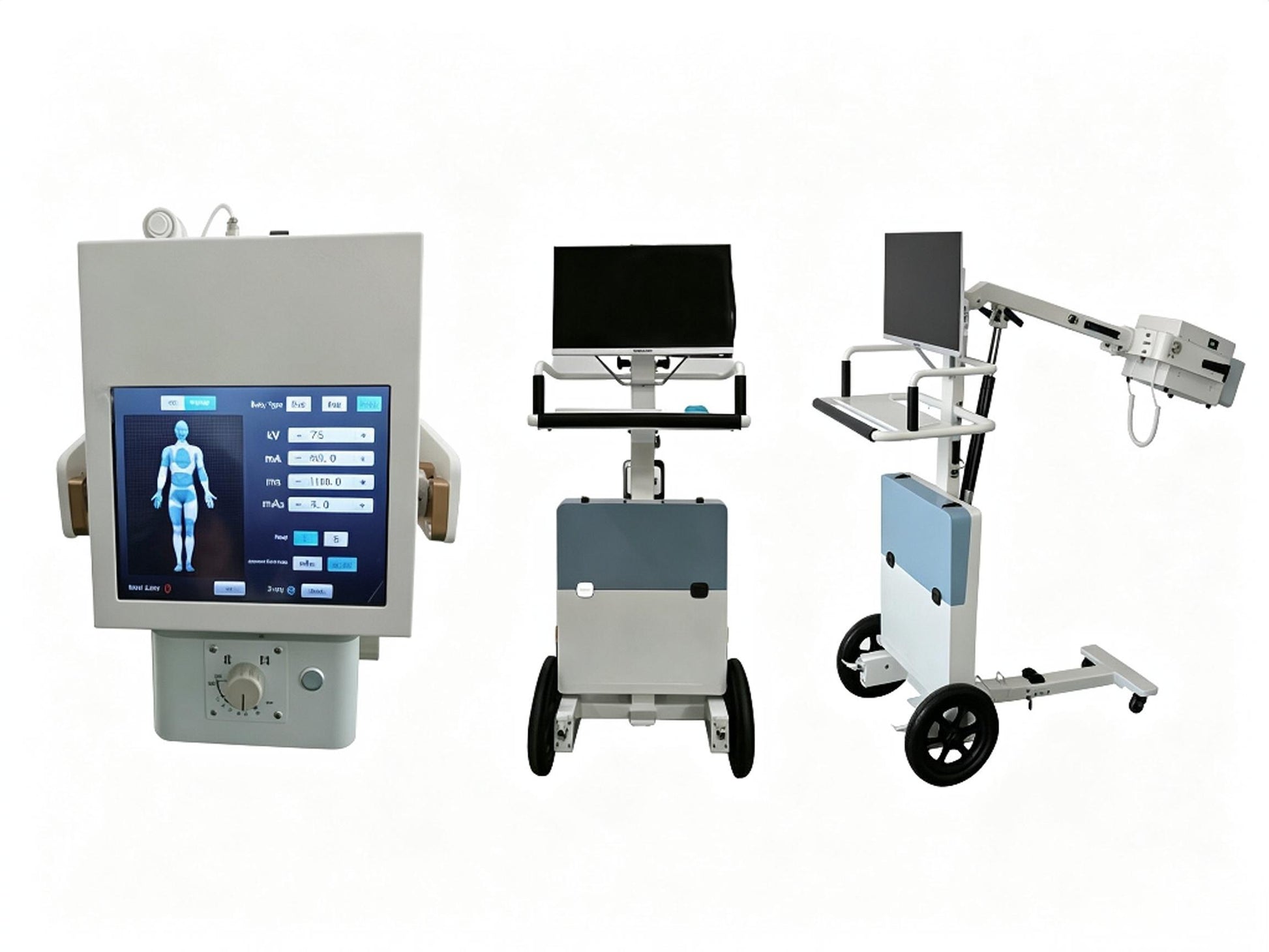

The Global Healthcare Medical INP-8KW-C Mobile Digital Radiography System is a high‑performance, portable X‑ray solution engineered for modern healthcare environments where mobility, power, and image quality are essential. Equipped with a powerful 8kW high‑frequency X‑ray generator supporting up to 120 kV and 140 mA, the INP‑8KW‑C delivers superior image quality for larger patients and more demanding clinical scenarios—from hospital wards and ICUs to operating rooms and remote field locations.

Designed for maximum deployment flexibility, the system can be transported in a flight case for easy relocation anywhere. Its structure and operating design focus on improving positioning speed, reducing operator effort, and enabling smooth multi‑area examinations. The system allows rapid repositioning to support consecutive imaging of the chest and abdomen with minimal interruption. An integrated computer enables instantaneous image display and immediate image processing, with convenient storage options including local and USB device storage, as well as networked archiving and printing.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ Powerful 8kW High‑Frequency Generator

The INP‑8KW‑C is equipped with a high‑frequency 8kW X‑ray generator, supporting up to 120 kV and 140 mA, with an exposure range of 0.2–100 mAs and exposure time of 2–2000 ms. This advanced generator technology ensures stable image performance and consistent diagnostic quality across different clinical conditions.

🖼️ High‑Resolution Digital Imaging with Wireless FPD

The system features a 14″ × 17″ wireless flat panel detector (FPD) with advanced imaging capabilities:

• Amorphous Silicon (a‑Si) with Cesium Iodide (CsI) scintillator for superior image quality

• 2304 × 2800 pixel matrix for exceptional detail

• 3.4 lp/mm spatial resolution – high‑resolution imaging

• 16‑bit A/D conversion – delivering enhanced grayscale depth and improved diagnostic detail

• ≥70% DQE – high detective quantum efficiency for low‑dose imaging

• ≤2 seconds acquisition time – fast image capture

• CsI direct deposition imaging technology, improving image clarity while supporting lower radiation dose requirements

💻 Integrated Computer & Instant Image Processing

The integrated computer enables seamless workflow efficiency:

• Instantaneous image display – Images are displayed immediately after exposure

• Immediate image processing – Fast processing for rapid diagnosis

• Local and USB device storage – Flexible data management

• Networked archiving and printing – Seamless integration with hospital networks

• High‑resolution preview images displayed instantly prior to transmission via standard DICOM communication protocols

📦 Highly Portable & Flexible Design

Designed for maximum deployment flexibility:

• Flight case transport – Safe and easy transportation to any location

• Rapid repositioning – Support consecutive imaging of the chest and abdomen with minimal interruption

• Versatile applications – Ideal for hospitals, clinics, ICUs, operating rooms, and field use

🔧 Intuitive Operation & Workflow Efficiency

The system is designed for ease of use:

• Four omnidirectional swivel casters – Provide stable movement and precise positioning control in any direction

• Rotatable in place – Suitable for confined or high‑density clinical spaces

• Adjustable control panel – Offers both rotation and height adjustment for instant image confirmation from any angle

• Compact structural design and lightweight construction for easy handling during transport and positioning

• Extended reach of the tube head – Supports simplified one‑hand positioning, allowing operators to align the system efficiently during examinations

• Dual‑side hand grips – Allow precise tube head positioning, improving operational efficiency during bedside examinations and polytrauma imaging scenarios

🔌 Comprehensive Connectivity

The system offers comprehensive connectivity options:

• USB external storage devices

• CD/DVD optical storage systems

• Ethernet wired network connection

• Wireless (WiFi) or wired communication modes for flexible deployment in different hospital environments

🔬 Advanced Imaging Features

• Automatic detection system for shooting distance and patient thickness, supporting optimized exposure parameter selection

• Dual control options including hand switch operation and integrated visual control console for flexible exposure triggering

• Simplified exposure control interface designed for fast operation and reduced workflow steps

• 16‑bit analog‑to‑digital conversion system – providing enhanced grayscale depth and improved diagnostic detail

Specifications

What's Included

• INP‑8KW‑C Mobile Digital Radiography System Main Unit

• 8kW High‑Frequency Generator

• 14″ × 17″ Wireless Flat Panel Detector

• Integrated Computer with Imaging Software

• Flight Case for Transport

• Power Cable

• User Manual

• Installation and Training Support

Optional Accessories

• 17″ × 17″ Flat Panel Detector

• Mobile Chest X‑ray Stand

• Mobile Radiography Bed

• Trolley / Cart

Applications

The INP‑8KW‑C Mobile Digital Radiography System is suitable for:

• Hospitals & Clinics – Versatile imaging for radiology, orthopedics, and emergency departments

• Intensive Care Units (ICU) – Bedside imaging for critically ill patients

• Operating Rooms – Intraoperative imaging

• Mobile Health Services – Community health screenings and home healthcare

• Field Hospitals – Disaster relief and military medical operations

• Nursing Homes – Bedside imaging for elderly patients

Why Choose the INP‑8KW‑C?

FAQ

Q: What is the INP‑8KW‑C Mobile Digital Radiography System?

A: The INP‑8KW‑C is a high‑performance, portable X‑ray system featuring an 8kW high‑frequency generator, a 14″ × 17″ wireless flat panel detector, and an integrated computer for instant image display and processing—ideal for hospitals, ICUs, and field use.

Q: How does the 8kW model differ from the 5kW model?

A: The 8kW model provides higher power output (8kW vs. 5kW) , supporting up to 120 kV and 140 mA for superior image quality, especially with larger patients and more demanding clinical scenarios.

Q: Is the system truly portable?

A: Yes. The INP‑8KW‑C can be packed into a flight case for easy and safe transportation to any location.

Q: What is the image quality?

A: The system delivers high image quality with an 8kW high‑frequency generator, 16‑bit A/D conversion (65,536 grayscale values), 3.4 lp/mm spatial resolution, a 2304 × 2800 pixel matrix, and ≥70% DQE.

Q: Does the system include a computer?

A: Yes. The INP‑8KW‑C includes an integrated computer that enables instantaneous image display and immediate image processing.

Q: How is image storage handled?

A: Images can be stored locally, on USB devices, or archived over a network.

Q: What are the key technical specifications?

A: The system features an 8kW generator with 40‑120 kV voltage range, 10‑140 mA current range, 0.2‑100 mAs, and 2‑2000 ms exposure time.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.
