INR-3543 Wired Flat Panel Detector | 14"x17" Digital X‑ray Detector for DR Systems

Wired 14"x17" flat panel detector with 2560×3072 resolution, 139µm pixel pitch, 16‑bit ADC, CsI scintillator, and IP54 rating. Ideal for DR upgrades, table/bucky applications, and general radiography.

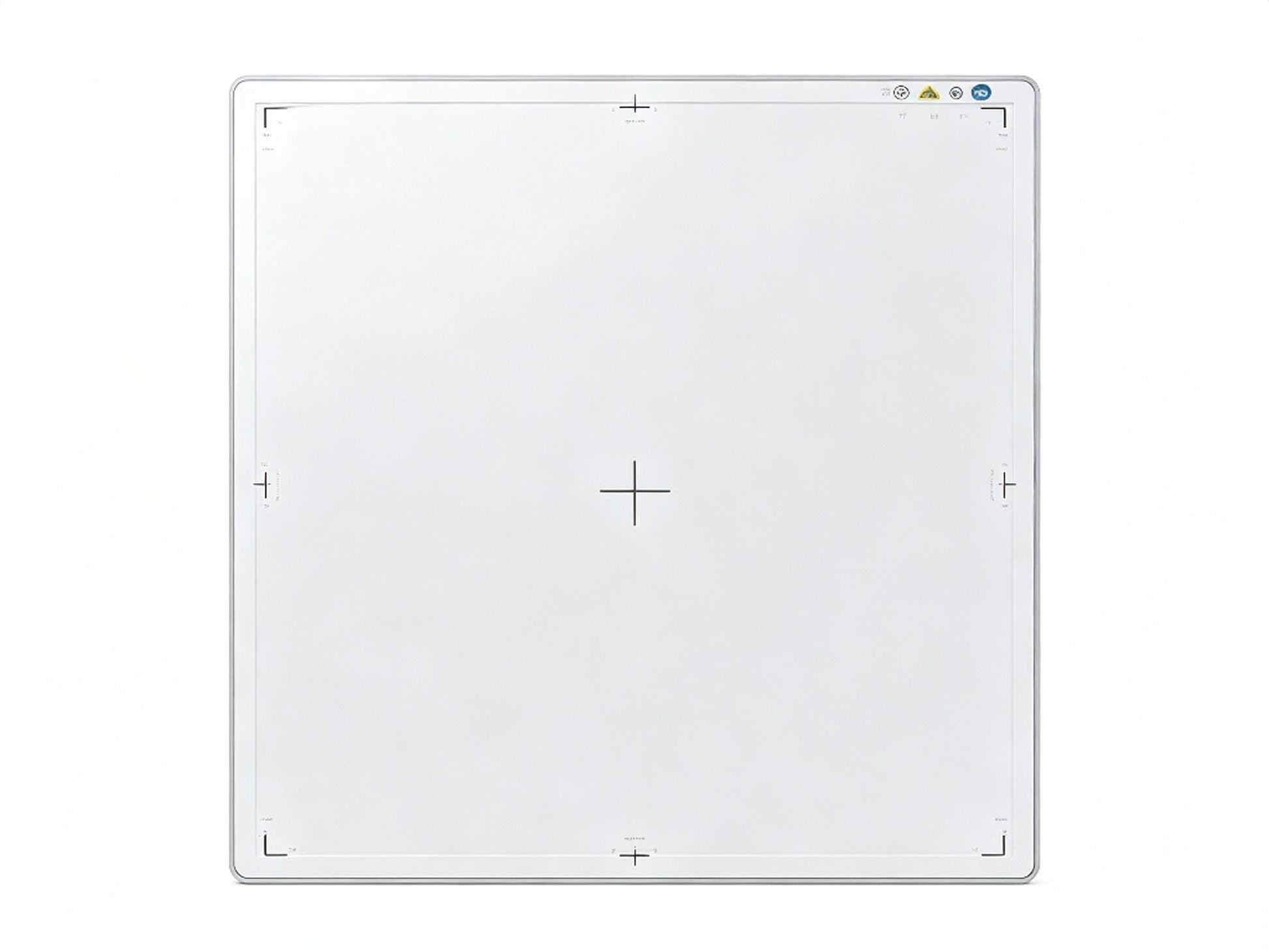

The Global Healthcare Medical INR-3543 Wired Digital Flat Panel Detector is a high‑performance, cassette‑sized X‑ray detector engineered to transform traditional radiographic systems into advanced digital imaging solutions. Featuring a 14" × 17" active area, a 2560 × 3072 pixel matrix with 139 µm pixel pitch, and 16‑bit A/D conversion, this detector delivers exceptional image quality with outstanding spatial resolution and contrast.

Engineered with advanced a‑Si TFT technology and a high‑sensitivity CsI scintillator, the INR-3543 provides superior X‑ray conversion efficiency and a wide dynamic range. Its Gigabit Ethernet connectivity ensures fast, reliable image transmission, while the rugged, lightweight design with IP54 dust and water resistance makes it ideal for demanding clinical environments. Whether for table radiography, bucky stands, or general diagnostic imaging, the INR‑3543 delivers the performance and reliability that modern healthcare demands.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🖼️ High‑Resolution Digital Imaging

The INR-3543 delivers exceptional image quality for confident diagnosis:

• Active area: 350 × 430 mm (14" × 17") – Standard bucky tray compatibility

• Pixel matrix: 2560 × 3072 – Sharp, detailed images

• Pixel pitch: 139 µm – High‑resolution imaging for fine anatomical details

• 16‑bit A/D conversion – Delivers exceptional grayscale depth for detailed anatomical visualization

• Spatial resolution: 3.6 lp/mm – Outstanding image clarity

• Sensor technology: a‑Si TFT with CsI scintillator – Superior sensitivity and dynamic range

🔌 Reliable Wired Connectivity

The INR-3543 offers fast, reliable connectivity for seamless workflow integration:

• Gigabit Ethernet – High‑speed, stable image transmission

• Image acquisition time: ≤1 second – Rapid image capture

• Multiple trigger modes: Software trigger, HVG trigger, AED trigger mode

• Built‑in storage: Embedded storage function allows the detector to function without host storage

💧 Rugged, Durable Design

Built for the demands of busy clinical environments:

• IP54 dust and water resistance rating – Protects against dust and water splashes

• Lightweight construction: 3.0–3.4 kg

• Compact dimensions: 384 × 460 × 15 mm

• Robust housing: Aluminum alloy with carbon fiber panel for superior durability and X‑ray transmission

• Load capacity: 300 kg – Supports patient weight during examinations

⚡ Flexible Power Options

• Standard bucky tray compatibility – Fits standard 14" × 17" bucky trays

• Continuous operation – No battery dependency for uninterrupted use

🖥️ Wide Operating System Compatibility

• Windows 7 and Windows 10 (32‑bit or 64‑bit)

• Easy integration with existing PACS and imaging workstations

🛡️ Applications & Clinical Use

The INR-3543 is indicated for general radiographic diagnosis of human anatomy and is intended to replace radiographic film/screen systems in all general‑purpose diagnostic procedures. It is suitable for:

• General digital radiography – Table, above‑table, and chest stand applications

• Orthopedic imaging – High‑resolution musculoskeletal examinations

• Emergency departments – Rapid trauma and acute care imaging

• DR system upgrades – Transform analog X‑ray systems to digital

• Veterinary imaging – Large‑animal and small‑animal radiography

Specifications

What's Included

• INR‑3543 Wired Digital Flat Panel Detector Main Unit

• Gigabit Ethernet Cable

• Power Adapter

• User Manual

• Calibration Certificate

Applications

The INR‑3543 Wired Digital Flat Panel Detector is suitable for:

• Hospitals & Medical Centers – High‑volume general radiography

• Orthopedic Centers – Musculoskeletal imaging

• Emergency Departments – Rapid trauma and acute care imaging

• Outpatient Imaging Centers – High‑quality diagnostic imaging

• DR System Upgrades – Transform analog X‑ray systems to digital

• Veterinary Clinics – Large‑animal and small‑animal radiography

Why Choose the INR‑3543?

FAQ

Q: What is the INR‑3543 Wired Flat Panel Detector?

A: The INR‑3543 is a cassette‑sized, wired digital X‑ray detector featuring a 14" × 17" active area, 2560 × 3072 pixel resolution, 16‑bit A/D conversion, and a CsI scintillator for high‑quality digital radiography.

Q: What is the image acquisition time?

A: The detector offers ≤1 second for image acquisition via Gigabit Ethernet connection.

Q: Is the detector compatible with standard bucky trays?

A: Yes. The INR‑3543 features a 14" × 17" active area and fits standard bucky trays.

Q: What trigger modes are supported?

A: The detector supports Software trigger, HVG trigger, and AED trigger mode.

Q: What is the weight of the detector?

A: The INR‑3543 weighs approximately 3.0–3.4 kg, making it lightweight and easy to handle.

Q: Is the detector durable?

A: Yes. The detector features an IP54 dust and water resistance rating, a robust aluminum alloy housing, and a carbon fiber sensor protection panel.

Q: Does the detector have onboard storage?

A: Yes. The detector features embedded storage function, allowing it to function without host storage.

Q: What operating systems are supported?

A: The INR‑3543 supports Windows 7 and Windows 10 (32‑bit or 64‑bit).

Q: What is the pixel pitch and matrix?

A: The detector features a 139 µm pixel pitch with a 2560 × 3072 pixel matrix.

Q: What is the load capacity?

A: The detector supports a load capacity of 300 kg, accommodating patient weight during examinations.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.
