INR-3543W Wireless Flat Panel Detector | 14"x17" Digital X‑ray Detector for DR Systems

Wireless 14"x17" flat panel detector with 2560×3072 resolution, 139µm pixel pitch, 16‑bit ADC, CsI scintillator, and IP54 rating. Ideal for DR upgrades, mobile X‑ray, and veterinary imaging.

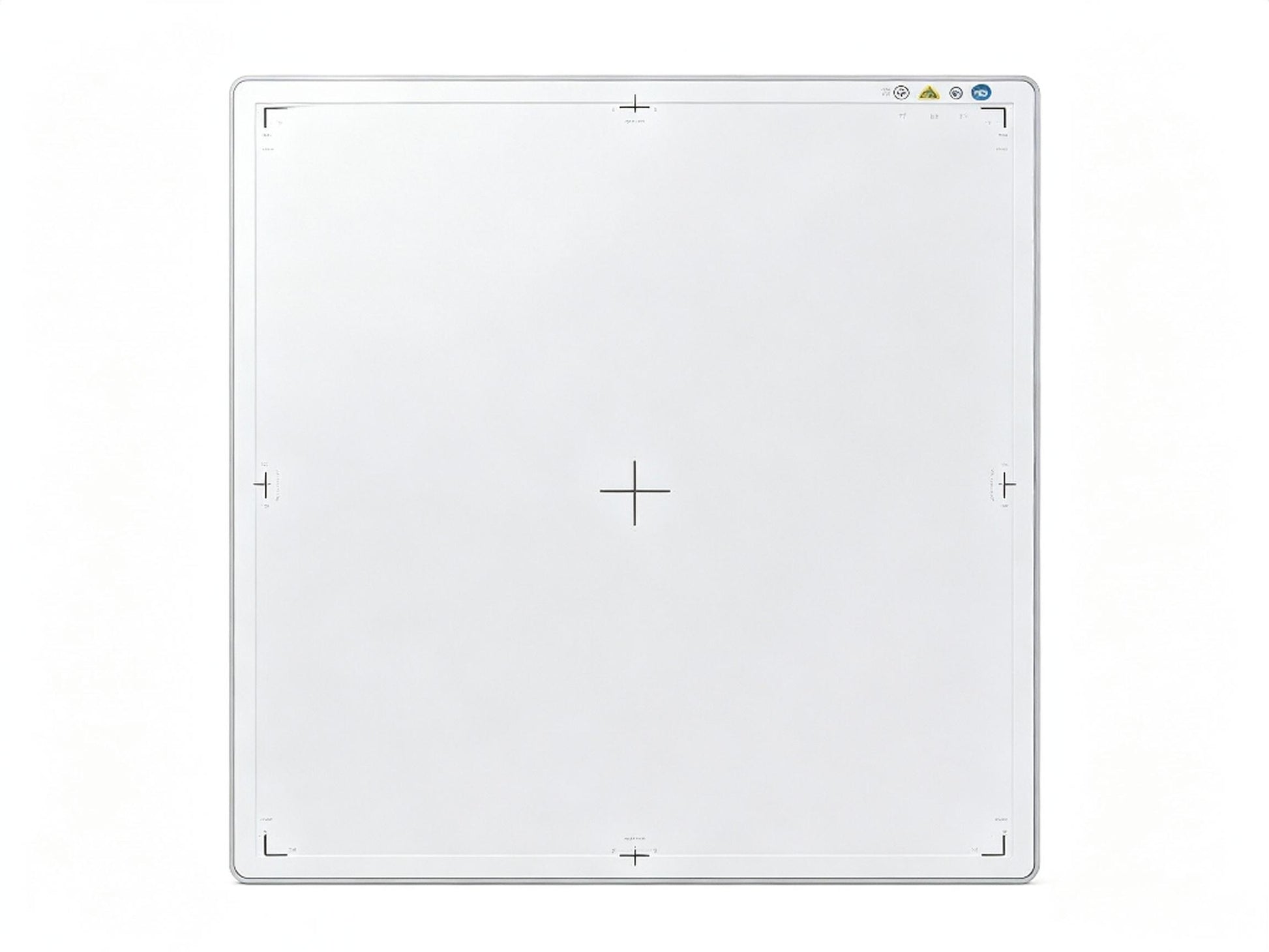

The Global Healthcare Medical INR-3543W Wireless Digital Flat Panel Detector is a cutting‑edge, cassette‑sized X‑ray detector engineered to transform traditional radiographic systems into high‑performance digital imaging solutions. Featuring a 14" × 17" active area, a 2560 × 3072 pixel matrix with 139 µm pixel pitch, and 16‑bit A/D conversion, this detector delivers exceptional image quality with outstanding spatial resolution and contrast.

Engineered with advanced a‑Si TFT technology and a high‑sensitivity CsI scintillator, the INR-3543W provides superior X‑ray conversion efficiency and a wide dynamic range. Its high‑speed wireless connectivity (802.11n/ac) eliminates cable constraints, enabling flexible positioning for table, upright, and mobile applications. With an IP54 dust and water resistance rating, a lightweight 3.0–3.4 kg design, and long‑lasting battery life, this detector is built for the demanding environments of hospitals, clinics, and mobile X‑ray services.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🖼️ High‑Resolution Digital Imaging

The INR-3543W delivers exceptional image quality for confident diagnosis:

• Active area: 350 × 430 mm (14" × 17") – Standard bucky tray compatibility

• Pixel matrix: 2560 × 3072 – Sharp, detailed images

• Pixel pitch: 139 µm – High‑resolution imaging for fine anatomical details

• 16‑bit A/D conversion – Delivers exceptional grayscale depth for detailed anatomical visualization

• Spatial resolution: 3.6 lp/mm – Outstanding image clarity

• Sensor technology: a‑Si TFT with CsI scintillator – Superior sensitivity and dynamic range

• X‑ray voltage range: 40–150 kV

📶 High‑Speed Wireless & Wired Connectivity

The INR-3543W offers flexible connectivity for seamless workflow integration:

• High‑speed wireless: 802.11n / 802.11ac (2.4GHz / 5GHz)

• Image acquisition time: ≈2.5 seconds

• Trigger modes: AED (Automatic Exposure Detection), Software trigger, External trigger

• AED compatibility: Works with virtually any X‑ray system, eliminating the need for complex integration

• Multiple trigger modes ensure seamless integration with existing X‑ray generators

💧 Rugged, Durable Design

Built for the demands of busy clinical environments:

• IP54 dust and water resistance rating – Protects against dust and water splashes

• Lightweight construction: 3.0–3.4 kg

• Compact dimensions: 384 × 460 × 15 mm

• Robust housing: Aluminum alloy with carbon fiber panel for superior durability and X‑ray transmission

• Load capacity: 300 kg

• Power consumption: 20 W

⚡ Long Battery Life & Flexible Power

• Battery life: Up to 8 hours of continuous use

• Standby time: Up to 14 hours

• Online charging feature for continuous use

• Fits standard bucky trays – Compatible with existing 14" × 17" bucky systems

• AC adapter: 100‑240V, 50‑60Hz input; 24V DC output

🖥️ Wide Operating System Compatibility

• Windows 7 and Windows 10 (32‑bit or 64‑bit)

• Easy integration with existing PACS and imaging workstations

🛡️ Applications & Clinical Use

The INR-3543W is indicated for general radiographic diagnosis of human anatomy and is intended to replace radiographic film/screen systems in all general‑purpose diagnostic procedures. It is suitable for:

• General digital radiography – Table, above‑table, and chest stand applications

• Mobile radiography – Bedside and emergency imaging

• Veterinary imaging – Large‑animal and small‑animal radiography

• Orthopedic imaging – Musculoskeletal examinations

• Telemedicine – Remote diagnostic imaging

• DR system upgrades – Transform analog X‑ray systems to digital

🛠️ Customization & Global Support

The INR-3543W comes with comprehensive customization and support options:

• Custom‑make/OEM/ODM – Logo silk‑printing, customized packaging

• Global shipping – Exported to more than 120 countries

• Technical support – Professional sales and engineering support team

• Delivery/Lead time – Approximately 7–30 days

• Warranty – 1 year

Specifications

What's Included

• INR‑3543W Wireless Digital Flat Panel Detector Main Unit

• Rechargeable Battery (long‑lasting)

• Battery Charger / Power Adapter

• Gigabit Ethernet Cable

• User Manual

• Calibration Certificate

Applications

The INR‑3543W Wireless Digital Flat Panel Detector is suitable for:

• Hospitals & Medical Centers – High‑volume general radiography

• Mobile X‑ray Services – Bedside and portable imaging

• Orthopedic Centers – Musculoskeletal imaging

• Emergency Departments – Rapid trauma and acute care imaging

• Veterinary Clinics – Large‑animal and small‑animal radiography

• Outpatient Imaging Centers – High‑quality diagnostic imaging

• DR System Upgrades – Transform analog X‑ray systems to digital

• Telemedicine – Remote diagnostic applications

Why Choose the INR‑3543W?



FAQ

Q: What is the INR‑3543W Wireless Flat Panel Detector?

A: The INR‑3543W is a cassette‑sized, wireless digital X‑ray detector featuring a 14" × 17" active area, 2560 × 3072 pixel resolution, 16‑bit A/D conversion, and a CsI scintillator for high‑quality digital radiography.

Q: What is the image acquisition time?

A: The detector offers approximately 2.5 seconds for image acquisition.

Q: Is the detector compatible with standard bucky trays?

A: Yes. The INR‑3543W features a 14" × 17" active area and fits standard bucky trays.

Q: What trigger modes are supported?

A: The detector supports AED (Automatic Exposure Detection), Software trigger, and External trigger mode. The AED feature makes it compatible with virtually any X‑ray system.

Q: What is the weight of the detector?

A: The INR‑3543W weighs approximately 3.0–3.4 kg, making it lightweight and easy to handle for mobile applications.

Q: Is the detector durable?

A: Yes. The detector features an IP54 dust and water resistance rating, a robust aluminum alloy housing, and a carbon fiber sensor protection panel.

Q: How long does the battery last?

A: The detector provides up to 8 hours of continuous use and up to 14 hours of standby time.

Q: What operating systems are supported?

A: The INR‑3543W supports Windows 7 and Windows 10 (32‑bit or 64‑bit).

Q: What is the pixel pitch and matrix?

A: The detector features a 139 µm pixel pitch with a 2560 × 3072 pixel matrix.

Q: What is the spatial resolution?

A: The detector delivers a spatial resolution of 3.6 lp/mm.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.
