INR-4343 Wired Flat Panel Detector | 17"x17" Digital X‑ray Detector for DR Systems

Wired 17"x17" flat panel detector with 3072×3072 resolution, 140µm pixel pitch, 16‑bit ADC, CsI scintillator, and IP54 rating. Ideal for DR systems, table/bucky applications, and general radiography.

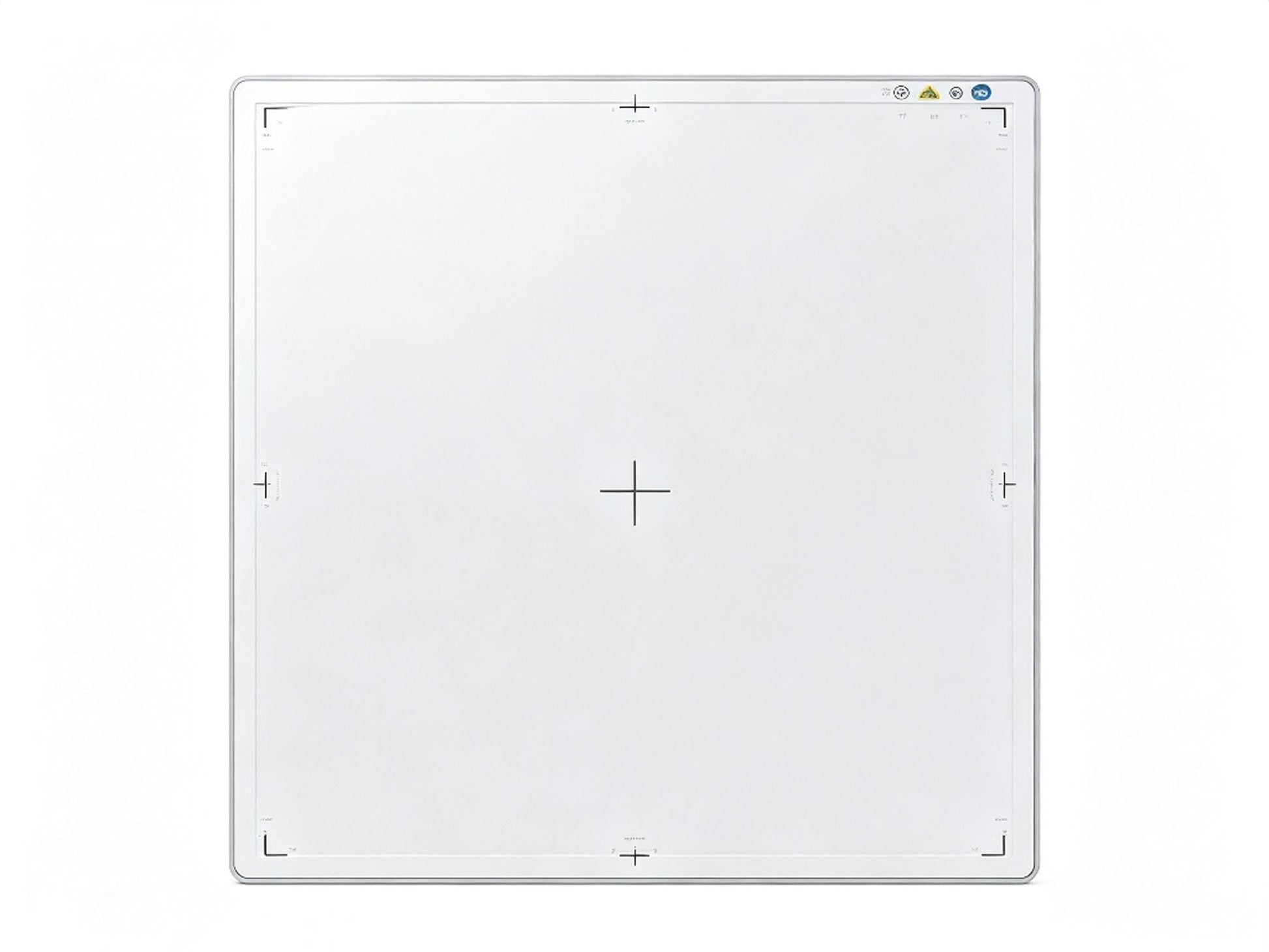

The Global Healthcare Medical INR-4343 Wired Digital Flat Panel Detector is a high‑performance, cassette‑sized X‑ray detector engineered to transform traditional radiographic systems into advanced digital imaging solutions. Featuring a 17" × 17" active area, a 3072 × 3072 pixel matrix with 140 µm pixel pitch, and 16‑bit A/D conversion, this detector delivers exceptional image quality with outstanding spatial resolution and contrast.

Engineered with advanced a‑Si TFT technology and a CsI scintillator, the INR-4343 provides superior sensitivity and a wide dynamic range. Its Gigabit Ethernet connectivity ensures fast, reliable image transmission, while the rugged, lightweight design with IP54 dust and water resistance makes it ideal for demanding clinical environments. Whether for table radiography, bucky stands, or general diagnostic imaging, the INR‑4343 delivers the performance and reliability that modern healthcare demands.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🖼️ High‑Resolution Digital Imaging

The INR‑4343 delivers exceptional image quality for confident diagnosis:

• Active area: 430 mm × 430 mm (17" × 17") – Standard bucky tray compatibility

• Pixel matrix: 3072 × 3072 – Sharp, detailed images

• Pixel pitch: 140 µm – High‑resolution imaging for fine anatomical details

• 16‑bit A/D conversion – Delivers up to 65,536 grayscale values for exceptional image detail

• Sensor technology: a‑Si TFT with CsI scintillator – Superior sensitivity and dynamic range

🔌 Reliable Wired Connectivity

The INR‑4343 offers fast, reliable connectivity for seamless workflow integration:

• Gigabit Ethernet – High‑speed, stable image transmission

• Image acquisition time: ≤1 second – Rapid image capture

• Multiple trigger modes: Software trigger, HVG trigger, AED trigger mode

• Built‑in storage: Embedded storage function allows the detector to function without host storage

💧 Rugged, Durable Design

Built for the demands of busy clinical environments:

• IP54 dust and water resistance rating – Protects against dust and water splashes

• Lightweight construction: 4.0 kg

• Compact dimensions: 460 mm × 460 mm × 15 mm

• Robust housing: Magnesium aluminum alloy with carbon fiber sensor protection

• Carbon fiber front panel for superior durability and X‑ray transmission

⚡ Flexible Power Options

• Standard bucky tray compatibility – Fits standard 17" × 17" bucky trays

• Continuous operation – No battery dependency for uninterrupted use

🖥️ Wide Operating System Compatibility

• Windows 7 and Windows 10 (32‑bit or 64‑bit)

• Easy integration with existing PACS and imaging workstations

🛡️ Applications & Clinical Use

The INR‑4343 is indicated for general radiographic diagnosis of human anatomy and is intended to replace radiographic film/screen systems in all general‑purpose diagnostic procedures. It is suitable for:

• General digital radiography – Table, above‑table, and chest stand applications

• Orthopedic imaging – High‑resolution musculoskeletal examinations

• Emergency departments – Rapid trauma and acute care imaging

• High‑volume imaging centers – Reliable, continuous operation

Specifications

What's Included

• INR‑4343 Wired Digital Flat Panel Detector Main Unit

• Gigabit Ethernet Cable

• Power Adapter

• User Manual

• Calibration Certificate

Applications

The INR‑4343 Wired Digital Flat Panel Detector is suitable for:

• Hospitals & Medical Centers – High‑volume general radiography

• Orthopedic Centers – Musculoskeletal imaging

• Emergency Departments – Rapid trauma and acute care imaging

• Outpatient Imaging Centers – High‑quality diagnostic imaging

• DR System Upgrades – Transform analog X‑ray systems to digital

Why Choose the INR‑4343?

FAQ

Q: What is the INR‑4343 Wired Flat Panel Detector?

A: The INR‑4343 is a cassette‑sized, wired digital X‑ray detector featuring a 17" × 17" active area, 3072 × 3072 pixel resolution, 16‑bit A/D conversion, and a CsI scintillator for high‑quality digital radiography.

Q: What is the image acquisition time?

A: The detector offers ≤1 second for image acquisition via Gigabit Ethernet connection.

Q: Is the detector compatible with standard bucky trays?

A: Yes. The INR‑4343 features a 17" × 17" active area and fits standard bucky trays.

Q: What trigger modes are supported?

A: The detector supports Software trigger, HVG trigger, and AED trigger mode.

Q: What is the weight of the detector?

A: The INR‑4343 weighs 4.0 kg, making it lightweight and easy to handle.

Q: Is the detector durable?

A: Yes. The detector features an IP54 dust and water resistance rating, a robust magnesium aluminum alloy housing, and a carbon fiber sensor protection panel.

Q: Does the detector have onboard storage?

A: Yes. The detector features embedded storage function, allowing it to function without host storage.

Q: What operating systems are supported?

A: The INR‑4343 supports Windows 7 and Windows 10 (32‑bit or 64‑bit).

Q: What is the pixel pitch and matrix?

A: The detector features a 140 µm pixel pitch with a 3072 × 3072 pixel matrix.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.
