INR-4343W Wireless Flat Panel Detector | 17"x17" Digital X‑ray Detector for DR Systems

Wireless 17"x17" flat panel detector with 3072×3072 resolution, 140µm pixel pitch, IP54 rating, and 5GHz Wi‑Fi. Ideal for digital radiography, mobile X‑ray, and veterinary imaging.

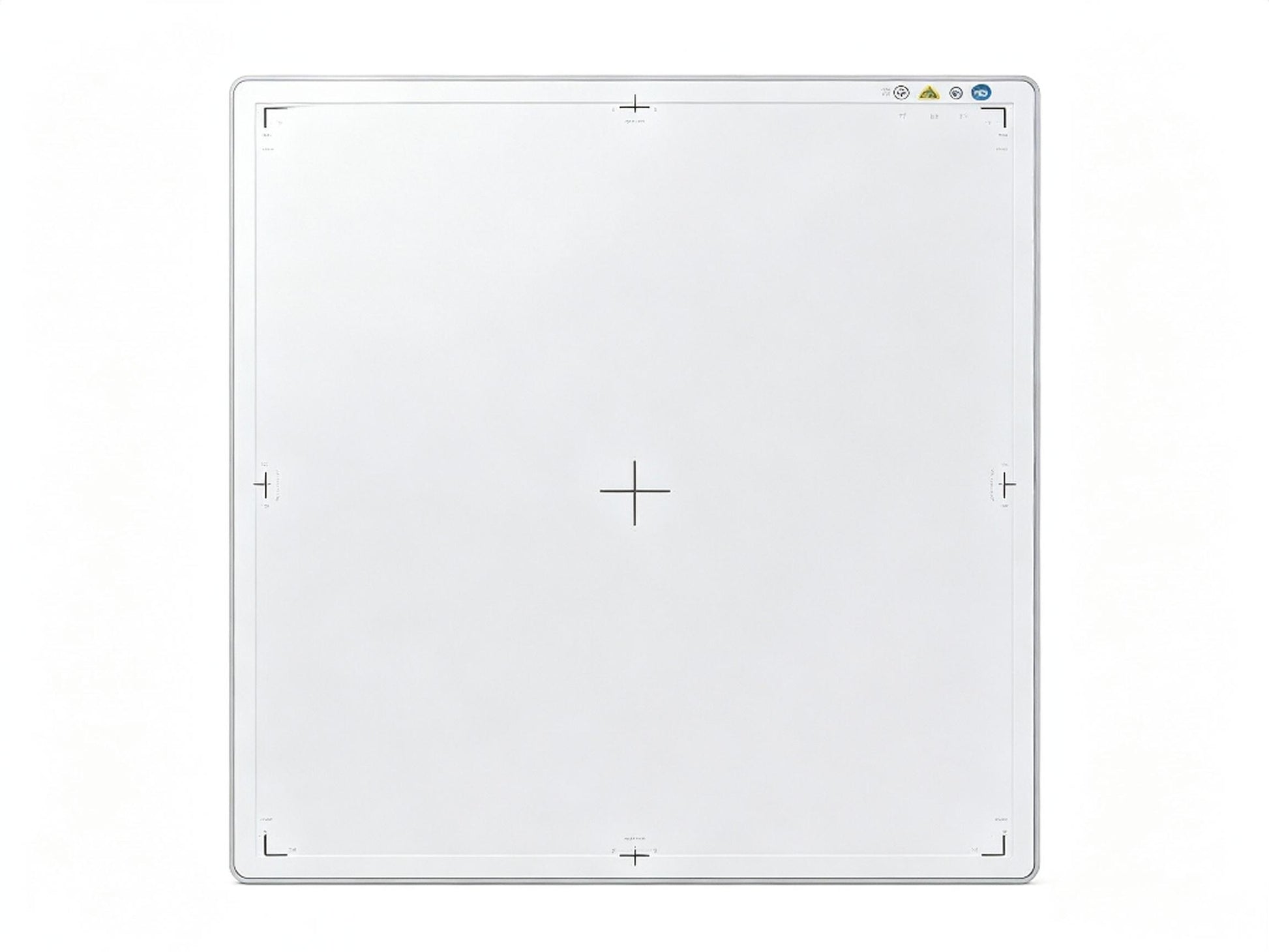

The Global Healthcare Medical INR-4343W Wireless Digital Flat Panel Detector is a state‑of‑the‑art, cassette‑sized X‑ray detector designed to transform traditional radiographic systems into high‑performance digital imaging solutions. Featuring a 17" × 17" active area, a 3072 × 3072 pixel matrix with 140 µm pixel pitch, and 16‑bit A/D conversion, this detector delivers exceptional image quality with outstanding spatial resolution and contrast.

Engineered with advanced a‑Si TFT technology and a CsI scintillator, the INR‑4343W provides superior sensitivity and high dynamic range. Its high‑speed wireless connectivity (802.11a/b/g/n/ac with 2x2 MIMO) eliminates cable constraints, enabling flexible positioning for table, upright, and mobile applications. With an IP54 dust and water resistance rating, a lightweight 4.0 kg design, and long‑lasting battery life, this detector is built for the demanding environments of hospitals, clinics, and mobile X‑ray services.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🖼️ High‑Resolution Digital Imaging

The INR‑4343W delivers exceptional image quality for confident diagnosis:

• Active area: 430 mm × 430 mm (17" × 17") – Standard bucky tray compatibility

• Pixel matrix: 3072 × 3072 – Sharp, detailed images

• Pixel pitch: 140 µm – High‑resolution imaging for fine anatomical details

• 16‑bit A/D conversion – Delivers up to 65,536 grayscale values for exceptional image detail

• Sensor technology: a‑Si TFT with CsI scintillator – Superior sensitivity and dynamic range

📶 High‑Speed Wireless & Wired Connectivity

The INR‑4343W offers flexible connectivity for seamless workflow integration:

• High‑speed wireless: IEEE 802.11a/b/g/n/ac with 2x2 MIMO (2.4G / 5G)

• Wired connection: Gigabit Ethernet

• Image acquisition time: ≤2 seconds (wireless) / ≤1 second (Gigabit Ethernet)

• Multiple trigger modes: Software trigger, HVG trigger, AED trigger mode

• Built‑in storage: Embedded storage function allows the detector to function without host storage

💧 Rugged, Durable Design

Built for the demands of busy clinical environments:

• IP54 dust and water resistance rating – Protects against dust and water splashes

• Lightweight construction: 4.0 kg

• Compact dimensions: 460 mm × 460 mm × 15 mm

• Robust housing: Magnesium aluminum alloy with carbon fiber sensor protection

• Carbon fiber front panel for superior durability and X‑ray transmission

⚡ Long Battery Life & Flexible Power

• Long‑lasting battery for extended field operations

• Online charging feature for continuous use

• Standard bucky tray compatibility – Fits standard 17" × 17" bucky trays

🖥️ Wide Operating System Compatibility

• Windows 7 and Windows 10 (32‑bit or 64‑bit)

• Easy integration with existing PACS and imaging workstations

🛡️ Applications & Clinical Use

The INR‑4343W is indicated for general radiographic diagnosis of human anatomy and is intended to replace radiographic film/screen systems in all general‑purpose diagnostic procedures. It is suitable for:

• General digital radiography – Table, above‑table, and chest stand applications

• Mobile radiography – Bedside and emergency imaging

• Veterinary imaging – Large‑animal radiography

• Telemedicine – Remote diagnostic imaging

🛠️ Customization & Global Support

The INR‑4343W comes with comprehensive customization and support options:

• Custom‑make/OEM/ODM – Logo silk‑printing, customized packaging

• Global shipping – Exported to more than 120 countries

• Technical support – Professional sales and engineering support team

• Delivery/Lead time – Approximately 7–30 days

• Warranty – 1 year

Specifications

What's Included

• INR‑4343W Wireless Digital Flat Panel Detector Main Unit

• Gigabit Ethernet Cable

• Battery (Long‑lasting, rechargeable)

• Power Adapter

• User Manual

• Calibration Certificate

Applications

The INR‑4343W Wireless Digital Flat Panel Detector is suitable for:

• Hospitals & Medical Centers – High‑volume general radiography

• Mobile X‑ray Services – Bedside and portable imaging

• Orthopedic Centers – Musculoskeletal imaging

• Emergency Departments – Rapid trauma and acute care imaging

• Veterinary Clinics – Large‑animal radiography

• Outpatient Imaging Centers – High‑quality diagnostic imaging

• Telemedicine – Remote diagnostic applications

Why Choose the INR‑4343W?

FAQ

Q: What is the INR‑4343W Wireless Flat Panel Detector?

A: The INR‑4343W is a cassette‑sized, wireless digital X‑ray detector featuring a 17" × 17" active area, 3072 × 3072 pixel resolution, and 16‑bit A/D conversion for high‑quality digital radiography.

Q: What is the image acquisition time?

A: The detector offers ≤2 seconds for wireless image acquisition and ≤1 second when using the Gigabit Ethernet connection.

Q: Is the detector compatible with standard bucky trays?

A: Yes. The INR‑4343W features a 17" × 17" active area and fits standard bucky trays.

Q: What trigger modes are supported?

A: The detector supports Software trigger, HVG trigger, and AED trigger mode.

Q: What is the weight of the detector?

A: The INR‑4343W weighs 4.0 kg, making it lightweight and easy to handle for mobile applications.

Q: Is the detector durable?

A: Yes. The detector features an IP54 dust and water resistance rating, a robust magnesium aluminum alloy housing, and a carbon fiber sensor protection panel.

Q: Does the detector have onboard storage?

A: Yes. The detector features embedded storage function, allowing it to function without host storage.

Q: What operating systems are supported?

A: The INR‑4343W supports Windows 7 and Windows 10 (32‑bit or 64‑bit).

Q: What is the pixel pitch and matrix?

A: The detector features a 140 µm pixel pitch with a 3072 × 3072 pixel matrix.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.
