INS-65KW Ceiling-mounted DR System | 65kW Digital Radiography with Auto-Tracking

65kW ceiling‑mounted DR system with 17"x17" FPD, 3.6 lp/mm resolution, motorized auto‑tracking, 3‑position preset, and intelligent image processing. Ideal for hospitals, orthopedic centers, and high‑volume imaging facilities.

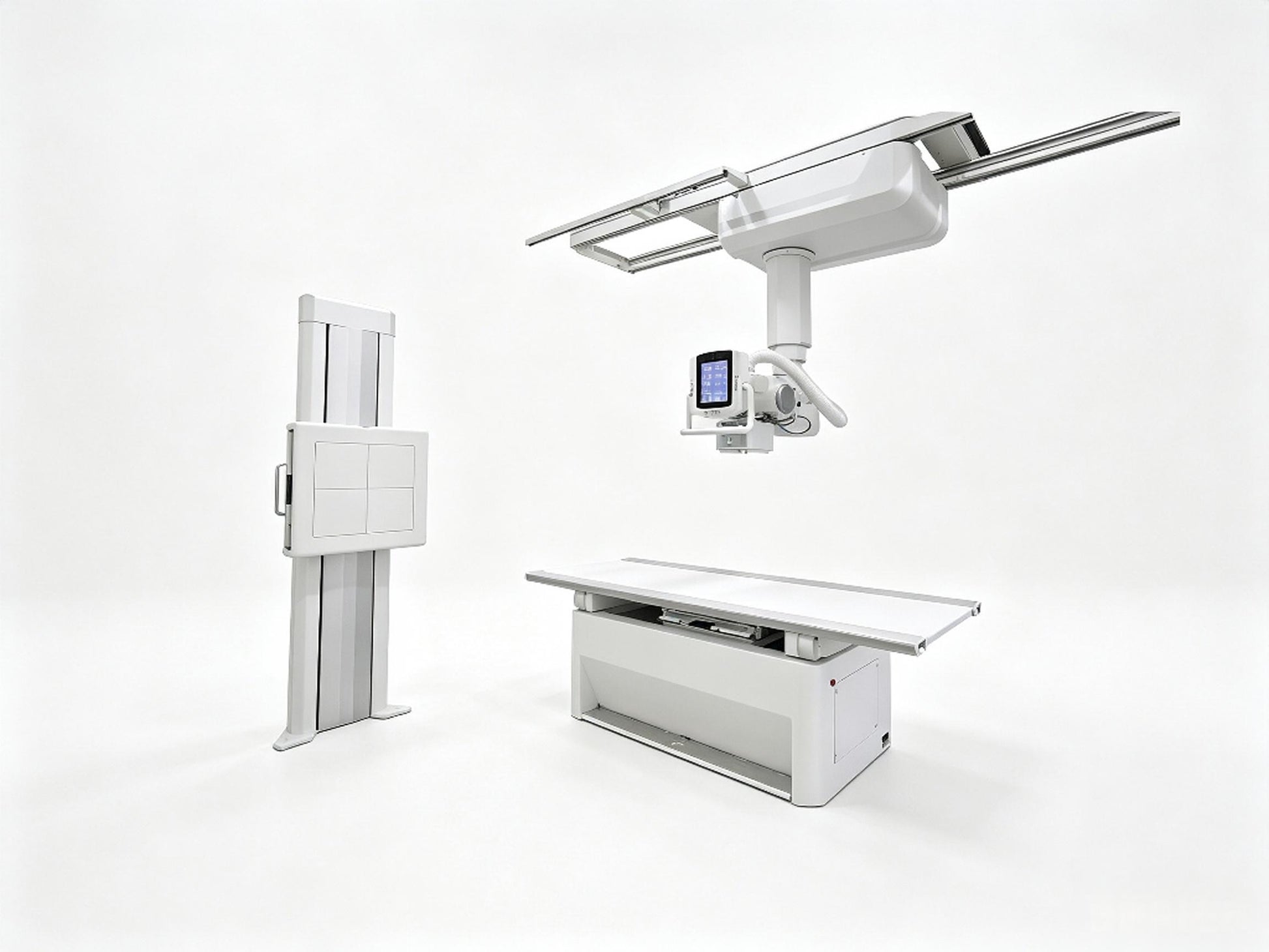

The Global Healthcare Medical INS-65KW Ceiling-mounted Digital Radiography System is a high‑performance, ceiling‑suspended X‑ray solution engineered for high‑volume clinical environments where workflow efficiency, image quality, and patient throughput are paramount. Featuring a powerful 65kW high‑frequency generator and a 17" × 17" flat panel detector with 3.6 lp/mm spatial resolution and 3072 × 3072 pixel matrix, this system delivers exceptional diagnostic image quality for a wide range of clinical applications.

What sets the INS‑65KW apart is its motorized auto‑tracking capability—the tube and Bucky unit automatically synchronize movement for precise positioning. With up to 3 preset positions for one‑touch recall, technicians can instantly move the system to frequently used positions, significantly reducing setup time and accelerating exam workflow. Whether for orthopedic departments, health check centers, or busy radiology clinics, the INS‑65KW delivers the power, automation, and workflow efficiency that modern healthcare demands.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🚀 Motorized Auto‑Tracking for Seamless Positioning

The INS‑65KW features motorized auto‑tracking that automatically synchronizes the tube and Bucky unit:

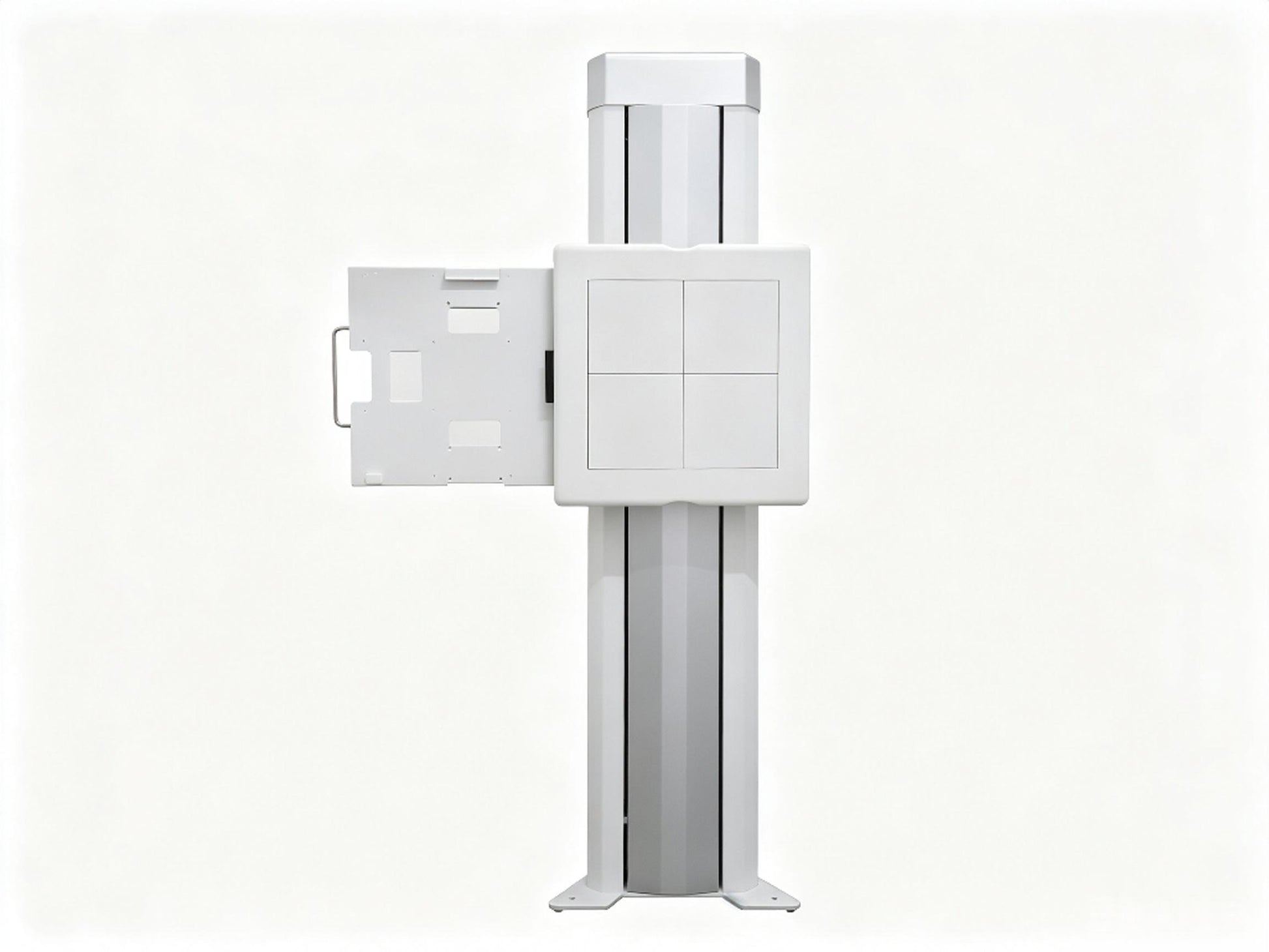

• Upright auto‑tracking – When adjusting the tube vertically, the Bucky automatically follows with precision accuracy of ±2mm in an upright direction

• Table auto‑tracking – When the ceiling unit moves up and down, the tabletop follows suit; when the Bucky under the table moves left and right, the ceiling unit tracks accordingly

• Effortless positioning – Eliminates manual adjustments, reduces technician fatigue, and accelerates exam workflow

⚡ 3‑Position Preset for One‑Touch Workflow

The system allows users to preset up to 3 positions on the machine:

• One‑touch recall – Press the three resetting keys, and the system moves to the preset positions

• Typical presets – 1m position, 1.8m position, and under‑table position

• Consistent reproducibility – Ensures consistent positioning across multiple patients and operators

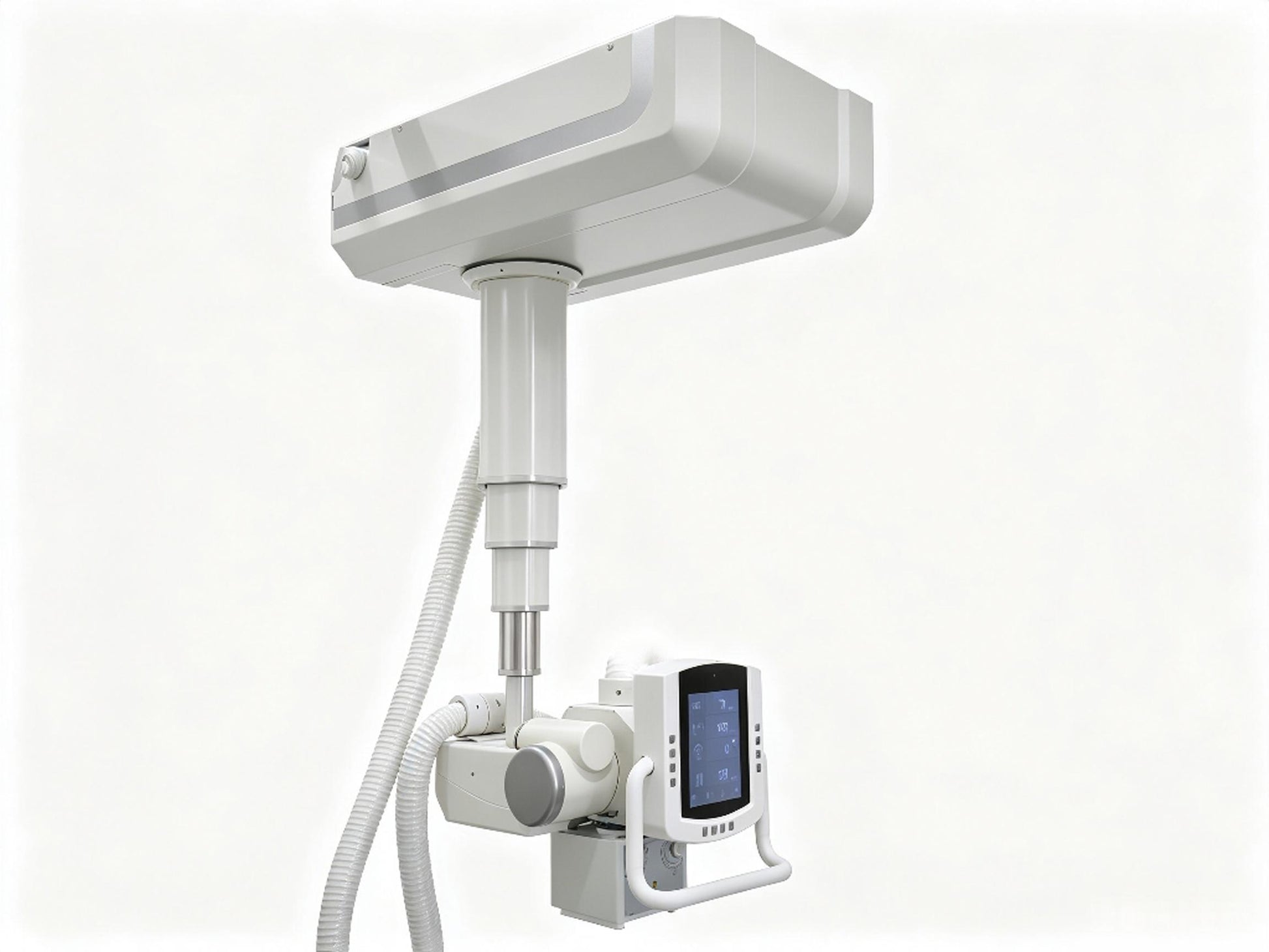

🏛️ Ceiling‑Mounted Design – Maximum Flexibility, Minimal Floor Space

The INS‑65KW features a ceiling‑suspended design that eliminates floor obstructions and maximizes room flexibility. The system offers extensive motorized travel:

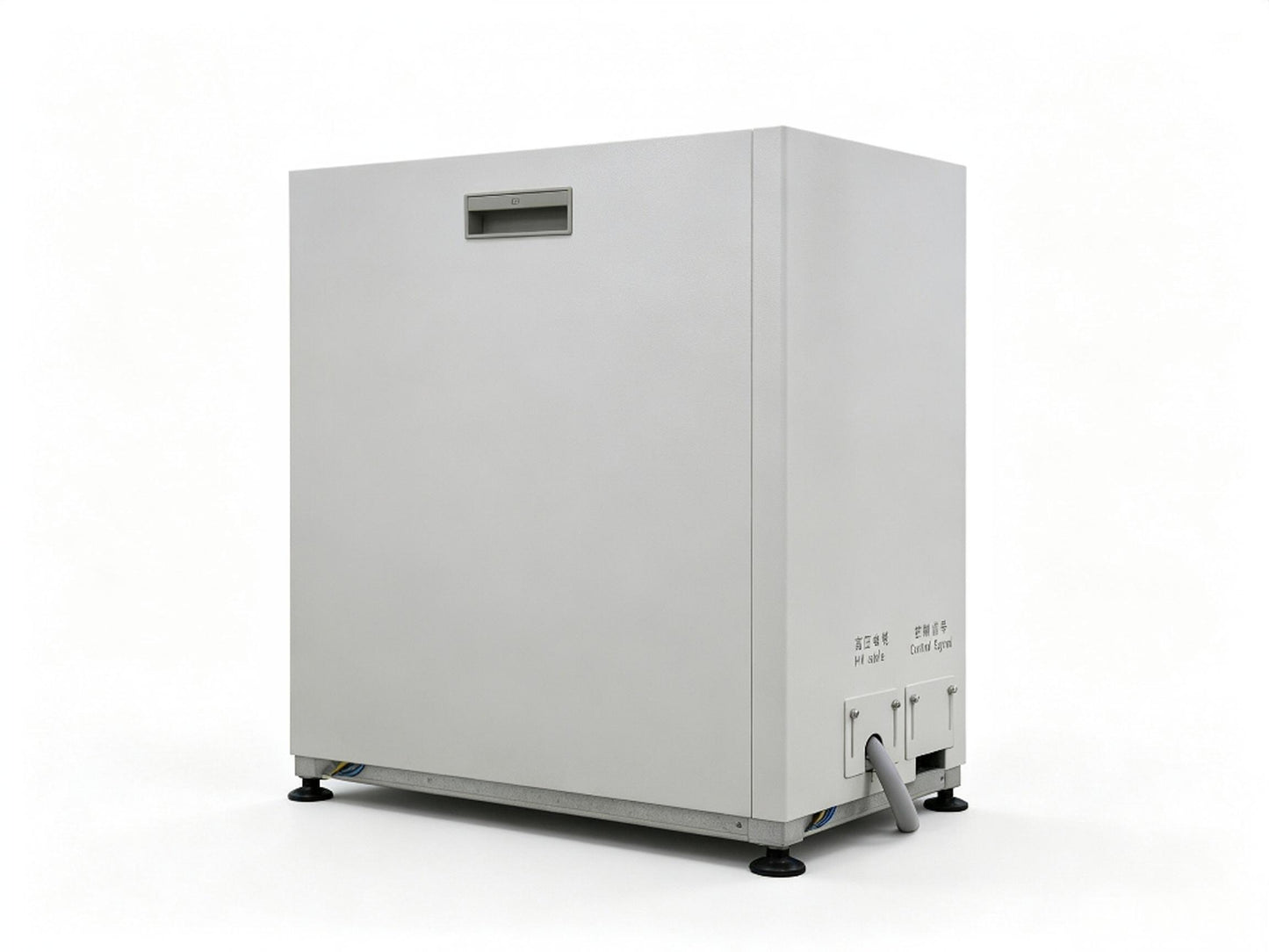

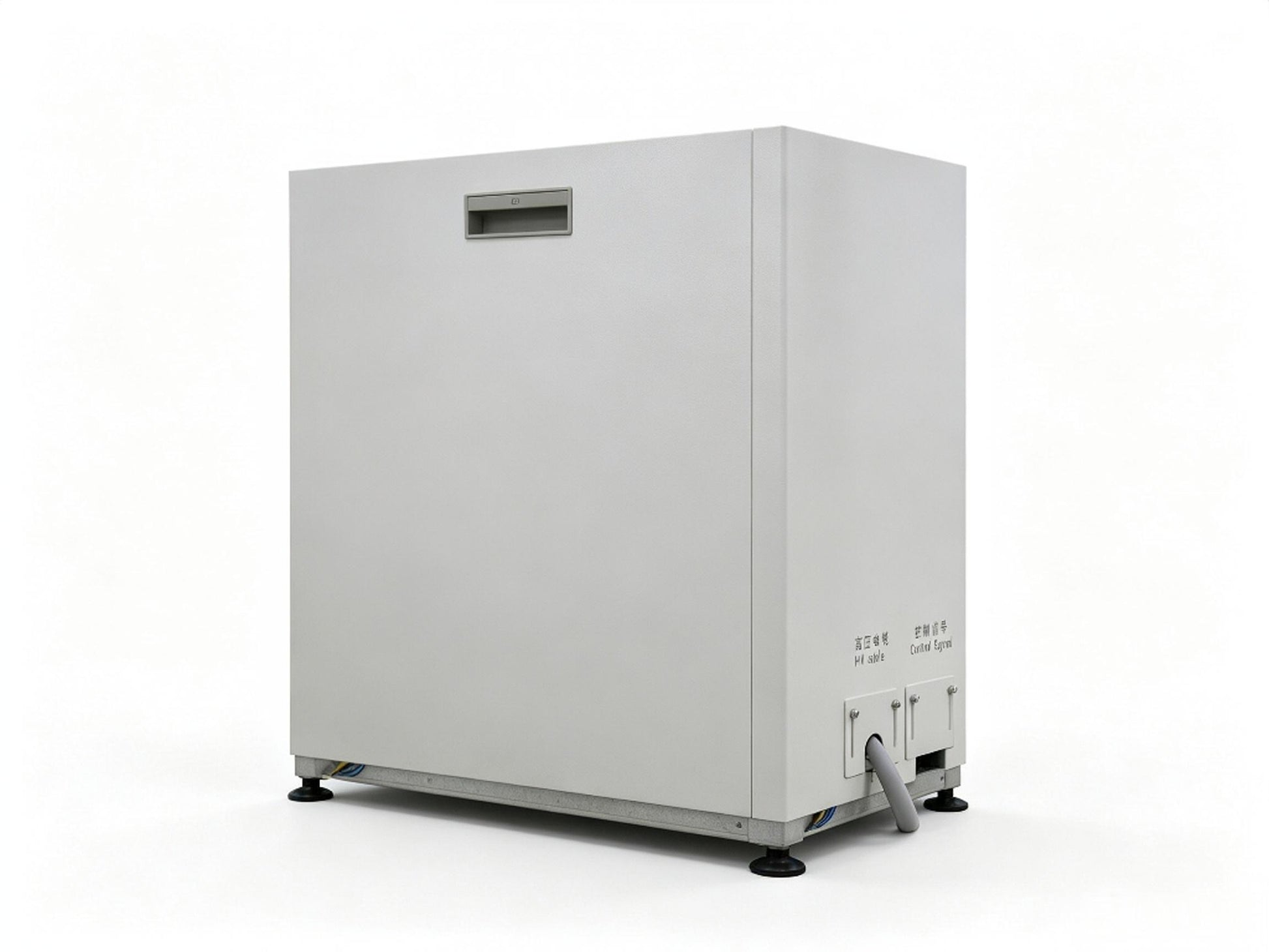

⚡ Powerful 65kW High‑Frequency Generator

The INS‑65KW is equipped with a 65kW high‑frequency generator providing robust output for consistent image quality. With a voltage range of 40‑150kV and current range of 10‑800mA, this system delivers exceptional imaging performance for a wide range of patient sizes and anatomical regions.

📊 High‑Resolution Digital Imaging

The INS‑65KW delivers exceptional image quality with:

• Flat panel detector – 17" × 17" size for comprehensive imaging coverage

• 16‑bit A/D conversion – Delivers up to 65,536 grayscale values for exceptional image detail

• 3.6 lp/mm spatial resolution – High‑resolution imaging for fine anatomical details

• 3072 × 3072 pixel matrix – Sharp, detailed images for confident diagnosis

🖼️ Intelligent Image Processing

The INS‑65KW features an intelligent algorithm for high‑resolution images:

• Image enhancement, balance, and noise reduction – Superior image quality

• Automatic or manual gray scale adjustment – Flexible image optimization

• Specific screening program for pneumoconiosis – Specialized imaging for occupational lung disease screening

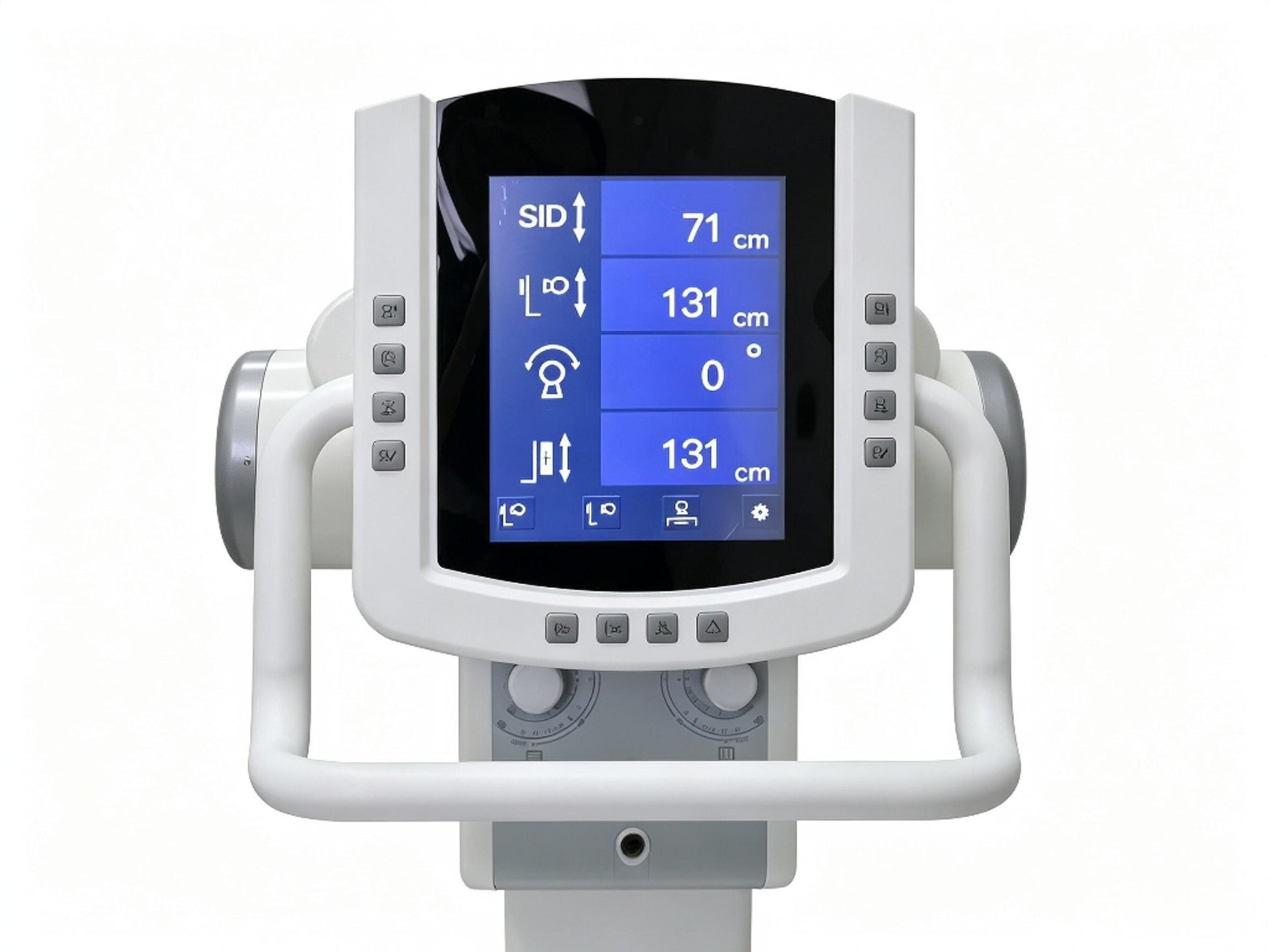

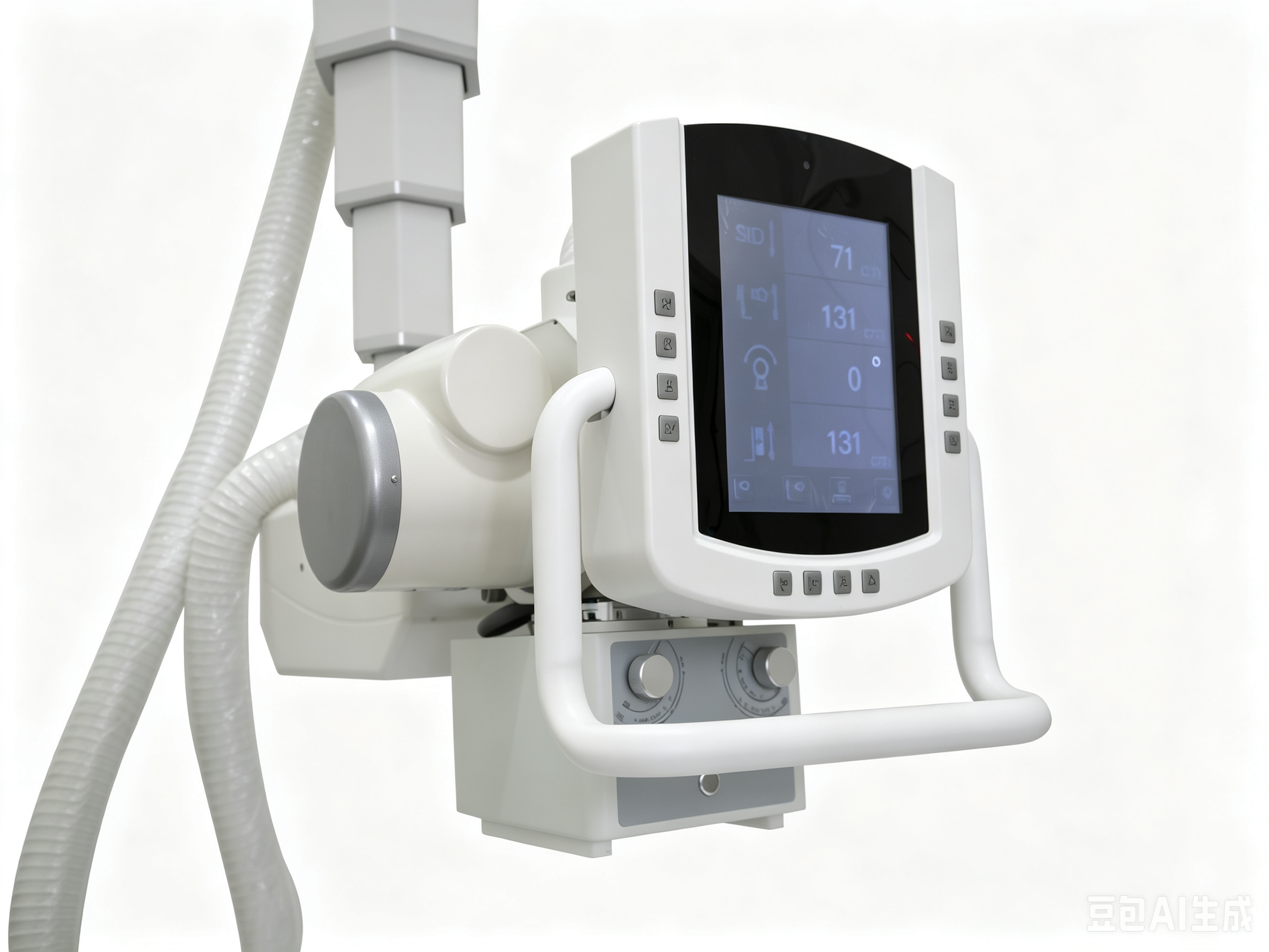

🖥️ Large Screen Display

The system is equipped with a 9.7‑inch LCD screen that displays real‑time values of SID and angle, providing instant feedback for precise positioning.

🛠️ Customization & Global Support

The INS‑65KW comes with comprehensive customization and support options:

• Custom‑make/OEM/ODM – Logo silk‑printing, customized nameplates, color boxes, and packaging cartons

• Global shipping – Exported to more than 120 countries with 11 years of experience

• Technical support – 10‑member sales service team, on‑site measurement and installation

• Delivery/Lead time – Approximately 7–30 days

• Warranty – 1 year for machine

• Training – On‑site installation and training for CT and MRI; online training for other equipment

Specifications

What's Included

• INS‑65KW Ceiling‑mounted Digital Radiography System Main Unit

• 65kW High‑Frequency Generator

• 17" × 17" Flat Panel Detector

• Ceiling‑mounted Tube Crane with Motorized Travel

• Motorized Auto‑Tracking System

• 3‑Position Preset Control

• 9.7‑inch LCD Display (real‑time SID and angle values)

• Collimator

• PC Workstation

• Monitor

• Image Processing Software (Intelligent Algorithm for High‑Resolution Image)

• Grid

• Power Cable

• User Manual

• Installation and Training Support

Applications

The INS‑65KW Ceiling‑mounted Digital Radiography System is suitable for:

• Hospitals & Medical Centers – High‑volume general radiography

• Orthopedic Departments – Weight‑bearing extremity imaging and trauma exams

• Health Check Centers – Routine health screening and physical examinations

• Outpatient Clinics – Versatile imaging for diverse patient populations

• Emergency Departments – Rapid trauma and acute care imaging

• Pneumoconiosis Screening – Specialized program for occupational lung disease screening

• Radiology Departments – High‑throughput diagnostic imaging

Why Choose the INS‑65KW?



FAQ

Q: What is the INS‑65KW Ceiling‑mounted Digital Radiography System?

A: The INS‑65KW is a high‑performance, ceiling‑suspended digital X‑ray system designed for high‑volume clinical environments, featuring a 65kW generator, 17" × 17" flat panel detector, motorized auto‑tracking, and 3‑position preset for automated workflow.

Q: What is the auto‑tracking feature?

A: The system features motorized auto‑tracking that automatically synchronizes the tube and Bucky unit. When adjusting the tube vertically, the Bucky follows with ±2mm accuracy in an upright direction. When the ceiling unit moves, the tabletop follows, and vice versa.

Q: What are the preset positions?

A: Users can preset up to 3 positions on the machine. Typical presets include 1m position, 1.8m position, and under‑table position. Pressing a single key moves the system to the preset position.

Q: What is the power output of the generator?

A: The system is equipped with a 65kW high‑frequency generator with a voltage range of 40‑150kV and current range of 10‑800mA.

Q: What is the detector size and resolution?

A: The system features a 17" × 17" flat panel detector with 3.6 lp/mm spatial resolution, 16‑bit A/D conversion, and a 3072 × 3072 pixel matrix.

Q: What is the travel range?

A: The system offers 1450mm ± 20mm up/down stroke (motorized) and >1800mm transversal and lengthways strokes (motorized). Tube rotation is 360° vertically (manual) and ±90° horizontally (motorized).

Q: What display does the system have?

A: The system features a 9.7‑inch LCD screen that displays real‑time values of SID and angle.

Q: Does the system have specialized imaging programs?

A: Yes. The system features an intelligent algorithm for high‑resolution images with a specific screening program for pneumoconiosis.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.

Q: Can the system be customized?

A: Yes. We accept OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates and packaging.
