INU-32KW U-arm DR System | Space‑Saving Digital Radiography for Clinics & Hospitals

32kW U‑arm digital radiography system with 17"x17" FPD, 3.6 lp/mm resolution, and versatile upright/seated/supine imaging. Ideal for clinics, orthopedic centers, and emergency departments.

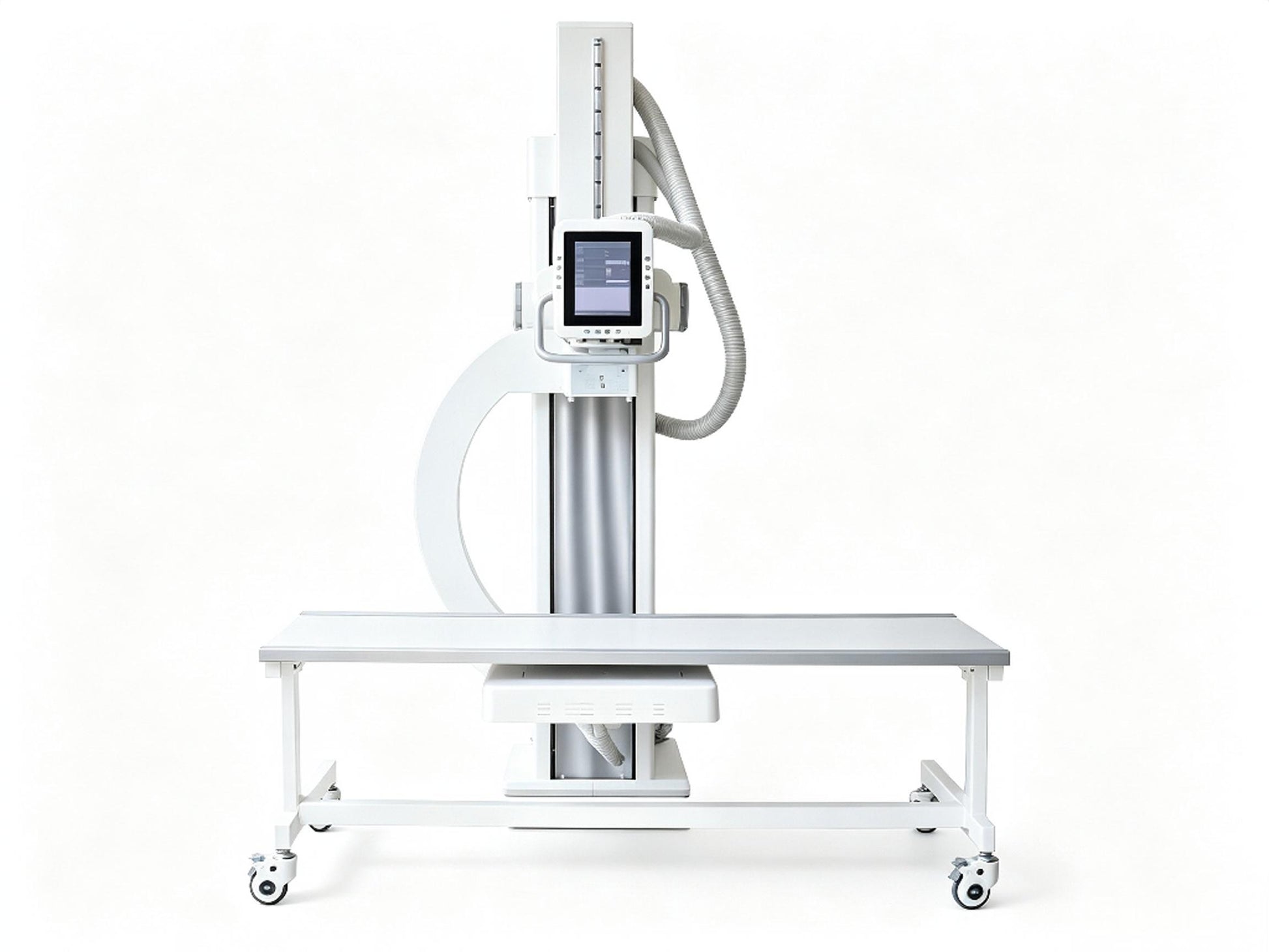

The Global Healthcare Medical INU-32KW U-arm Digital Radiography System is a compact, versatile X‑ray solution engineered for clinical environments where space efficiency, workflow flexibility, and image quality are paramount. Featuring a 32kW high‑frequency generator and a 17" × 17" flat panel detector with 3.6 lp/mm spatial resolution and 3072 × 3072 pixel matrix, this system delivers exceptional diagnostic image quality for a wide range of clinical applications.

What sets the INU‑32KW apart is its space‑saving U‑arm design, which enables versatile patient positioning—including upright, seated, and supine examinations—without the space requirements of traditional two‑column or ceiling‑mounted systems. Its integrated console control system streamlines workflow, while the flat panel detector ensures high‑quality digital imaging with low radiation dose. Whether for orthopedic departments, health check centers, or busy radiology clinics, the INU‑32KW delivers the power, flexibility, and workflow efficiency that modern healthcare demands.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🏛️ Space‑Saving U‑Arm Design – Maximum Flexibility, Minimal Footprint

The INU‑32KW features a compact U‑arm design that provides exceptional versatility while occupying minimal floor space. This innovative configuration enables examinations in upright, seated, and supine positions, making it ideal for clinics and hospitals with limited space. The integrated design eliminates the need for separate wall stands and patient tables, streamlining workflow and reducing equipment costs.

⚡ Powerful 32kW High‑Frequency Generator

The INU‑32KW is equipped with a 32kW high‑frequency generator providing robust output for consistent image quality. With a voltage range of 40‑150kV and current range of 10‑400mA, this system delivers exceptional imaging performance for a wide range of patient sizes and anatomical regions.

📊 High‑Resolution Digital Imaging

The INU‑32KW delivers exceptional image quality with:

• Flat panel detector – 17" × 17" size for comprehensive imaging coverage

• 16‑bit A/D conversion – Delivers up to 65,536 grayscale values for exceptional image detail

• 3.6 lp/mm spatial resolution – High‑resolution imaging for fine anatomical details

• 3072 × 3072 pixel matrix – Sharp, detailed images for confident diagnosis

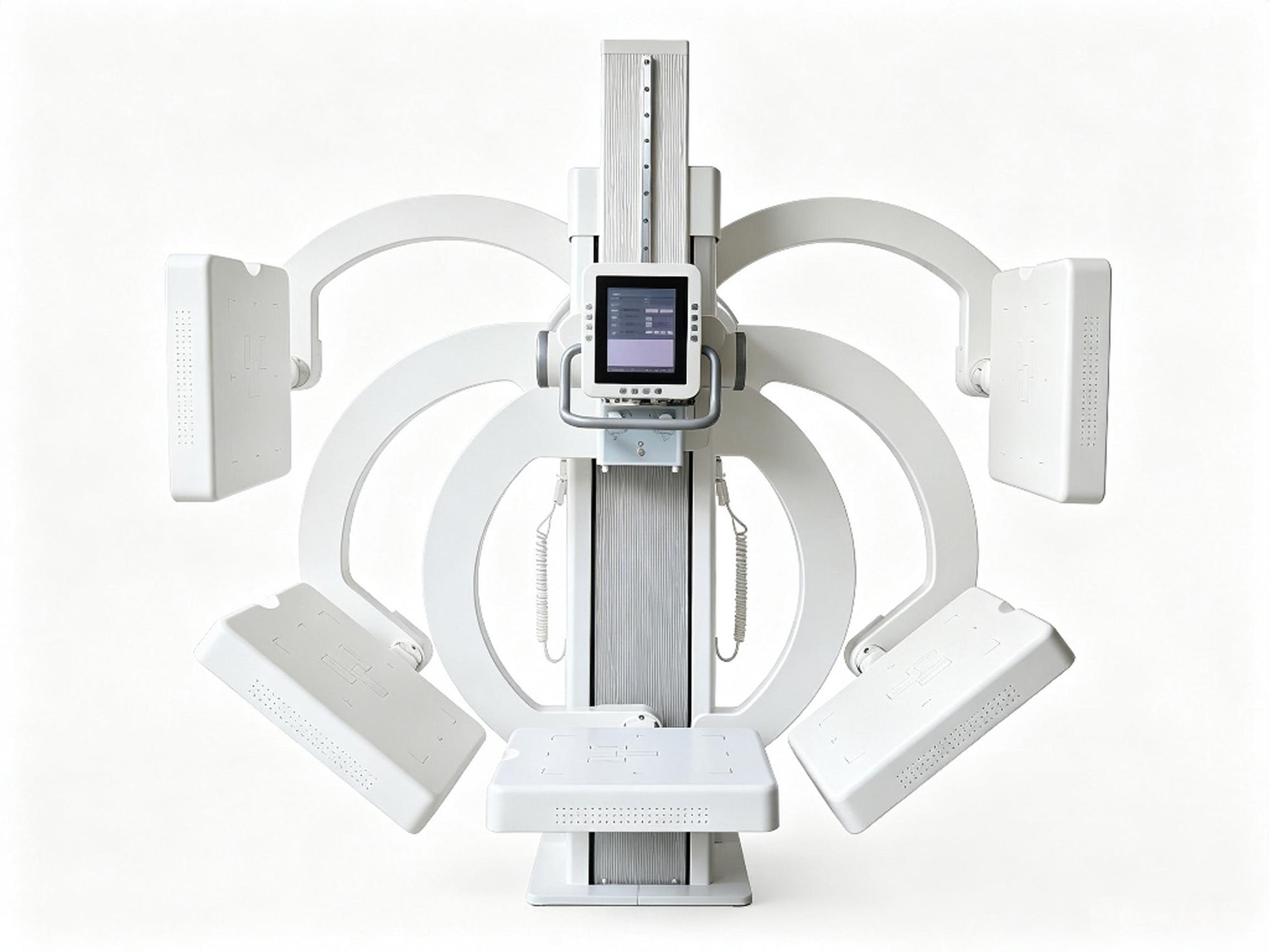

🔄 Versatile Patient Positioning – Upright, Seated & Supine

The U‑arm design enables easy patient positioning for a wide variety of examinations. The system supports:

• Upright exams – Chest X‑rays, spinal imaging, and standing extremity exams

• Seated exams – Convenient imaging for patients with limited mobility

• Supine exams – Bedside‑style imaging on the integrated table

🖥️ Integrated Console Control System

The INU‑32KW features an integrated console control system that simplifies operation. The user‑friendly software interface enables efficient exam workflow with:

• Exposure control – Precise parameter adjustment

• Image acquisition – Fast, high‑quality image capture

• Image processing – Immediate post‑processing for diagnostic confidence

📡 DICOM Connectivity & PACS Integration

The system supports DICOM 3.0 connectivity for seamless integration with PACS and hospital information systems. This enables efficient data management, archival, and remote access to images.

🛠️ Customization & Global Support

The INU‑32KW comes with comprehensive customization and support options:

• Custom‑make/OEM/ODM – Logo silk‑printing, customized nameplates, color boxes, and packaging cartons

• Global shipping – Exported to more than 120 countries

• Technical support – 10‑member sales service team

• Delivery/Lead time – Approximately 7–30 days

• Warranty – 1 year for machine

Specifications

What's Included

• INU‑32KW U‑arm Digital Radiography System Main Unit

• 32kW High‑Frequency Generator

• 17" × 17" Flat Panel Detector

• U‑arm Frame with Integrated Positioning

• Collimator

• PC Workstation

• Monitor

• Image Processing Software

• Grid

• Power Cable

• User Manual

• Installation and Training Support

Applications

The INU‑32KW U‑arm Digital Radiography System is suitable for:

• Clinics & Outpatient Centers – Space‑efficient imaging for diverse patient populations

• Orthopedic Departments – Weight‑bearing extremity imaging and trauma exams

• Emergency Departments – Rapid trauma and acute care imaging

• Health Check Centers – Routine health screening and physical examinations

• Sports Medicine – On‑site injury assessment

• Pediatric Imaging – Flexible positioning for young patients

• Geriatric Care – Seated and supine exams for patients with limited mobility

Why Choose the INU‑32KW?

FAQ

Q: What is the INU‑32KW U‑arm Digital Radiography System?

A: The INU‑32KW is a compact, versatile U‑arm digital X‑ray system designed for space‑efficient clinical environments, featuring a 32kW generator, 17" × 17" flat panel detector, and integrated positioning for upright, seated, and supine examinations.

Q: What are the advantages of the U‑arm design?

A: The U‑arm design provides exceptional versatility while occupying minimal floor space. It enables upright, seated, and supine examinations in a single integrated system, eliminating the need for separate wall stands and patient tables.

Q: What is the power output of the generator?

A: The system is equipped with a 32kW high‑frequency generator, providing consistent image quality for a wide range of clinical applications.

Q: What is the detector size and resolution?

A: The system features a 17" × 17" flat panel detector with 3.6 lp/mm spatial resolution and a 3072 × 3072 pixel matrix for high‑resolution diagnostic imaging.

Q: What patient positions does the system support?

A: The INU‑32KW supports upright, seated, and supine examinations, accommodating a wide variety of clinical scenarios and patient mobility levels.

Q: Is the system easy to use?

A: Yes. The system features an integrated console control system with a user‑friendly software interface for efficient exam workflow.

Q: Does the system support DICOM connectivity?

A: Yes. The INU‑32KW supports DICOM 3.0 connectivity for seamless integration with PACS and hospital information systems.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.

Q: Can the system be customized?

A: Yes. We accept OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates and packaging.
