INU-65KW U-arm DR System | High‑Power Digital Radiography with 3.6 lp/mm Resolution

65kW U‑arm digital radiography system with 17"x17" FPD, 3.6 lp/mm resolution, 16‑bit A/D conversion, and upright/seated/supine imaging. Ideal for hospitals, orthopedic centers, and emergency departments.

The Global Healthcare Medical INU-65KW U-arm Digital Radiography System is a high‑performance, space‑smart X‑ray solution engineered for clinical environments where workflow flexibility, superior image quality, and efficient space utilization are essential. Featuring a powerful 65kW high‑frequency generator and a 17" × 17" flat panel detector with 3.6 lp/mm spatial resolution, 16‑bit A/D conversion, and a 3072 × 3072 pixel matrix, this system delivers exceptional diagnostic image quality across a wide range of clinical applications.

What sets the INU‑65KW apart is its space‑saving U‑arm design, which enables versatile patient positioning—including upright, seated, and supine examinations—without the space requirements of traditional two‑column systems. Its LCD screen control panel provides intuitive operation, while the flat panel detector ensures high‑quality digital imaging with low radiation dose. Whether for orthopedic departments, health check centers, or busy radiology clinics, the INU‑65KW delivers the power, flexibility, and workflow efficiency that modern healthcare demands.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🏛️ Space‑Saving U‑Arm Design – Maximum Flexibility, Minimal Footprint

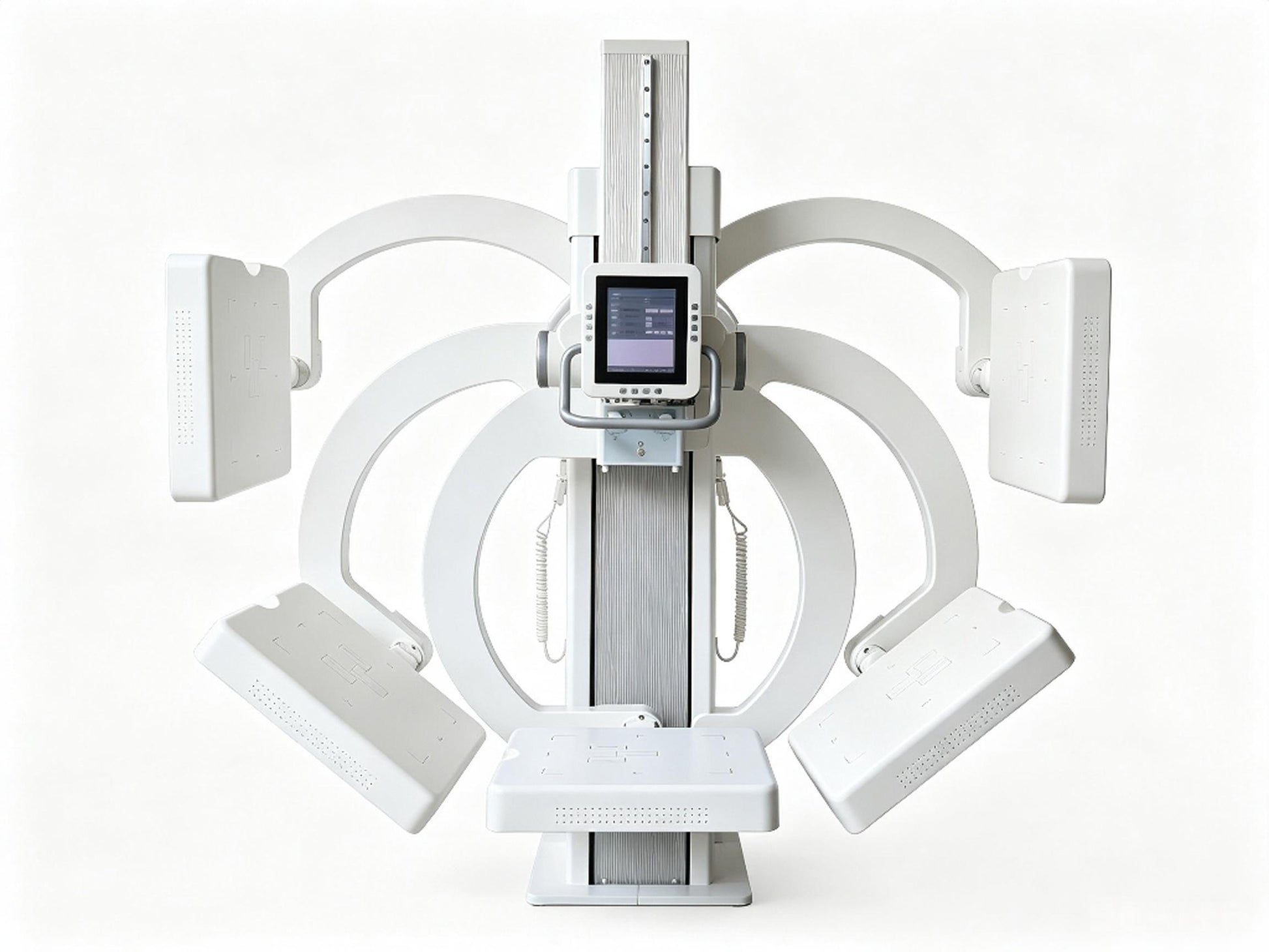

The INU‑65KW features a compact U‑arm design that provides exceptional versatility while occupying minimal floor space. The U‑arm base and swivel arm can be installed flush with the wall, maximizing every square foot in your facility. This innovative configuration enables examinations in upright, seated, and supine positions, making it ideal for clinics and hospitals with limited space. The integrated design eliminates the need for separate wall stands and patient tables, streamlining workflow and reducing equipment costs.

🔄 Full‑Range Motion for Every Patient

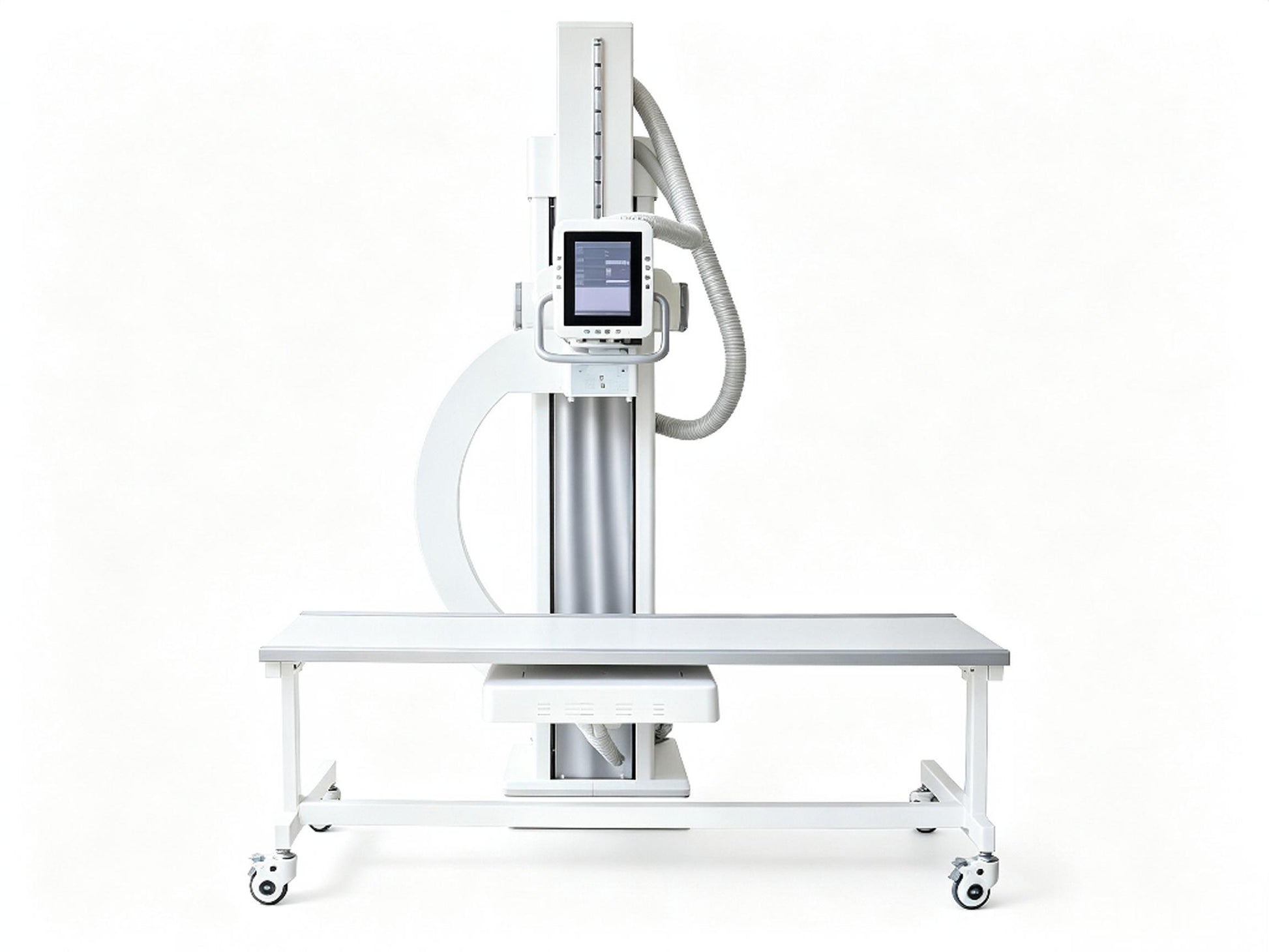

Engineered to be flexible for your needs, the U‑arm provides a full range of motion that enables all imaging views required—accommodating patients who are standing, sitting, lying on a table, or confined to a wheelchair. The swivel arm rotates clockwise and counterclockwise and moves vertically to easily arrive at the ideal exposure position. The detector also tilts in two directions, ensuring every angle is covered for you.

⚡ Powerful 65kW High‑Frequency Generator

The INU‑65KW is equipped with a 65kW high‑frequency generator providing robust output for consistent image quality. With a voltage range of 40‑150kV and current range of 10‑800mA, this system delivers exceptional imaging performance for a wide range of patient sizes and anatomical regions.

📊 High‑Resolution Digital Imaging

The INU‑65KW delivers exceptional image quality with:

• Flat panel detector – 17" × 17" (14" × 17" optional) for comprehensive imaging coverage

• 16‑bit A/D conversion – Delivers exceptional grayscale depth for detailed anatomical visualization

• 3.6 lp/mm spatial resolution – High‑resolution imaging for fine anatomical details

• 3072 × 3072 pixel matrix – Sharp, detailed images for confident diagnosis

• Superior image quality – Capture high‑resolution digital images in seconds with detailed bone and soft‑tissue visualization

🖥️ LCD Screen Control Panel

The INU‑65KW features an LCD screen control panel that simplifies operation with an intuitive, user‑friendly interface. This enables efficient exam workflow with precise parameter adjustment, fast image acquisition, and immediate image processing.

📡 DICOM Connectivity & PACS Integration

The system supports DICOM 3.0 connectivity for seamless integration with PACS and hospital information systems. This enables efficient data management, archival, and remote access to images.

🛠️ Customization & Global Support

The INU‑65KW comes with comprehensive customization and support options:

• Custom‑make/OEM/ODM – Logo silk‑printing, customized nameplates, color boxes, and packaging cartons

• Global shipping – Exported to more than 120 countries

• Technical support – Professional sales and engineering support team

• Delivery/Lead time – Approximately 7–30 days

• Warranty – 1 year for machine

Specifications

What's Included

• INU‑65KW U‑arm Digital Radiography System Main Unit

• 65kW High‑Frequency Generator

• 17" × 17" Flat Panel Detector

• U‑arm Frame with Swivel Arm and Full‑Range Motion

• LCD Screen Control Panel

• Collimator with 2‑Knob Adjustment

• Mobile Patient Table

• PC Workstation

• Monitor

• Image Processing Software (Ultra high‑quality imaging software)

• Grid

• Power Cable

• User Manual

• Installation and Training Support

Applications

The INU‑65KW U‑arm Digital Radiography System is suitable for:

• Hospitals & Medical Centers – High‑volume general radiography

• Orthopedic Departments – Weight‑bearing extremity imaging and trauma exams

• Emergency Departments – Rapid trauma and acute care imaging

• Urgent Care & Family Practices – General radiography services in tight spaces

• Health Check Centers – Routine health screening and physical examinations

• Sports Medicine – On‑site injury assessment

• Pediatric Imaging – Flexible positioning for young patients

• Geriatric Care – Seated and supine exams for patients with limited mobility

Why Choose the INU‑65KW?

FAQ

Q: What is the INU‑65KW U‑arm Digital Radiography System?

A: The INU‑65KW is a high‑performance, space‑smart U‑arm digital X‑ray system designed for versatile clinical environments, featuring a 65kW generator, 17" × 17" flat panel detector, and full‑range motion for upright, seated, supine, and wheelchair examinations.

Q: What are the advantages of the U‑arm design?

A: The U‑arm design provides exceptional versatility while occupying minimal floor space. It fits in the smallest exam rooms, enables examinations in multiple patient positions, and eliminates the need for separate wall stands and patient tables.

Q: What is the power output of the generator?

A: The system is equipped with a 65kW high‑frequency generator with a voltage range of 40‑150kV and current range of 10‑800mA.

Q: What is the detector size and resolution?

A: The system features a 17" × 17" flat panel detector (14" × 17" optional) with 3.6 lp/mm spatial resolution, 16‑bit A/D conversion, and a 3072 × 3072 pixel matrix.

Q: What patient positions does the system support?

A: The INU‑65KW supports upright, seated, supine, and wheelchair examinations, accommodating a wide variety of clinical scenarios and patient mobility levels.

Q: Does the swivel arm have full‑range motion?

A: Yes. The swivel arm rotates clockwise and counterclockwise and moves vertically to easily arrive at the ideal exposure position. The detector also tilts in two directions.

Q: Does the system support DICOM connectivity?

A: Yes. The INU‑65KW supports DICOM 3.0 connectivity for seamless integration with PACS and hospital information systems.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty.

Q: Can the system be customized?

A: Yes. We accept OEM/ODM services, including silk‑printing your logo on the product and customizing nameplates and packaging.
