Model:GHM060704-3

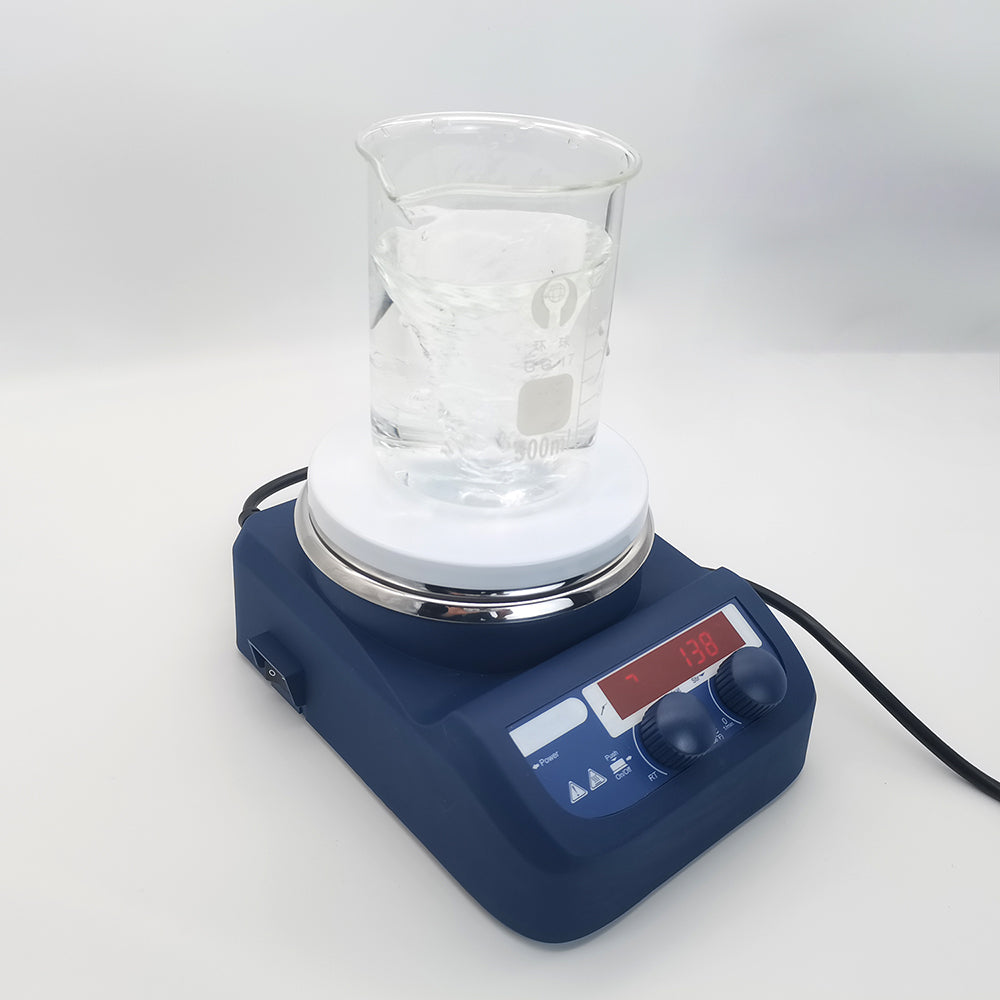

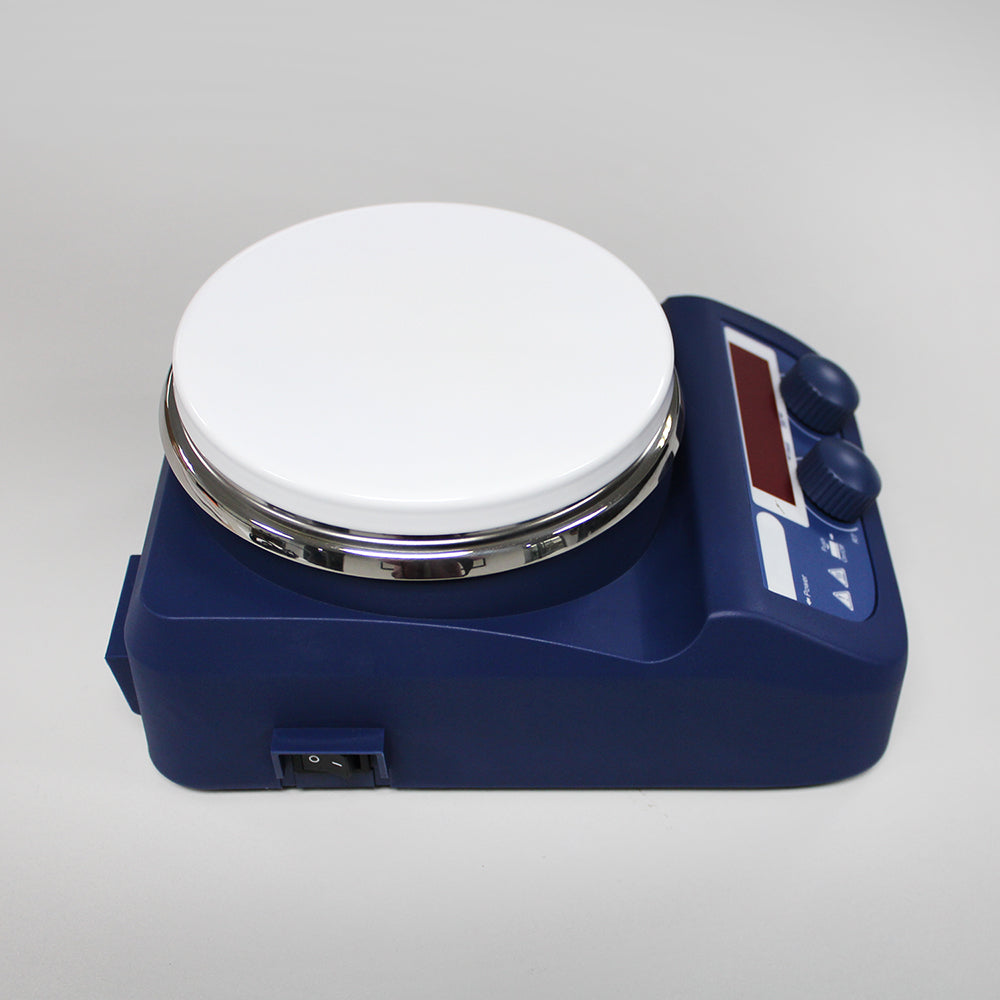

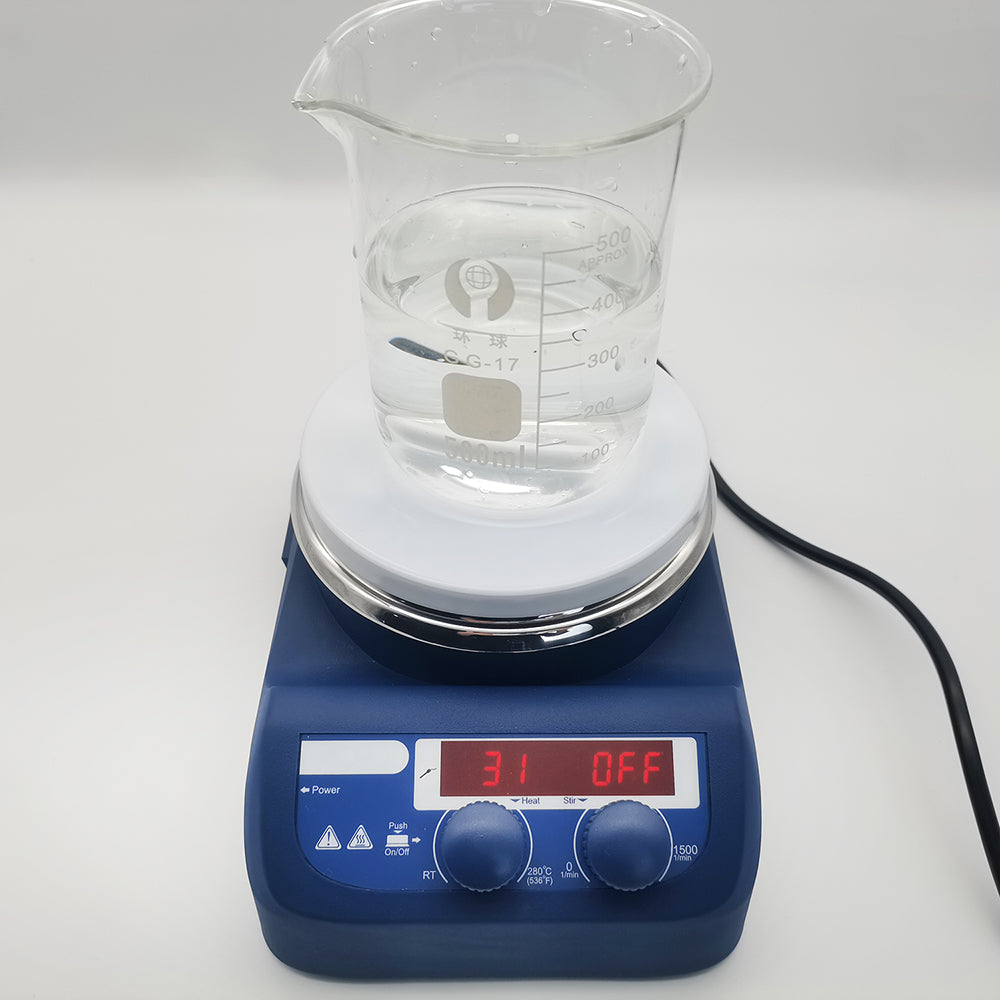

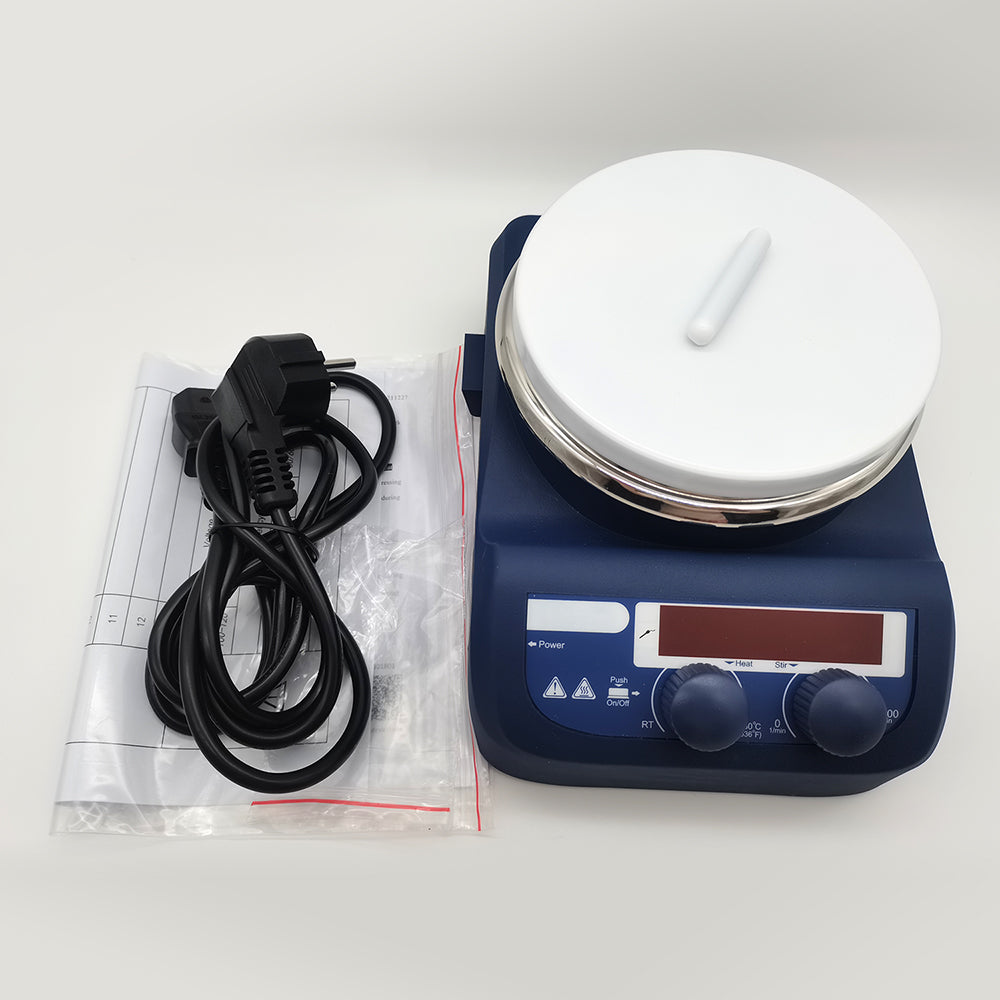

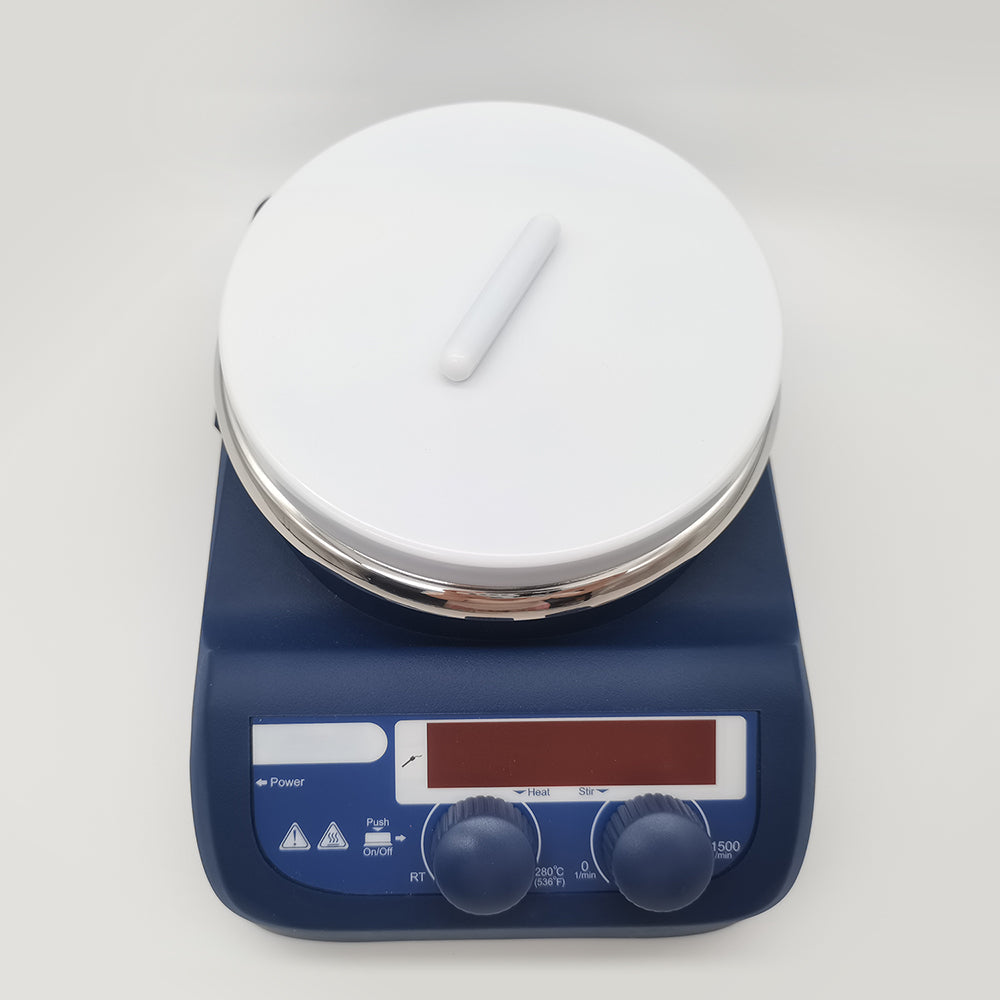

A Magnetic Hotplate Stirrer is a laboratory device that heats and stirs liquid samples simultaneously using a rotating magnetic field and a built-in heating element. It's a core piece of lab equipment used for mixing chemical solutions, dissolving solids, and maintaining sample uniformity at set temperatures.
*Digital temperature control with maximum temperature up to 280℃.
*Digital speed control with maximum speed up to 1500 rpm.
*Stainless steel with ceramic coating work plate provides high chemical resistant performance.

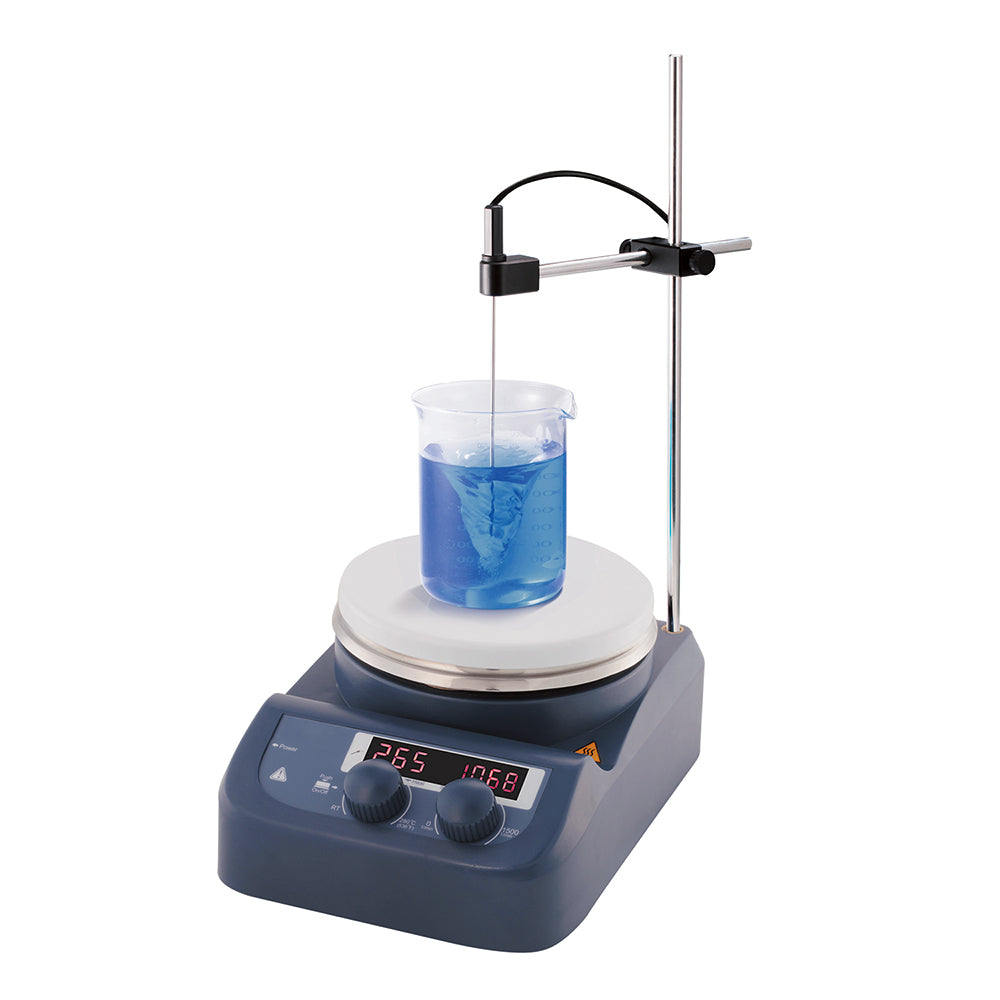

*External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy at ± 0.2℃.
*LED display shows temperature and stirring speed"HOT" warning flashes if work plate temperature is above 50℃.
Specifications:
|
Work plate Dimension [W x D] |
135mm (5 inch ) |
|
Work plate material |
stainless steel cover with ceramic coating |
|
Motor type |
Brushless DC motor |
|
Stirring positions |
1 |
|
Max. stirring quantity[H2O] |
3L |
|
Max.magnetic bar[length] |
50mm |
|
Speed range |
200-1500rpm |
|
Speed display |
LED |
|
Temperature display |
LED |
|
Heating temperature range |
Room Temp.±5- 280°C |
|
Voltage,Frequency |
100-120/200-240V,50/60Hz |
|
Permissible ambient temperature and humidity |
5-40 °C ,80%RH |
|
Heating liquid temperature control accuracy |
±1°C (<100°C) ±1% (>100°C) |
|
Overheating Temperature protection |
320°C |
|
Temperature display accuracy |
±1°C |
|
External temperature sensor |
PT1000 (accuracy±0.2°C) |
|
"Hot" warning |
50°C |
|
Protection class |
IP42 |
|
Motor rating input |
5W |
|
Motor rating output |
3W |
|
Heating output |
500W |
|
Power |
515W |
|
Dimension [W x D x H] |
280x160x100mm |
|
Weight |
1.8kg |
