Global Healthcare Medical High‑Frequency Linear Wireless Handheld Ultrasound

$3,199.00

~~$3,999.00~~ $3,199.00

Sale Sold out

Shipping calculated at checkout.

Select Warranty Period 18-Month 36-Month

Quantity

The Global Healthcare Medical High‑Frequency Linear Wireless Handheld Ultrasound is a compact, smartphone‑sized diagnostic imaging solution engineered to deliver exceptional near‑field resolution for superficial structures. Designed for healthcare professionals who need reliable, high‑quality imaging wherever patients are—from aesthetic medicine and dermatology clinics to emergency departments, operating rooms, and ambulatory services—this wireless probe‑type system delivers outstanding performance in a lightweight, portable form factor.

Weighing approximately 260g and measuring 156mm × 60mm × 20mm, this device fits comfortably in your hand or pocket, making it the ideal companion for daily POCUS (Point‑of‑Care Ultrasound) and ultrasound‑guided procedures. The system operates wirelessly via WiFi, transmitting real‑time images directly to a smartphone or tablet—eliminating the need for bulky consoles or tangled cables.

Key Features & Benefits

High‑Frequency Linear Array for Superior Superficial Imaging

This system features a dedicated high‑frequency linear array probe optimized for imaging superficial structures with exceptional detail. With a frequency range of 16/20 MHz and 192 piezoelectric elements, it delivers outstanding near‑field resolution—ideal for visualizing fine anatomical details in skin, subcutaneous tissue, and small parts.

Key imaging specifications:

Probe type: High‑frequency linear array
Frequency: 16 MHz / 20 MHz
Piezoelectric elements: 192 elements
Scan depth: Up to approximately 4 cm
Multiple presets for quick exam type switching

Exceptional Imaging Performance

The system delivers high‑quality imaging with advanced features:

Imaging modes supported:

B‑Mode – fundamental 2D imaging with exceptional clarity
B/M Mode – combined anatomical and motion imaging

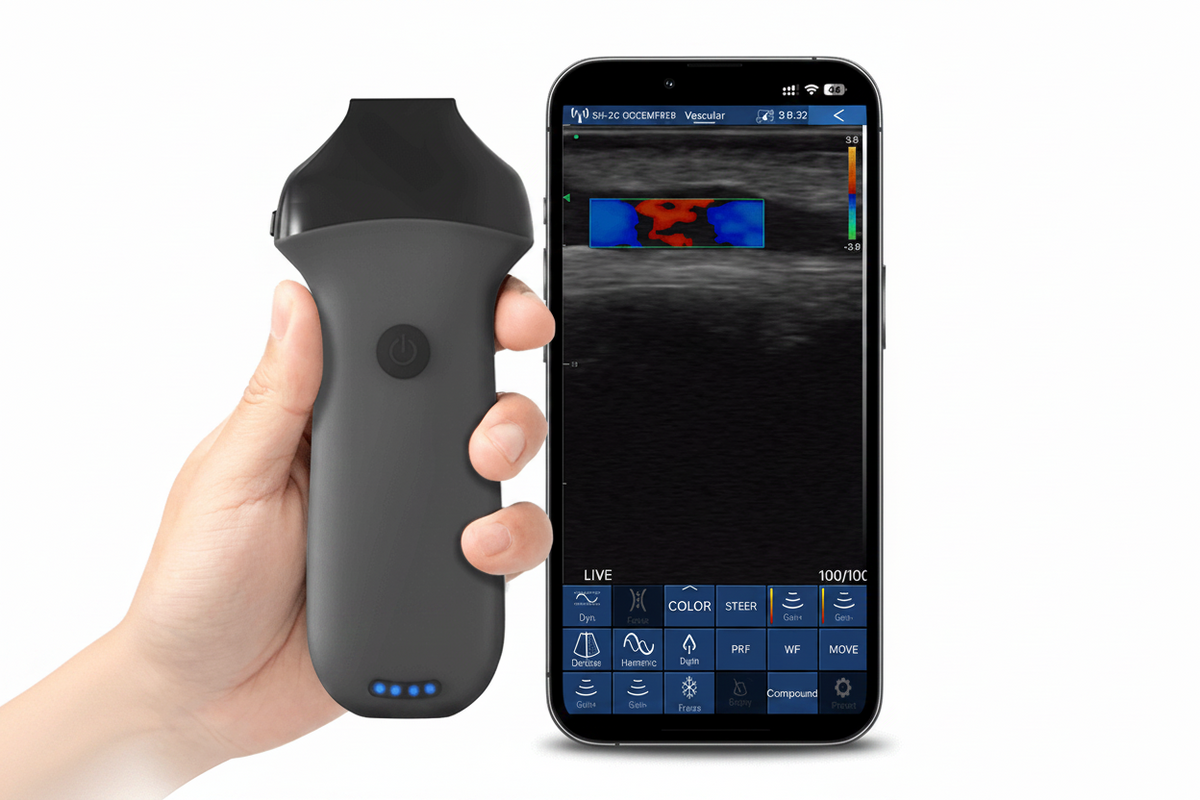

Color Doppler – real‑time blood flow visualization
Power Doppler Imaging (PDI) – sensitive low‑flow detection
Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

Image adjustments include gain, dynamic range, focus, depth, and harmonic imaging.

Smartphone‑Powered Convenience

The system connects wirelessly to a mobile device running the companion software application. This smartphone‑powered approach offers:

Intuitive touchscreen interface – familiar and easy to learn
No separate display or console – reduces equipment costs and footprint
Wireless operation – eliminates cable tangles and improves workflow
Image storage and sharing – easily save, review, and share images

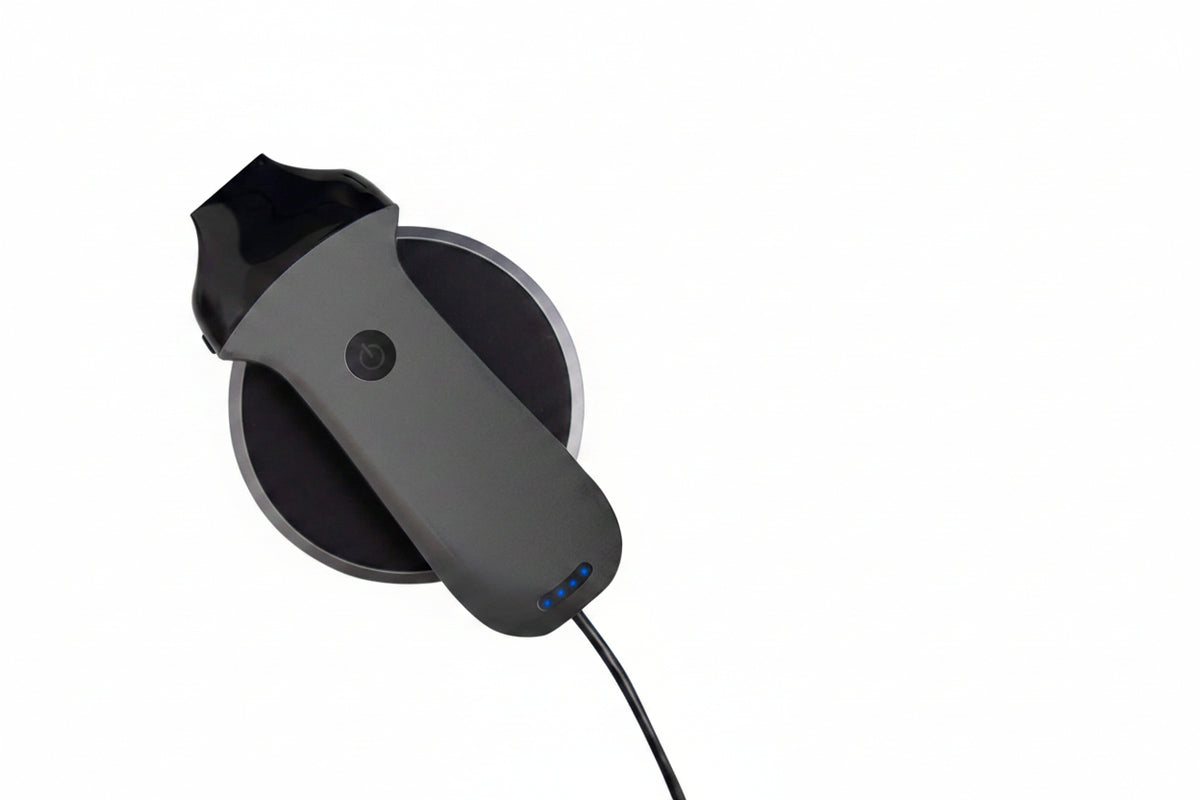

Wireless Charging and Long Battery Life

The system features wireless charging capabilities. The device includes a built‑in rechargeable battery, providing extended scanning time for busy clinical sessions.

Broad Device Compatibility

The system is compatible with multiple platforms:

Apple iOS – iPhone and iPad
Android – smartphones and tablets
Windows – PC's

WiFi connectivity provides fast, stable wireless transmission.

Comprehensive Clinical Applications

This high‑frequency linear ultrasound system is ideal for a wide range of superficial imaging applications:

Application Area	Specific Uses
Aesthetic Medicine	Skin and subcutaneous tissue examination, filler evaluation and guidance
Interventional Guidance	Nerve block guidance, vascular access, joint interventions, internal fistula guidance
Vascular	Peripheral vascular examination, blood flow detection
Small Parts	Breast, thyroid, and superficial organ examination
Musculoskeletal	Tendon, ligament, joint, and muscle assessment
Dermatology	Skin and superficial structure evaluation

Portable, Durable, and Ready When You Are

Lightweight design – approximately 260g for effortless handling
Pocket‑sized form factor – fits in your pocket or bag
Wireless charging – eliminates cable clutter
Durable construction – built for daily clinical use
No subscription fees – one‑time purchase, full access

Regulatory Compliance

FDA‑cleared – meets U.S. regulatory standards for medical devices

Why Choose Global Healthcare Medical?

Consideration	Our High‑Frequency Linear Ultrasound
Need for high‑resolution superficial imaging	16/20 MHz frequency with 192 elements for exceptional near‑field detail
Portable, point‑of‑care imaging	Pocket‑sized, lightweight design goes wherever you go
No bulky equipment	Smartphone‑powered—no console, no cables
No hidden fees	Free app, no subscription required
Quick, confident diagnosis	Multiple imaging modes with adjustable settings
Procedure guidance	Ideal for nerve blocks, vascular access, and interventional guidance
Cost‑effective solution	Professional imaging at a fraction of traditional system costs
Regulatory compliance	FDA‑cleared for clinical use

About Global Healthcare Medical

Global Healthcare Medical is dedicated to improving patient care around the world by delivering value‑driven, innovative, and high‑quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals everywhere.
