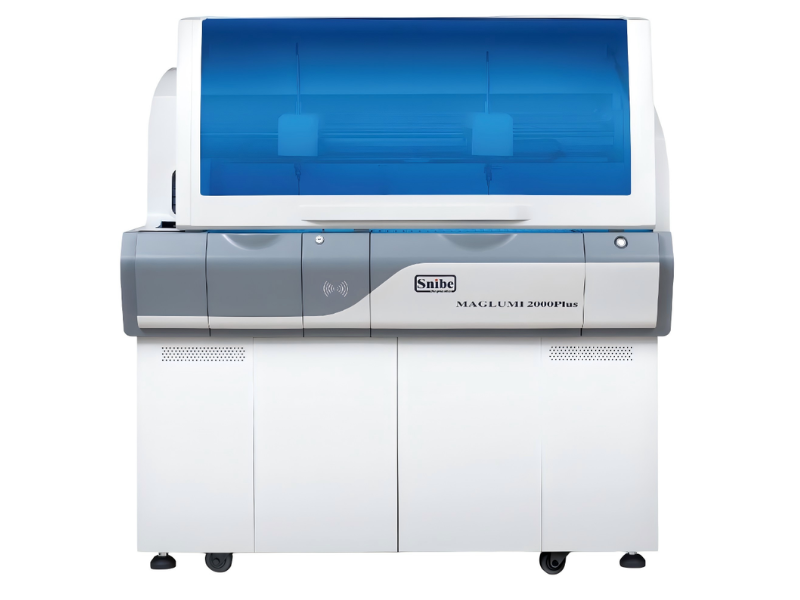

MAGLUMI 2000 Plus Chemiluminescence Immunoassay (CLIA) System #

Product Overview

The MAGLUMI 2000 Plus is a fully automated, high-throughput chemiluminescence immunoassay system designed for large laboratories and hospitals with demanding testing volumes. Combining advanced ABEI labeling and magnetic microbead separation technologies with a user-friendly, humanized design, it delivers exceptional stability, sensitivity, and operational efficiency to meet the most rigorous clinical testing requirements.

Key Features

• Flash Chemiluminescence Labeling (ABEI): Non-enzyme small molecule label ensures high sensitivity and long-term stability, unaffected by storage condition changes. The chemical reaction with NaOH and H₂O₂ completes in just 3 seconds.

• Magnetic Microbead Separation: Enhances reaction speed, sensitivity, and accuracy by enlarging the reaction area and thoroughly mixing reagents in a liquid separation platform, significantly reducing inter- and intra-assay discrepancies.

• Throughput: Up to 180 tests per hour.

• First Result: Ready in just 17 minutes.

• 24/7 Readiness: Always ready to use with refrigerated sample and reagent areas with independent power supply.

• Modes: Supports random, batch, and STAT operations.

• Sample Loading: Up to 144 sample tubes with continuous loading, STAT priority, barcode recognition, and LIS connectivity for automatic sample information reading. Refrigerated sample area maintains sample integrity.

• Reagent Management: Onboard capacity for 25 reagents with continuous loading. RFID tags store all reagent information and built-in master curves. 2-point calibration adjusts the master curve with calibration stability up to 4 weeks. Refrigerated reagent area with independent power supply.

• Pipettor: Titanium needle with crush-proof function, TEFLON coating to prevent carryover, clot detection, liquid level detection, and internal/external washing.

• Washer: Strong magnetic field for better separation with three pairs of washing needles and anti-overflow function.

• Automated Cuvette Loader: Capable of loading modules continuously, supporting up to 180 reaction modules.

• Incubator: 16 incubator slots (96 tests simultaneously) with constant temperature control (36.8 ± 0.5°C).

• Comprehensive Software: User-friendly interface, real-time status monitoring for each test, reagent and consumable status monitoring, intelligent alarm function, multilingual support (10 languages available, more upon request).

• Smart Maintenance: Step-by-step maintenance guide for daily, weekly, and monthly procedures to ensure performance reliability and reduce unnecessary service calls.

• Quality Control: Westgard rules and Levey-Jennings charts for both internal and external quality control.

• Test Summary Function: Includes system test, calibration, QC, sample statistics, valid tests, and rerun tests for convenient search and review.

• Pre- and Post-Dilution: Available for high-concentration samples.

• Bidirectional LIS Connection: Via TCP/IP and ASTM protocol.

Reagent Classification & Available Test Items

All reagents are ready-to-use, including calibrators. Available in 100 Tests/Kit and 50 Tests/Kit.

Thyroid

TSH (3rd Generation), T4, T3, FT4, FT3, Tg (Thyroglobulin), TGA (Anti-Tg), Anti-TPO, TRAb, TMA, Rev T3, *T-Uptake

Hepatic Fibrosis

HA, PIIIP, N-P, C IV, Laminin, Cholylglycine

TORCH

Toxo IgG, Toxo IgM, Rubella IgG, Rubella IgM, CMV IgG, CMV IgM, HSV-1/2 IgG, HSV-1/2 IgM, HSV-2 IgG, *HSV-2 IgM, *HSV-1 IgG, *HSV-1 IgM

EBV

EBV EA IgG, EBV EA IgA, EBV VCA IgG, EBV VCA IgM, EBV VCA IgA, EBV NA IgG, EBV NA IgA

Inflammation Monitoring

hs-CRP, PCT (Procalcitonin), IL-6 (Interleukin 6), SAA (Serum Amyloid A)

Fertility

FSH, LH, HCG/β-HCG, PRL (Prolactin), Estradiol, Testosterone, free Testosterone, DHEA-S, Progesterone, free Estriol, 17-OH Progesterone, AMH, SHBG, Androstenedione, *PIGF, *sFlt-1

Hypertension

Direct Renin, Aldosterone, Angiotensin I, Angiotensin II, Cortisol, ACTH

Autoimmune

Anti-CCP, Anti-dsDNA IgG, ANA Screen, ENA Screen, Anti-Sm IgG, Anti-Rib-P IgG, Anti-Scl-70 IgG, Anti-Centromeres IgG, Anti-Jo-1 IgG, Anti-M2-3E IgG (AMA-M2), Anti-Histones IgG, Anti-nRNP/Sm IgG, Anti-SS-B IgG, Anti-SS-A IgG, TGA (Anti-Tg), Anti-TPO, TRAb, TMA, ICA, IAA (Anti-Insulin), GAD 65, Anti-IA2, *Anti-Cardiolipin IgG, *Anti-Cardiolipin IgM, *Anti-MPO

Immunoglobulin

IgM, IgA, IgE, IgG

Tumor Markers

AFP, CEA, Total PSA, f-PSA, CA 125, CA 15-3, CA 19-9, PAP, CA 50, CYFRA 21-1, CA 242, CA 72-4, NSE, S-100, SCCA, TPA-snibe, ProGRP, HE4, HER-2, PIVKA-II

Infectious Disease

HBsAg, Anti-HBs, HBeAg, Anti-HBe, Anti-HBc, Anti-HCV, Syphilis, Anti-HAV, HAV IgM, HIV Ab/Ag Combi, Chagas, HTLV I+II, H. pylori IgG, H. pylori IgA, H. pylori IgM, 2019-nCoV IgG, 2019-nCoV IgM, SARS-CoV-2 S-RBD IgG, SARS-CoV-2 Neutralizing Antibody, SARS-CoV-2 Ag, *Anti-HBc IgM

Drug Monitoring

Digoxin, CSA (Cyclosporine A), FK 506 (Tacrolimus)

Kidney Function

β2-MG, Albumin, *NGAL

Cardiac Markers

CK-MB, Troponin I, Myoglobin, hs-cTnI, H-FABP, NT-proBNP, BNP, D-Dimer, Lp-PLA2, *MPO

Metabolism

Pepsinogen I, Pepsinogen II, Gastrin-17, GH (hGH), IGF-1, IGFBP-3

Prenatal Screening

AFP (Prenatal Screening), Free β-HCG, PAPP-A, free Estriol

Anemia

Vitamin B12, Ferritin, Folate (FA), *RBC Folate, *EPO

Glyco Metabolism

C-Peptide, Insulin, GAD 65, Anti-IA2, ICA, IAA (Anti-Insulin), Proinsulin

Bone Metabolism

Calcitonin, Osteocalcin, 25-OH Vitamin D, Intact PTH, *β-CrossLaps (β-CTx), *total P1NP

*Available soon

Technical Specifications

Why Choose MAGLUMI 2000 Plus?

• Designed specifically for large laboratories and hospitals with high-volume testing needs

• Extensive test menu covering all major clinical areas, with ongoing expansion

• Free quality control and calibrators help reduce cost per test

• Quality guaranteed by third-party QC and external quality assessment (EQA)

• Advanced ABEI labeling and magnetic microbead technology ensure stability and sensitivity

• High throughput with robust design and large onboard capacities (25 reagents, 144 samples)

• User-friendly software with multilingual support, real-time monitoring, and comprehensive quality control features
