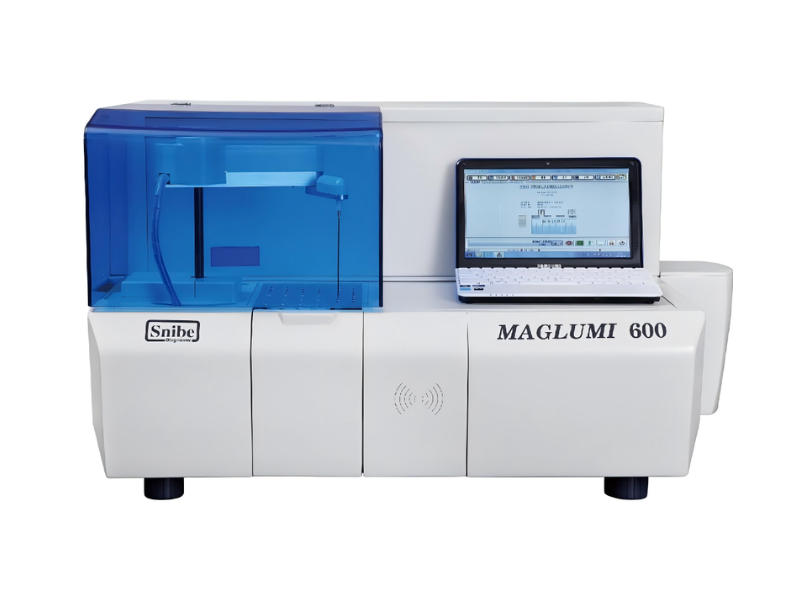

MAGLUMI 600 Chemiluminescence Immunoassay (CLIA) System #

Product Overview

The MAGLUMI 600 is a fully automated chemiluminescence immunoassay system designed for high sensitivity, accuracy, and operational efficiency. Ideal for clinical laboratories, it combines advanced labeling and separation technologies to deliver reliable results with minimal hands-on time.

Key Features

• Flash Chemiluminescence Labeling (ABEI): Non-enzyme small molecule label ensures high sensitivity and long-term stability.

• Nano Magnetic Microbead Separation: Enhances reaction speed, sensitivity, and accuracy.

• Throughput: Up to 180 tests per hour.

• First Result: Ready in just 17 minutes.

• 24/7 Readiness: Always ready to use with refrigerated sample and reagent areas.

• Modes: Supports random, batch, and STAT operations.

• Sample Loading: Continuous loading with 16 sample tubes, STAT priority, barcode recognition, and LIS connectivity.

• Reagent Management: Onboard capacity for 4 reagents, RFID tag for full traceability, built-in master curve, and 2-point calibration (calibration stability up to 4 weeks).

• Smart Features: Clot detection, liquid level detection, automatic dilution, and constant temperature incubation (36.8 ± 0.5°C).

Reagent Classification & Available Test Items

All reagents are ready-to-use, including calibrators. Available in 100 Tests/Kit and 50 Tests/Kit.

Thyroid

TSH (3rd Gen), T4, T3, FT4, FT3, Tg, TGA, TRAb, TMA, Anti-TPO, Rev T3, *T-Uptake

Hepatic Fibrosis

HA, PIIIP, N-P, C IV, Laminin, Cholylcycine

TORCH

Toxo IgG/IgM, Rubella IgG/IgM, CMV IgG/IgM, HSV-1/2 IgG/IgM, HSV-2 IgG, *HSV-1 IgG/IgM

EBV

EBV EA IgG/IgA, EBV VCA IgG/IgM/IgA, EBV NA IgG/IgA

Inflammation Monitoring

hs-CRP, PCT, IL-6, *SAA

Fertility

FSH, LH, HCG/β-HCG, PRL, Estradiol, Progesterone, free Estriol, Testosterone, free Testosterone, DHEA-S, 17-OH Progesterone, AMH, SHBG, Androstenedione, *PIGF, *sFlt-1

Autoimmune

TGA, TRAb, TMA, Anti-TPO, ICA, IAA, GAD 65, Anti-IA2, Anti-dsDNA IgG, ANA Screen, ENA Screen, Anti-Sm IgG, Anti-Rib-P IgG, Anti-Scl-70 IgG, Anti-Centromeres IgG, Anti-Jo-1 IgG, Anti-M2-3E IgG, Anti-Histones IgG, Anti-nRNP/Sm IgG, Anti-SS-B IgG, Anti-SS-A IgG, Anti-CCP, *Anti-Cardiolipin IgG/IgM, *Anti-MPO

Immunoglobulin

IgM, IgA, IgE, IgG

Kidney Function

β2-MG, Albumin, *NGAL

Tumor Markers

Ferritin, AFP, CEA, Total PSA, f-PSA, CA 125, CA 15-3, CA 19-9, HCG/β-HCG, Tg, PAP, CA 50, CYFRA 21-1, CA 242, CA 72-4, NSE, S-100, SCCA, TPA, Pepsinogen I/II, Gastrin-17, H. pylori IgG/IgA, β2-MG, Calcitonin, Proinsulin, proGRP, HE4, HER-2, *PIVKA-II

Infectious Disease

HBsAg, Anti-HBs, HBeAg, Anti-HBe, Anti-HBc, Anti-HCV, Syphilis, Chagas, HTLV I+II, Anti-HAV, HAV IgM, HIV Ab/Ag Combi, H. pylori IgG/IgA/IgM, *Anti-HBc IgM

Drug Monitoring

CSA, FK506, Digoxin

Cardiac Markers

CK-MB, Troponin I, Myoglobin, hs-cTnI, H-FABP, NT-proBNP, BNP, Aldosterone, Angiotensin I/II, Direct Renin, D-Dimer, Lp-PLA2, hs-CRP, *MPO

Prenatal Screening

AFP, Free β-HCG, PAPP-A, HCG/β-HCG, free Estriol

Anemia

Vitamin B12, Ferritin, Folate, *RBC Folate

Glyco Metabolism

C-Peptide, Insulin, ICA, IAA, Proinsulin, GAD 65, Anti-IA2

Bone Metabolism

Calcitonin, Osteocalcin, 25-OH Vitamin D, Intact PTH, *β-CrossLaps, *total P1NP

Others

Cortisol, GH, IGF-I, ACTH, IGFBP-3

*Available soon

Technical Specifications

• Throughput: Up to 180 tests/hour

• Time to First Result: 17 minutes

• Sample Capacity: 16 tubes, continuous loading

• Reagent Capacity: 4 positions, refrigerated

• Calibration Stability: Up to 4 weeks

• Incubation Temperature: 36.8 ± 0.5°C

• Operating System: Windows 7 (laptop with dual-core CPU)

• Connectivity: Bidirectional LIS (TCP/IP, COM)

• Power: AC 110/230 Vac, 50/60 Hz

• Dimensions: 88 × 56 × 50 cm

• Weight: 56 kg

Why Choose MAGLUMI 600?

• High throughput with compact design

• Minimal maintenance and user-friendly interface

• Reliable results with advanced magnetic microbead technology

• Extensive test menu covering major clinical areas

• Flexible kit sizes (50T and 100T) to suit different laboratory volumes
