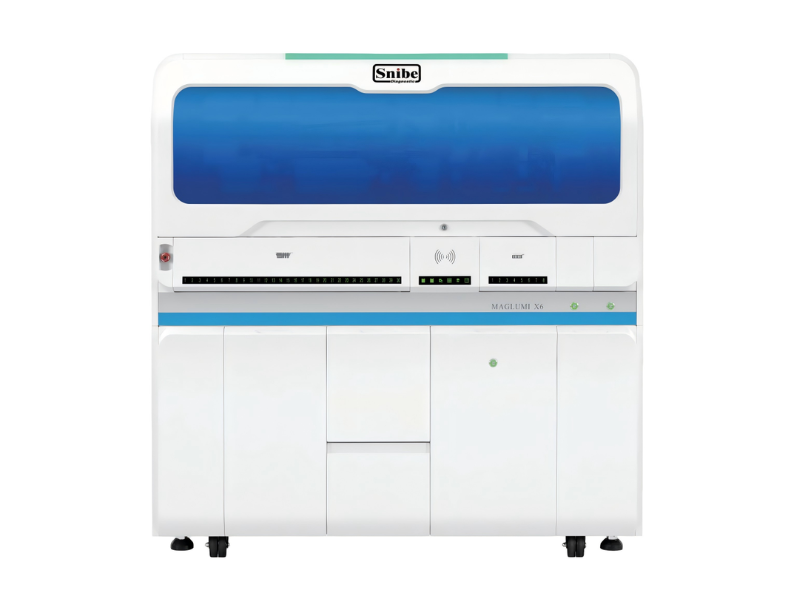

MAGLUMI X6 Fully Automated Chemiluminescence Immunoassay (CLIA) System #

Product Overview

The MAGLUMI X6 is a high-throughput, flexible chemiluminescence immunoassay system designed for medium to high-volume laboratories. Built on the revolutionary X-Tech platform, it combines exceptional throughput, modular expandability, and advanced automation features to deliver reliable results with minimal manual intervention. Whether you need to scale testing capacity or integrate with laboratory automation systems, the MAGLUMI X6 offers a future-proof solution.

---

Key Features

• High Throughput: Up to 450 tests per hour—one of the highest throughput analyzers in its class.

• Exceptional Area Efficiency: Up to 320 tests/hour/m², maximizing productivity per square meter.

• Flexible Sample Capacity: 112 sample positions standard, expandable to 412 with a simple upgrade.

• Walk-Away Capability: Up to 2,000 walk-away tests, minimizing manual intervention.

• Reagent Capacity: 30 onboard reagent positions with continuous, no-pause loading/unloading.

• Dual-Temperature Reagent Storage: Working temperature at 8°C–12°C, storage temperature at 2°C–8°C for optimal reagent integrity.

• Patented Pipetting Technology: Disposable filtered tips eliminate aerosol pollution and ensure zero cross-contamination. Sampling volume ranges from 10–280 μL with low CV for high accuracy. Single pipetting for multiple tests reduces consumable costs.

• Accurate Incubation Technology: Single cuvette with five-sided heating at 37.0°C (±0.3°C) ensures precise, rapid, and uniform incubation. Simultaneously incubates 243 cuvettes with non-contact mixing modes.

• Intelligent Washing Technology: Magnetic separation washing with 4-group independent units and non-contact vortex mixing reduces non-specific binding. Different mixing modes tailored to specific assays.

• Stable & Precise Measuring Technology: High-sensitivity, low-noise PMT with heating and cooling function ensures detection precision. Independent measuring room prevents light cross-contamination.

• Pioneering Wash Liquid Preparation: Dual-mode preparation—automatic (connect to water purification system) or manual mixing—flexible for multiple laboratory scenarios.

• User-Friendly Design: Light indicators and intelligent UI enable convenient real-time status monitoring. One-side operation saves valuable bench space.

• No-Pause Loading: Samples, reagents, and consumables can be loaded/unloaded without interrupting ongoing tests. All samples can be defined as STAT for priority testing.

• Modular Expanding Flexibility: Capable of integrating multiple X6 modules and linking with Laboratory Automation Systems (TLA/LAS).

• Comprehensive Error Detection: Four types of pipetting error detection technologies reduce sampling error rates.

• Intelligent Software: Real-time status display, self-recovery function, bidirectional Snibelis™ LIS connection (TCP/IP and COM), and SnibelLinker™ remote diagnostic system.

---

Reagent Classification & Available Test Items

All reagents are ready-to-use, including free calibrators and internal controls. Available in 100 Tests/Kit and 50 Tests/Kit.

Thyroid

TSH (3rd Generation), T4, T3, FT4, FT3, Tg (Thyroglobulin), TGA (Anti-Tg), Anti-TPO, TRAb, TMA, Rev T3, T-Uptake

Hepatic Fibrosis

HA, PIIIP, N-P, C IV, Laminin, Cholylglycine, *GP73

TORCH

Toxo IgG, Toxo IgM, Rubella IgG, Rubella IgM, CMV IgG, CMV IgM, HSV-1/2 IgG, HSV-1/2 IgM, HSV-1 IgG, HSV-2 IgG, *HSV-2 IgM, *HSV-1 IgM, *Toxo IgG Avidity, *CMV IgG Avidity

STAT-X™

*hs-cTnI, *NT-proBNP, *Myoglobin, *D-Dimer, *PCT, *CRP

EBV

EBV EA IgG, EBV EA IgA, EBV VCA IgG, EBV VCA IgM, EBV VCA IgA, EBV NA IgG, EBV NA IgA

Inflammation Monitoring

CRP, PCT (Procalcitonin), IL-6 (Interleukin 6), SAA (Serum Amyloid A), *PCT (STAT), *CRP (STAT), *TNF-α

Kidney Function

β2-MG, Albumin, *NGAL

Fertility

FSH, LH, HCG/β-HCG, PRL (Prolactin), Estradiol, Testosterone, free Testosterone, DHEA-S, Progesterone, free Estriol, 17-OH Progesterone, AMH, SHBG, Androstenedione, PIGF, sFlt-1

Autoimmune

Anti-CCP, Anti-dsDNA IgG, ANA Screen, ENA Screen, Anti-Sm IgG, Anti-Rib-P IgG, Anti-Scl-70 IgG, Anti-Centromeres IgG, Anti-Jo-1 IgG, Anti-M2-3E IgG, Anti-Histones IgG, Anti-nRNP/Sm IgG, Anti-SS-B IgG, Anti-SS-A IgG, TGA (Anti-Tg), Anti-TPO, TRAb, TMA, ICA, IAA (Anti-Insulin), GAD 65, Anti-IA2, *ZnT8, Anti-MPO IgG, *Anti-PR3 IgG, *Anti-GBM IgG, *Anti-Cardiolipin IgG, *Anti-Cardiolipin IgM, *Anti-Cardiolipin IgA, *β2-Glycoprotein I IgG, *β2-Glycoprotein I IgM, *β2-Glycoprotein I IgA, *Anti-ITG IgA, *Anti-ITG IgG, *DGP IgA, *DGP IgG

Hypertension

Direct Renin, Aldosterone, Angiotensin I, Angiotensin II, Cortisol, ACTH

Immunoglobulins

IgM, IgA, IgE, IgG

Tumor Markers

AFP, CEA, Total PSA, f-PSA, CA 125, CA 15-3, CA 19-9, PAP, CA 50, CYFRA 21-1, CA 242, CA 72-4, NSE, S-100, SCCA, TPA-snibe, ProGRP, HE4, HER-2, PIVKA-II

Infectious Disease

HBsAg, Anti-HBs, HBeAg, Anti-HBe, Anti-HBc, Anti-HBc IgM, Anti-HCV, Syphilis, Anti-HAV, HAV IgM, *HEV IgG, HIV Ab/Ag Combi, Chagas, HTLV I+II, H. pylori IgG, H. pylori IgA, H. pylori IgM, 2019-nCoV IgG, 2019-nCoV IgM, SARS-CoV-2 S-RBD IgG, SARS-CoV-2 Neutralizing Antibody, SARS-CoV-2 Ag, Monkeypox Virus Ag, Dengue Virus IgG, Dengue Virus NS1, *Dengue Virus IgM, *Chlamydia Pneumoniae IgG, *Chlamydia Pneumoniae IgM, *Mycoplasma pneumoniae IgG, *Mycoplasma pneumoniae IgM

Veterinary Testing

*cTSH, *cTT4, *vFT4

Glyco Metabolism

C-Peptide, Insulin, GAD 65, Anti-IA2, ICA, IAA (Anti-Insulin), Proinsulin, *Glucagon, *ZnT8

Cardiac Markers

CK-MB, Troponin I, Myoglobin, hs-cTnI, hs-CRP, H-FABP, NT-proBNP, BNP, D-Dimer, Lp-PLA2, MPO, *HCY, *hs-cTnI (STAT), *NT-proBNP (STAT), *Myoglobin (STAT), *D-Dimer (STAT)

Coagulation Markers

D-Dimer, *TAT, *PIC, *tPAIC

Metabolism

Pepsinogen I, Pepsinogen II, Gastrin-17, GH (hGH), IGF-I, IGFBP-3

Prenatal Screening

AFP (Prenatal Screening), free β-HCG, PAPP-A, free Estriol

Anemia

Vitamin B12, Ferritin, Folate (FA), EPO, RBC Folate

Drug Monitoring

Digoxin, CSA (Cyclosporine A), FK 506 (Tacrolimus)

Bone Metabolism

Calcitonin, Osteocalcin, 25-OH Vitamin D, Intact PTH, β-CTx, total P1NP

*Available soon

---

Technical Specifications

---

Why Choose MAGLUMI X6?

• Highest Throughput in Its Class: 450 tests/hour with exceptional area efficiency—ideal for medium to high-volume labs

• Flexible Scalability: Sample capacity expands from 112 to 412 with a simple upgrade; multiple modules can be integrated

• Walk-Away Productivity: Up to 2,000 walk-away tests reduces hands-on time and improves workflow efficiency

• Revolutionary X-Tech Platform: Patented pipetting with disposable filtered tips eliminates cross-contamination

• Future-Ready Automation: Seamlessly integrates with Laboratory Automation Systems (TLA/LAS) for total lab automation

• Versatile Wash Liquid Preparation: Choose automatic or manual mixing based on your laboratory infrastructure

• Comprehensive Test Menu: One of the world's largest CLIA test menus with 211+ parameters, including veterinary testing

• Reagent Compatibility: Fully compatible with all MAGLUMI reagents and consumables

• User-Friendly Operation: One-side operation, intelligent UI, indicator lights, and self-recovery functions minimize user burden

• Remote Support: SnibelLinker™ remote diagnostic system ensures fast response and minimal downtime
