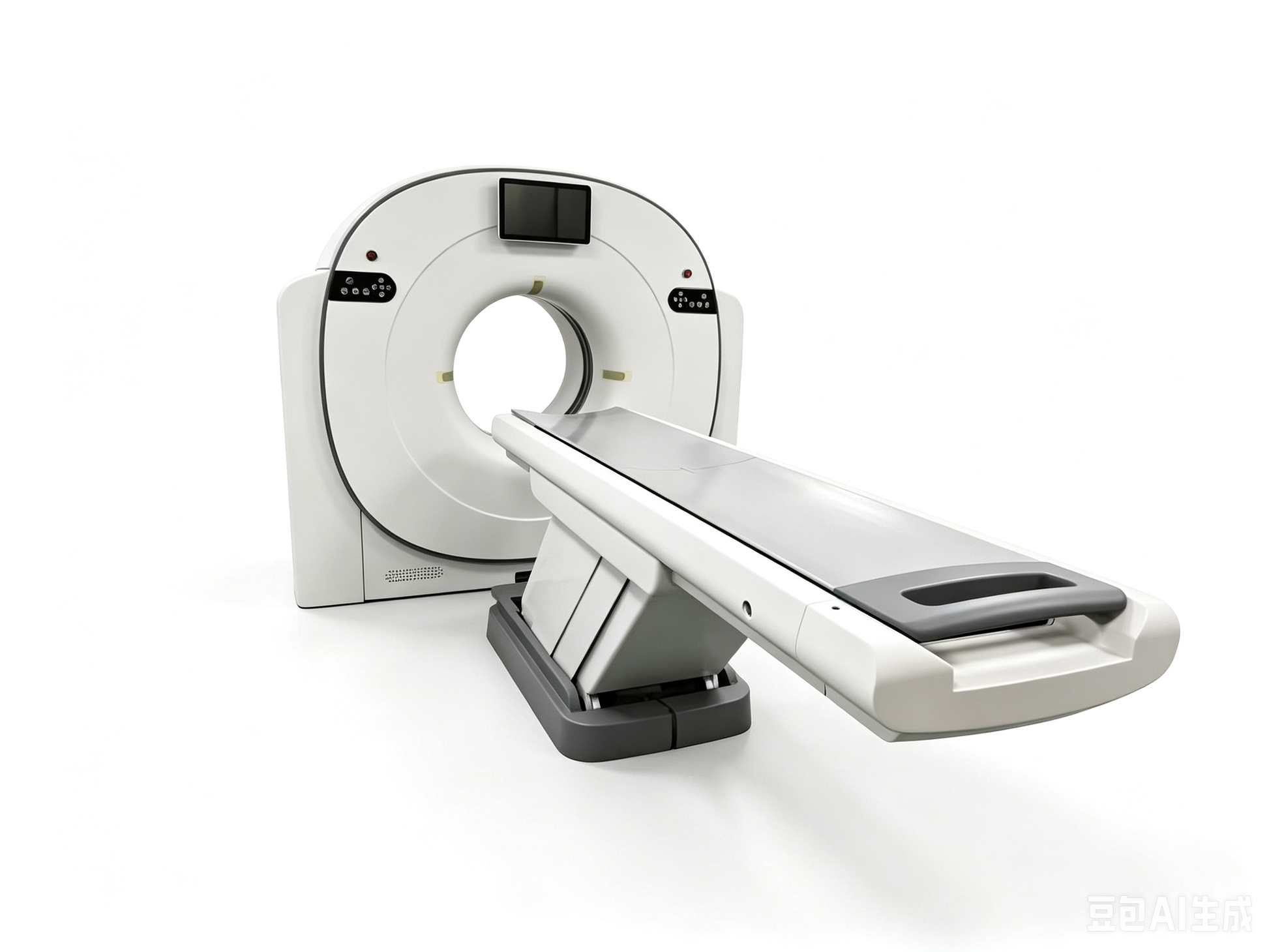

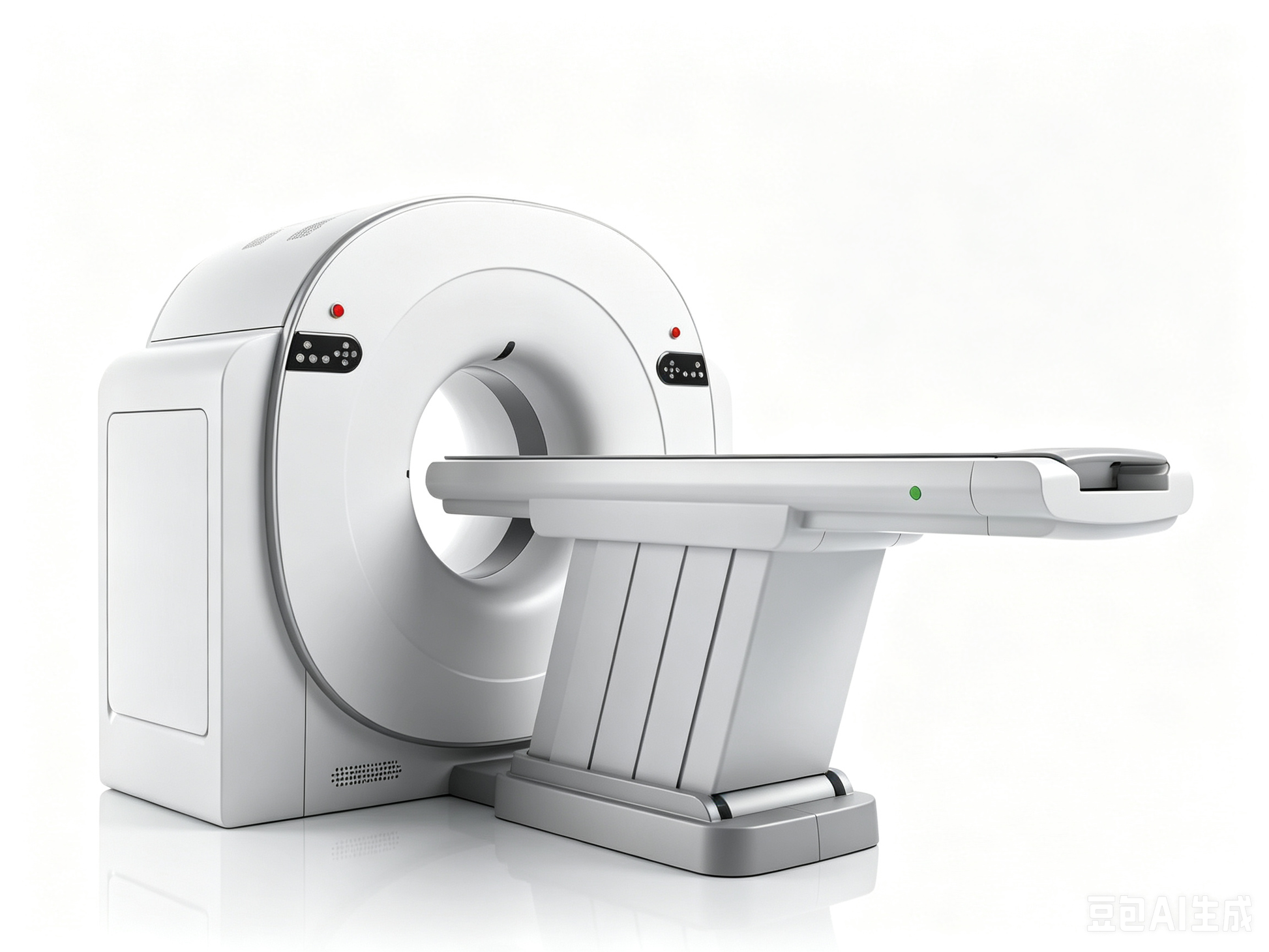

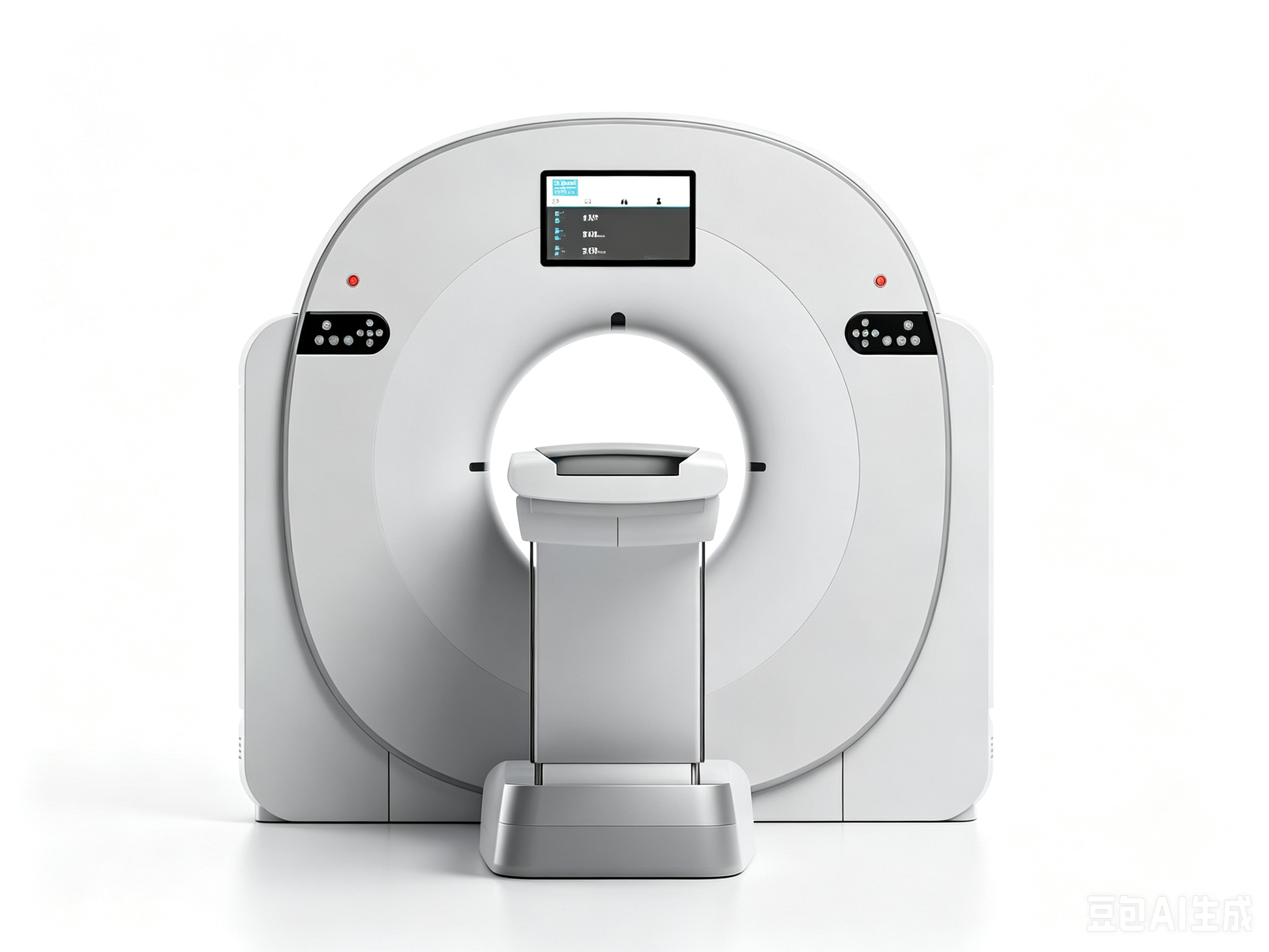

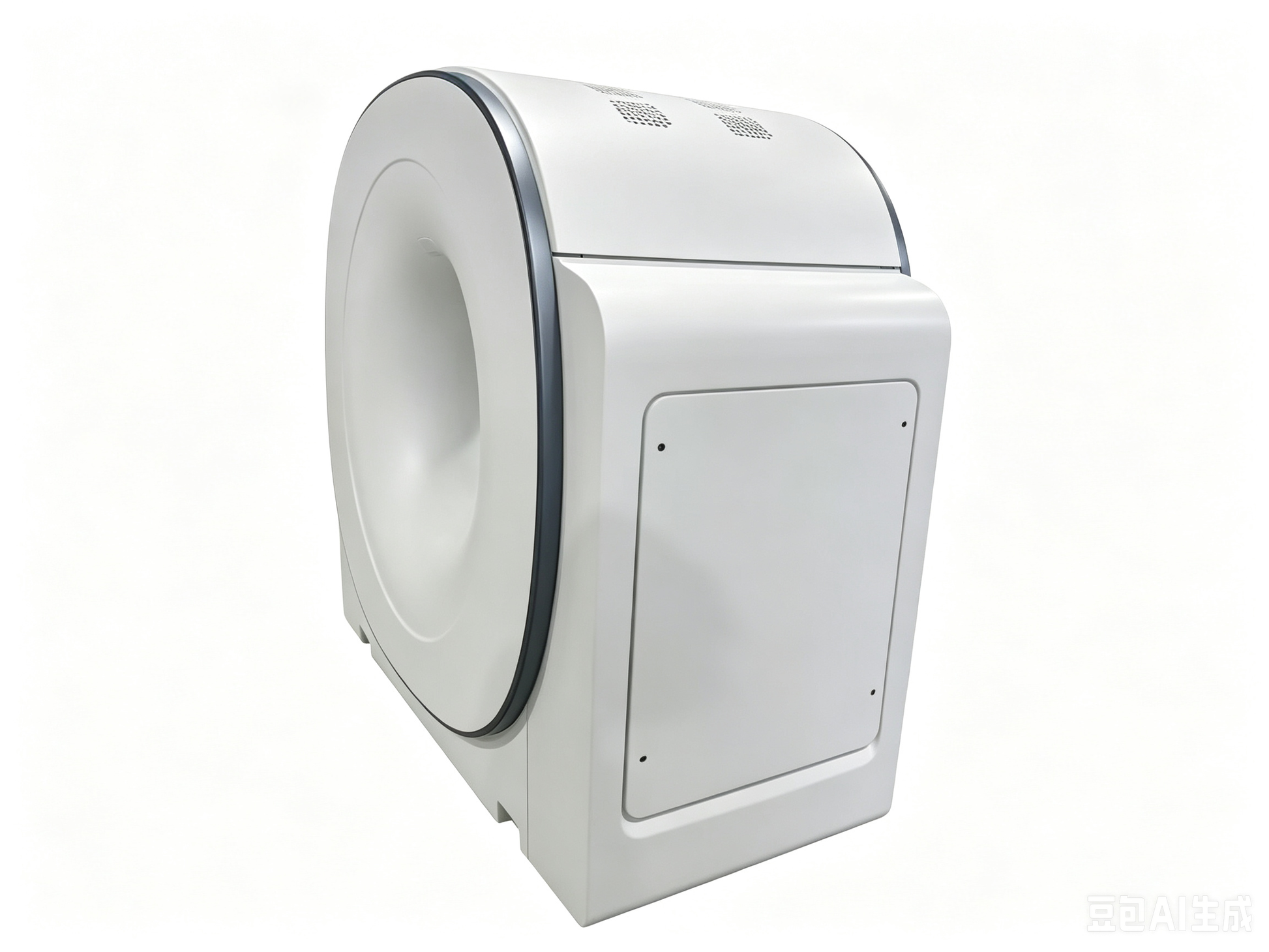

OCEAN 64S CT | 64‑Slice CT Scanner with 0.5s Rotation & Low‑Dose Imaging

64‑slice CT scanner with 0.5s rotation, 5.0 MHU tube, 50kW generator, and advanced low‑dose technology. Ideal for emergency, oncology, and high‑throughput clinical applications.

The Global Healthcare Medical OCEAN 64S CT is a 64‑slice computed tomography system engineered to deliver high‑end performance with cost‑friendly efficiency. Featuring a 0.5‑second rotation speed, a 5.0 MHU tube, and a 50 kW high‑voltage generator, this system is ready for all‑day operation with superior thermal dissipation and stable energy output.

With a 70 cm wide‑bore design, 20 mm Z‑coverage, and advanced Clarity workflow ensuring precise detection and auto‑correction throughout scanning, the OCEAN 64S CT offers a full range of clinical solutions to meet current and future diagnostic needs. Powered by world‑leading technologies inherited from a precision technology platform, this system achieves lower dose and lower consumption but higher image quality—making it an ideal choice for hospitals, imaging centers, and emergency departments seeking a versatile, cost‑efficient CT solution.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ High‑Speed Imaging – 0.5s Rotation & 20 mm Z‑Coverage

The OCEAN 64S CT features a 0.5 r/s rotation speed that effectively mitigates respiratory and motion artifacts in medical imaging. This high‑speed scanning capability, combined with 20 mm Z‑coverage, enables:

• Reduced breath‑hold time – Improves patient comfort and compliance

• Minimized motion artifacts – Sharper images for all patient populations

• Higher patient throughput – More scans per day without compromising quality

🔥 Superior Thermal Performance – 5.0 MHU Tube & 50 kW Generator

The OCEAN 64S CT is built for all‑day operation with robust thermal management:

Superior thermal dissipation enables cost‑effective, high‑performance operation. The system supports 100‑second continuous helical scanning with stable energy output, ensuring consistent image quality.

🏗️ Wide‑Bore Design – 70 cm Aperture & Extended‑Travel Bed

The 70 cm wide‑bore design provides:

• Enhanced patient comfort – Accommodates bariatric and claustrophobic patients

• Flexible positioning – Supports all scanning situations

• Improved accessibility – Easier patient setup and positioning

The extended‑travel scanning bed enables full‑body coverage in a single pass.

🖼️ Low Dose & Low Noise – Crystal‑Grade Imaging

The OCEAN 64S CT adopts world‑leading technologies inherited from a precision technology platform:

• Iterative reconstruction technology – Achieves lower dose and lower consumption but higher image quality

• Automatic mA technology – Automatically controls tube current to maintain constant image noise while lowering dose

• Low dose and low noise scanning – Achieved without compromising image quality

• Crystal‑grade modules and precision manufacturing – Delivers 360° artifact‑free imaging

📊 High‑Performance Technical Specifications

🩺 Comprehensive Clinical Applications

Fast, precise, and low‑dose imaging technologies provide a full range of clinical solutions to meet current and future clinical diagnostic needs. The OCEAN 64S CT is suitable for:

🔧 Installation & Support Services

The OCEAN 64S CT comes with comprehensive installation and training services:

• Delivery/Lead Time – Approximately 7–30 days

• Warranty – 1 year for machine

• Custom‑Make/OEM/ODM – Available with logo silk‑printing and customized packaging

• On‑site measurement and installation – Available upon request

• Payment Terms – T/T, L/C

• Trade Terms – EXW, FCA, FOB, C&F, CIF, DDU, DDP

• Shipment Methods – By courier, air, sea, car, and railway

What's Included

• OCEAN 64S CT Main System

• 70 cm Wide‑Bore Gantry

• 64‑Slice Detector with 20 mm Z‑Coverage

• 5.0 MHU X‑Ray Tube

• 50 kW High‑Voltage Generator

• Clarity Workflow Software

• Automatic mA Technology

• Iterative Reconstruction Technology

• Patient Table with Extended Travel

• System Control Console

• Installation and Training Support

• User Manual and Service Manual

Applications

The OCEAN 64S CT is suitable for:

• Hospitals & Medical Centers – Comprehensive diagnostic imaging across all departments

• Emergency & Trauma Centers – Rapid whole‑body trauma assessment

• Outpatient Imaging Centers – High‑throughput diagnostic imaging

• Community Hospitals – Versatile, cost‑effective CT imaging

• Oncology Centers – Tumor detection, staging, and monitoring

• Orthopedic Clinics – High‑resolution bone and joint imaging

• Neurology Departments – Brain imaging and stroke assessment

Why Choose the OCEAN 64S CT?



FAQ

Q: What is the OCEAN 64S CT?

A: The OCEAN 64S CT is a 64‑slice computed tomography system featuring a 0.5‑second rotation speed, 5.0 MHU tube, 50 kW generator, and advanced low‑dose technologies for comprehensive diagnostic imaging.

Q: What is the rotation speed?

A: The system features a 0.5 r/s rotation speed, effectively mitigating respiratory and motion artifacts.

Q: What is the bore size?

A: The system features a 70 cm wide‑bore design for patient comfort and flexibility.

Q: What is the tube heat capacity?

A: The system features a 5.0 MHU tube with a cooling rate of 862 kHU/min.

Q: What is the generator power?

A: The system is powered by a 50 kW high‑voltage generator.

Q: What is the Z‑coverage?

A: The system offers 20 mm Z‑coverage.

Q: Does the system support low‑dose imaging?

A: Yes. The OCEAN 64S CT features automatic mA technology and iterative reconstruction to achieve low dose and low noise scanning without compromising image quality.

Q: What is Clarity workflow?

A: Clarity workflow is an intelligent imaging platform that ensures precise detection and auto‑correction throughout scanning.

Q: What clinical applications does the system support?

A: The OCEAN 64S CT supports emergency & trauma, oncology, neurology, pulmonary, orthopedics, vascular, and abdominal/pelvic imaging.

Q: What is the delivery lead time?

A: The delivery lead time is approximately 7–30 days, depending on quantity and request.

Q: What is the warranty period?

A: The system comes with a 1‑year warranty for the machine.

Q: Can the system be customized?

A: Yes. We accept Custom‑make/OEM/ODM services, including silk‑printing your logo on the product and printing your company information on the nameplate and packaging.
