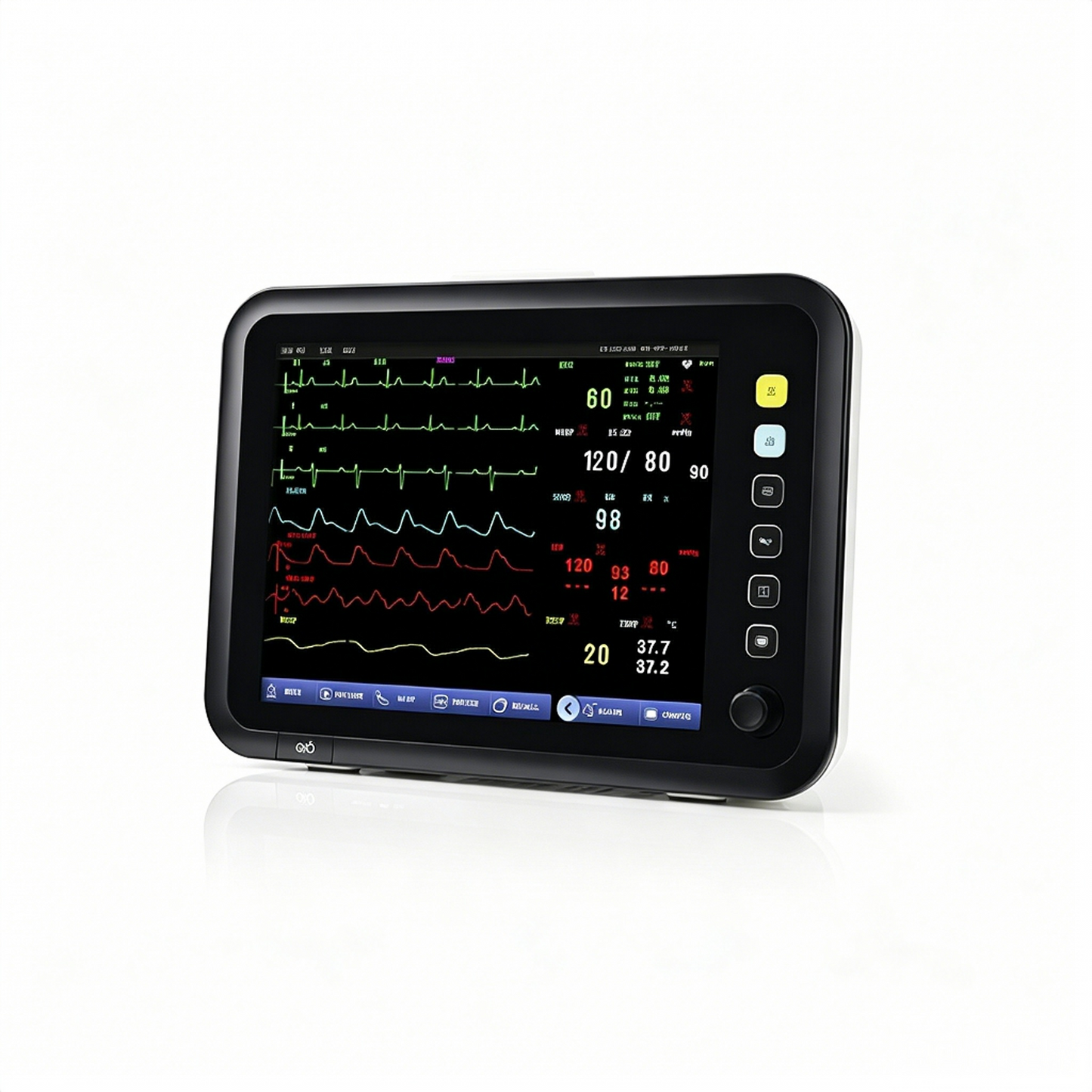

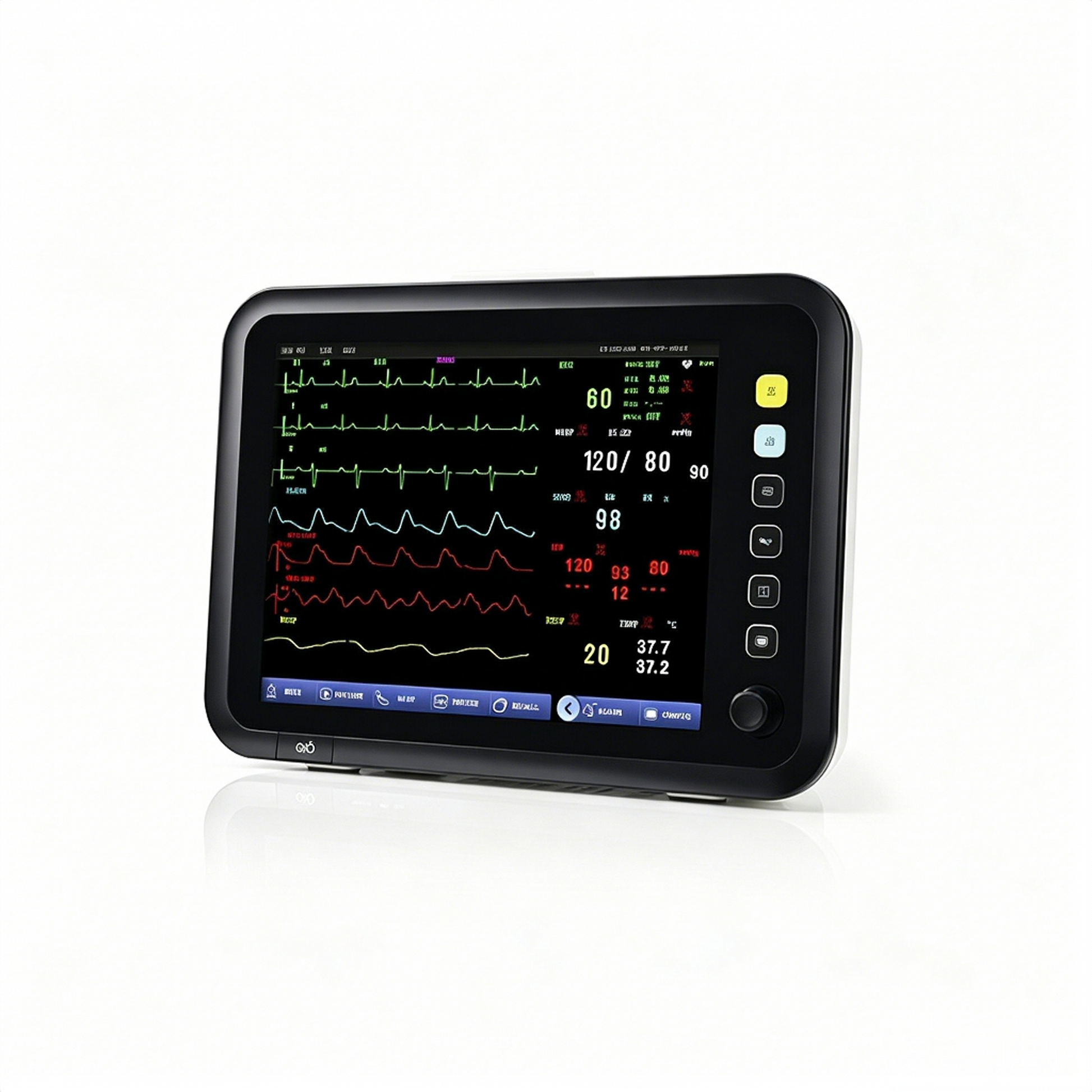

Patient Monitor | 12.1" Clinical Assessment Monitor with WiFi Central Monitoring
Patient Monitor | 12.1" Clinical Assessment Monitor with WiFi Central Monitoring
12.1" patient monitor for clinical assessments with ECG, SpO2, NIBP, RESP & TEMP. 240‑hour trend storage, WiFi central monitoring, and 4kg lightweight design. Ideal for ED, ICU, and general wards.
The Global Healthcare Medical YK-8000C Patient Monitor is an advanced multi‑parameter monitor tailored for clinical functional assessments—ideal for in‑depth vital sign tracking and health status evaluation in clinical settings. Featuring a 12.1‑inch color LCD display, this lightweight monitor (just 4kg) delivers real‑time, accurate tracking of ECG, SpO₂, NIBP, RESP, TEMP, and PR/HR—providing clinicians with the critical data they need for comprehensive patient assessments.
Designed for versatility, the YK‑8000C suits both adult and pediatric patients. Its compact, durable construction and built‑in rechargeable lithium battery ensure reliable performance across emergency departments, ICUs, general wards, and during patient transport.
This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.
Key Features
🏥 Advanced Patient Monitor for Clinical Functional Assessments
The YK‑8000C is purpose‑built for clinical assessments and health status evaluation:
-
Precise monitoring of core parameters – ECG for heart activity, NIBP for non‑invasive blood pressure, SpO₂ for blood oxygen levels
-
Multi‑channel waveform display – Comprehensive data visualization for accurate assessment
-
ST‑segment analysis – Real‑time cardiac monitoring
-
Recording and returning electrocardiogram waveforms – Enhanced diagnostic capabilities
🖥️ 12.1‑Inch Color LCD Display
The 12.1‑inch color LCD display delivers clear, intuitive data visualization for rapid assessment. The system supports:
-
Multi‑channel waveform display – Comprehensive patient data view
-
ST‑segment analysis – Continuous cardiac monitoring
-
Adjustable alarm sounds – Customizable alerts for clinical flexibility
-
Recording and returning ECG waveforms – Enhanced diagnostic capabilities
📊 Comprehensive 6‑Parameter Monitoring (with Optional Expansion)
The YK‑8000C continuously tracks six key vital signs in real time:
Standard Parameters:
-
ECG – Electrocardiogram with real‑time waveform display
-
SpO₂ – Blood oxygen saturation
-
NIBP – Non‑invasive blood pressure
-
RESP – Respiration rate
-
TEMP – Body temperature
-
PR/HR – Pulse rate / Heart rate
Optional Parameters:
-
ETCO₂ – End‑tidal carbon dioxide (capnography)
-
Nellcor SpO₂ – Advanced SpO₂ monitoring
-
2‑IBP – Invasive blood pressure (2 channels)
-
Built‑in Recorder – Thermal printer for real‑time waveform printing
-
Touch Screen – Intuitive operation
📶 WiFi Central Monitoring with Smart IT Solutions
The YK‑8000C enables wireless integration with a Central Monitoring Station for seamless oversight:
-
240‑hour dynamic trend storage – Comprehensive patient history review
-
Anytime, anywhere data access – Review and manage patient data in‑hospital or pre‑hospital
🔋 Reliable Power Supply with Battery Backup
The YK‑8000C ensures uninterrupted monitoring during transport and emergencies:
-
AC 100‑240V, 50/60Hz – Global power compatibility
-
Built‑in rechargeable 11.1V 24Wh Li‑ion battery
-
Data power‑off storage – Preserves patient data even during power interruptions
🔌 Complete Accessory Package
The YK‑8000C comes fully equipped for immediate use:
👶 Versatile Patient Population
The YK‑8000C is designed for both adult and pediatric patients, delivering consistent performance across diverse clinical settings.
🛡️ Premium Safety Certifications
The YK‑8000C meets rigorous international safety standards:
-
CE – European conformity
-
ISO13485 – Medical device quality management
-
FSC – Forest Stewardship Council
-
ISO9001 – Quality management systems
Specifications
| Feature | Specification |
|---|---|
| Product Type | Multi‑parameter Patient Monitor |
| Model | YK‑8000C |
| Display | 12.1‑inch Color LCD |
| Standard Parameters | ECG, SpO₂, NIBP, RESP, TEMP, PR/HR |
| Optional Parameters | ETCO₂, Nellcor SpO₂, 2‑IBP, Recorder, Touch Screen, Trolley, Wall Mount |
| Patient Population | Adult, Pediatric |
| Waveform Display | Multi‑channel |
| Analysis Functions | ST‑segment analysis, ECG recording and playback |
| Trend Storage | 240‑hour dynamic trends |
| Central Monitoring | WiFi wireless integration, up to 64 beds |
| Power Supply | AC 100‑240V, 50/60Hz |
| Battery | Built‑in rechargeable 11.1V 24Wh Li‑ion battery |
| Max Input Power | 70VA |
| Weight | 4kg (device) |
| Device Dimensions | 305 × 162 × 290mm |
| Package Dimensions | 380 × 350 × 300mm |
| Package Weight | 4.5kg |
| Shock Resistance | CF type |
| Fuse | F2AL250V |
| Certifications | CE, ISO13485, FSC, ISO9001 |
| Origin | Jiangsu, China |
Why Choose the YK‑8000C?
| Standard Patient Monitors | Global Healthcare Medical YK‑8000C |
|---|---|
| Smaller displays | 12.1" color LCD for clear visualization |
| Basic data storage | 240‑hour trend storage |
| Standalone operation | WiFi central monitoring with 64‑bed capacity |
| Limited ECG analysis | ST‑segment analysis + ECG recording/playback |
| Heavy, bulky design | Lightweight (4kg), compact footprint |
| Single patient population | Adult and pediatric patients |
Applications
The YK‑8000C Patient Monitor is suitable for:
-
Clinical Functional Assessments – In‑depth vital sign tracking and health status evaluation
-
Emergency Departments (ED) – Rapid triage and patient assessment
-
Intensive Care Units (ICU) – Critical care monitoring with 240‑hour trend storage
-
General Wards – Routine vital signs monitoring
-
Operating Rooms (OR) – Intraoperative vital signs tracking
-
Post‑Anesthesia Care Units (PACU) – Recovery monitoring
-
Ambulance & Emergency Transport – Portable monitoring with battery backup
-
Community Clinics – Adult and pediatric health screening
FAQ
Q: What is the YK‑8000C Patient Monitor?
A: The YK‑8000C is an advanced multi‑parameter monitor tailored for clinical functional assessments, featuring a 12.1‑inch color LCD display and comprehensive vital signs monitoring for in‑depth patient evaluation.
Q: What parameters does the YK‑8000C monitor?
A: The YK‑8000C monitors ECG, SpO₂, NIBP, RESP, TEMP, and PR/HR as standard. Optional parameters include ETCO₂, Nellcor SpO₂, and 2‑IBP.
Q: What type of display does the YK‑8000C have?
A: The YK‑8000C features a 12.1‑inch color LCD display for clear, intuitive data visualization.
Q: What patient populations is the YK‑8000C suitable for?
A: The YK‑8000C is suitable for both adult and pediatric patients.
Q: Does the YK‑8000C have a battery?
A: Yes. The YK‑8000C features a built‑in rechargeable 11.1V 24Wh Li‑ion battery for uninterrupted monitoring during transport and power outages.
Q: Can the YK‑8000C connect to a central monitoring system?
A: Yes. The YK‑8000C supports WiFi wireless integration with central monitoring stations, storing up to 240 hours of dynamic trends and displaying up to 64 beds on a single platform.
Q: What is the weight of the YK‑8000C?
A: The YK‑8000C weighs 4kg (device), making it lightweight and portable for various clinical settings.
Q: What certifications does the YK‑8000C have?
A: The YK‑8000C is CE, ISO13485, FSC, and ISO9001 certified.
Q: What clinical settings is the YK‑8000C suitable for?
A: The YK‑8000C is suitable for clinical functional assessments, emergency departments, ICUs, general wards, operating rooms, PACUs, ambulance transport, and community clinics.
Q: What is included in the package?
A: The package includes the YK‑8000C main unit, ECG cable, SpO₂ sensor, temperature sensor, NIBP cuff and tube, power cord, ground wire, and user manual.
