PE-E6A 6-Channel ECG Machine | 10.4" Touch Screen ECG Monitor with AI Analysis

6-channel 12-lead ECG machine with 10.4" touch screen, AI-powered analysis, WiFi/LAN connectivity, and 4400mAh battery. Ideal for CCU, hospitals, and clinics.

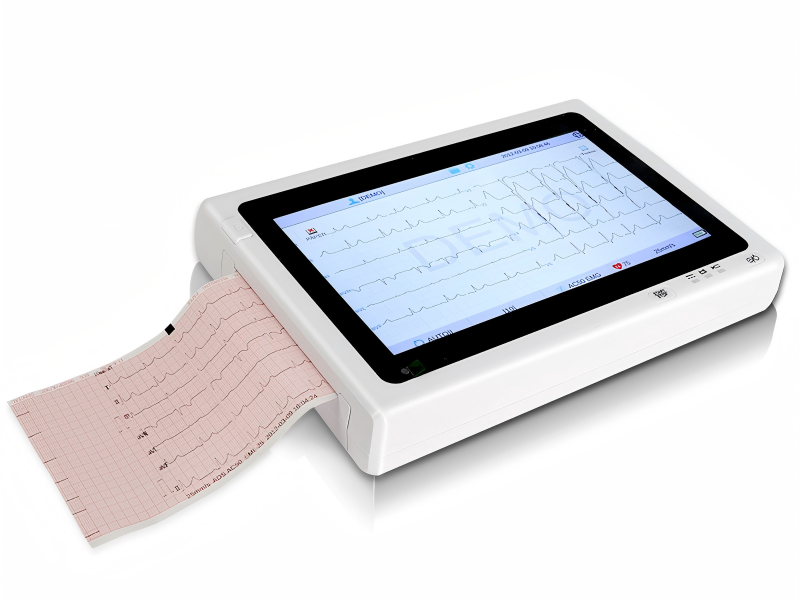

The Global Healthcare Medical PE-E6A 6-Channel ECG Machine is a professional electrocardiograph engineered for critical care environments such as CCUs, ICUs, and cardiac wards. Featuring a 10.4-inch color LCD touch screen with 1024×600 resolution, this 6-channel ECG monitor delivers hospital-grade cardiac diagnostics in a sleek, tablet-style design.

With simultaneous 12-lead acquisition, 6-channel output, AI-powered automatic analysis, and a built-in rechargeable 4400mAh battery, the PE-E6A combines advanced cardiac analysis with exceptional portability. Its network printing capability supports any printer model, while LAN/Wi-Fi/Mobile Full Netcom connectivity enables seamless data transmission to PCs and hospital systems.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

🫀 6-Channel ECG with 12-Lead Simultaneous Acquisition

The PE-E6A collects all 12 leads simultaneously with 6-channel output, providing comprehensive cardiac data for accurate assessments. Advanced digital filters—including AC Filter (off/50/60Hz), Baseline Drift Filter, and EMG Filter (25/45/100/150Hz)—effectively eliminate interference, delivering high-quality, artifact-free ECG waveforms.

🖥️ 10.4‑Inch Touch Screen & Tablet Design

The 10.4-inch color LCD touch screen with 1024×600 resolution delivers clear, vibrant waveform visualization. The sleek tablet design is tailored for CCU environments, offering exceptional user experience with optional touch screen functionality.

🤖 AI‑Powered Cardiac Analysis

The PE-E6A elevates cardiac care with smart AI-powered analysis features:

• AI analysis diagnosis – Automatic ECG measurement and analysis technology evaluates every heartbeat

• Intelligent waveform filtering – Automatically removes poor-quality waveforms, ensuring accurate results

• Auto-measurement & analysis – Streamlines parameter processing, reducing manual workload

🖨️ Flexible Network Printing

The PE-E6A supports network printing service compatible with any printer model. Bluetooth printer compatibility enables on-the-spot report printing in CCUs.

🌐 Seamless Connectivity & Data Management

Designed for efficient data management, the PE-E6A supports:

• LAN/Wi-Fi/Mobile Full Netcom – Real-time data transmission to PCs and hospital systems

• Multiple export formats – JPG, PDF, PNG, XML, and DICOM variants (JPG, PDF, WAVEFORM)

• Bi-directional DMS communication – Streamlines documentation and reduces administrative burdens

• Worklist appointment management – Import case lists from hospital systems or create new ones

🔋 Long‑Lasting Rechargeable Battery

Powered by a 4400mAh rechargeable battery with 7–8 hours of working time, the PE-E6A ensures extended operation for bedside use, patient rounds, and emergency response.

🛡️ Defibrillation‑Proof & Leakage Protection

The PE-E6A features floating input mode with built-in anti-fibrillation protection (±900mV polarization voltage). Leakage protection (≤10µV patient leakage current) further enhances safety, meeting rigorous clinical standards.

📦 Ultra‑Slim, Portable Design

At ≤49mm thick, this lightweight monitor breaks free from traditional bulky electrocardiographs, offering easy portability for bedside exams or urgent transfers. The compact tablet design packs multi-module functionality into a portable body, meeting diverse CCU monitoring needs.

📋 Comprehensive Data Storage

• 1000 patient cases (default)

• 400/800 files storage

• Support external USB storage – USB stick, barcode gun, mouse/keyboard, ID card reader

🌍 Multi‑Language Support

The PE-E6A supports 21 languages (optional), catering to global healthcare environments.

Specifications

Applications

The PE-E6A 6-Channel ECG Machine is suitable for:

• Cardiac Care Units (CCU) – Primary cardiac monitoring with AI-powered analysis

• Intensive Care Units (ICU) – Critical care cardiac assessment

• Emergency Departments – Rapid ECG acquisition for critical patients

• Hospitals & Cardiology Wards – Routine and emergency cardiac diagnostics

• Clinics & Medical Offices – Outpatient ECG screening

• Mobile Healthcare – Bedside use, patient rounds, and community health screenings

FAQ

Q: What is the PE-E6A 6-Channel ECG Machine?

A: The PE-E6A is a professional 10.4-inch touch screen electrocardiograph featuring 12-lead simultaneous acquisition, 6-channel output, AI-powered automatic analysis, and network printing capability—ideal for CCU, ICU, and clinical use.

Q: What lead and channel configuration does the PE-E6A support?

A: The PE-E6A supports standard 12-lead acquisition with 6-channel output.

Q: Does the device provide AI-powered analysis?

A: Yes. The PE-E6A features AI analysis diagnosis with ECG automatic measurement and analysis technology that evaluates every heartbeat and intelligently removes poor-quality waveforms for accurate results.

Q: What connectivity options are available?

A: The PE-E6A supports LAN/Wi-Fi/Mobile Full Netcom for network communication, plus USB ports for external devices (USB stick, barcode gun, mouse/keyboard, ID card reader).

Q: What printer options does the PE-E6A support?

A: The PE-E6A supports network printing service compatible with any printer model, plus Bluetooth printer compatibility for on-the-spot report printing.

Q: How long does the battery last?

A: The built‑in 4400mAh rechargeable battery provides 7–8 hours of working time.

Q: How many patient cases can the device store?

A: The PE-E6A stores 1000 patient cases (default) with 400/800 files storage and external USB expansion.

Q: Does the device have defibrillation protection?

A: Yes. The PE-E6A features Class I, Type CF defibrillation-proof safety standard with floating input mode and built-in anti-fibrillation protection.

Q: What export formats are supported?

A: The PE-E6A supports JPG, PDF, PNG, XML, and DICOM variants (JPG, PDF, WAVEFORM).

Q: What is the thickness of the device?

A: The PE-E6A is ≤49mm thick, offering exceptional portability for bedside exams and urgent transfers.
