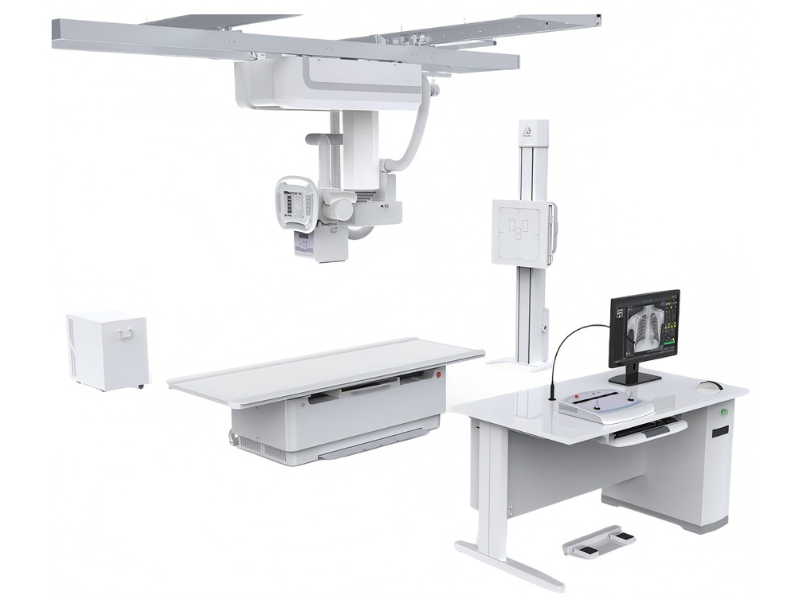

Perlove Ceiling Mounted Dynamic DRF System PLD7600F

Ceiling Mounted Design with High-Resolution Wireless Dynamic Detector – Exceptional Image Quality
The PLD7600F features a ceiling mounted tube assembly with a wireless dynamic DRF1717W flat panel detector (100μm pixel pitch) and a SYC30E lifting bed, offering ultra-fine detail, cable-free convenience, and exceptional coverage for both radiographic and fluoroscopic examinations.

High-Power Generator for Superior Performance
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized radiation dose for demanding clinical applications.

Comprehensive Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–800mA

• Radiography mAs: 0.1–800mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–20mA

• Pulsed Fluoroscopy Current: 5–40mA

Supports both standard radiography and dynamic fluoroscopic imaging in one integrated system.

Canon X-Ray Tube – High Thermal Capacity

• Model: E7254FX

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 400kHu

• Tube heat capacity: 1339kHu

• Anode speed: 9700rpm

Engineered for sustained high workload with excellent thermal management and long tube life.

High-Resolution Wireless Dynamic Detector – 100μm Pixel Pitch

• Detector model: DRF1717W (dynamic wireless)

• Detector size: 17"x17"

• Pixel pitch: 100μm (ultra-fine)

• Pixel matrix: 4352×4352

• Spatial resolution: 5.01 lp/mm

• Gray scale: 16-bit

• Effective coverage: 430mm × 430mm

The wireless design with ultra-fine pixel pitch captures both static radiographic images and real-time fluoroscopic sequences with exceptional detail — no cable management required.

Ergonomic Lifting Bed (SYC30E) for Patient Comfort

• Load capacity: 200kg

• Lifting range: 560mm – 880mm (320mm total)

• Longitudinal travel: 1000mm

• Horizontal travel: 260mm

• Box moving longitudinal stroke: 500mm

Easily adjust bed height for patient comfort, accessibility, and operator convenience.

Comprehensive Ceiling Mounted Positioning

• Suspension lateral travel: ≥1950mm

• Suspension longitudinal travel: ≥2250mm

• Suspension vertical travel: ≥1500mm

• Tube assembly rotation around transverse arm: ±120°

• Ball column rotation: ±135°

• Chest stand vertical travel: ≥1500mm

Provides full coverage of all standard radiographic and fluoroscopic projections with effortless overhead tube positioning.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 200 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner, more diagnostic images.

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
